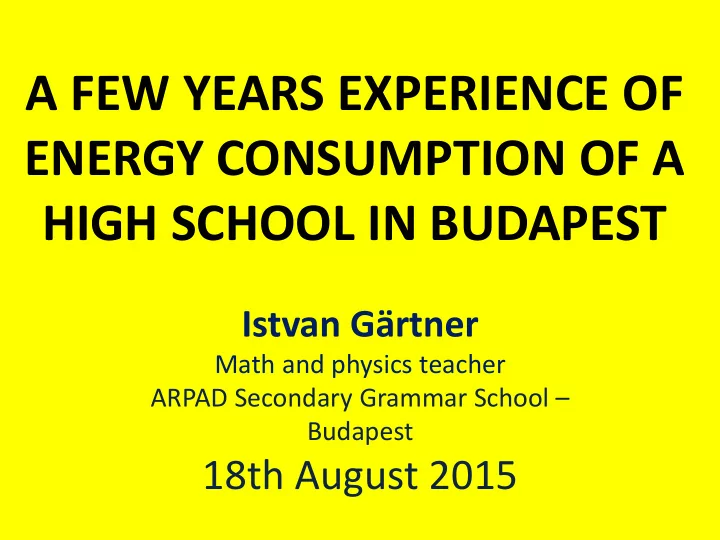

A FEW YEARS EXPERIENCE OF ENERGY CONSUMPTION OF A HIGH SCHOOL IN BUDAPEST
Istvan Gärtner
Math and physics teacher ARPAD Secondary Grammar School – Budapest
ARPAD Secondary Grammar School – 2015 (founded in 1902)
A FEW YEARS EXPERIENCE OF ENERGY CONSUMPTION OF A HIGH SCHOOL IN - - PowerPoint PPT Presentation
A FEW YEARS EXPERIENCE OF ENERGY CONSUMPTION OF A HIGH SCHOOL IN - - PowerPoint PPT Presentation
A FEW YEARS EXPERIENCE OF ENERGY CONSUMPTION OF A HIGH SCHOOL IN BUDAPEST Istvan Grtner Math and physics teacher ARPAD Secondary Grammar School Budapest 18th August 2015 ARPAD Secondary Grammar School 2015 (founded in 1902) Aims
SLIDE 2
SLIDE 3
Aims of this work
Presentation of the energy data – appearance in the field of education The analysis of the data Interpretation of the data using didactic examples Energy-saving options
SLIDE 4
Features of the building
- No air-conditioning
- Central heating – District Heating
Plants of Budapest
- Electric power – Budapest Electricity
Works Company
SLIDE 5
Data for energy consumption
Consumption of electrical and thermal energy - based on meter readings Period: April 2012 – March 2015 All types of energy in GJ unit Show details: Annual and quarterly data charts Energy values per class and per capita
SLIDE 6
ANALYSIS AND INTERPRETATION OF DATA
Consumption of Energy
663 737 721 2779 2250 2836
500 1000 1500 2000 2500 3000 04/2012 - 03/2013 04/2013 - 03/2014 04/2014 - 03/2015
Year Energy value (GJ)
Electrical energy Thermal energy
SLIDE 7
- ratio of electrical and thermal energy → 1:4
↓ 1:3 ↓ mild winter (2013-14) – temperature 2.5°C higher than the average
- electrical energy consumption increased
↓ new IT room
SLIDE 8
Consumption of energy
136 97 222 208 62 14 1154 1549
200 400 600 800 1000 1200 1400 1600 1800 04/2012 - 06/2012 07/2012 - 09/2012 10/2012 - 12/2012 01/2013 - 03/2013
Year Energy value (GJ)
Electrical energy Thermal energy
SLIDE 9
Consumption of energy
170 115 219 233 128 7 881 1234
200 400 600 800 1000 1200 1400 04/2013 - 06/2013 07/2013 - 09/2013 10/2013 - 12/2013 01/2014 - 03/2014
Year Energy value (GJ)
Electrical energy Thermal energy
SLIDE 10
Consumption of energy
156 116 207 241 129 20 1027 1660
200 400 600 800 1000 1200 1400 1600 1800 04/2014 - 06/2014 07/2014 - 09/2014 10/2014 - 12/2014 01/2015 - 03/2015
Year Energy value (GJ)
Electrical energy Thermal energy
SLIDE 11
- periodicity
- separable seasons
- 5-7 times more thermal energy
was used in autumn and in winter
SLIDE 12
Cumulative annual energy value per class and per capita
Energy value per class (GJ)
156,45 135,77 161,68
120,00 125,00 130,00 135,00 140,00 145,00 150,00 155,00 160,00 165,00 04/2012 - 03/2013 04/2013 - 03/2014 04/2014 - 03/2015
Year
Energy value per capita (GJ)
5,15 4,53 5,25
4,00 4,20 4,40 4,60 4,80 5,00 5,20 5,40 04/2012 - 03/2013 04/2013 - 03/2014 04/2014 - 03/2015
Year
≈3000 € ≈ 100 €
SLIDE 13
TASK
- The human body can use 200 kilo calories during 10
minutes on an exercise bike in case of uniform load. Calculate how much work can be done by a high school student during half an hour on it?
SLIDE 14
ANSWER
Q = 600 kcal = 2520 kJ = 2,52 MJ η = 0,25 (Source: Internet) W = η * Q = 0,25 * 2,52 MJ = 0,63 MJ ΣW = 30 * 0,63 MJ = 18,9 MJ What is it sufficient for? ΣW = E = 18,9 MJ = 18900 kJ = 18900000 J P = 900 W t = ΣE / P = 18900000 J / 900 W = 21000 s ≈ 5,83 h
SLIDE 15
Time is needed to produce the energy value per capita
ΣE = 5 GJ = 5000 MJ E = 0,63 MJ x = ΣE / E = 5000 MJ / 0,63 MJ ≈ 7936 half-hour unit Σt ≈ 3968 h ≈ 165 day (without interruption)
Achievable?
SLIDE 16
CONCLUSION
NOT!
↓
Depending on physical condition
↓
About two orders of magnitude difference
SLIDE 17
Energy-saving options
Switching off unnecessary lights?
Central heating → Gas heating? - Is it worth? Alternative sources of energy?
- Geothermal energy
- Photovoltaic system
SLIDE 18
What quantity of burning natural gas would produce as much thermal energy as the school needs in a year?
ΣQ = 2800 GJ = 2800000 MJ η = 0,85 L = 34 MJ/m3 V = ΣQ / (η*L) = 2800000 MJ / (0,85*34 MJ/m3)
≈ 97000 m3
Price is about 72% of total heating costs!
SLIDE 19
PHOTOVOLTAIC SYSTEM
≈30 MWh ≈ 108 GJ
SLIDE 20
SUMMARY
Presented and summarized energy data Interpreted data Compared them with human power → application in physics teaching
Vision – energy-saving options, alternative energy sources → didactic task ↓ raising awareness of students
SLIDE 21
POSSIBLE?
SLIDE 22
