6/12/2015 HAPPY TRAIL CULVERT REPLACEMENT: A Successful Collaboration Between Local and Federal Governments Presented By: KECK & WOOD, INC. Keith Costley, PE John Gast,PE Existing Conditions Road Flooding Multiple Small Culverts

slide-1
SLIDE 1

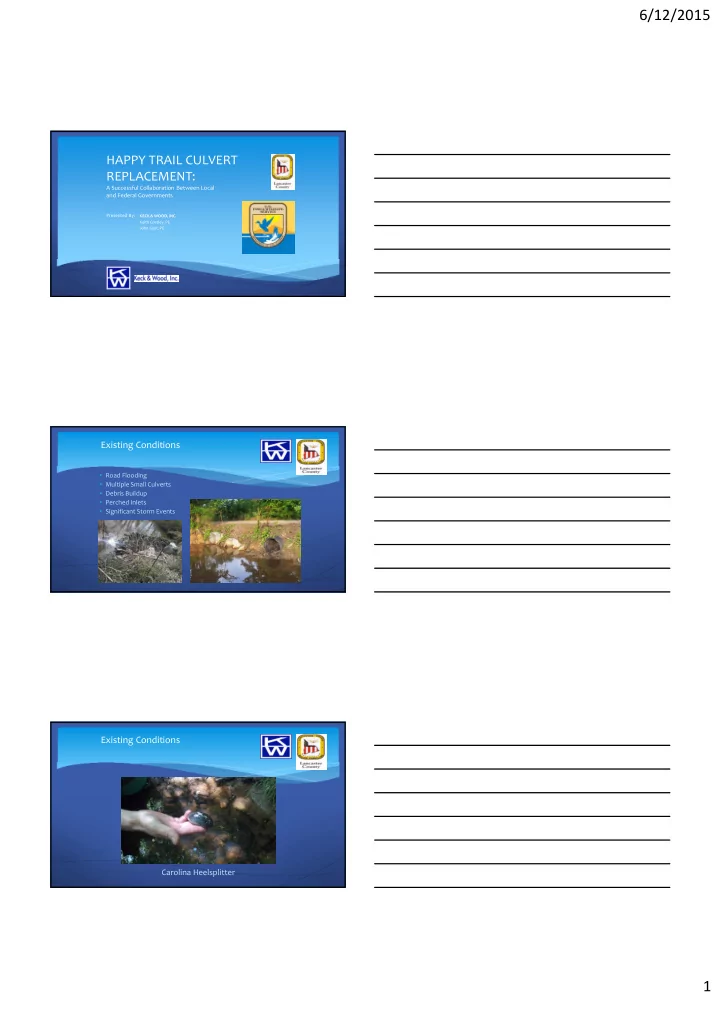

6/12/2015 1

HAPPY TRAIL CULVERT REPLACEMENT:

A Successful Collaboration Between Local and Federal Governments

Presented By: KECK & WOOD, INC. Keith Costley, PE John Gast,PE

Existing Conditions

 Road Flooding  Multiple Small Culverts  Debris Buildup  Perched Inlets  Significant Storm Events

Existing Conditions

Carolina Heelsplitter

slide-2
SLIDE 2

6/12/2015 2

 Federally Listed Endangered Species  Known to or believe to occur in 15 SC counties  Identified by Aquatic Survey  Critical Habitat by USFWS

Carolina Heelsplitter The National Fish Passage Program is a voluntary, non-regulatory initiative that provides funding and technical assistance in all 50 States to reconnect aquatic habitat by eliminating or bypassing barriers.

US FISH & WILDLIFE NATIONAL FISH PASSAGE PROGRAM

Examples of Barriers:  Water Diversions  Dams  Traditional Round Culverts

US FISH & WILDLIFE NATIONAL FISH PASSAGE PROGRAM

slide-3
SLIDE 3

6/12/2015 3

US FISH & WILDLIFE NATIONAL FISH PASSAGE PROGRAM

 Program Initiated in 1999 to Address Structures Built on Rivers and Streams that Impaired Aquatic Life Movement  To Date Restored/Enhanced over 400 Miles of Stream and 75,000 Acres of Wetlands  Annual Budget of $500K to $1.3M  Individual Projects Range from $5K to $200K

Fish Passage Program – Region 4

Before After

Fish Passage Program History

slide-4
SLIDE 4

6/12/2015 4

 Install a Culvert to Pass the 50-Year Storm Event  Minimize Cost Associated with Proposed Improvements  Minimize Impacts to Environmentally Sensitive Areas  Minimize Impacts to Adjacent Properties  Allow for Passage of Fish and other Aquatic Species (Carolina Heelsplitter)

Goals of the Project

 Property Owners  County Staff  County Council  USFWS  ACOE  SCDHEC  Water, Gas & Telecom Utilities

Project Stakeholders

 Funding  Proximity to Critical Habitat  Jurisdictional Waters  Property Owner Access  Storm Intensity  Existing Road Profile

Project Challenges

slide-5
SLIDE 5

6/12/2015 5

Happy Trail Map Existing Conditions Access Issues

slide-6
SLIDE 6

6/12/2015 6

Plan & Profile

 Fish Passage Program Eligibility  Data Collection  Hydrologic Analysis  Hydraulic Analysis  Coordination/Permitting USFWS  Coordination/Permitting ACOE  Coordination USFWS Cost Share/Installation  Installation and Closeout

Project Steps

 Lancaster County

  • Engineering
  • Culvert Materials
  • Stone, Concrete, Erosion Control Materials

 USFWS – Fish Passage Program

  • Labor
  • Installation of Materials

Sharing Costs – Happy Trail

slide-7
SLIDE 7

6/12/2015 7

 Lancaster County

  • Engineering

 USFWS – Fish Passage Program

  • Materials
  • Labor
  • Installation of Materials

Sharing Costs – After Happy Trail Happy Trail Basin SCDOT Regression Equations Hydrologic Analysis

slide-8
SLIDE 8

6/12/2015 8

Culvert Shape / Type

24 Feet Wide by 4.75 Feet Tall

Hydraulic Analysis 2-Year Storm Hydraulic Analysis 10-Year Storm

slide-9
SLIDE 9

6/12/2015 9

Hydraulic Analysis 25-Year Storm Hydraulic Analysis 50-Year Storm Hydraulic Analysis 100-Year Storm

slide-10
SLIDE 10

6/12/2015 10

Construction Photos Construction Photos (looking upstream) Construction Photos

slide-11
SLIDE 11

6/12/2015 11

Project Takeaways

 All Project Goals Were Achieved  Local & Federal Governments Pooled Resources  Better Solution by Working Together  Built Relationships for Future Projects

WIN / WIN

215 Hampton Street, Suite 100 Rock Hill, SC 29730 803-620-1300 www.keckwood.com

THANK YOU
