Photo 1 - Looking east from highway along manhole and culvert drain towards River at Site #1, June 14, 2006. Photo 2 - Looking south at riprap and slide east of highway at Site #1, June 14, 2006. 08\15\85-37 let PH 10 Sites #1 and #2 Photo 3

slide-1
SLIDE 1

08\15\85-37 let PH 10 Sites #1 and #2

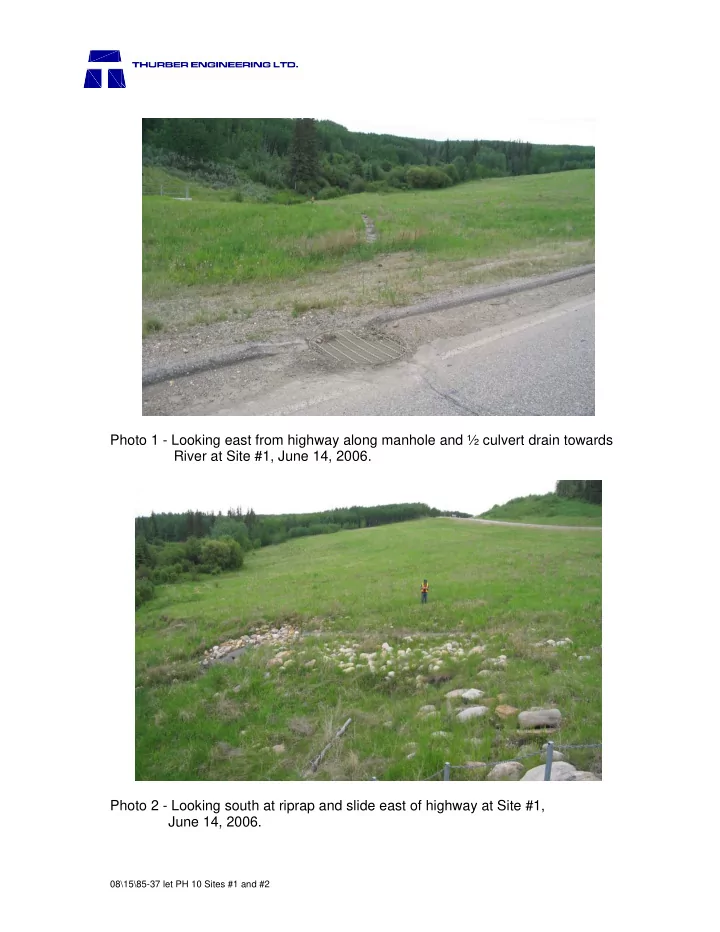

Photo 1 - Looking east from highway along manhole and ½ culvert drain towards River at Site #1, June 14, 2006. Photo 2 - Looking south at riprap and slide east of highway at Site #1, June 14, 2006.

slide-2
SLIDE 2

08\15\85-37 let PH 10 Sites #1 and #2

Photo 3 - Looking southeast along River at slump area east of highway at Site #1, June 14, 2006. Photo 4 - Looking south along highway at slide cracks, patch and dip of Site #2, June 14, 2006.

slide-3
SLIDE 3

08\15\85-37 let PH 10 Sites #1 and #2

Photo 5 - Looking west at backscarp slumping at Site #2, June 14, 2006. Photo 6 - Looking northeast at Site #2 slide area from south side of highway, June 14, 2006.

slide-4
SLIDE 4

08\15\85-37 let PH 10 Sites #1 and #2

Photo 7 - Looking north along scarp crack at northern portion of Site #2 slide area, June 14, 2006. Photo 8 - Looking south at the portion of Site #2 slide area adjacent to River, June 14, 2006.

slide-5
SLIDE 5

08\15\85-37 let PH 10 Sites #1 and #2

Photo 9 - Looking south at the portion of Site #2 slide area adjacent to River. Note leaning/tilted trees, and debris that flowed into River, June 14, 2006.
