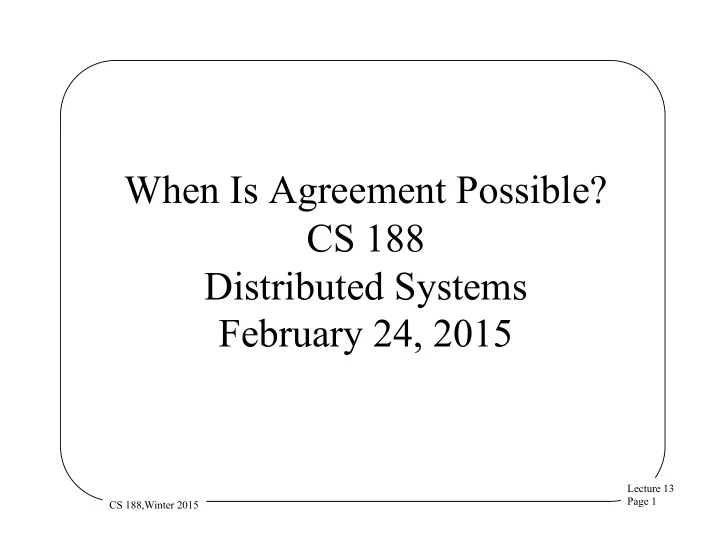

When Is Agreement Possible? CS 188 Distributed Systems February - - PowerPoint PPT Presentation

Lecture 13 Page 1 CS 188,Winter 2015

When Is Agreement Possible? CS 188 Distributed Systems February 24, 2015

Lecture 13 Page 2 CS 188,Winter 2015

Introduction

• Basics of agreement protocols
• Impossibility of agreement in

asynchronous system with failures

• When is agreement possible?

Lecture 13 Page 3 CS 188,Winter 2015

Basics of Agreement Protocols

• What is agreement?
• What are the necessary conditions for

agreement?

Lecture 13 Page 4 CS 188,Winter 2015

What Do We Mean By Agreement?

• In simplest case, can n processors

agree that a variable takes on value 0

• r 1?

– Only non-faulty processors need agree

• More complex agreements can be built

from this simple agreement

Lecture 13 Page 5 CS 188,Winter 2015

Conditions for Agreement Protocols

• Consistency

– All participants agree on same value and decisions are final

• Validity

– Participants agree on a value at least

• ne of them wanted
• Termination

– All participants choose a value in a finite number of steps

Lecture 13 Page 6 CS 188,Winter 2015

Impossibility of Agreement in Async System With Failures

• Assume a reliable, but asynchronous,

message passing system – Any message may face arbitrary delays

• Can a set of processors reach

agreement if one of the processors fails?

Lecture 13 Page 7 CS 188,Winter 2015

Agreement Isn’t Always Possible

• In the general case for arbitrary

systems

• Adding some special properties to the

system may change that result

• But without those properties, provably

impossible – A result sometimes abbreviated FLP

• For Fischer, Lynch, and Patterson,

who proved it

Lecture 13 Page 8 CS 188,Winter 2015

Model of the System

• The system consists of n processors
• The goal is for all non-faulty

processors to agree on value 0 or 1

• Rule out the trivial case of always

agreeing on 0 (or 1)

• Agreement depends on protocol, initial

state, and inputs to each processor

Lecture 13 Page 9 CS 188,Winter 2015

Bivalent and Univalent States

• A bivalent state is a system state that

could lead to either value being decided

• A univalent state can only lead to one
• f the values being decided

– 0-valent or 1-valent

• Valency must take allowable failures

into account!

Lecture 13 Page 10 CS 188,Winter 2015

System Configuration

• Processors have internal state
• State of network is the set of messages

sent, but not yet received

• Event e is the receipt of message m by

a processor – Which can lead to sending one or more new messages – Events are deterministic

• A schedule is a sequence of events

Lecture 13 Page 11 CS 188,Winter 2015

Proving the Result

• Let’s assume the result is false

– That we can reach agreement with

• ne failure in these conditions
• Use an adversarial model

– Within rules of behavior, assume adversary can force any legal event

• Look for contradictions

Lecture 13 Page 12 CS 188,Winter 2015

What Can the Adversary Do?

• Force any processor to perform an

event at any moment

• Choose any message to be delivered to

any processor when it requests a message

• Delay any message arbitrarily long
• Once, it can kill one processor

permanently

Lecture 13 Page 13 CS 188,Winter 2015

The Necessity of Bivalency

• There has to be an initial bivalent

configuration for the system

• Why?
• If all processors started with value 1,

the system would decide 1

• If all processors started with value 0,

the system would decide 0

Lecture 13 Page 14 CS 188,Winter 2015

Intermediate Initial States

• If some processors start with value 0

and some with value 1 – Some initial states lead to result 1 – Some initial states lead to result 0 – All initial states lead to one or the

• ther
• So there is a 1-valent initial state that

differs from a 0-valent initial state by

• ne processor’s initial value

Lecture 13 Page 15 CS 188,Winter 2015

A Graphical Representation

0-valent initial states

1-valent initial states

What’s in these states?

Node 1:0 Node 2:1 Node 3: 1 . . . Node N: 1 Node 1:0 Node 2:1 Node 3: 1 . . . Node N: 0

They differ in only one value

State x State y

Lecture 13 Page 16 CS 188,Winter 2015

Why Does This Imply Bivalence?

• What if that one differing processor is

the processor that fails?

• The system must still reach agreement

from the remaining states – Which are identical, now

• But on what value?

Lecture 13 Page 17 CS 188,Winter 2015

Is This Possible?

0-valent initial states 1-valent initial states

Node 1:0 Node 2:1 Node 3: 1 . . . Node N: 1 Node 1:0 Node 2:1 Node 3: 1 . . . Node N: 0

State x

State y Does the system decide

• n 0?

Then State y wasn’t 1-valent, after all

Does the system decide

• n 1?

Then State x wasn’t 0-valent, after all

Looks like x and y must be bivalent

Lecture 13 Page 18 CS 188,Winter 2015

So What?

• So there has to be at least one bivalent

initial state

• Why’s that so bad?
• If the system never leaves a bivalent

state, it never makes a decision

• We must show our adversary can’t

perpetually force bivalency

Lecture 13 Page 19 CS 188,Winter 2015

The Persistence of Bivalency

• Let’s assume bivalency doesn’t persist
• At some point, some bivalent state

must transition to a univalent state – Implying at least two events

• One to go to 0-valent
• One to go to 1-valent
• With no events leading to bivalent

states

Lecture 13 Page 20 CS 188,Winter 2015

A Graphical Representation

C e D e’ D’

Remember, these events are each delivery of a message So m and m’ must have been in the message delivery system state simultaneously

Lecture 13 Page 21 CS 188,Winter 2015

Looking Closely at Events e and e’

• What would happen if we executed e

first, then e’?

• What would happen if we executed

them in the opposite order?

• Well, why should I care?
• Would executing them in either order

lead to the same state?

• If so, there’s a contradiction

Lecture 13 Page 22 CS 188,Winter 2015

Order of Events e and e’

C e D e’ D’ e’ e

Lecture 13 Page 23 CS 188,Winter 2015

Why Should They Lead to the Same State?

• What if e and e’ occur on different

processors?

• Then they’re independent events
• So they should produce the same result

if executed in either order

• So e and e’ could not have occurred on

different processors

Lecture 13 Page 24 CS 188,Winter 2015

Could the Events Occur on the Same Processor P?

• If e was first, the state became 0-valent
• If e’ was first, the state became 1-

valent

• But what if P then fails?
• Since the event happened only at P,
• nly P sees the effects
• So we’re still in a bivalent state

Lecture 13 Page 25 CS 188,Winter 2015

Recapitulating the Argument

• It’s possible to start in a bivalent state
• There must be some point at some

processor P at which the bivalent state changes to univalent

• If P fails before anyone knows the

valency, the system becomes bivalent – And can never settle to univalency

• Perpetual bivalency implies no

agreement

Lecture 13 Page 26 CS 188,Winter 2015

When Is Agreement Possible?

• Didn’t we show in the last class that we

can reach agreement if less than 1/3 of

• ur processors are faulty?
• Yes, but only if the message passing

system is synchronous

• Whether agreement is possible in a

system depends on certain parameters

Lecture 13 Page 27 CS 188,Winter 2015

Parameters for Agreement In Distributed Systems

• Synchronous vs. asynchronous

processors

• Bounded vs. unbounded

communications delay

• Ordered vs. unordered messages
• Point-to-point vs. broadcast

communications

Lecture 13 Page 28 CS 188,Winter 2015

Synchronous vs. Asynchronous Processors

• Synchronous processors imply that all

processors make progress predictably

• More precisely, there is a constant s

such that – for every s+1 steps taken by Pi – all Pj will take at least one step

Lecture 13 Page 29 CS 188,Winter 2015

Bounded vs. Unbounded Communications Delay

• Delay is bounded if and only if all

messages arrive at their destination within t steps – Implies no lost messages

• Doesn’t imply messages arrive in the
• rder sent

Lecture 13 Page 30 CS 188,Winter 2015

Ordered vs. Unordered Messages

• Messages are ordered if they are

received in the same real time order as their sending – Using true real time

• In some cases, merely receiving all

messages in same order at all processors is enough

Lecture 13 Page 31 CS 188,Winter 2015

Point-to-Point vs. Broadcast Communications

• Point-to-point communications means

a given message sent by Pi is seen only by its destination Pj

• Broadcast communications mean that

Pi can send a message to all other processors in a single atomic step

• Most typically by hardware broadcast

Lecture 13 Page 32 CS 188,Winter 2015

So, When Can We Reach Agreement?

• Case 1: Processors are synchronous

and communications is bounded

• Case 2: Messages are ordered and the

transmission medium is broadcast

• Case 3: Processors are synchronous

and messages are ordered

• And that’s it

– (Case 1 covers Byzantine agreement)

Lecture 13 Page 33 CS 188,Winter 2015

What Does This Result Mean?

• For practical systems we really build
• Not that we can never reach agreement

– Good systems almost always do

• But that we generally can’t guarantee it
• Which implies that our systems should

tolerate disagreements – At some times – Under some conditions

Lecture 13 Page 34 CS 188,Winter 2015

When Is Disagreement OK?

• For preference, when it doesn’t matter

– E.g., when reasonable results possible even without agreement

• Or when it eventually works itself out

– With possible inconsistencies in the meantime

• Or, at worst, when it is visible to

people who can fix it

Lecture 13 Page 35 CS 188,Winter 2015

When Is Disagreement Not OK?

• When the consequences of

disagreement are dire

• When it results in unfixable problems
• When its consequences are invisible,

but relevant

• Unfortunately, we don’t always get to

choose when we can avoid it

Lecture 13 Page 36 CS 188,Winter 2015

Minimizing Chances of Disagreement

• Understand when agreement is most

critical

• In those cases, use protocols that are

less likely to fail on agreement – Which usually have heavy expenses – So don’t always use them

Lecture 13 Page 37 CS 188,Winter 2015

A Classification of Faults

• More detailed than previously

discussed

• Produced by fault-tolerant computing

community

• Divides faults into classes

– Stronger class is subset of weaker class

Lecture 13 Page 38 CS 188,Winter 2015

An Ordered Fault Classification

Byzantine Authenticated Byzantine Incorrect Computation Timing Omission Crash Fail Stop

Lecture 13 Page 39 CS 188,Winter 2015

Fail Stop Faults

• A processor ceases operation
• But informs other processors in

computation that it has stopped

• Relatively easy to deal with

Lecture 13 Page 40 CS 188,Winter 2015

Crash Fault

• A processor crashes or loses internal

state and halts

• Without notification to anyone else
• Hard to distinguish from a really slow

processor

Lecture 13 Page 41 CS 188,Winter 2015

Omission Faults

• A processor fails to do something in

time – Like respond to a message

• But otherwise it may still be operating

correctly – Or it may have crashed

Lecture 13 Page 42 CS 188,Winter 2015

Timing Fault

• A processor completes a task before or

after the window when it should – Or never

• A late acknowledgement to a message,

e.g.

Lecture 13 Page 43 CS 188,Winter 2015

Incorrect Computation Fault

• A processor fails to produce the correct

results for a given set of input

• Which could be merely not producing

the results soon enough

• Or could be sending back trash

Lecture 13 Page 44 CS 188,Winter 2015

Authenticated Byzantine Fault

• Processor performs an arbitrary or

malicious fault

• But authentication mechanisms note

any alterations made to others’ messages

Lecture 13 Page 45 CS 188,Winter 2015

Byzantine Fault

• Any and every fault
• Having arbitrarily bad consequences
• Possibly working in combination with
• ther faults to produce really bad

results

• In this classification, all other faults are

subclasses of Byzantine faults
