Standard 188-2015 Presentation - TE Watson ANSI/ASHRAE Standard 188-2015 Legionellosis: Risk Management for Building Water Systems Published June 26, 2015 Thomas E Watson, P.E. Member SSPC-188 December 8, 2015 ANSI/ASHRAE Standard

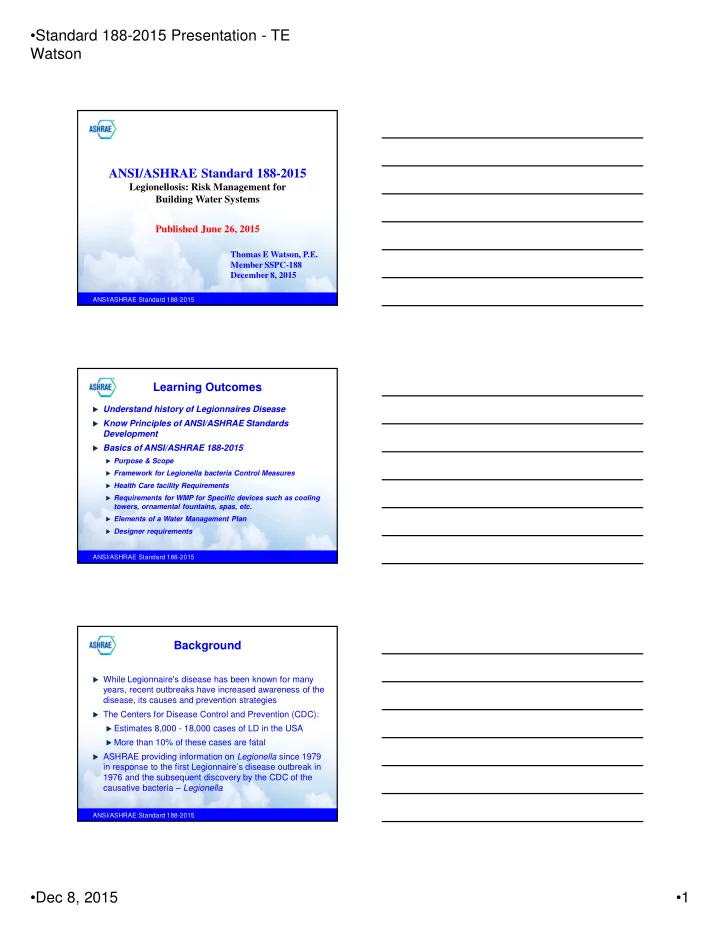

slide-1
SLIDE 1
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 1

ANSI/ASHRAE Standard 188-2015

Thomas E Watson, P.E. Member SSPC-188 December 8, 2015

ANSI/ASHRAE Standard 188-2015

Legionellosis: Risk Management for Building Water Systems Published June 26, 2015

ANSI/ASHRAE Standard 188-2015

Learning Outcomes

Understand history of Legionnaires Disease Know Principles of ANSI/ASHRAE Standards

Development

Basics of ANSI/ASHRAE 188-2015

Purpose & Scope Framework for Legionella bacteria Control Measures Health Care facility Requirements Requirements for WMP for Specific devices such as cooling

towers, ornamental fountains, spas, etc.

Elements of a Water Management Plan Designer requirements

ANSI/ASHRAE Standard 188-2015

Background

While Legionnaire's disease has been known for many

years, recent outbreaks have increased awareness of the disease, its causes and prevention strategies

The Centers for Disease Control and Prevention (CDC): Estimates 8,000 - 18,000 cases of LD in the USA More than 10% of these cases are fatal ASHRAE providing information on Legionella since 1979

in response to the first Legionnaire’s disease outbreak in 1976 and the subsequent discovery by the CDC of the causative bacteria – Legionella

slide-2
SLIDE 2
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 2

ANSI/ASHRAE Standard 188-2015

  • 1. Legionella: the name for the genus (a major

classification) of bacteria. Legionellae is the plural – referring to more than one Legionella bacterium.

  • 2. Legionellosis: any illness caused by the

exposure to Legionella. Legionnaires’ Disease (LD) and Pontiac Fever (PF) are the two most common types of legionellosis.

ANSI/ASHRAE Standard 188-2015

34 Deaths! 221 Sick!

  • ANSI/ASHRAE Standard 188-2015

… that Legionnaires’ disease is caused by (an aquatic)

slide-3
SLIDE 3
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 3

ANSI/ASHRAE Standard 188-2015

Mild, Flu-like illness – without pneumonia Appears <1 - 3 days after exposure Lasts up to 5 days – generally less Does not require hospitalization Susceptibility: ~95% (+/-) of those exposed

ANSI/ASHRAE Standard 188-2015

Potentially fatal, multi-system respiratory illness, accompanied by pneumonia Symptoms: high fever, chills, muscle pain, headache & dry cough; diarrhea, vomiting, confusion & delirium are also common Appears 2-10 days after exposure Recovery can be long-term & debilitating Susceptibility: ~5% (+/-) of those exposed

ANSI/ASHRAE Standard 188-2015

One of 58 named Legionella Species The Species Responsible for ~ 90%

  • f Legionellosis Cases

Has 15+ Serogroups The Major Infectious Lp Serogroup is Serogroup 1 (Lp1) Legionella pneumophila

slide-4
SLIDE 4
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 4

ANSI/ASHRAE Standard 188-2015 ANSI/ASHRAE Standard 188-2015 ANSI/ASHRAE Standard 188-2015

(2) Containing Amplified & Virulent LB (3) Inhaled or Aspirated by ‘At-Risk’ Host (1) Water/Soil Aerosols

slide-5
SLIDE 5
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 5

ANSI/ASHRAE Standard 188-2015

‘Weakened Immune Systems’

Immune Suppressed (Transplants,

Cancer, Cardiac, Steroids) Sick / In Poor Health Elderly / Infirm Heavy Smokers, Lung Disease

ANSI/ASHRAE Standard 188-2015

We continue to learn about Legionella – and have the 1st ANSI Standard to address Legionellosis – ASHRAE Standard 188!

39 Years Later (2015)

ANSI/ASHRAE Standard 188-2015 Legionnaires' outbreak widens to 12 dead in New York …

128 Cases Reported with 12 Deaths . . . Officials say the outbreak is centered on the area near the Opera House Hotel in the South Bronx August 11, 2015

slide-6
SLIDE 6
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 6

ANSI/ASHRAE Standard 188-2015

9/30/2015 9/30/2015 Another Outbreak in NYC

ANSI/ASHRAE Standard 188-2015

With 12 confirmed dead and more than 120 cases of infection due to legionellosis, New York City Council on Thursday adopted legislation that requires adherence to part of ASHRAE’s newly published Legionella standard. The legislation addresses registration and inspection of cooling towers. It requires owners to create and file a plan to maintain equipment to comply with Sections 5, 6 and 7.2 of the new ANSI/ASHRAE Standard 188-2015 / Legionellosis: Risk Management for Building Water Systems.

Standard 188 Adopted in New York City

Aug 17, 2015 Contact: Jodi Scott ASHRAE Public Relations 678-539-1140 / jscott@ashrae.org ANSI/ASHRAE Standard 188-2015

CDC: In What Facilities Does LD Appear?

slide-7
SLIDE 7
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 7

ANSI/ASHRAE Standard 188-2015

ASHRAE Standards Development Consensus through participation and public review

Consensus = substantial agreement but not unanimity

Balance of interest categories Legionella & water treatment specialists, consulting engineers, health professionals, building

  • wners & operators, manufacturers,

government officials, and others from around the world

ANSI/ASHRAE Standard 188-2015

Voting Professional Organizations on SSPC-188:

AWT: Association of Water Technologies APIC: Association for Professionals in Infection Control and Epidemiology ASHE: American Society for Healthcare Engineering ASPE: American Society of Plumbing Engineers CDC: Centers for Disease Control & Prevention IAPMO: International Association of Plumbing and Mechanical Officials NSF International

ANSI/ASHRAE Standard 188-2015

ASHRAE develops three types of voluntary consensus standards accredited by the American National Standards Institute (ANSI): 1) Method of Measurement or Test 2) Standard Design 3) Standard Practice

ASHRAE Standard Development

slide-8
SLIDE 8
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 8

ANSI/ASHRAE Standard 188-2015

ASHRAE Standards – Special Note:

ANSI/ASHRAE Standard 188-2015 ANSI/ASHRAE Standard 188-2015

*Feb 2005 SPC-188 began meeting October 2010 Draft 1 released (+ PR/1) June 2011 Draft 2 released (+ PR/2) January 2013 Draft 3 released (+ PR/3) Sept 2014 Draft 4 released (+ PR/4) March 2015 Draft 5 released (+ PR/5) June 4, 2015 Approved by ASHRAE board June 26, 2015 Finalized Standard 188-2015

*Feb 2005: 1st meeting was GPC-12 (guideline), later as SPC-188 PR = Public Reviews (required by the ANSI/ASHRAE process)

1 2 3 4 5

OK

Standard 188 Development History

slide-9
SLIDE 9
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 9

ANSI/ASHRAE Standard 188-2015

Standard 188 ‘Evolved’ from ASHRAE Guideline 12

ANSI/ASHRAE Standard 188-2015

The SPC188 Team …

‘Legionellosis: Risk Management for Building Water Systems’

ANSI/ASHRAE Standard 188-2015

slide-10
SLIDE 10
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 10

ANSI/ASHRAE Standard 188-2015

► ► ► ► PURPOSE: Establish minimum Legionellosis risk management requirements for building water systems.

► ► ► ► SCOPE: 1) … for design, construction, commissioning, operation, maintenance, repair, replacement, and expansion of new and existing buildings and their associated water systems 2) … applies to human-occupied commercial, institutional, multi-unit residential, and industrial buildings ... does not include single-family residential buildings 3) … for use by owners & managers of human-occupied buildings, excluding single-family residential buildings ... also for those involved in design, construction, installation, commissioning, operation, maintenance & service of centralized building water systems and components

ANSI/ASHRAE 188-2015

ANSI/ASHRAE Standard 188-2015

Compliance with Standard 188 will require facility owners (managers) to: 1

  • Establish a Team with assigned

responsibilities & accountabilities 2

  • Have, Practice, &

Audit a Water Management Plan for legionellosis risk management of their building water systems

Describe Water System Access the Hazard Establish Hazard Controls Audit the Plan

In a Nutshell

ANSI/ASHRAE Standard 188-2015

ASHRAE gives a framework, but the Team must develop specific LB control measures for:

  • New Construction
  • Siting
  • Startup and Shutdown
  • Inspections
  • Maintenance
  • Cleaning and Disinfection
  • Monitoring (e.g., temperatures; disinfectant

levels)

  • Water Treatment
  • Responding to Legionnaires' disease

???

ASHRAE 188-2015:Control Measures

slide-11
SLIDE 11
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 11

ANSI/ASHRAE Standard 188-2015

SECTION PAGE Foreword 2

  • 1. Purpose

2

  • 2. Scope

2

  • 3. Definitions

2

  • 4. Compliance

3

  • 5. Building Survey

4

  • 6. General Requirements

4

  • 7. Requirements for Building Water Systems

6

  • 8. Requirements for Designing Building Water Systems

10

  • 9. References

11 Normative Annex A: Health Care Facilities 12 Informative Annex B: Bibliography 15 Informative Annex C: Guidance if Legionella Testing is Utilized 16

WMP

ANSI/ASHRAE 188-2015

ANSI/ASHRAE Standard 188-2015

4.1 Building Designer Requirements (compliant survey per Sec.5; comply w/Sec.8) 4.2 Building Owner Requirements (compliant survey per Sec.5; comply w/Sec.6 & 7) 4.3 Health Care Facility Requirements (comply with Sec. 4.2, 6 & 7 OR with Annex A)

Section 4. Compliance

188 compliance requires Section 5 surveys be repeated (at least) annually, fully documented & available for review at any time.

ANSI/ASHRAE 188-2015

ANSI/ASHRAE Standard 188-2015

Section 4.3 Health Care Facility Requirements

188 compliance for Health Care Facilities is ultimately

  • ne of two paths: Sections 4.2, 6 & 7 – OR – Annex A

ANSI/ASHRAE 188-2015

4.3.2 Health care facilities that meet all of the following qualifications shall comply with either the requirements in Sections 4.2, 6, and 7 or the requirements in Normative Annex A, “Health Care Facilities”: 4.3.1 Health care facilities that do not meet all of the qualifications of Section 4.3.2 shall comply with the requirements in Sections 4.2, 6, and 7.

slide-12
SLIDE 12
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 12

ANSI/ASHRAE Standard 188-2015

4.3.2

  • Qualifications for Health Care Facilities:

(a)… the health care facility is accredited by an accrediting agency

  • r

by the authority having jurisdiction (AHJ) over the health care IC activities. (b)… the health care facility IC program has a certified infection preventionist … or the health care facility has an epidemiologist with a minimum master’s degree or equivalent.

ANSI/ASHRAE 188-2015

Compliance for Health Care Facilities via Annex A of the standard requires (a) and (b) above

ANSI/ASHRAE Standard 188-2015

5.1

  • Determine whether it has one or more:

(a)… cooling towers or evaporative condensers that provide cooling and/or refrigeration for the HVAC&R

  • r other systems;

(b)… whirlpools or spas either in the building or on site; (c)… ornamental fountains, misters, atomizers, air washers, humidifiers, or other nonpotable water systems or devices that release water aerosols in the building or on the site.

Section 5. Building Survey

ANSI/ASHRAE 188-2015

ANSI/ASHRAE Standard 188-2015

Implement a “Water Management Program” (WMP) for …

  • Cooling Towers
  • Whirlpool Spas
  • Ornamental Fountains
  • Misters, Air Washers,

Atomizers, Humidifiers

  • Other Devices that release

water droplets

ANSI/ASHRAE 188-2015

slide-13
SLIDE 13
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 13

ANSI/ASHRAE Standard 188-2015

  • Multiple housing units with a

centralized hot water system,

  • More than ten stories,
  • Housing designated for people over

65 years of age,

  • Patients staying more than 24 hours,
  • An area housing or treating people

with certain risk factors …

ANSI/ASHRAE 188-2015

Implement a WMP for Plumbing Ssystems if a building is characterized with any one of the following:

ANSI/ASHRAE Standard 188-2015

Implement a WMP for plumbing systems if a building has an area for Housing or Treating people …

  • for burns, cancer

chemotherapy, or solid organ

  • r bone marrow

transplantation

  • that are immunocompromised
  • r otherwise more susceptible

than the general population because of age, health, medication, occupation, drug treatment, or smoking

  • that have renal disease,

diabetes, or chronic lung disease

ANSI/ASHRAE 188-2015

ANSI/ASHRAE Standard 188-2015

Section 6. General Requirements

6.1 Principles of a Water Management Program 6.1.1-6.1.7: outline of risk management principles 6.2 Program Development 6.2.1-6.2.9: detail of management program development

ANSI/ASHRAE 188-2015

Section 6 is all about the ‘Water Management Program’ (WMP)

slide-14
SLIDE 14
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 14

ANSI/ASHRAE Standard 188-2015

Figure 1. Elements of a Water Management Program (WMP)

ANSI/ASHRAE 188-2015:

ANSI/ASHRAE Standard 188-2015

  • 1. Control Limits
  • 2. Monitoring Method
  • 4. Corrective Actions
  • 3. Monitoring Frequency

for each control point where LB control is applied for each control point where LB control is applied to be undertaken when control measurement is Out of Limits for each control point where LB control is applied

CP

Establish for Each Control Point

ANSI/ASHRAE Standard 188-2015

Water Management Plan: VALIDATION

  • The process or evidence used to support that the hazard control strategies of

the plan are effective. Testing for the control of the hazard or assessment of technical, scientific, medical and other data that can be used to show that control measures for the hazard are effective – i.e. no legionellosis;

…“Are you Doing the Right Thing – Does it Work?” Water Management Plan: VERIFICATION

  • The process and evidence used to support that compliance with the Plan is

being done – i.e. record-keeping, control monitoring, process procedures and

  • ther evaluations. It ensures that the Water Management Plan is being correctly

followed in practice;

… “Are you Doing what you Planned to Do?”

ANSI/ASHRAE 188-2015

slide-15
SLIDE 15
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 15

ANSI/ASHRAE Standard 188-2015

Section 7. Requirements for Building Water Systems

7.1

  • Potable Water Systems

7.2

  • Cooling Towers & Evaporative Condensers

7.3

  • Whirlpool Spas

7.4

  • Ornamental Fountains & Other Water Features

7.5

  • Aerosol-Producing Misters, Atomizers, Air

Washers and Humidifiers

ANSI/ASHRAE 188-2015

Section 7 is the more extensive & detailed part of the standard – that deals with the various potable & nonpotable water system requirements

ANSI/ASHRAE Standard 188-2015

Section 8. Requirements for Designing Building Water Systems

8.1

  • General

8.2

  • Final Installation Documents

8.3

  • Balancing

8.4

  • Commissioning

Section 8 deals with Legionellosis hazard considerations and the documentation required when designing for new construction, renovations, refurbishment, replacement,

  • r repurposing of a facility.

ANSI/ASHRAE 188-2015

ANSI/ASHRAE Standard 188-2015

Designers must provide Documentation, Drawings, and/or Instructions for …

  • Filling & Draining
  • Equipment Sizes
  • Piping Layout
  • System Materials
  • Pipe Sizes
  • Design Flow Rates
  • Design Temperatures
  • Impact of Heat Loss or

Gain

  • Monitoring & Control
  • Code Compliance
  • Operation & Maintenance
  • Control System Operation
  • Calibration
  • Installation & Start-up
  • Commissioning (including

Flushing & Disinfection)

ANSI/ASHRAE 188-2015

slide-16
SLIDE 16
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 16

ANSI/ASHRAE Standard 188-2015

Designers must note locations of:

  • Equipment
  • Access (or note inadequate

access)

  • Filling and Draining
  • Flushing
  • Sampling
  • Temperature monitoring
  • Treatment
  • No flow & Low Flow areas
  • Outside Air Intakes
  • Possible Cross Connections

ANSI/ASHRAE 188-2015

ANSI/ASHRAE Standard 188-2015

Prior to Occupancy…

  • Balance the Water Systems
  • Disinfect and flush no more

than 3 weeks before any part of the building is

  • ccupied for its intended

purpose

ANSI/ASHRAE 188-2015

ANSI/ASHRAE Standard 188-2015

Normative ANNEX A: Health Care Facilities

  • A1. Supplemental Definitions for Terms used in Annex A –

legionellosis risk management plan, designated team …

  • A2. Designated Team – senior organizational leadership+
  • A3. Water System Flow Diagram
  • A4. Risk Management Plan – legionellosis RM plan
  • A5. Existing Buildings, New Construction & Renovations
  • A6. Building Water System Procedures (Sec. 7 elements)

ANSI/ASHRAE 188-2015

  • A6. is the more extensive & detailed part of Annex A – that

deals with the various potable & nonpotable water system requirements

slide-17
SLIDE 17
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 17

ANSI/ASHRAE Standard 188-2015

Summary

Legionella is everywhere Not simple – contributing factors:

Environmental conditions Means of transmitting aerosol of water with LB Susceptible persons

Cooling water & Potable Water systems important ANSI/ASHRAE 188-2015

Owners & Managers Designers, Builders, Installers, Commissioning, O&M Must establish a Water Management Program

ANSI/ASHRAE Standard 188-2015

Compliance with Standard 188 will require facility owners (managers) to: 1

  • Establish a Team with assigned

responsibilities & accountabilities 2

  • Have, Practice, &

Audit a Water Management Plan for legionellosis risk management of their building water systems

Describe Water System Access the Hazard Establish Hazard Controls Audit the Plan

In a Nutshell

ANSI/ASHRAE Standard 188-2015

Establish a Knowledgeable Program Team Assess & Address LD Risk Develop Water Management Program Manage Buildings, Facilities and Water Systems to Reduce Risk of Legionellosis

slide-18
SLIDE 18
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 18

ANSI/ASHRAE Standard 188-2015

Slides adapted from… ANSI/ASHRAE Standard 188-2015

Standard 188 can be purchased from ASHRAE at: http://www.techstreet.com/ashrae/products/1897561 Standard 188 can be read for free from ASHRAE website under the Preview ASHRAE Standards, bottom left

  • f page, at:

www.ashrae.org/standards

ANSI/ASHRAE Standard 188-2015

More on Standard 188 & Guideline 12

  • AAS

ASHRAE Learning Institute (ALI) Course

  • Orlando at Winter

Conference Jan 25th.

  • Regionally @ later dates

ANSI/ASHRAE Standard 188-2015

Questions? & Discussion!

54

slide-19
SLIDE 19
  • Standard 188-2015 Presentation - TE

Watson

  • Dec 8, 2015
  • 19

ANSI/ASHRAE Standard 188-2015

ANSI/ASHRAE 188-2015

ASHRAE Headquarters / +404.636.8400

Standards & Guidelines: Stephanie Reiniche, Senior Manager of Standards sreiniche@ashrae.org +678.539.1143 Research: Mike Vaughn, Manager of Research and Technical Services mvaughn@ashrae.org +678.539.1211 Technical Inquiries and Position Papers & Documents Steve Hammerling, Assistant Manager of Research and Technical Services shammerling@ashrae.org +678.539.1158 Technology Department: Claire Ramspeck, Director cramspeck@ashrae.org +678.539.1194 ANSI/ASHRAE Standard 188-2015 ANSI/ASHRAE Standard 188-2015
