Lecture 12 Page 1 CS 188,Winter 2015

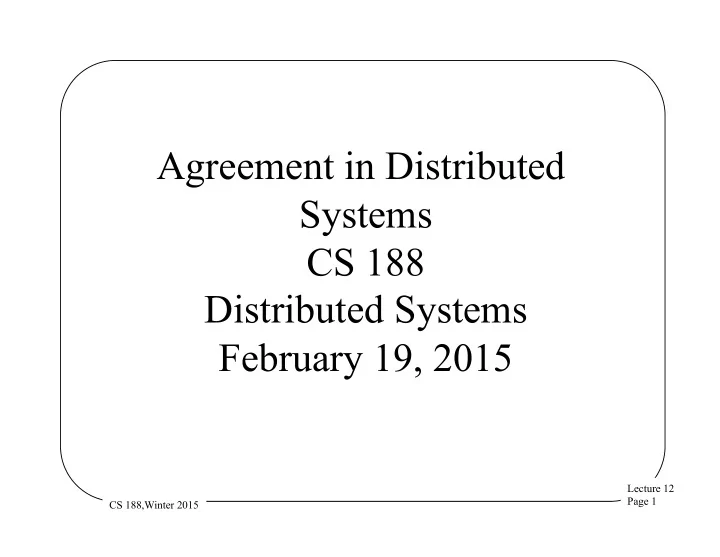

Agreement in Distributed Systems CS 188 Distributed Systems February 19, 2015

Lecture 12 Page 2 CS 188,Winter 2015

Introduction

• We frequently want to get a set of

nodes in a distributed system to agree

• Commitment protocols and mutual

exclusion are particular cases

• The approaches we discussed for those

work in limited situations

• In general, when can we reach

agreement in a distributed system?

Lecture 12 Page 3 CS 188,Winter 2015

Basics of Agreement Protocols

• What is agreement?
• What are the necessary conditions for

agreement?

Lecture 12 Page 4 CS 188,Winter 2015

What Do We Mean By Agreement?

• In simplest case, can n processors

agree that a variable takes on value 0

• r 1?

– Only non-faulty processors need agree

• More complex agreements can be built

from this simple agreement

Lecture 12 Page 5 CS 188,Winter 2015

Conditions for Agreement Protocols

• Consistency

– All participants agree on same value and decisions are final

• Validity

– Participants agree on a value at least

• ne of them wanted
• Termination/Progress

– All participants choose a value in a finite number of steps

Lecture 12 Page 6 CS 188,Winter 2015

Challenges to Agreement

• Delays

– In message delivery – In nodes responding to messages

• Failures

– And recovery from failures

• Lies by participants

– Or innocent errors that have similar effects

Lecture 12 Page 7 CS 188,Winter 2015

Failures and Agreement

• Failures make agreement difficult

– Failed nodes don’t participate – Failed nodes sometimes recover at inconvenient times – At worst, failed nodes participate in harmful ways

• Real failures are worse than fail-stop

Lecture 12 Page 8 CS 188,Winter 2015

Types of Failures

• Fail-stop

– A nice, clean failure – Processor stops executing anything

• Realistic failures

– Partitionings – Arbitrary delays

• Adversarial failures

– Arbitrary bad things happen

Lecture 12 Page 9 CS 188,Winter 2015

Election Algorithms

• If you get everyone to agree a particular

node is in charge,

• Future consensus is easy, since he makes

the decisions

• How do you determine who’s in charge?

– Statically – Dynamically

Lecture 12 Page 10 CS 188,Winter 2015

Static Leader Selection Methods

• Predefine one process/node as the

leader

• Simple

– Everyone always knows who’s the leader

• Not very resilient

– If the leader fails, then what?

Lecture 12 Page 11 CS 188,Winter 2015

Dynamic Leader Selection Methods

• Choose a new leader dynamically

whenever necessary

• More complicated
• But failure of a leader is easy to handle

– Just elect a new one

• Election doesn’t imply voting

– Not necessarily majority-based

Lecture 12 Page 12 CS 188,Winter 2015

Election Algorithms vs. Mutual Exclusion Algorithms

• Most mutual exclusion algorithms don’t

care much about failures

• Election algorithms are designed to handle

failures

• Also, mutual exclusion algorithms only

need a winner

• Election algorithms need everyone to know

who won

Lecture 12 Page 13 CS 188,Winter 2015

A Typical Use of Election Algorithms

• A group of processes wants to

periodically take a distributed snapshot

• They don’t want multiple simultaneous

snapshots

• So they want one leader to order them

to take the snapshot

Lecture 12 Page 14 CS 188,Winter 2015

Problems in Election Algorithms

• Some of the nodes may have failed

before the algorithm starts

• Some of the nodes may fail during the

algorithm

• Some nodes may recover from failure

– Possible at inconvenient times

• What about partitions?

Lecture 12 Page 15 CS 188,Winter 2015

Election Algorithms and the Real Work

• The election algorithm is usually overhead
• There’s a real computation you want to

perform

• The election algorithm chooses someone to

lead it

• Having two leaders while real computation

is going on is bad

Lecture 12 Page 16 CS 188,Winter 2015

The Bully Algorithm

• The biggest kid on the block gets to be

the leader

• But what if the biggest kid on the block

is taking his piano lesson?

• The next biggest kid gets to be leader

– Until the piano lesson is over . . .

Lecture 12 Page 17 CS 188,Winter 2015

Electing a Bully

The kids come out to play Hey, Spike! Spike’s Mom hasn’t let him

• ut yet

Hey, Butch! I’m here, who else is? Peewee! Cuthbert! I’m the leader, let’s play tag! The piano lesson ends Cuthbert Peewee! Butch! I’m the leader, and we’re playing baseball! Hey, Spike! Hey, Spike! I’m here, where are you sissies?

Lecture 12 Page 18 CS 188,Winter 2015

Assumptions of the Bully Algorithm

• A static set of possible participants

– With an agreed-upon order

• All messages are delivered with Tm seconds
• All responses are sent within Tp seconds of

delivery

• These last two imply synchronous behavior

Lecture 12 Page 19 CS 188,Winter 2015

The Basic Idea Behind the Bully Algorithm

• Possible leaders try to take over
• If they detect a better leader, they agree

to its leadership

• Keep track of state information about

whether you are electing a leader

• Only do real work when you agree on a

leader

Lecture 12 Page 20 CS 188,Winter 2015

The Bully Algorithm and Timeouts

• Call out the biggest kid’s name

– If he doesn’t answer soon enough, call out the next biggest kid’s name – Until you hear an answer – Or the caller is the biggest kid – Then take over, by telling everyone else you’re the leader

Lecture 12 Page 21 CS 188,Winter 2015

The Bully Algorithm At Work

• One node is currently the coordinator
• It expects a certain set of nodes to be up and

participating

• The coordinator asks all other nodes
• If an expected node doesn’t answer, start an

election – Also if it answers in the negative

• If an unexpected node answers, start an

election

Lecture 12 Page 22 CS 188,Winter 2015

The Practicality of the Bully Algorithm

• The bully algorithm works reasonably

well if the timeouts are effective – A timeout occurring really means the site in question is down

• And there are no partitions at all

– If there are, what happens?

Lecture 12 Page 23 CS 188,Winter 2015

The Invitation Algorithm

• More practical than bully algorithm

– Doesn’t depend on timeouts

• But its results are not as definitive
• An asynchronous algorithm

Lecture 12 Page 24 CS 188,Winter 2015

The Basic Idea Behind the Invitation Algorithm

• A current coordinator tries to get all
• ther nodes to agree to his leadership
• If more than one coordinator around,

get together and merge groups

• Use timeouts only to allow progress,

not to make definitive decisions

• No set priorities for who will be

coordinator

Lecture 12 Page 25 CS 188,Winter 2015

The Invitation Algorithm and Group Numbers

• The invitation algorithm recruits a

group of nodes to work together – More than one group can exist simultaneously

• Group numbers identify the group
• Why not identify with coordinator ID?

– Because one node can serially coordinate many groups

Lecture 12 Page 26 CS 188,Winter 2015

The Basic Operation of the Invitation Algorithm

• Coordinators in a normal state

periodically check all other nodes

• If any other node is a coordinator, try

to merge the groups

• If timeouts occur, don’t worry about it

– Also don’t worry if a response to check comes from this or earlier request

Lecture 12 Page 27 CS 188,Winter 2015

Merging in the Invitation Algorithm

• Merging always requires forming new

group – May have same coordinator, but different group number

• Coordinator who initiates merge asks

all other known coordinators to merge – They ask their group members – Original group members also asked

Lecture 12 Page 28 CS 188,Winter 2015

A Simplified Example

1 1 1 2 3 3 3 4 Node 1 checks for other coordinator

AreYouCoordinator? AreYouCoordinator?

Yes No So node 1 finds another coordinator Node 1 asks the other coordinator and his old node to join his group Invite Invite Invite on behalf of node 1 1 1 1 1 Accept Accept UP ={1,2,3,4} Ready Ready

If all members of UP{} respond, we’re fine

Node 1 forms a new group

Lecture 12 Page 29 CS 188,Winter 2015

The Reorganization State

• Nodes enter the reorganization state

after getting their answer

• What’s the point of this state?

– Why not just start up the group? – After all, we all know who’s going to be a member

• Or do we?

Lecture 12 Page 30 CS 188,Winter 2015

Why We Need Another Round of Messages

1 2 3 4 1 1 1 1 Invitation Invitation Who does 1 think will join the group, at this point? 2 and 3 Invitation Assuming no timeouts, 4 will also join And 2 needs to know that And what if someone crashes? Presumably not accepting the invitation?

Lecture 12 Page 31 CS 188,Winter 2015

Timeouts in the Merge

• Don’t worry too much about them
• Some nodes respond before the timeout

– Some don’t

• If you don’t catch them this time, you

might the next

Lecture 12 Page 32 CS 188,Winter 2015

Straggler Messages

• This algorithm is asynchronous

– So messages may come in late

• What do we do when messages arrive

late?

• Mostly, reject them
• How do we tell?

– Messages contain group number

Lecture 12 Page 33 CS 188,Winter 2015

Multiple Simultaneous Groups

• The invitation algorithm allows

multiple simultaneous groups to exist – Each with a proper coordinator

• Is this a good thing?

– No, but what are the alternatives?

• No node ever belongs to more than one

group, at least

Lecture 12 Page 34 CS 188,Winter 2015

Paxos

• A family of algorithms that allow a

distributed system to reach agreement

• In the face of delays and failures
• Can’t perfectly guarantee progress

– But makes progress in realistic conditions

• Does guarantee consistency
• Usually defined to reach consensus on some

value v

Lecture 12 Page 35 CS 188,Winter 2015

Paxos Assumptions

• Processors are of variable speed and may

fail – Might recover after failure – But they don’t lie

• Any processor can send a message to any
• ther processor
• Messages can be lost, arbitrarily delayed,

reordered, or duplicated – But never corrupted

Lecture 12 Page 36 CS 188,Winter 2015

Paxos Processor Roles

• Client

– Issues a request, waits for a response

• Acceptor/voter

– Remembers things for the protocol

• Proposer (simpler if there’s only one)

– Assists client in getting a response

• Learner

– Actually executes a request

• Leader

– One of the proposers that leads the process

• One processor can play several roles

– Usually, all processes are acceptors, proposers, and learners

Lecture 12 Page 37 CS 188,Winter 2015

Paxos Quorums

• Collections of acceptors that make decisions

– Several different quorums in system

• Messages are sent to quorums, not single

acceptors – Messages only effective if all quorum members receive it – Similarly, all acceptors in a quorum must send a message for to be effective

• If any member of the quorum survives, its

decisions survive

Lecture 12 Page 38 CS 188,Winter 2015

Quorum Membership

• All quorums must contain a majority of

all acceptors in the system

• Any two quorums must share at least
• ne acceptor
• E.g., if there are four acceptors

{1,2,3,4}, quorums might be: – {1,2,3}, {1,2,4}, {2,3,4}, {1,3,4}

Lecture 12 Page 39 CS 188,Winter 2015

Paxos Rounds

• Paxos proceeds in rounds
• In response to a client request
• If the round reaches agreement, the

client gets a response

• If not, you start another round
• Continue till a round reaches

agreement

Lecture 12 Page 40 CS 188,Winter 2015

A Simple Paxos Round

C P A1 A2 A3 L1 L2

• 1. request
• 2. prepare(N)
• 3. promise(N,null)
• 3. promise(N,null)
• 3. promise(N, null)
• 4. accept(N,Vres)
• 5. accepted(N,Vmax)

Vres is a result chosen by P, if no promise had a value

• 6. response

N is a bigger number than P has ever used or seen before If an acceptor ever promised on this item before, it returns the generation and value from that run

• f Paxos, not null

Lecture 12 Page 41 CS 188,Winter 2015

The Point of Different Paxos Roles

C P A1 A2 A3 L1 L2

The client wants to get something done The proposer coordinates protocol activities The acceptors ensure proper concurrent behavior and handle proposer failures The learners ensure redundant memory of the result of a decision

Remember! One machine can play multiple roles

Lecture 12 Page 42 CS 188,Winter 2015

Paxos Error Handling

• Some cases simple, some complex
• A simple case:

– One of the acceptors fails – If there’s still a quorum, no problem – Go ahead without him

• Another simple case:

– One of the learners failed – If any learners are left, they’ll provide the right response to the client

Lecture 12 Page 43 CS 188,Winter 2015

More Complex Error Cases

• Things like failure of proposer in

middle of a round

• Paxos chooses a new leader and uses

him from this point

• What if old leader comes back?
• Even more complex, but it works out

Lecture 12 Page 44 CS 188,Winter 2015

Paxos and Overheads

• Generally quite expensive

– In messages and thus delays

• Many optimizations possible

– Some don’t alter the protocol characteristics – Some trade off handling some error conditions for better performance

Lecture 12 Page 45 CS 188,Winter 2015

Byzantine Agreement

• Life can be a lot worse than merely

being unable to rely on timeouts

• What if one of the nodes we’re

working with is lying?

• How can we reach agreement if we

can’t trust all the participants?

Lecture 12 Page 46 CS 188,Winter 2015

The Purpose of Byzantine Agreement

• Well, why would one of our distributed

system components lie?

• It probably wouldn’t
• But it might contain a bug
• If it contains the worst possible bug,

what can it do? – Essentially, inadvertently lie

Lecture 12 Page 47 CS 188,Winter 2015

The Realism of Byzantine Agreement

• It isn’t realistic
• It doesn’t really happen
• No one really uses it
• But it demonstrates a limit on how

badly things can go while still allowing agreement

Lecture 12 Page 48 CS 188,Winter 2015

Why Is It Called Byzantine?

• After the fall of Rome itself, the

empire lived on in the east – Called Byzantium

• Byzantium survived for around 1000

years

• The Byzantines were famous for their

treachery and double-dealing

Lecture 12 Page 49 CS 188,Winter 2015

The Byzantine General Problem

• Several Byzantine generals each command

their own army

• They are far apart and communicate with

messengers

• The emperor wants to attack the Turks
• If all generals attack, they’ll win

– Even if a majority attack, they’ll win – Retreating is OK, if everyone does it

• But the Turks may have bribed some

generals

Lecture 12 Page 50 CS 188,Winter 2015

The Complete Problem Statement

• Messages are point-to-point
• Messages are reliably delivered, with a

predictable timeout – Failure to receive message in time means sender is a traitor

• Traitors can send any messages they

please – But cannot forge their identities

Lecture 12 Page 51 CS 188,Winter 2015

How Many Traitors Is Too Many?

• Can all the loyal generals reach

agreement on whether to attack or retreat?

• Or can the traitors prevent them from

reaching any agreement?

• How many generals must the Turks

bribe before no agreement is possible?

Lecture 12 Page 52 CS 188,Winter 2015

The Answer

• If the Turks bribe 1/3 of the generals,

the remaining 2/3’s cannot reach agreement

• How can that be?
• Why not just a majority?
• Easiest to consider in the case of a

commander

Lecture 12 Page 53 CS 188,Winter 2015

The 3-General Byzantine Problem

Commander What if they’re all loyal? Attack Attack Everyone attacks and the Turk is vanquished But what if the commander is a traitor? Attack Retreat One general attacks, one retreats, the traitor pockets the bribe, and the Turks win

Lecture 12 Page 54 CS 188,Winter 2015

Can’t the Loyal Generals Check Their Orders?

Commander Attack Retreat 1 2 3 Generals 2 and 3 check their orders Retreat Attack They figure out 1 is a traitor and come to their own agreement

Lecture 12 Page 55 CS 188,Winter 2015

But What if the Commander Wasn’t the Traitor?

Commander Attack Attack 1 2 3 3 is the traitor, this time Generals 2 and 3 check their orders Retreat Attack They figure out 1 is a traitor and come to their own agreement But 1 isn’t the traitor, 3 is the traitor He convinces 2 to retreat, 1 is slaughtered attacking, and 3 pockets the bribe

Lecture 12 Page 56 CS 188,Winter 2015

Can General 2 Tell Which Scenario Is Occurring?

When 1 was the traitor, 2 saw: When 3 was the traitor, 2 saw: 1 2 3 Retreat Attack 1 2 3 Retreat Attack 2 can’t tell the difference, so he can’t decide whether to attack or retreat

Lecture 12 Page 57 CS 188,Winter 2015

What If There Were 4 Generals?

1 2 Commander 3 4 What if the commander (1) is the traitor? If he doesn’t send some messages, he’ll be seen as the traitor But what can he send? Attack Attack Retreat

Lecture 12 Page 58 CS 188,Winter 2015

Can the Three Loyal Generals Reach Agreement?

1 2 Commander 3 4 Attack Attack Retreat They can exchange all the messages and let the majority rule Since there are only two messages, the commander must have sent the same message to two nodes If the commander is loyal and someone else is lying, the majority represents the loyal commander’s will

Lecture 12 Page 59 CS 188,Winter 2015

But What if There Were Five Generals?

1 Commander 2 3 4 Attack Attack Retreat 5 Retreat Pre-arrange a tie-breaker E.g., always retreat on ties All the loyal generals then retreat And the traitor must explain his failure to the Turks

Lecture 12 Page 60 CS 188,Winter 2015

What If You Don’t Want a Commander?

• What if you want everyone to vote?
• And accept the majority?

– With the guarantee that all loyal nodes abide by the majority?

• Serially treat each node as the

commander – Reach agreement on his vote – Then move on to the next node

Lecture 12 Page 61 CS 188,Winter 2015

The Trick Behind Byzantine Agreement

• Everyone must know what everyone

else thinks about everything else

• Not just what I think the commander

said, but what everyone else claims the commander said

• Resulting algorithms are tricky and

expensive – But it could be (and will be) worse

Lecture 12 Page 62 CS 188,Winter 2015

Authenticated Byzantine Agreement

• What if the messages are signed in an

unforgeable way?

• Then dishonest generals can’t lie about

what honest general told them

• In this case, honest generals reach

agreement regardless of how many are dishonest
