HL7 Immunization User Group Monthly Meeting February 14, 2019 2:00 PM ET Agenda Welcome Poll: Which perspective do you primarily identify yourself with? Submit an abstract for the AIRA 2019 National Meeting by February 24.

slide-1

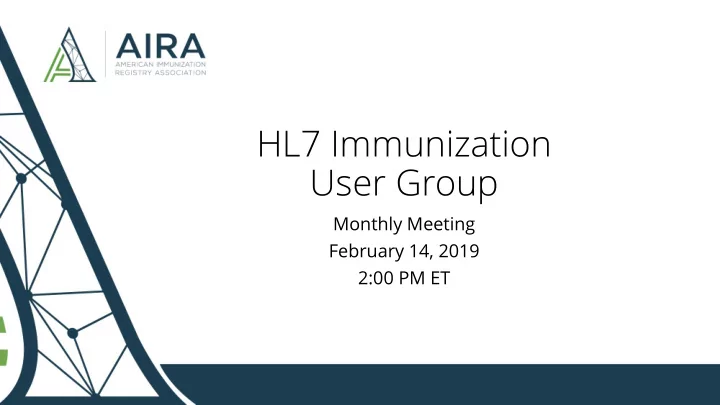

SLIDE 1

HL7 Immunization User Group

Monthly Meeting February 14, 2019 2:00 PM ET

slide-2
SLIDE 2

Agenda

▪ Welcome

▪ Poll: Which perspective do you primarily identify yourself with? ▪ Submit an abstract for the AIRA 2019 National Meeting by February 24.

▪Updates

▪ SISC

▪ Presentations

▪ Acknowledgements to Identify Data Quality Issues ▪ Client Completeness

slide-3
SLIDE 3

SISC Update

Mary Woinarowicz

slide-4
SLIDE 4

Acknowledgments to Identify Data Quality Issues

Kevin Snow, Envision

slide-5
SLIDE 5

HL7 Data Quality

Harmonizing HL7 Validation with the AIRA Data Validation Guide and National Error Code Set Guidance

Jan 2019

slide-6
SLIDE 6

Completeness Consistency Accuracy Timeliness Validity

slide-7
SLIDE 7

The 5Ws (and H)

Who

  • The IIS

What

  • Implement or harmonize with existing data accuracy checks and error codes

Where • HL7 Response Messages When • In real time Why

  • Quick to find, quick to fix. Easier when in harmony with existing resources.

How

  • …and request for feedback!
slide-8
SLIDE 8

Resources Used

https://immregistries.org/resource/

slide-9
SLIDE 9

High Priority accuracy validation

BR-101: Vaccination Encounter Date must not be before Patient Date of Birth

HL7 Data Quality Statement AIRA-DV-BR-101: RXA-3 (DateTimeStartOfAdministration) must not be before PID-7 (DateTimeOfBirth) when RXA-21 (ActionCode) is not valued "D“. When the above data quality statement is violated then return ERR-3 (HL7ErrorCode) 2204^Vaccination Date Too Long Ago^HL70533

slide-10
SLIDE 10

High Priority accuracy validation

BR-103: Vaccination Encounter Date must be less than or equal to (before or the same as) the Submission Date

HL7 Data Quality Statement AIRA-DV-BR-103: RXA-3 (DateTimeStartOfAdministration) must be less than or equal to (before or the same as) MSH-7 (DateTimeOfMessage) when RXA-21 (ActionCode) is not valued "D". When the above data quality statement is violated then return ERR-3 (HL7ErrorCode) 1^Illogical Date error^HL70533

slide-11
SLIDE 11

High Priority accuracy validation

BR-107: Every administered vaccine should be recorded as a single Vaccination Event (e.g., combo vaccine should be recorded as 1 event rather than separate events for each component)

Not Implemented Was unsure how to implement due to:

  • Immunizations can be split into multiple messages
  • Even if it’s in a single message the components could be out of order
slide-12
SLIDE 12

High Priority accuracy validation

BR-114: Vaccination Encounter Date should not be the same as the Patient Date of Birth unless it is on the list of vaccines recommended for administration on the date of birth, e.g., HepB

HL7 Data Quality Statement AIRA-DV-BR-114: RXA-3 (DateTimeStartOfAdministration) should not be the same as PID-7 (DateTimeOfBirth) unless it is on the list of vaccines recommended for administration on the date of birth, e.g., HepB when RXA-20 (CompletionStatus) is valued "CP" or "PA" and RXA-21 (ActionCode) is not valued "D“. When the above data quality statement is violated then return ERR-3 (HL7ErrorCode) 1^Illogical Date error^HL70533

slide-13
SLIDE 13

High Priority accuracy validation

BR-116: Manufacturer and CVX Code should not contradict one another

Not Implemented Was unsure how to implement due to:

  • How to address case of manufacturer buys out another manufacturer. Does

the code change? Do we need history of this to allow multiple values? Is there a challenge with keeping this up to date?

Functional Guide Vol 2-Review Draft 1.7.19.docx

slide-14
SLIDE 14

High Priority accuracy validation

BR-118: Vaccination Encounter Date should not be after the lot number expiration date

HL7 Data Quality Statement AIRA-DV-BR-118: RXA-3 (DateTimeStartOfAdministration) should not be after RXA-16 (SubstanceExpirationDate) when RXA-20 (CompletionStatus) is valued "CP" or "PA" and RXA-21 (ActionCode) is not valued "D". When the above data quality statement is violated then return ERR-3 (HL7ErrorCode) 2001^Conflicting Administration Date and Expiration Date^HL70533

slide-15
SLIDE 15

Medium Priority accuracy validation

BR-119: Route and Site should not contradict each

  • ther for a given Vaccine Type and Patient’s age

HL7 Data Quality Statement AIRA-DV-BR-119: RXR-1 (Route) and RXR-2 (AdministrationSite) contradict each other for the given Vaccine Type in RXA-5 (AdministeredCode) and Patient’s age on RXA-3 (DateTimeStartOfAdministration) when RXA-20 (CompletionStatus) is valued "CP" or "PA" and RXA-21 (ActionCode) is not valued "D". When the above data quality statement is violated then return ERR-3 (HL7ErrorCode) 3^Illogical Value error^HL70533

slide-16
SLIDE 16

High Priority accuracy validation

BR-121: Administered vaccinations coded with an “unspecified” CVX code (should have specific Vaccine Types, e.g., Hib PRP-OMP; unspecified vaccine types, e.g., Hib, unspecified formulation)

HL7 Data Quality Statement AIRA-DV-BR-121: RXA-5 (AdministeredCode) should not be valued with an “unspecified” vaccine when the first occurrence of RXA-9.1 is valued "00" and RXA-20 (CompletionStatus) is valued "CP" or "PA" and RXA-21 (ActionCode) is not valued "D". When the above data quality statement is violated then return ERR-3 (HL7ErrorCode) 3^Illogical Value error^HL70533

slide-17
SLIDE 17

High Priority accuracy validation

BR-130: Doses should not be recorded as given before the minimum patient age or after the maximum patient age for that particular vaccine

HL7 Data Quality Statement AIRA-DV-BR-130: Patient's age on RXA-3 (DateTimeStartOfAdministration) should not be before the minimum patient age or after the maximum patient age for the given Vaccine Type in RXA-5 (AdministeredCode) when RXA-20 (CompletionStatus) is valued "CP" or "PA" and RXA-21 (ActionCode) is not valued "D". When the above data quality statement is violated then return Next slide…

slide-18
SLIDE 18

BR-130 cont.

ERR-3 (HL7ErrorCode) 3^Illogical Value error^HL70533 ERR-7 (DiagnosticInfor mation) NumericPath: RXA[1].3[1].1, NamePath: ORDER[0]/RXA/DateTimeStartOfAdministration/Time, RuleId: , ApplicationErrorCode: AIRA-DV-BR-130, AIRA Data Validation Guide Rule: BR 130, Maximum Date: 20180101, Administration Date: 20181217, Days Difference: 350 ERR-8 (UserMessage) RXA-3 (DateTimeStartOfAdministration): Patient's age on this date should not be before the minimum patient age or after the maximum patient age for the given Vaccine Type in RXA-5 (AdministeredCode) when RXA-20 (CompletionStatus) is valued "CP" or "PA" and RXA-21 (ActionCode) is not valued "D". Please see BR-130 in the AIRA Data Validation Guide. When the above data quality statement is violated then return

slide-19
SLIDE 19

Test and Document Like Crazy

slide-20
SLIDE 20
slide-21
SLIDE 21

Client Completeness

Shannon Coleman, STC Michelle Middaugh, STC

slide-22
SLIDE 22

22

STC | IDEAS START HERE

Client Completeness

Shannon Coleman and Michelle Middaugh

Scientific Technologies Corporation

slide-23
SLIDE 23

23

STC | IDEAS START HERE

Electronic Interface User Interface

How does patient and vaccination information get into IWeb?

slide-24
SLIDE 24

24

STC | IDEAS START HERE

STC Data Quality Summit

February 12-13, 2019 Attendees: Client Interoperability experts, AIRA representatives and STC staff Purpose: Discuss data quality challenges, best practices

○

Bad Merges/Duplicate Records

○

Address Cleansing

○

Homeless Populations

○

Patient Active/Inactive Status & Patient

○

Ownership

Programmatic

slide-25
SLIDE 25

25

STC | IDEAS START HERE

Opportunity to align with national guidance IIS DATA QUALITY PRACTICES TO MONITOR AND EVALUATE DATA AT REST

slide-26
SLIDE 26

26

STC | IDEAS START HERE

Where do you start?

slide-27
SLIDE 27

27

STC | IDEAS START HERE

It’s hard to assess any other dimension if the data isn’t being recorded in the registry in the first place.

slide-28
SLIDE 28

28

STC | IDEAS START HERE

Considerations for Completeness

  • Does IWeb store the data element?
  • Is it a required data field in the UI?
  • Can it be required? Is it technically possible?
  • Is the data element required via HL7?
  • Does my issue resolution and import profile support the

expected conformance?

  • Policies and Local decision-making: Should it be mandatory

for our providers?

  • Does conflict exist between PHC Hub and IWeb?
slide-29
SLIDE 29

29

STC | IDEAS START HERE

Client Completeness Configuration HL7 Crosswalk

For each Data Element

  • Corresponding HL7 field
  • Conformance from HL7 Implementation Guide
  • Conformance from Local HL7 Implementation Guide
  • Current settings within IWeb
  • Current Import Profile and Issue Resolution settings within

PHC Hub

slide-30
SLIDE 30

30

STC | IDEAS START HERE

HL7 Crosswalk

slide-31
SLIDE 31

31

STC | IDEAS START HERE

Client Completeness Configuration Report Card

  • Establishes baseline by measuring completeness for Patient

Demographic and Vaccination Event Data Elements

  • Benchmarks against Target Level established by Data at

Rest Guidance

  • Indicates optimal configuration of current functionality
  • Identifies possible areas of conflict or inconsistency
  • Provides actionable recommendations to improve

completeness measures

slide-32
SLIDE 32

32

STC | IDEAS START HERE

Client Configuration Completeness Report Card

slide-33
SLIDE 33

33

STC | IDEAS START HERE

slide-34
SLIDE 34

34

STC | IDEAS START HERE

slide-35
SLIDE 35

35

STC | IDEAS START HERE

slide-36
SLIDE 36

36

STC | IDEAS START HERE

slide-37
SLIDE 37

37

STC | IDEAS START HERE

STC Next Steps

  • Automate currently manual reports
  • Link in PHC Hub for Import profile settings
  • Drilling down into the details during Consortium calls
  • Backlog items for new data fields
  • Standardize naming conventions
  • Follow-up one on one calls
slide-38
SLIDE 38

Next Meeting

March 14, 2019 2:00 pm ET / 11:00 am PT

slide-39
SLIDE 39

More Information

  • Web Links
  • Subscribe to immunization group

http://www.hl7.org/participate/UserGroups.cfm?UserGroup=Immunization

  • Public User Group Wiki

http://www.hl7.org/special/committees/iug/index.cfm

  • Private User Group Wiki

http://iugwiki.hl7.org/

  • HL7 Press Release

http://www.hl7.org/documentcenter/public_temp_F760602A-1C23-BA17- 0C0D326E635471F9/pressreleases/HL7_PRESS_20140402.pdf

  • AIRA Press Release

http://www.immregistries.org/events/2014/04/10/hl7-immunization-user-group

slide-40
SLIDE 40

Contact Information

If you have any questions or comments: ▪ Kim Salisbury-Keith Kim.SalisburyKeith@health.ri.gov ▪ Nathan Bunker nbunker@immregistries.org ▪ Kevin Snow ksnow@envisiontechnology.com ▪ Danny Wise Danny.Wise@allscripts.com Thank you!
