Town of Burlington Department of Public Works Planning Board Informational Presentation Weston & Sampson January 05, 2012 Meadow Road / Middlesex Turnpike Site | 3.4 Acres 1 Acre Environm ental Resources Map Wetlands Limits

slide-1
SLIDE 1

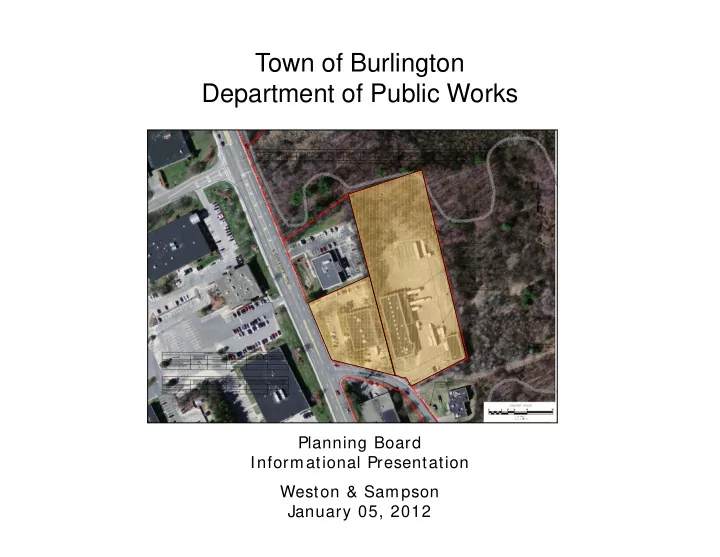

Planning Board Informational Presentation Weston & Sampson January 05, 2012

Town of Burlington Department of Public Works

slide-2
SLIDE 2

Meadow Road / Middlesex Turnpike Site |

1 Acre 3.4 Acres

slide-3
SLIDE 3

Environm ental Resources Map

  • Wetlands Limits
  • 100-Year Flood Zone
slide-4
SLIDE 4

Hum an Receptor Map

  • Zone IIs
slide-5
SLIDE 5

Aquifer & W ater Resource Districts

Aquifer Water Resource Site

slide-6
SLIDE 6

Existing Conditions

  • Zoning District: General Industrial District (IG)
  • Prior Use: Clark & Reid – Moving Company
  • Office
  • Warehouse Storage
  • Truck Parking/ Storage
  • Vehicle Maintenance
  • Existing site was issued permits to store fuels on site when the principal and accessory

uses were established

slide-7
SLIDE 7

Existing Conditions

  • Setbacks are non-conforming with respect to buffer zone setbacks
  • No stormwater management – sheet flow
  • Degraded pavement surface
  • Building exterior
slide-8
SLIDE 8

Conceptual Alternative |

slide-9
SLIDE 9

Conceptual Alternative |

slide-10
SLIDE 10

Conceptual Alternative – Site Restrictions |

Note – Continued use of existing site for seasonal / material storage is recommended

slide-11
SLIDE 11

Conceptual Alternative – Site Restrictions |

Wetlands Wetlands Buffer Flood Plain Zoning Setbacks

Note – Continued use of existing site for seasonal / material storage is recommended

slide-12
SLIDE 12

Conceptual Alternative – Site Restrictions |

Wetlands Wetlands Buffer Flood Plain Zoning Setbacks

Note – Continued use of existing site for seasonal / material storage is recommended

slide-13
SLIDE 13

Conceptual Alternative – Site Restrictions |

Wetlands Wetlands Buffer Flood Plain Zoning Setbacks

Note – Continued use of existing site for seasonal / material storage is recommended

slide-14
SLIDE 14

Zoning Analysis ( Com bined Sites)

  • Zoning District:

General Industrial District (IG)

  • Allowed Uses: Municipal Maintenance and Garage Facilities

Public Offices

  • Setbacks:
  • Min Front Yard: 25’
  • Min Side Yard: 15’
  • Min Rear Yard: 15’ (increase to 20% depth of lot adjoining RO/ RG)
  • Maximum Aggregate Building-to-Ground Area Percentage: 25%
  • Land Area 4.4 acres = 191,664 SF @ 25% = 47,916 SF allowed
  • Provided: 49,250 SF (building size to be adjusted to meet zoning parameters)
  • Maximum Floor Area Ratio: 0.15
  • Gross Floor Area = 58,850 SF
  • Land Area 4.4 acres = 191,664 SF
  • FAR: 58,850/ 191,664 = 0.31
slide-15
SLIDE 15

Zoning Analysis

  • Water Resource District
  • Municipal Maintenance and Garage Facilities are permitted by Special Permit in

accordance with Article 4.2.2.7 table of Principal Use Regulation Schedule

  • Aquifer District Restrictions (Zone II):
  • VSQG of hazardous wastes (allowed by Special Permit) – Implies that SQG are not

permitted

  • Municipal Maintenance and Garage Facilities are not permitted pursuant to Article

4.2.2.7 table of Principal Use Regulation Schedule

slide-16
SLIDE 16

Seek Planning Board approval with regard to:

– Special Permit for a Municipal Maintenance and Garage Facility in the Water Resource District (per 4.2.2.7) – Continued use of the existing non-conforming fuel and oil storage for the new Public Works Facility – Change/ add and additional non-conforming use to the site (Municipal Maintenance and Garage Facility in the Aquifer District) – Alternation of the existing non-confirming site

  • Maintain existing non-confirming setbacks
  • Floor Area Ration (FAR) + / - 0.30

Town of Burlington Department of Public Works Next Steps

slide-17
SLIDE 17

Article VI : Non-Conform ing Uses and Structures

  • …

A nonconforming use, building, structure, or premise may extended, altered or changed if there is a finding by the Planning Board that such extension, alternation

  • r change will not be substantially more detrimental than the existing

nonconforming use to the neighborhood.

  • The proposed site has been historically used to store large vehicles/ trucks and for vehicle

maintenance

  • The new DPW facility will improve the stormwater management to meet DEP stormwater

quality standards

  • Building will be equipped to store vehicles indoors and will include latest environmental

protection elements including floor drains connected to sanitary sewer and secondary containment for maintenance fluids with electronic monitoring detection systems,

  • Existing structure will be restored to a more aesthetically pleasing state

Sample photos from recently completed public works facilities

slide-18
SLIDE 18

Aquifer & W ater Resource Districts

Proposed Site Existing Site

slide-19
SLIDE 19

Aquifer & W ater Resource Districts

Aquifer Water Resource Proposed Site Existing Site

slide-20
SLIDE 20
  • Consolidation will improve efficiency of DPW and Recreation
  • perations which will make providing the many services to

the community more cost effective

  • Protects Town’s multi-million dollar investment in equipment
  • Code compliant and safe work environment for employees
  • Protect adjacent wetlands by storing equipment indoors
  • Building will conform to latest and anticipated future

regulatory requirements

Town of Burlington Department of Public Works Benefits of a New/ Renovated Facility

Sample Photographs of Completed Public Works Facilities
