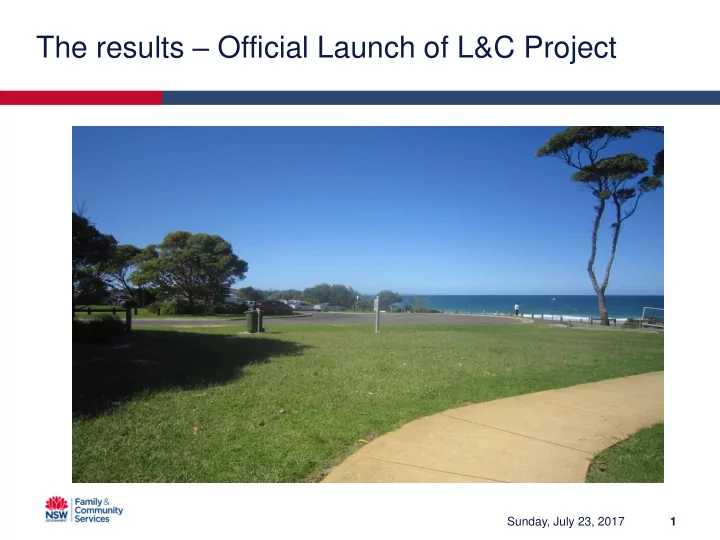

The results – Official Launch of L&C Project

1 Sunday, July 23, 2017

Mollymook Beach Reserve

2 Sunday, July 23, 2017

Official Launch of L&C Project

3 Sunday, July 23, 2017

Macquarie Fields Leisure and Aquatic Centre

4 Sunday, July 23, 2017

South Grafton Pool

5 Sunday, July 23, 2017

Echo Point

6 Sunday, July 23, 2017

Collaroy Surf Lifesaving Club

7 Sunday, July 23, 2017

• Changing Places Toilets
• Lift & Change Facilities
• What is the difference?

CPT and L&C What’s the Difference

8 Sunday, July 23, 2017

• Room to accommodate a wheelchair plus

up to 2 carers

• Height-adjustable adult change table
• Overhead hoist for full room coverage
• Additional Unisex Accessible Toilet
• Master Locksmiths Access Key
• Accredited Access Consultant

Very little difference in the facility

9 Sunday, July 23, 2017

• Concept / Project
• Minor differences in dimensions
• Inclusions
• Accreditation
• Peninsular Toilet
• Responsibility of the Accredited Access

Consultant

Differences

10 Sunday, July 23, 2017

• The Changing Places Information Guide

and Technical Standard states that Changing Places is a concept, which is recommended for inclusion in major

• venues. E.g. Shopping Centres, sporting,

recreational, cultural, transport, tourist destinations, parks and civic centres

Differences

11 Sunday, July 23, 2017

• Lift & Change is a NSW State Government

– Local Government co-funded project, for which a grant is specifically provided to Local Councils for constructing or retro- fitting change facilities on Council owned

• properties. (3 Aquatic Centres, 3 Beach-

side, 2 VIC, 2 major tourist destinations, 1 Museum)

Differences

12 Sunday, July 23, 2017

• Facilities constructed to one of the three

CP designs, or an acceptable equivalent, can be Accredited.

• L&C does not provide Accreditation, but

encourages Councils to seek Accreditation if their facilities meet CP guidelines.

• L&C acknowledges structural and financial

restrictions

Differences - Accreditation

13 Sunday, July 23, 2017

• Some CP dimensions differ from L&C

dimensions, but both comply with the AS1428.1 (2009) range (Change rails)

• CP requires a shower screen, and privacy

screen in front of the toilet

• CP requires a peninsular toilet. L&C will

accept a corner toilet where there is insufficient room

Minor differences and Inclusions

14 Sunday, July 23, 2017

Item Element Description AS1428.1 (2009) Changing Places Toilets Comments 5.00 Door 5.01 Circulation Figures 31 and 32 Outside circulation to comply with AS1428.1 (2009) Depends on the approach to the swing or sliding door 5.02 Clear width of doorway 850 mm, when the swing or sliding door is fully open 950 mm, minimum. Sliding door

• nly

CPT recommends 1100 mm for a beach wheelchair 5.03 Airlock 1450 mm, Figure 34 5.04 Door colour At least 30% luminance contrast between door and immediate surrounds Same i.e. to walls or architraves 5.05 Opening control D-shape lever handle Automatic controls 5.06 Handle/control height 900 mm to 1100 mm above floor, and at least 500 mm from an internal corner 900 mm to 1200 mm above floor 5.07 Force to operate 20 Newtons maximum Button control Including push and hold 5.08 Automatic door

• peration

Sufficient “dwell” time AS1735.12 (1999), Lifts, escalators and moving walks, requires minimum dwell time of 6 seconds. Fail-safe system To allow door to re-open when an object is detected Automatic door control plate As shown in CPT Information Kit 5.09 Locking System MLAK System if facility is in an exposed location MLAK required by the NSW Lift & Change Project 5.10 Hinges on internal cubical doors May be located on the outside of the door for emergency removal 5.11 Signage As Clause 8.1 Same 5.12 Transfer Signage to indicate left or right transfer Same From a wheelchair to the WC Pan

Differences – Master Check List

15 Sunday, July 23, 2017

• Proposals for CP toilets are referred to the

Technical Advisory Group for assistance

• L&C engaged an Accredited Access

Consultant from the start of the project

Differences - Accredited Access Consultant

16 Sunday, July 23, 2017

• Inspect potential sites with Council reps.
• Recommend site / seek alternate site
• Check attractors; safety, security,

surveillance; structural alterations; additional cost; and paths of travel

• Assist in / approve design and quotations
• Check on completion
• 6 month check on performance

L&C Accredited Access Consultant

17 Sunday, July 23, 2017

• Visitor Information Centre
• Existing Accessible Toilet, Mothers Room,

Baby Change Room

• Main City Park
• Shopping Precinct
• Liberty Swing
• Accessible Parking
• Interstate Bus Stop

Attractors

18 Sunday, July 23, 2017

Safety – A requirement of L&C

19 Sunday, July 23, 2017

Safety – Rail a condition of Contract

20 Sunday, July 23, 2017

Macquarie Fields - Before

21 Sunday, July 23, 2017

Macquarie Fields - Before

22 Sunday, July 23, 2017

Macquarie Fields – Demolition

23 Sunday, July 23, 2017

Macquarie Fields - After

24 Sunday, July 23, 2017

• AS1428.1 (2009)
• Empirical testing 18-60
• 1 in 4 over 65 by 2056
• Mainly 80th percentile
• Census + NDIS
• Feedback from CPT and L&C
• E.g. Grabrails

Changes to BCA, Premises Standards?

25 Sunday, July 23, 2017

Possible change - Grabrails

26 Sunday, July 23, 2017

For more information: https://www.facs.nsw.gov.au/reforms/develo ping-the-nsw-disability-inclusion- plan/disability-inclusion-action-plans/lift-and- change-facilities Time for Questions?

Resources
