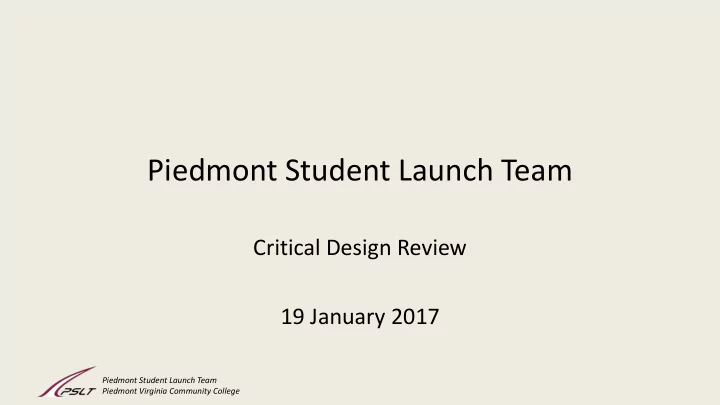

Piedmont Student Launch Team Critical Design Review 19 January 2017 Piedmont Student Launch Team Piedmont Virginia Community College Overview Design overview Payload design Launch vehicle design Payload integration Launch

slide-1
SLIDE 1

Piedmont Student Launch Team Piedmont Virginia Community College

Piedmont Student Launch Team

Critical Design Review 19 January 2017

slide-2
SLIDE 2

Piedmont Student Launch Team Piedmont Virginia Community College

Overview

  • Design overview
  • Launch vehicle design
  • Launch and flight statistics
  • Recovery system and landing

statistics

  • Test plans and procedures
  • Subscale flight results
  • Payload design
  • Payload integration
  • Interfaces
  • Status of requirements

verification

  • Q&A

2

slide-3
SLIDE 3

Piedmont Student Launch Team Piedmont Virginia Community College

DESIGN OVERVIEW

Rodney Davis

3

slide-4
SLIDE 4

Piedmont Student Launch Team Piedmont Virginia Community College

Design Overview - Final Launch Vehicle Statistics

  • Diameter: 5.5 in
  • Fin span: 20.3 in
  • Height: 108.8 in
  • Center of gravity before Burnout: 66.7 in from nose cone
  • Center of gravity after Burnout: 63.6 in from nose cone
  • Center of Pressure: 78.6 in from nose cone
  • Static stability margin: 2.26

4

slide-5
SLIDE 5

Piedmont Student Launch Team Piedmont Virginia Community College

Design Overview – Mass and Mass Margin

5

System Mass (lbs) Mass Margin (lbs)

Overall 29.77 +1.375, -1.5 Upper section 4.53 ±0.39 Avionics bay 4.57 ±0.03 Lower section 7.53 ±0.95 Ballast 2.00 ±0 Nose cone 2.59 ±0 Motor mount 1.77 ±0.48 Bulkheads (each) 0.39 ±0.2 Upper body tube 3.85 ±0 Lower body tube 3.15 ±0 Motor tube 1.03 ±0.02

slide-6
SLIDE 6

Piedmont Student Launch Team Piedmont Virginia Community College

Design Overview – Mass and Mass Margin (con’t)

System Mass (lbs) Mass Margin (lbs)

Recovery harness (each, with swivels and quick links) 1.22 ±0.04 Parachutes (both) 1.60 ±0.3 Avionics bay tube 1.86 ±0 Avionics sled, mounting hardware, and altimeter 0.64 ±0 Fins (each) 0.70 ±0.07 Tail cone 0.44 ±0.1 Centering rings (each) 0.14 ±0.15 Motor 8.10 ±0 6

slide-7
SLIDE 7

Piedmont Student Launch Team Piedmont Virginia Community College

Design Overview - Final Payload Statistics

  • Overall

– Mass: 3.5 lbs – Length: 12 in

  • Reaction wheel

– Mass: 1.5 lbs – Length: 1.5 in – Diameter: 4.5 in

7

slide-8
SLIDE 8

Piedmont Student Launch Team Piedmont Virginia Community College

LAUNCH VEHICLE DESIGN

Rodney Davis

8

slide-9
SLIDE 9

Piedmont Student Launch Team Piedmont Virginia Community College

Launch Vehicle Design - Key Design Features

  • Altitude control: ballasting
  • Main material: fiberglass
  • Number of shear pins per

section: 4

  • Length of recovery harness

sections: 27 ft

  • Rail button size: 1515
  • Main parachute size: 84 in
  • Drogue parachute size: 18 in
  • Ejection charge size: 1.6 g

drogue, 2.8 g main

  • Recovery harness attachment:

quick links and swivels

  • Attachment points per

section: 2

9

slide-10
SLIDE 10

Piedmont Student Launch Team Piedmont Virginia Community College

Launch Vehicle Design - Upper Section

10

slide-11
SLIDE 11

Piedmont Student Launch Team Piedmont Virginia Community College

Launch Vehicle Design - Avionics Bay

11

slide-12
SLIDE 12

Piedmont Student Launch Team Piedmont Virginia Community College

Launch Vehicle Design - Lower Section

12

slide-13
SLIDE 13

Piedmont Student Launch Team Piedmont Virginia Community College

Launch Vehicle Design - Full Rocket

13

slide-14
SLIDE 14

Piedmont Student Launch Team Piedmont Virginia Community College

Launch Vehicle Design - Final Motor Choice

  • Aerotech L1150R-P

14

slide-15
SLIDE 15

Piedmont Student Launch Team Piedmont Virginia Community College

STATISTICS

Daniel Hull

15

slide-16
SLIDE 16

Piedmont Student Launch Team Piedmont Virginia Community College

Launch Statistics

  • Thrust-to-Weight at rail exit: 7.6:1
  • Rail Exit Velocity: 71 ft/s
  • Rail Exit Time: 0.385 s

16

slide-17
SLIDE 17

Piedmont Student Launch Team Piedmont Virginia Community College

Flight Statistics

  • Stability Margin at Launch: 2.26
slide-18
SLIDE 18

Piedmont Student Launch Team Piedmont Virginia Community College

Recovery System

  • Parachutes

– Main: 84 in – Drogue: 18 in

  • Recovery Harnesses

– Type: Tubular Kevlar – Length: 27 ft – Size: 1/2 in

  • Descent Rates

– Under Drogue: 112 ft/s – Under Main: 18.8 ft/s

slide-19
SLIDE 19

Piedmont Student Launch Team Piedmont Virginia Community College

Kinetic Energy

Main Deployment Section Kinetic Energy (ft-lbf) Upper 875 Avionics Bay 883 Lower 1455 Landing Section Kinetic Energy (ft-lbf) Upper 24.9 Avionics Bay 25.1 Lower 41.4

slide-20
SLIDE 20

Piedmont Student Launch Team Piedmont Virginia Community College

Drift Predictions

Wind Speed (MPH) Drift (ft) 5 515 10 1030 15 1545 20 2060 Wind Speed (MPH) Drift (ft) 5 171 10 352 15 526 20 708

slide-21
SLIDE 21

Piedmont Student Launch Team Piedmont Virginia Community College

TEST PLANS AND PROCEDURES

Andrew Oxford

21

slide-22
SLIDE 22

Piedmont Student Launch Team Piedmont Virginia Community College

Test Plans and Procedures

  • Structure Testing

– Push / Pull tests

  • Experiment Testing

– Push / Pull tests – Electronics Tests

  • Mounting
  • Recovery System Ground Fire
  • Simulations
  • Software Testing

– Done

  • Data collection
  • Data transmission

– To Do

  • Range
  • Target identification
  • Reaction wheel control

22

slide-23
SLIDE 23

Piedmont Student Launch Team Piedmont Virginia Community College

Test Plans and Procedures – Recovery System

  • Electronics

– Altimeter tests – Mounting

  • Recovery Harness

– Pull tests

  • Parachutes

– Deployment

23

slide-24
SLIDE 24

Piedmont Student Launch Team Piedmont Virginia Community College

SUBSCALE TEST FLIGHT

Nicolas Gutkowski

24

slide-25
SLIDE 25

Piedmont Student Launch Team Piedmont Virginia Community College

Subscale Test Flight

  • 73% Scale airframe
  • Dual deploy
  • Redundant altimeters
  • Full payload electronics
  • 29% Scale mass reaction

wheel

  • J250 Motor
slide-26
SLIDE 26

Piedmont Student Launch Team Piedmont Virginia Community College

Subscale Test Flight - Failure

  • Motor failure at T+0.767s
  • Motor failure caused motor to be ejected from rocket
  • Altimeters did not reach arming altitude

– Parachute did not deploy

slide-27
SLIDE 27

Piedmont Student Launch Team Piedmont Virginia Community College

Subscale Test Flight – Recovered Data

  • Rail Exit Velocity: 46 ft/s
  • Angle at Rail Exit: <5°
  • Anomaly Altitude: 42 ft
  • Apogee: 154 ft
  • Flight Length: 9.5 s
slide-28
SLIDE 28

Piedmont Student Launch Team Piedmont Virginia Community College

PAYLOAD DESIGN

Sander Abraham

28

slide-29
SLIDE 29

Piedmont Student Launch Team Piedmont Virginia Community College

Payload Design - Final Payload Overview

  • Similar Design as PDR

– Subscale had minor changes to accommodate the size – The motor was moved to the bottom

  • Different sensor

package

29

slide-30
SLIDE 30

Piedmont Student Launch Team Piedmont Virginia Community College

Payload Design – Reaction Wheels

  • Subscale Reaction Wheel:

– Made up of two wooden disks with bolts going through, and four nuts per bolt to add mass – Mass: 0.44 lbs

  • Full Scale Reaction Wheel:

– Same design with fiberglass – Mass: 1.5 lbs

30

slide-31
SLIDE 31

Piedmont Student Launch Team Piedmont Virginia Community College

Payload Design - Experiment Electronics

  • Each part is set on top of standoff

screws

  • Parts List:

– Raspberry Pi 3 B+ – Xbee Pro 900 HP – Adafruit Ultimate GPS – AltIMU-10

31

slide-32
SLIDE 32

Piedmont Student Launch Team Piedmont Virginia Community College

Payload Design - Experiment Electronics (cont.)

  • Parts List:

– Battery Pack (6xAA) – 5v Step Down Converter (UBEC) – 2x A23 Batteries – MD10C R3 Motor Controller

32

slide-33
SLIDE 33

Piedmont Student Launch Team Piedmont Virginia Community College

Payload Integration

  • The base of the payload sits 41.85 in from the nose cone
  • A coupler section acts as a rest for the payload to sit on
  • The payload is kept in place by rivets
  • The camera has a back plate that is attached to the inside of

the upper body section

33

slide-34
SLIDE 34

Piedmont Student Launch Team Piedmont Virginia Community College

INTERFACES

Sander Abraham

34

slide-35
SLIDE 35

Piedmont Student Launch Team Piedmont Virginia Community College

Interfaces - Internal

  • Avionics bay

– Upper and lower sections

  • Experiment
  • Motor mount

35

slide-36
SLIDE 36

Piedmont Student Launch Team Piedmont Virginia Community College

Interfaces - External

  • Launch rail

– 1515 – 12 ft – Distance between rail buttons: 27.6 in

  • Experiment camera
  • Tracking system and

transmitter

36

slide-37
SLIDE 37

Piedmont Student Launch Team Piedmont Virginia Community College

STATUS OF REQUIREMENTS VERIFICATION

Andrew Oxford

37

slide-38
SLIDE 38

Piedmont Student Launch Team Piedmont Virginia Community College

Status of Requirements Verification – Overall

  • Project is currently on schedule

In Progress Completed Not Started

38

slide-39
SLIDE 39

Piedmont Student Launch Team Piedmont Virginia Community College

Status of Requirements Verification – Verified

  • Design

– Meets all requirements

  • Subscale flight

– December 10th

39

slide-40
SLIDE 40

Piedmont Student Launch Team Piedmont Virginia Community College

Status of Requirements Verification – On Going

  • Educational engagement

– 90 Female – 17 Male – 69 Direct engagement – More activities planned

  • Safety

– Continuing to update safety plans – Have checklists

  • Website

– Continuing to be updated – Hosting all deliverables

40

slide-41
SLIDE 41

Piedmont Student Launch Team Piedmont Virginia Community College

Status of Requirements Verification – In Progress

  • Subscale re-flight

– January 21st

  • Full scale test flight

– Construction is underway – Launch planned for February 4th

  • FRR
  • Launch week

41

slide-42
SLIDE 42

Piedmont Student Launch Team Piedmont Virginia Community College

Questions?
