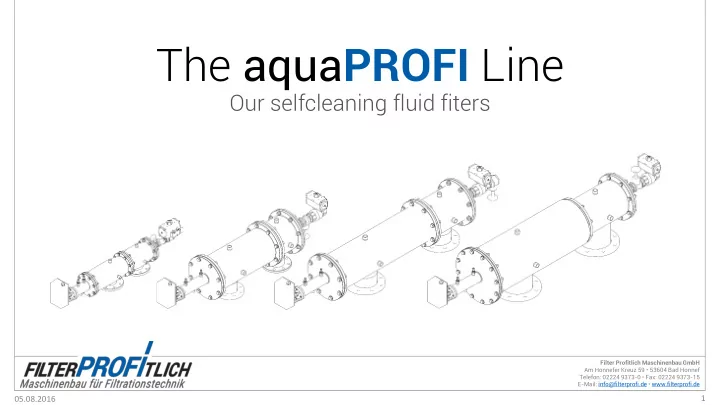

The aqua PROFI Line Our selfcleaning fluid fiters Filter Profitlich - - PowerPoint PPT Presentation

The aquaPROFI Line

Our selfcleaning fluid fiters

05.08.2016

Filter Profitlich Maschinenbau GmbH Am Honnefer Kreuz 59 • 53604 Bad Honnef Telefon: 02224 9373-0 • Fax: 02224 9373-15 E-Mail: info@filterprofi.de • www.filterprofi.de

1

Principle of function

05.08.2016

Filter Profitlich Maschinenbau GmbH Am Honnefer Kreuz 59 • 53604 Bad Honnef Telefon: 02224 9373-0 • Fax: 02224 9373-15 E-Mail: info@filterprofi.de • www.filterprofi.de

2

The principle of function shall be demonstrated on a cross section of an AP5011

Principle of function

05.08.2016

Filter Profitlich Maschinenbau GmbH Am Honnefer Kreuz 59 • 53604 Bad Honnef Telefon: 02224 9373-0 • Fax: 02224 9373-15 E-Mail: info@filterprofi.de • www.filterprofi.de

3

The medium enters the filter housing through the inlet connection The polluting load is carried into the cylindrical filter screen The fluid crosses the filter screen from inside out Permeat leaves the filter, while solid loads are held back

Principle of function

05.08.2016

Filter Profitlich Maschinenbau GmbH Am Honnefer Kreuz 59 • 53604 Bad Honnef Telefon: 02224 9373-0 • Fax: 02224 9373-15 E-Mail: info@filterprofi.de • www.filterprofi.de

4

Drawn by the flow, the polluting load agglomerates on the filter screen With time, a filter cake builds up on the inside

• f the screen

The pressure difference across the screen between inlet and

• utlet increases

The control unit monitors the differential pressure and automatically triggers the selfcleaning process

Principle of function

05.08.2016

Filter Profitlich Maschinenbau GmbH Am Honnefer Kreuz 59 • 53604 Bad Honnef Telefon: 02224 9373-0 • Fax: 02224 9373-15 E-Mail: info@filterprofi.de • www.filterprofi.de

5

For the selfcleaning process the cleansing valve opens and the motor starts By opening the system to ambient pressure, the filter cake is sucked

• ff the screen through a

depression lense on the suction nozzle The motor drives an axial movement of the suction shaft, causing the whole filter screen to be cleaned After the selfcleaning process of about 30-60 seconds, the cleansing valve closes and the suction shaft returns to its reference point

Principle of function

05.08.2016

Filter Profitlich Maschinenbau GmbH Am Honnefer Kreuz 59 • 53604 Bad Honnef Telefon: 02224 9373-0 • Fax: 02224 9373-15 E-Mail: info@filterprofi.de • www.filterprofi.de

6

IMPORTANT: The process of filtration runs continously while cleansing and the operating system is not interrupted!

Principle of function

05.08.2016

Filter Profitlich Maschinenbau GmbH Am Honnefer Kreuz 59 • 53604 Bad Honnef Telefon: 02224 9373-0 • Fax: 02224 9373-15 E-Mail: info@filterprofi.de • www.filterprofi.de

7

Polluted filter screen before an selfcleaning process. The filter cake is clearly visible. Filter screen after an automatic selfcleaning process.

Features

05.08.2016

Filter Profitlich Maschinenbau GmbH Am Honnefer Kreuz 59 • 53604 Bad Honnef Telefon: 02224 9373-0 • Fax: 02224 9373-15 E-Mail: info@filterprofi.de • www.filterprofi.de

8

The aquaPROFI Line – Features of our selfcleaning fluid filters

► Selfcleaning process during operating system without interruption. ► Throughput up up to to 350 m³/h. (Considering single filters) ► Filter screens from 2 µm to to 500 µm. ► Cleaning at low system pressure of 2 bars. ► Cleaning with raw water. ► Co Completly automatic triggering of the selfclean aning process. ► Minimum waste wa water caused by a cleaning process. ► Modular system allows adjustments and individual solutions. ► Multiple applicat ations like coolant treatment, process fluids, seal water, saline water, irrigation systems, waste water, surface water.

Characteristics

05.08.2016

Filter Profitlich Maschinenbau GmbH Am Honnefer Kreuz 59 • 53604 Bad Honnef Telefon: 02224 9373-0 • Fax: 02224 9373-15 E-Mail: info@filterprofi.de • www.filterprofi.de

9

Modell AP713 AP3011 AP5011 AP7013 Housing 1.4301, 1.4571 or St37 powder-coated Throughput at 100 µm Up to 50 m³/h Up to 100 m³/h Up to 150 m³/h Up to 250 m³/h Piping connection* DN25, DN50, DN80 or external threat 1" and 2" DN80, DN 100 or external threat 2" DN125, DN 150 DN150, DN 250 Fineness 2–500 µm Filter screen 700 cm² 3.000 cm² 5.000 cm² 7.000 cm² Minimal pressure 1,5–2 bars Cleaning fluid Process water, unfiltrated Maximum operating pressure 10 bars Maximum temperature 110 °C (70°C powder-coated) Control SIMATIC S7 1200 with Touch-Panel or LOGO

* Further connections on request

05.08.2016

Filter Profitlich Maschinenbau GmbH Am Honnefer Kreuz 59 • 53604 Bad Honnef Telefon: 02224 9373-0 • Fax: 02224 9373-15 E-Mail: info@filterprofi.de • www.filterprofi.de

10

Let us join on a project together! Thank you
