Corporate Policy ISHIGAKI equipment has been designed and developed - - PowerPoint PPT Presentation

ISHIGAKI equipment has been designed and developed

to protect the Global Environment

Since its foundation, ISHIGAKI has followed a company policy of;

“Responding to Our Customers’ Trust with the Best Technology Available”

We have developed and manufactured an entire range of unique and excellent filters, for solid / liquid separation equipment used in many fields, Industrial processes, Mining applications and others ISHIGAKI also maintains the policy of continued product research and development as well as manufacturing activities based on strict Quality Control and at the same time paying attention to Environmental Considerations ISHIGAKI has obtained Certificates of approval for ISO 9001 and ISO 14001

Corporate Policy

1958 Founded as ISHIGAKI SEISAKUSHO CO., LTD. In Sakaide City, Kagawa Prefecture, Japan 1960 Renamed to ISHIGAKI MECHANICAL INDUSTRY CO., LTD. Continuous Vacuum Filter completed 1972 LASTA Diaphragm Filter Press Introduced 1983 LASTA GIANT Diaphragm Filter Press Introduced

1990 ISGK Screw Press Introduced 1992 MCDGC Introduced 1996 Renamed to ISHIGAKI Company Ltd. Certificate of approval for ISO 9001 obtained 2001 Certificate of approval for ISO 14001 obtained 2004 ISHIGAKI Environmental Technology Co., Ltd. ISHIGAKI Europe GmbH established 2006 ISHIGAKI Oceania Pty. Ltd. established 2013 ISHIGAKI USA Ltd. established

Direct Filter (Model IDF) LASTA Press (Model ISD) LASTA GIANT Press (Model ISDG) Screw Press (Model ISGK) LASTA Press (Model MCD)

Corporate History

Head office 1‐1‐1, Kyobashi, Chuo‐ku, Tokyo, 104‐0031, Japan Factory 483‐16, Ejiri‐cho, Sakaide‐city, Kagawa, 762‐8511, Japan Business Activities Manufacturer of filters, pumps and other related equipment. Design and execution of water supply and sewage equipment. Capital 510,000,000 Japanese yen

• No. of Employees

450 (Group Total of 862) (Dec. 2015) Corporate Sales 22.8 billion Japanese yen (End of June 2013) ISHIGAKI COMPANY, LTD. Establishment April 1958 President & CEO Makoto ISHIGAKI Corporate Name

Corporate Profile

Suzhou Factory (CHINA) Sakaide Factory (JAPAN)

ISHIGAKI Factories

ISHIGAKI Global Network

 ISHIGAKI USA Ltd.  ISHIGAKI Environmental Machine (Suzhou) Co., Ltd.  ISHIGAKI Europe GmbH  ISHIGAKI Oceania Pty. Ltd.

ISHIGAKI Subsidiaries Partners

 USA  Taiwan  Malaysia  South Korea  Turkey  South Africa  Brazil

Screw Press ‐ Sewage Waste Water, Industrial Waste (organic Sludge)

Fiber Filter ‐ Sewage Water Treatment Waste Water

Filter Press ‐ Water Treatment, Chemical Process, Steelwork,

Food Process, Industrial Waste MC Filter Press ‐ Mineral Process, Mineral Concentrate &Tailings

Vacuum Filter ‐ Chemical Process, Steelwork, Industrial Waste We have been focusing on developing and manufacturing filtration equipment since 1958.

Product Lineup

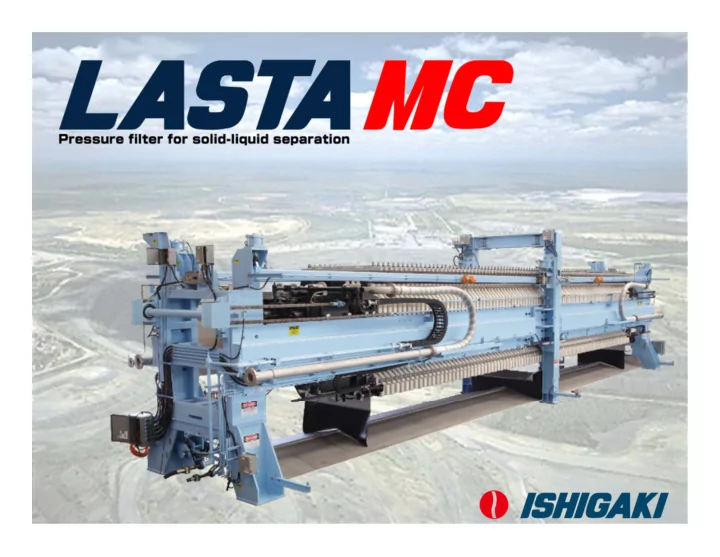

LASTA MC Filter Press

LASTA MC ‐ Typical Flow

LASTA MC – Process Mechanism

• 1. Plate Closing
• 3. Compression
• 4. Plate Opening
• 5. Cake Discharge
• 6. Cloth Washing

Feed slurry Compressed water

• 2. Slurry Feeding

LASTA MC ‐ Mechanism

• 1. Press Close
• 2. Feeding
• 3. Compression

Feed slurry Pressurized water

All filter plates are closed simultaneously by Plate Travel motor and clamped by hydraulic cylinders. Once the plates are clamped together, slurry feed channel is formed at the top of plates. Slurry is fed from the top feed channel into each filter chamber, filtered by two filter cloth and then formed the filter cake. Filtrate is discharge out from the filtrate chute positioned on the bottom core of each plates. (Top Feeding) Pressurized water (air) is injected into the inside of diaphragm. the filter cake is further compressed and dewatered. compressed air is applied for less than 0.7MPa

• compression. Higher compression

applies to compressed water.

LASTA MC ‐ Mechanism

• 4. Plate Opening
• 5. Cake Discharge
• 6. Cloth Washing

After compression process, dripping pan is opened and hydraulic cylinder is clamped

• ff and all plates are opened

simultaneously by Plate Travel system. At the same time with press

• pen, dewatered cake is

discharge out of each chamber simultaneously. Undischarged cakes are monitored and forcibly discharged with vibration mechanism. After cake discharge process is completed, dripping pan is closed and then all filter cloth are washed simultaneously by spray nozzles positioned at the center and both sides

• f the cloth support bar.

LASTA MC ‐ Mechanism (option)

Cake Wash Back Wash Air Blow

Compressed air is fed into the chamber from one side of filtrate channel and blow out the remained filtrate out of filter cake. In order to remove unnecessary dissolved substance from the cake or extract the dissolved precious materials as filtrate, Cake Wash Process is applied as option. The wash water penetrate and replace the dissolved substance in the cake with wash water. Replaced liquid is discharged out as filtrate.

LASTA MC ‐ Advantages 1

All filter chambers simultaneously

• pened and closed by Plate Traveling

System, which make possible to discharge the cake simultaneously and shorten process cycle time. It results in higher production capacity than conventional Filter Press.

Simultaneous All Chambers Open & Close System

LASTA MC ‐ Advantages 2

Cake Discharge monitoring system with back-up Mechanism

Undischarged cake is monitored by cloth support bar position detective sensor and then forcibly discharged by cloth vibration mechanism, which result in no need labors for cake discharge.

LASTA MC ‐ Advantages 3

The main maintenance work for Filter Cloth is replacement of filter clothes. LASTA MC makes possible to replace the filter cloth very easily and quickly due to its simple structure. Filter cloth replacement time shall be a min per chamber, which shortens down time and save labors cost.

Simple Structure, Easy Maintenance

LASTA MC ‐ Advantages 4

Efficient Filter Cloth Wash System

In every cycle, all Filter Cloths are washed simultaneously by the spray nozzles mounted on the cloth support bars, which doesn’t leave the cake

• residue. The efficient cloth wash

contribute to high and consistent performance of LASTA MC.

Robust and Simple Design for 24hrs fully automatic operation

LASTA MC is mechanically simplified and designed with robust and less moving parts, which leas to 24hours fully automatic operation under severe operating conditions.

LASTA MC – Line Up

Plate Size （ mm ） Number of Chambers Filtering Area（㎡） Approximate Dimension （ mm ） A B C 1,500 40 145 9,195 3,860 4,200 50 182 10,695 60 218 12,195 76 276 13,750 3,860 4,550 84 306 15,150 92 335 17,995 100 364 19,155 2,100 60 480 14,305 4,650 5,550 68 544 15,795 76 608 17,075 84 672 18,355 92 736 19,635 100 800 20,915

Under 100 Chambers Under 50 Chambers

LASTA MC ‐ Application

■ Mineral Process Tailings, Mineral Concentration

• Copper Concentrate
• Nickel Concentrate
• Zinc Concentrate
• Iron ore Concentrate
• Platinum Concentrate
• Fine Coal Flotation
• Coal Thickener Underflow
• Gold and Silver tailings
• Copper Tailings
• Rare earth
• Gypsum Tailings

Installation Reference

Gold, Silver Tailing ISDGC-H2100 X 90/100 x 10units Zinc Concentrate – Flotation Concentrate MCFC-H1500 x 100 x 5units Copper Concentrate – Flotation Concentrate MCFHC-H 1500 x 30 Coal Tailings under thickener MCDGC-H 2100 x 78 x 3units

Filtration Test Oppotunity

ISHIGAKI have provided to clients around the world require test work to be carried out. 2 types of testing equipment that are available in our laboratory or on site with our local partners. LASTA Single Leaf Test Unit

Test work on site

LASTA Test Unit #360

LASTA MC ‐ Conclusion

Robust and simple Design Short Cycle Time Low Labor Cost Easy replacement of Filter Cloth Simultaneously

• pen & Close

system High Production Capacity Excellent Performance 24hrs fully automatic operation

Ever Onward, Together
