SLIDE 1

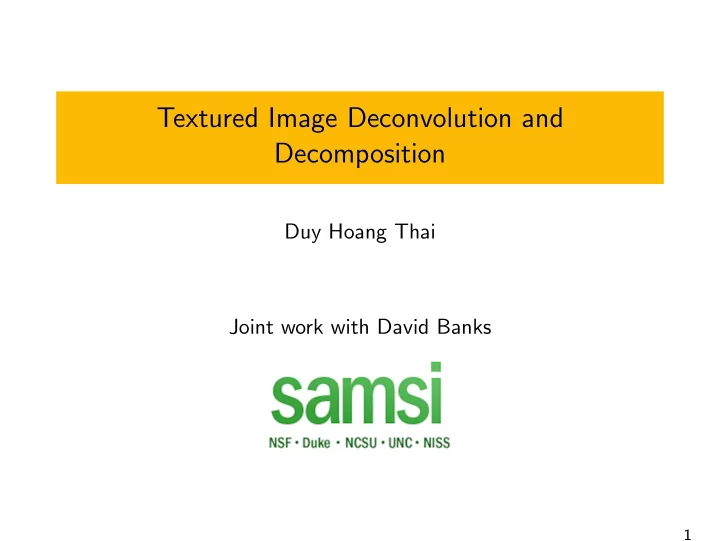

Textured Image Deconvolution and Decomposition

Duy Hoang Thai Joint work with David Banks

1

SLIDE 2

Inverse Problem in Imaging [1]:

Inverse problem Approximation theory sparsity Image processing: Optimization (PDE) Fourier (wavelet) Statistics (stochastic process)

e.g. segmentation, denoising, deblurring, ...

I The underlying technique in image processing is inverse problem

which links to approximation theory.

I There are 3 large fields in inverse problem: optimization, harmonic

analysis and statistics.

I ”Sparsity” is a fundamental concept in approximation theory. 2

SLIDE 3

Ex: Approximation of a function f ⇡ b + fseg + ✏ + ~

v

bias field piecewise constant residual texture

riginal image

(1) (2) (3) (4) (5) (6) (7)

The purpose of preprocessing is to obtain good feature and approximation theory stays at the heart in this step: I Image segmentation focuses on piecewise constant (2). I Texture analysis relates to directional texture (4)-(7). I Image denoising relates to (1)-(7), except noise (3). 3

SLIDE 4

Non-texture v.s. texture: there are three classes of images.

(a) Homogeneous (b) Texture (c) Homogeneous & Texture

4

SLIDE 5

Overview:

1. Motivation
2. Directional mean curvature for image deconvolution and

decomposition (DMCDD)

3. Function space & Filter Banks in sampling theory
4. Conclusion

5

SLIDE 6

1. Motivation for Image Reconstruction

Example: Forensic examiner tries to match different ballistic images (in the same gun) which are captured from a cheap microscope. Feature for matching is texture information. ) a cheap microscope produces noise and blur in the image. Motivation:

I Deconvolution is to recover the true underlying signal from a noisy

and blurred image.

I Decomposition is to extract good feature for post-processing, e.g.

pattern recognition.

6

SLIDE 7

2. Directional mean curvature for image deconvolution and decomposition

(DMCDD) Notation:

I A bounded domain:

Ω = n k = [k1, k2] 2 [0 , m 1] ⇥ [0 , n 1] ⇢ Z2o

I The Euclidean space (space of matrices): X = R

|Ω|

I A discrete image (size m ⇥ n):

f [k] : Ω ! R+ , matrix f 2 X Ex: Barbara image (size 512 ⇥ 512)

7

SLIDE 8

2. DMCDD

Go Feature

(a) original image f0 (b) observed image f (c)

reconstructed fre, MSE = 0.057 Model:

f = h ⇤ (u + v + ⇢ | {z }

=f0

) + ✏

I h: a blur operator (known) I u: piecewise smooth component I v: texture I ⇢: small scale objects (residual) I ✏: noise 8

SLIDE 9

2. DMCDD

I Our strategy is to find value of functions (u , v , ✏, ⇢) by minimizing

an objective function.

I The measures for these functions are defined in function space.

) This is a regularization problem in the Banach space (in discrete setting)!

9

SLIDE 10

2. The DMCDD model: general idea of the proposed DMCDD model

Piecewise smooth u Directional Mean Curvature (high order PDE & reduce stair case effect) T exture v Directional G-norm T exture v Spatial sparsity Identity condition Bounded condition in curvelet domain Legendre Fenchel trans. (Dantzig selector)

Note: This model can be explained by the Bayesian framework and L´ evy processes. 10

SLIDE 11

2. DMCDD: functional spaces [2, 6]

To minimize cost func., we have some constraints depending on different function spaces:

Besov space (space of wavelet coef.) Bounded variation G-space dual of Besov space Hilbert space

I Dual pairs are ( ˙ B1

1,1 , ˙

B1

1,1) and ( ˙

BV , G). I Piecewise smooth u is usually measured by ˙ BV or ˙ B1

1,1 .

I Oscillatory components, e.g. texture v or noise ✏, is measured in L2 , G , ˙ B1

1,1.

Example: TV L2 model (Rudin-Osher-Fatemi) for f = u + ✏ , ✏ ⇠ N(0 , 2):

min

u2 ˙ BV

n krukL1 + µ 2 kf uk2

L2

The ROF model produces “stair case effect”. We need higher order approach!

11

SLIDE 12

2. DMCDD: space for piecewise smooth u [7]

Piecewise smooth u is measured by directional mean curvature (DMC)-norm.

Innovation model (UnserT afti2001)

Assumption: an original signal is not sparse, but it is sparse under some transform domains. I Multi-direction produces smoother signal rather than 2 direction in MC. I DMC produces higher order PDE than BV and reduces stair case effect. 12

SLIDE 13

2. DMCDD: space for texture v

Texture isn’t well presented in the Fourier domain. In function space, we use the discrete directional GS-norm (approximation version) [2] kvkGS = inf n k~ gk`1 =

S1

X

s=0

kgsk`1 , v = div

S ~

g,~ g = ⇥ gs ⇤S1

s=0 2 X So

to minimize the cost function.

13

SLIDE 14

2. DMCDD: space for residual ⇢ & noise ✏

To handle residual and noise, we need to bound `1-norm in curvelet space by a constant ⌫:

C{✏}
`1  ⌫ , ✏ 2 X

This is because the oscillatory components do not have small norms in L2(Ω) or L1(Ω). Constraint

C{·}
`1  ⌫ is similar to Dantzig selector [5].

(d) wavelet ( ˙

B1

1,1 , ˙

B1

1,1)

(e) curv

C{·}
`1 ,
C{·}
`1

Signal representation in curvelet is sparser than wavelet, i.e. signal is smoother in spatial domain, because the subband is more refine.

14

SLIDE 15

2. DMCDD:

piecewise smooth texture residual noise

h

blur

riginal

component in directional G-norm

bserved image

bounded condition in curvelet space

To estimate functions (u, v, ⇢, ✏), we solve the DMCDD model min

(u,v,⇢,✏)2X 4

⇢

d

L

u
`1

+ µ1kvkGS + µ2kvk`1 s.t. f = h ⇤ (u + v + ⇢) + ✏ ,

C{⇢}
`1  ⌫⇢ ,
C{✏}
`1  ⌫✏
by Augmented Lagrangian method, alternating directional method of multipliers and

Iterative Shrinkage/Thresholding Algorithms [4].

Go ALM Go ADMM

15

SLIDE 16

2. Numerical result: Texture is well recovered on the Barbara image.

(a) Original image f0 (b) Blur image f = f0 ⇤ h (c) fre = u + v + ⇢, MSE = 0.016 (d) u (e) v (very sparse) (f) ⇢ (g) ✏ = 0

Back

16

SLIDE 17

2. Numerical result: Barbara image

The previous slide shows reconstructed image from the original Barbara image. Note:

I Since there is no noise in the observed image (b), the noise in (g) is

set to 0 because of the bounded norm in curvelet space:

C{✏}
`1  ⌫✏

which is different from regularization in `2-norm.

I Texture is very sparse with 29.59% of nonzero coef.. 17

SLIDE 18

3. Approximation scheme: from sampling theory to function space

System (a) function space

Lowpass N-th Highpass

2 2 (b) wavelet

Approximation by function space:

I System contains shrinkage operator and ”frame functions”

H(z) , Φ(z) , ˜ Ψl(z) , Ψl(z) , Ξ(z) , ˜ Θl(z) , Θl(z) which have definition in the Fourier domain and satisfy the unity condition.

Go

I These ”frame functions” are combined in this system as sampling

theory in the Banach space (with `1-norm).

I These ”frame functions” are similar to wavelet-like operator [3]. 18

SLIDE 19

3. Filter banks in the DMCDD model:

Figure: ΨL,c (z) =

L1

X

l=0

˜ ΨL,c

l

(z)ΨL

l (z).

19

SLIDE 20

3. Comparison between multi-directional mean curvature and MC

Go

20

SLIDE 21

3. Comparison between multi-directional mean curvature and MC

Directional mean curvature is better because

I When increasing # direction, the bandwidth of lowpass is

shrinked. It ensures there is no texture or residual in piecewise

smooth component u.

I The shrinkage operator removes small coefficients in highpass

by a constant depending on Lagrange multiplier, i.e. reconstructed image is smoother. Solution of piecewise smooth component u (at iteration ⌧):

piecewise smooth lowpass (interpolant in sampling theory) frame fucn. & its dual (~ biorthogonal wavelet) shrinkage operator (~ sampling theory with L1 norm) constant depends on Lagrange multiplier due to high order approach

21

SLIDE 22

4. Conclusion
1. This research proposes a new method for image recovery. The

method uses constrained minimization in some appropriate spaces to archive:

I good texture recovery I small Mean square error I avoid stair case effect

by extending two directional mean curvature to multidirectional

ne (high order PDE approach).
2. We also set the link between sampling theory and function

space which is similar to wavelet-like operator.

This research is based on two projects at SAMSI: I D.H. Thai and D. Banks, Directional Mean Curvature for Textured Image Deconvolution and Decomposition (ongoing) I D.H. Thai and L. Mentch, Multiphase Segmentation For Simultaneously Homogeneous and Textural Images (in submission) 22

SLIDE 23

Why do we need some complicated models?

because we’d like to solve some complicated problems: extract fingerprint pattern from noisy background.

23

SLIDE 24

References

O. Scherzer, editor.

Handbook of Mathematical Methods in Imaging. Springer, New York, NY, USA, 2011.

Y. Meyer.

Oscillating Patterns in Image Processing and Nonlinear Evolution Equations: The Fifteenth Dean Jacqueline

B. Lewis Memorial Lectures. American Mathematical Society, Boston, MA, USA, 2001.
I. Khalidov and M. Unser.

From Differential Equations to the Contruction of New Wavelet-Like Bases. IEEE Transactions on Signal Processing, April, (54):4, 1256-1267, 2006.

I. Daubechies and M. Defrise and C.D. Mol.

An iterative thresholding algorithm for linear inverse problems with a sparsity constraint. Communications

n Pure and Applied Mathematics, August, (57):11, 1413-1457, 2004.
E. Cand`

es and T. Tao. The Dantzig Selector: Statistical Estimation When p Is Much Larger than n. The Annals of Statistics, December, (35):6, 2313-2351, 2007. J.-F. Aujol and A. Chambolle. Dual Norms and Image Decomposition Models. International Journal of Computer Vision, June, (63):1, 85-104, 2005.

W. Zhu and X.C. Tai and T. Chan.

Augmented Lagrangian method for a mean curvature based image denoising model. Inverse problems and imaging, (7):4, 1409-1432, 2013. D.H. Thai and C. Gottschlich. Directional Global Three-part Image Decomposition, accepted. D.H. Thai and C. Gottschlich. Global variational method for fingerprint sgementation by three-part decomposition, accepted.

24

SLIDE 25

“A picture is worth a thousand words” & Thank you!

(a) f , δ = 25 (b) vbin (c) u (d) v (e) ✏

25

SLIDE 26

2. DMCDD (III):

Let: |~ r| ⌦~ y ,~ r ↵

`2 = 0 ,~

r = ⇥ r+

L u , 1

⇤ , d = div

L~

t ,~ t = ~ y , ~ w = ~ g The augmented Lagrangian method is min

(u,v,⇢,✏,d, ~ r, ~ t,~ y,~ w,~ g)2X 5+3(L+1)+2S L(· ; 1, ~

2, 3, ~ 4, 5, ~ 6, 7) (1)

The Lagrange function: L(· ; ·) =kdk`1 + µ1

S1

X

s=0

kwsk`1 + µ2kvk`1 + G ⇤( ⇢ ⌫⇢ ) + G ⇤( ✏ ⌫✏ ) + R⇤(~ y) + D 1 + 1 ,| ~ r| h~ y ,~ ri`2 E

`2

+ 2 2

L1

X

l=0

rl @+

l u +

2l 2

2

`2

+ 2 2

rL 1 +

2L 2

2

`2

+ 3 2

d div

L ~

t + 3 3

2

`2

+ 4 2

~

t ~ y + ~ 4 4

2

`2

+ 5 2

f h ⇤
u + v + ⇢
✏ +

5 5

2

`2

+ 6 2

S1

X

s=0

ws gs +

6s 6

2

`2

+ 7 2

v div

S ~

g + 7 7

2

`2

Back

26

SLIDE 27

2. DMCDD (IV):

The alternating directional method of multiplier of (1) through iteration ⌧ = 1, 2, . . . is ⇣ u(⌧), v(⌧), ⇢(⌧), ✏(⌧), d(⌧),~ r(⌧),~ t(⌧),~ y(⌧), ~ w(⌧),~ g(⌧)⌘ = argmin L ⇣ · ; (⌧1)

1

, ~

(⌧1)

2

, (⌧1)

3

, ~

(⌧1)

4

, (⌧1)

5

, ~

(⌧1)

6

, (⌧1)

7

⌘

1. Solve 10 sub-problems:
The “u-problem”: Fix v, ⇢, ✏, d,~

r,~ t,~ y, ~ w,~ g and u(⌧) = argmin L(u ; ·)

The “v-problem”: Fix u, ⇢, ✏, d,~

r,~ t,~ y, ~ w,~ g and v(⌧) = argmin L(v ; ·)

The “d-problem”: Fix u, v, ⇢, ✏,~

r,~ t,~ y, ~ w,~ g and d(⌧) = argmin L(d ; ·)

The “

~ r-problem”: Fix u, v, ⇢, ✏, d,~ t,~ y, ~ w,~ g and ~ r(⌧) = argmin L( ~ r ; ·)

The “

~ t-problem”: Fix u, v, ⇢, ✏, d,~ r,~ y, ~ w,~ g and ~ t(⌧) = argmin L( ~ t ; ·)

The “~

y-problem”: Fix u, v, ⇢, ✏, d,~ r,~ t, ~ w,~ g and ~ y(⌧) = argmin L(~ y ; ·)

The “~

w-problem”: Fix u, v, ⇢, ✏, d,~ r,~ t,~ y,~ g and ~ w(⌧) = argmin L(~ w ; ·)

The “~

g-problem”: Fix u, v, ⇢, ✏, d,~ r,~ t,~ y, ~ w and ~ g(⌧) = argmin L(~ g ; ·)

The “⇢-problem”: Fix u, v, ✏, d,~

r,~ t,~ y, ~ w,~ g and ⇢(⌧) = argmin L(⇢ ; ·)

The “✏-problem”: Fix u, v, ⇢, d,~

r,~ t,~ y, ~ w,~ g and ✏(⌧) = argmin L(✏ ; ·)

2. Update Lagrange multipliers: 1, ~

2, 3, ~ 4, 5, ~ 6, 7 Back

27

SLIDE 28

3. Variational Analysis & Filter Banks: wavelet-like operator [3]

Back

Frame functions at direction l = 0, . . . , L 1:

ΦL,c25 (z) = 1 c25

L1

X

l=0

cos(

⇡l L )(z2 1) + sin( ⇡l L )(z1 1)

2

+

H(z)
2

F1

! L,c25 [k] , ˜ ΨL,c25

l

(z) = c25 h cos( ⇡l L )(z1

2

1) + sin( ⇡l L )(z1

1

1) i c25

L1

X

l0=0

cos(

⇡l0 L )(z2 1) + sin( ⇡l0 L )(z1 1)

2

+

H(z)
2

F1

! ˜ L,c25

l

[k] = c25@

l

L,c25 [k] , ΨL

l (z) = cos(

⇡l L )(z2 1) + sin( ⇡l L )(z1 1)

F1

! L

l [k] = @+ l [k]

ΞL,c34

l

(z) = 1 1 + c34

cos( ⇡l

L )(z2 1) + sin( ⇡l L )(z1 1)

2

F1

! ⇠L,c34

l

[k] = h 1 c34@

l

@+

l

i1[k] ΘL,c34

l

(z) = c34 h cos( ⇡l

L )(z2 1) + sin( ⇡l L )(z1 1)

i 1 + c34

cos( ⇡l

L )(z2 1) + sin( ⇡l L )(z1 1)

2

F1

! ✓L,c34

l

[k] = c34@+

l ⇠L,c34 l

[k] ˜ ΘL

l (z) =

⇥ cos( ⇡l L )(z1

2

1) + sin( ⇡l L )(z1

1

1) ⇤

F1

! ˜ ✓L

l [k] = @ l

[k]

The unity conditions:

H(z)
2 ΦL,c25 (z) +

L1

X

l=0

˜ ΨL,c25

l

(z)ΨL

l (z) = 1 ,

and ΦL,c25 (ej0) = 1

H(ej0)
2 , ˜

ΨL,c25

l

(ej0) = ΨL

l (ej0) = 0 ,

ΞL,c34

a

(z) + ΘL,c34

a

(z) ˜ ΘL

a(z) = 1 ,

and ΞL,c34

a

(ej0) = 1 , ΘL,c34

a

(ej0) = ˜ ΘL

a(ej0) = 0 .

28

SLIDE 29

4. Multiscale Filter Banks:

30

SLIDE 31

2. Directional mean curvature for image deconvolution and decomposition

(DMCDD) Given: a discrete image (size m ⇥ n) f [k] : Ω ! R+ and the Euclidean space X = R

|Ω| with Ω =

n k = [k1, k2] 2 [0 , m 1] ⇥ [0 , n 1] ⇢ Z2o Directional forward/backward difference operators:

@±

l

⇤ = @⌥

l

@±

l f = cos( ⇡l

L )@±

x f + sin( ⇡l

L )@±

y f F

! ± h cos( ⇡l L )(z±

2 1) + sin( ⇡l

L )(z±

1 1)

i F(z)

Directional gradient and divergence operators:

r±

L

⇤ = div⌥

L

r±

L f =

h @±

l f

iL1

l=0

and div±

L ~

g =

L1

X

l=0

@±

l gl
