Study of Thermally Induced Currents in High Range Radiation Monitor Cables (1813) Team: Peter Nidever, Alex Cannan, Richard Ross Professor Advisor: Yang Cao Industry Sponsor: Shane Williams Zachry Nuclear Engineering Inc. Located in


slide-1
SLIDE 1

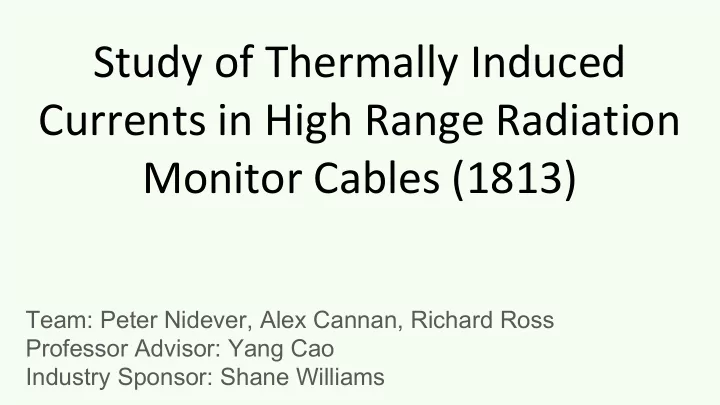

Study of Thermally Induced Currents in High Range Radiation Monitor Cables (1813)

Team: Peter Nidever, Alex Cannan, Richard Ross Professor Advisor: Yang Cao Industry Sponsor: Shane Williams

slide-2
SLIDE 2

Zachry Nuclear Engineering Inc.

  • 200 Nuclear Employees and

an additional 750 Engineers within Zachry

  • Located in Stonington, CT
  • Provides engineering analysis

services including thermal hydraulic, radiological, chemical, thermal margin, reactor core and safety analysis.

slide-3
SLIDE 3

Project Statement

Main Deliverables

  • Design an experimental rig to

measure TICs for various coaxial cables-in-conduit configurations

  • Transient 2D CFD model of one

cable-in-conduit configuration used in testing

  • Suggestions for improving HRRM

systems to eliminate the problem of false alarms

slide-4
SLIDE 4

Experimental Rig Design

  • Source of temperature gradient

○ Liquid cooling/heating system. Exploring possibilities heating coils as well.

  • Way to measure temperature of coaxial cable inside the conduit

○ Considering drilling small holes in conduit to wire thermocouples to cable.

  • Resting all of this inside of a trough, with water-tight openings for the leads of

the cable to come through

○ May be done by sealing conduit against trough ends, or by a capping system.

  • Controlling the position of wire inside the conduit

○ Stiffness of wire (or lack thereof) may lead to non-uniform contact along the conduit.

slide-5
SLIDE 5

General Responsibilities

Everyone

  • Review research papers and previous

experiments

  • Design a safe and reliable experimental rig
  • Experimental tests and analysis.
  • Identify sources of error

ECE Team

  • Material management and build experimental

rig ME Team

  • Develop transient 2D CFD model

Zachry Approval

  • Project Schedule
  • Project Statement
  • Choice of cable for testing
  • Experimental rig setup
  • Materials purchasing
slide-6
SLIDE 6
slide-7
SLIDE 7

Summary

  • Explore TIC effects experienced by

various coaxial cables in HRRM systems

  • Design a safe and reliable test setup
  • Compare temperature data obtained by

experimental testing to CFD model

  • Provide potential solutions to improve

HRRM systems

slide-8
SLIDE 8

Zachry Nuclear Engineering Inc.

  • 200 Nuclear Employees and

an additional 750 Engineers within Zachry

  • Located in Stonington, CT
  • Provides engineering analysis

services including thermal hydraulic, radiological, chemical, thermal margin, reactor core and safety analysis.

slide-9
SLIDE 9

Project Background

https://commons.wikimedia.org/wiki/File:PWR_nuclear_power_plant_diagram.svg

  • TIC - Thermally Induced Current
  • HRRM - High Range Radiation Monitor
  • NRC - Nuclear Regulatory Committee
  • MSLB - Main Steam Line Break
  • EPRI - Electric Power Research Institute
  • LOCA - Loss of Coolant Accident

LOCA MSLB

slide-10
SLIDE 10

Project Statement

Main Deliverables

  • Design an experimental rig to

measure TICs for various coaxial cables-in-conduit configurations

  • Transient 2D CFD model of one

cable-in-conduit configuration used in testing

  • Suggestions for improving HRRM

systems to eliminate the problem of false alarms

slide-11
SLIDE 11

Experimental Rig Design

  • Source of temperature gradient

○ Liquid cooling/heating system. Exploring possibilities heating coils as well.

  • Way to measure temperature of coaxial cable inside the conduit

○ Considering drilling small holes in conduit to wire thermocouples to cable.

  • Resting all of this inside of a trough, with water-tight openings for the leads of

the cable to come through

○ May be done by sealing conduit against trough ends, or by a capping system.

  • Controlling the position of wire inside the conduit

○ Stiffness of wire (or lack thereof) may lead to non-uniform contact along the conduit.

slide-12
SLIDE 12

Experimental Rig Design

slide-13
SLIDE 13

Experimental Rig Design

slide-14
SLIDE 14

Experimental Rig Design Cont.

  • Interface the thermocouple(s), cooling/heating system, and pico-Ammeter into

LabView for automated control and data acquisition

  • The specific design depends on the samples of cable we will receive from

Zachry.

  • Will also require a preliminary test to determine how long of a cable we need

to obtain distinct results.

  • Ultimately depends on viability/availability.
slide-15
SLIDE 15

Plan of Execution

Major Milestones

  • Determine electrometer or picoammeter and compatible DAQ

○ Determine maximum/minimum length of cable

  • Design and build experimental rig
  • Create transient thermal 2D CFD model
  • Compare the average surface temperatures of cable from experimental data

to CFD model

  • Use thermal 2D CFD model to calculate TIC effect
  • Compare modeled TIC effects to experimental data
slide-16
SLIDE 16

General Responsibilities

Everyone

  • Review research papers and previous

experiments

  • Design a safe and reliable experimental rig
  • Experimental tests and analysis.
  • Identify sources of error

ECE Team

  • Material management and build experimental

rig ME Team

  • Develop transient 2D CFD model

Zachry Approval

  • Project Schedule
  • Project Statement
  • Choice of cable for testing
  • Experimental rig setup
  • Materials purchasing
slide-17
SLIDE 17
slide-18
SLIDE 18

Summary

  • Explore TIC effects experienced by

various coaxial cables in HRRM systems

  • Design a safe and reliable test setup
  • Compare temperature data obtained by

experimental testing to CFD model

  • Provide potential solutions to improve

HRRM systems

slide-19
SLIDE 19

Deliverables

  • One interim design report
  • Documenting design concept and analytical effort
  • To be issued to Zachry at completion of Fall Semester
  • One final design report
  • Documenting design concept, testing procedure/results, conclusions, and lessons

learned

  • This should include all final experimental data in digital form, CFD files and associated input &
  • utput files, data manipulation or post-processing spreadsheets, etc.
  • To be issued to Zachry at completion of Spring Semester, PRIOR TO the public

Demonstration Day

  • A formal presentation
  • Summarizing the project development and conclusions
  • To the engineering staff at Zachry’s Stonington office
  • Prior to end of the Spring Semester
slide-20
SLIDE 20

Project Background

  • Positive gradients in temperature result in positive Thermally Induced Currents (TICs), which show as

falsely high radiation readings in the control room.

  • Misleading to operators while trying to assess and diagnose a potential situation inside of containment.
  • Could result in unnecessary evacuations.
  • Negative gradients in temperature result in negative TICs, which may “overcome” the “keep-alive” current

in the system.

slide-21
SLIDE 21

Project Scope

  • Analytical Portion
  • Develop a transient 2D CFD model of one of the cable-in-conduit configurations tested if it is determined

that physical testing is feasible.

  • If experimental testing of cable-in-conduit configurations is not possible, Zachry will provide a set of ambient conditions and
  • ther inputs necessary to model a specific cable-in-conduit configuration.
  • Run the model using the transient ambient condition data from the corresponding experiment and

develop a means of calculating a transient average cable surface temperature using the CFD output.

  • If experimental testing of cable-in-conduit configurations is not possible, use the Zachry-provided transient ambient data.
  • Analysis
  • Identify sources of error and uncertainty in the test rig and experimental process.
  • Considering the rated accuracies of the instrumentation used and values measured, how does this affect the validity of

your results?

  • Address potential spatial bias in experimental temperature measurements.
  • Report experimental data in TIC vs Time and Temp. vs Time graphs and data sets.
  • Investigate and discuss reasons for any unexpected or seemingly unrealistic data.
  • Compare the average surface temperatures calculated by the CFD model to the experimentally

measured values and discuss reasons for similarities/differences.

  • If experimental testing of cable-in-conduit configurations is not possible, compare to Zachry-provided GOTHIC data.
slide-22
SLIDE 22

Project Scope

The purpose of this project is to experimentally and analytically explore the potential TIC effects experienced by different types of coaxial cable in various configurations used in HRRM systems.

  • Experimental Portion
  • Determine what Electrometers or pico-Ammeters and compatible Data Acquisition Systems (DAQs) are

available for the experimental rig. Determine the achievable Range, Resolution, and Accuracy, and Sample Rate.

  • Based on the available instrumentation, determine whether it will be possible to test cable-in-conduit

configurations.

  • Length of conduit tested will need to be considered to determine an expected TIC in amps. Zachry will work with the team

to make this determination by using pre-existing experimental and analytical data.

  • Develop a structurally, logistically, and financially feasible test setup to measure TIC in a range of coaxial

cable types and configurations.

  • Must develop a safe means of implementing rapid temperature changes.
  • Must develop a reliable means of recording transient ambient and cable surface temperatures.
  • Preferably at multiple locations so that spatial bias may be considered.
  • Preferably it will be possible to sync the temperature data with the TIC data by using the same DAQ.
