LT-3100 Iridium Communications System 1 Headlines Company Introduction LT-3100 Iridium Communications System Whats in the box Iridium Coverage Navigational Products 2 Company Introduction Lars Thrane A/S was

slide-1

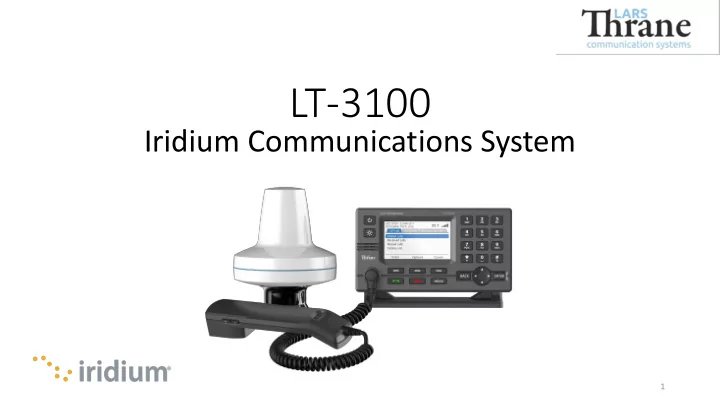

SLIDE 1

LT-3100

Iridium Communications System

1

slide-2
SLIDE 2

Headlines

  • Company Introduction
  • LT-3100 Iridium Communications System
  • What’s in the box
  • Iridium Coverage
  • Navigational Products

2

slide-3
SLIDE 3

Company Introduction

  • Lars Thrane A/S was established in 2014 by Mr.

Lars Thrane, founder and previous owner of Thrane & Thrane A/S. (Today a part of Cobham Satcom)

  • 2015: Building up a complete new R/D team

within the company

  • 2016: Introduction of three navigational sensors
  • 2017: First satellite communication terminal

available: LT-3100 Iridium Communications System

3

slide-4
SLIDE 4

LT-3100 Iridium Communications System

  • Services:
  • Voice
  • Data
  • GNSS
  • Bluetooth

4

Single voice channel via integrated handset Noise-canceling microphone for excellent audio quality Voice prompt for easy user experience Voice call through Smartphone App. Support external SIP PABX and SIP handsets

slide-5
SLIDE 5

LT-3100 Iridium Communications System

5

  • Services:
  • Voice
  • Data
  • GNSS
  • Bluetooth

2,4 kbps and 10 kbps compressed data Text message service – also via Smartphone App. External LAN Wi-Fi Access Point compatible SOS soft key supporting Iridium Emergency Service (future s/w)

slide-6
SLIDE 6

LT-3100 Iridium Communications System

6

  • Services:
  • Voice
  • Data
  • GNSS
  • Bluetooth

72-ch. GNSS (GPS/GLONASS/BeiDou) satellite receiver with SBAS correction Position accuracy: < 1 m. in 63 % of the time < 2 m. in 96 % of the time Tracking features (future s/w)

slide-7
SLIDE 7

LT-3100 Iridium Communications System

7

  • Services:
  • Voice
  • Data
  • GNSS
  • Bluetooth

Built-in Bluetooth Communication for Webserver, Headset, Smartphone Voice call through Headset Voice call through Smartphone App. Text message service through Smartphone App.

slide-8
SLIDE 8

LT-3100 Iridium Communications System

  • Control Unit
  • Large 4.3” TFT Display and Key-mad for

MMI

  • Day/Night mode
  • Voice Prompt & Alarm
  • Built-in webserver
  • SIM Card
  • LAN - RJ-45 type
  • AUX (Serial port, External Ringer, Radio

Silent)

  • Flush Mount & Bracket Interface

8

slide-9
SLIDE 9

LT-3100 Iridium Communications System

  • Antenna Unit
  • Antenna Connector – N type
  • Pole mount for 1.5” tube
  • Bracket mount for 1” to 2.5” tube
  • Single antenna cable solution with DC

Power, Modem and RF Communication

  • Antenna cable length: Up to 500 meter

separation between Antenna & Control Unit (Standard coaxial cable)

  • Antenna weight: 0.8 kg

9

slide-10
SLIDE 10

What’s in the box?

  • A complete system consists of:
  • LT-3110 Control Unit
  • LT-3120 Handset incl. Wire and Cradle
  • LT-3130 Antenna Unit
  • Control Unit Bracket Mount (incl. screw knobs)
  • 3m DC Power Cable
  • Quick Installation Guide

Accessories:

  • Antenna Pole Mount (for 1.5” tube)
  • Antenna Bracket Mount (for max 2.5” tube)
  • Flush Mount for Control Unit

10

slide-11
SLIDE 11

About Iridium

11

  • Global Coverage
  • 66 cross-linked Low Earth Orbit (LEO) satellites
  • Voice and data connections over the planet’s entire

surface

  • Complete new satellite constellation – Iridium NEXT – is

being launched in 2017 & 2018

  • First 10 satellites already in orbit
  • The new satellites will support Iridium CERTUS – the

upcoming service from Iridium

slide-12
SLIDE 12

Navigational Products

LT-1000 NRU

  • Navigation Reference Unit with 12 precision sensors
  • Electronic compass with build in GNSS receiver
  • True heading, magnetic heading, roll, pitch, position,

ground speed, course over ground, air pressure and temperature

  • 72-ch. GNSS (GPS/GLONASS/BeiDou) satellite receiver with

SBAS correction

  • Simultaneously NMEA 0183 and NMEA 2000
  • Position accuracy:

< 1 m. in 63 % of the time < 2 m. in 96 % of the time 12

LT-500 AHRS

  • Attitude Heading Reference System with 11 precision

sensors

  • True heading, magnetic heading, roll, pitch, air

pressure, and temperature

  • Display and control buttons for installation and

service

  • Simultaneously NMEA 0183 and NMEA 2000 data
  • Mount in any position without compromising the

high performance

LT-300 GNSS Receiver

  • High-performance GNSS receiver with hot start

capability

  • UTC Time and date, position, ground speed, course
  • ver ground & magnetic variation
  • 72-ch. GNSS (GPS/GLONASS/BeiDou) satellite

receiver with SBAS correction

  • Simultaneously NMEA 0183 and NMEA 2000
  • Position accuracy:

< 1 m. in 63 % of the time < 2 m. in 96 % of the time

slide-13
SLIDE 13

Contact

Lars Thrane A/S

Phone: +45 88 30 10 00 Fax: +45 88 30 10 09 Web: www.thrane.eu Email: sales@thrane.eu Address: 55°50’13.15”N 012°31’54.20”E Stubbeled 2 2950 Vedbæk Denmark VAT No.: DK-36042443

13

Company headquarters in Denmark North of Copenhagen
