University of South Florida Department of Civil and Environmental Engineering CGN-6933: Sustainable Transportation Spring 2019 South MacDill Avenue From Bay to Bay Blvd to W. Morrison Ave. April 18 th ,2019 Group 3: Runan Yang Kaiwen

slide-1

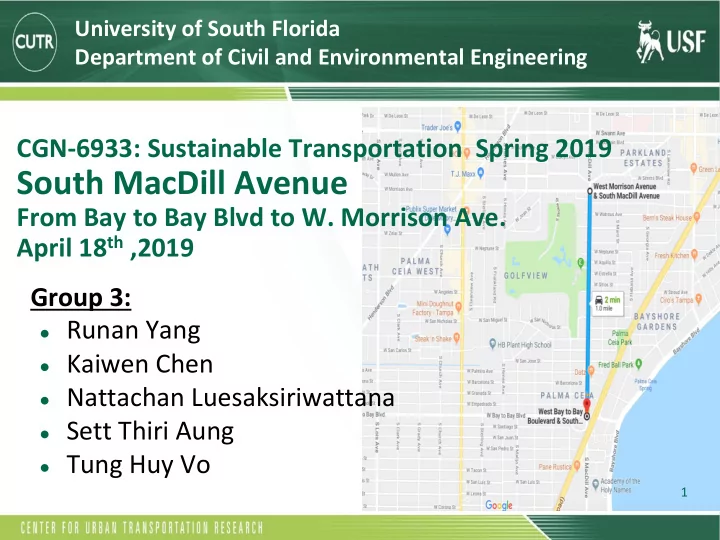

SLIDE 1

Group 3:

  • Runan Yang
  • Kaiwen Chen
  • Nattachan Luesaksiriwattana
  • Sett Thiri Aung
  • Tung Huy Vo

CGN-6933: Sustainable Transportation Spring 2019

South MacDill Avenue

From Bay to Bay Blvd to W. Morrison Ave. April 18th ,2019

1

University of South Florida Department of Civil and Environmental Engineering

slide-2
SLIDE 2

Content

  • A. Goals and Objectives.
  • B. Existing Conditions.
  • C. 2025 Design Concepts.
  • D. 2040 Design Concepts.

2

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

slide-3
SLIDE 3

A.Goals and Objectives

  • 1. Improved safety performance
  • Reduce crash along corridor by 20% - 30%.
  • Eliminate crash fatalities and serious injuries.
  • Reducing Driving speed of Vehicles by 10 MPH leading to a 15%

reduction in crashes.

  • 2. Increased alternative mode share
  • Increase the number of bicycle commuters and transit user by

100%.

  • Bicycle and walking accounts for more than 10% of all trips.
  • 3. Reduced CO2 emission and Improved life quality:
  • Reduce the level of VMT for automobiles on the corridor by 3% per

year by encouraging other modes.

3

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

slide-4
SLIDE 4
  • B. Existing Condition

4

  • S. MacDill Ave from W. Bay Blvd to West Morrison Ave
  • Posted speed limit: 35 mph
  • Length: 1 mile
  • Traffic volume: 20,566 (2018)
  • No bike lane.
  • Narrow sidewalk (3.5ft - 5ft).
  • Poor condition of Pedestrian facilities (blur or no crosswalk at

some intersections, obstacles on sidewalk).

  • HARTFlex Route.

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

slide-5
SLIDE 5

Segment Type 1

5

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

  • Location: W Morrison Ave to W Angeles St, W San Miguel

to W Barcelona St.

  • Sidewalk: 4.5ft - 5ft.
  • Vehicle lane: 11ft.

S1 S1

slide-6
SLIDE 6

Segment Type 2

6

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

  • Location: W Angeles St to W San Miguel St.
  • Sidewalk: 3.5ft - 6ft.
  • Vehicle lane: 11ft.

S1 S1 S2

slide-7
SLIDE 7

Segment Type 3A

7

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

  • Location: W Barcelona St to W Empedrado St.
  • Sidewalk: 6ft - 4ft.
  • Vehicle lane: 14ft - 14ft.
  • On street parking: 18ft.

S1 S1 S2 S3

slide-8
SLIDE 8

Segment Type 3B

8

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

  • Location: W Empedrado St to Bay to Bay Blvd
  • Sidewalk: 6ft - 4ft.
  • Vehicle lane: 10ft - 14ft.
  • On street parking: 8ft - 8ft.

S1 S1 S2 S3

slide-9
SLIDE 9

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

9

Pedestrian crosswalk locations:

W San Miguel St W Palmira Ave W Barcelona St W San Carlos St W San Jose St

slide-10
SLIDE 10

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

10

Bus stop locations:

slide-11
SLIDE 11

Crashes

11

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

slide-12
SLIDE 12
  • C. 2025 Design Concept

12

  • Improve pedestrian facilities and safety:

○ Sidewalk width. ○ Crosswalk.

  • Improve bicyclist facilities:

○ Bike lane.

  • Improve safety performance:

○ Discourage speeding. ○ Provided turning lane.

  • Feasibility of roundabout.

Seg.1 Seg.2 Seg.3

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

slide-13
SLIDE 13

Seg.1: W Morrison Ave to W San Miguel St

13

Sidewalk: 6ft Bike lane: 5ft Drive lane: 10ft Median: 12ft

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

slide-14
SLIDE 14

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

Seg.1: W Morrison Ave to W San Miguel St

14

slide-15
SLIDE 15

Seg.2: W San Miguel St to W Barcelona St

15

Sidewalk: 6ft Bike lane: 6ft Drive lane: 10ft TWLTLs: 10ft

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

slide-16
SLIDE 16

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

Seg.2: W San Miguel St to W Barcelona St

16

slide-17
SLIDE 17

Seg.3: W Barcelona St to W Bay to Bay Blvd

17

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

Sidewalk: 6ft Bike lane: 6ft Drive lane: 10ft Median: 10ft

slide-18
SLIDE 18

Seg.3: W Barcelona St to W Bay to Bay Blvd

18

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

slide-19
SLIDE 19

Intersection Design

19

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

S Macdill Ave @ W Morrison Ave

  • Tight Curb Radius
  • Painted Crosswalk
slide-20
SLIDE 20

Radar Speed Limit Sign

20

▪

Speeders will slow down up to 80% of the time when alerted by a radar sign

▪

Typical speed reductions are 10-20%.

▪

Overall compliance with the posted speed limit will go up by 30-60%.

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

slide-21
SLIDE 21

Roundabout at Bay to Bay Blvd

21

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

Single-lane Roundabout:

  • Inscribed Circle Diameter = 100 ft.
  • Circulatory Lane Width = 15 ft.
  • Central Island Diameter = 85 ft.
  • Maximum Entry Design Speed = 20 mph.
  • Daily Service Volume: 20,000 veh/day
  • Bay to Bay Blvd volume: 18,625 veh/day
slide-22
SLIDE 22

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

Map of Activities

22

slide-23
SLIDE 23
  • D. 2040 Design Concept
  • Land-use.
  • Public Transportation.
  • Cars.
  • Stormwater design concept.

23

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

slide-24
SLIDE 24

2040 Form-based Codes at Bay to Bay Blvd

24

W Bay to Bay Blvd Parking Garage S MacDill Ave Mixed-use Building 1 Mixed-use Building 2

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

Parking Garage

slide-25
SLIDE 25

Benefits of form-based codes

They help to achieve desires urban forms, such as

  • Increased density in center and along corridors
  • Vital centers supportive of business.
  • Neighborhoods and streets that are safe and attractive for

walking and bicycling.

  • Protection of the environment.
  • Preservation of community history.

25

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

slide-26
SLIDE 26

Mixed-use Building

26

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

Mixed-use Building:

  • Swimming pool at the

rooftop

  • 3rd Floor – Fitness

center, Sport clubs

  • 2nd Floor – Movie

theater

  • Ground Floor - shopping

stores, Bar & Grill.

slide-27
SLIDE 27

Full Automated Parking Garage

27

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

  • Reduce vehicle emissions.
  • Integrated charging station.
  • Saving space.
  • Bicycle share station at

ground floor

https://www.youtube.com/watch?v=_Oru1T09fvA

slide-28
SLIDE 28

Innovative traffic signal for cycling

▪Bicycle-friendly by signal control ▪Bi-directional ▪Smoothly bicycling traffic

28

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

slide-29
SLIDE 29

2040 Public Transit

29

  • New route along the

corridor.

  • Directly connected to

Tampa Downtown.

  • Transit mode share is

uniform in desired area.

  • Serve 20% - 30% of

all trips in 2040.

  • 1 square mile.
  • Population: 4,670 (CCD)
  • 3.4 trip/per/day (NHTSA)
  • 15,878 trip/day

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

slide-30
SLIDE 30

2040 Bus Stop

30

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

slide-31
SLIDE 31

2040 Smart Bus Shelter

31

  • Touch screen: planning trip,

checking bus routes, schedule.

  • Remote fare collection.
  • Reducing dwell time.
  • Listening to news or

advertisement.

  • Advertising revenue.

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

slide-32
SLIDE 32

2040 Stormwater Design Concept

Permeable Pavement

32

  • Pervious Asphalt (PA)

for Bike lanes

  • Pervious Concrete (PC)

for Parking Lots

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

slide-33
SLIDE 33

Permeable Pavement

33

Benefits:

  • Reducing stormwater runoff
  • Restoring groundwater supplies
  • Improving water runoff quality

Limitations:

  • Designed for lower traffic

volumes and limited heavy vehicles

  • Potential clogging with dirt and
  • rganic debris

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

slide-34
SLIDE 34

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

TDM measures to reduce VMT

34

slide-35
SLIDE 35

TDM measures to reduce VMT

35

S MacDill Ave from W Bay to Bay Blvd to W Morrison Ave

  • Enhanced bicycle and pedestrian facilities: bike lane, cycle

tracks, secure bicycle storage, good sidewalks, lighting.

  • Telecommuting: working at home or a non‐office location one
  • r more days a week.
  • Ridesharing & ridematching.
  • Travel subsidy: transit pass, vanpool vehicles, etc.
  • Parking Management: parking tax, parking cash-out, priority

program, etc.

slide-36
SLIDE 36

Thank You!

www.cutr.usf.edu

36
