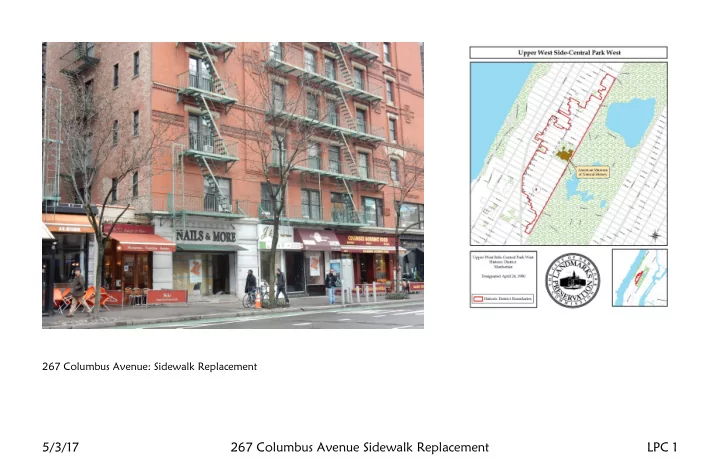

267 Columbus Avenue: Sidewalk Replacement

5/3/17 267 Columbus Avenue Sidewalk Replacement LPC 1

267 Columbus Avenue Sidewalk Replacement: Context

5/3/17 267 Columbus Avenue Sidewalk Replacement LPC 2

Before Collapse After Collapse 267 Columbus Avenue Sidewalk Replacement: Pre-Existing & Existing Conditions

5/3/17 267 Columbus Avenue Sidewalk Replacement LPC 3

267 Columbus Avenue Sidewalk Replacement: Conditions of Sidewalk Vault Light

5/3/17 267 Columbus Avenue Sidewalk Replacement LPC 4

Left: Sidewalk at Columbus from #267 to corner showing mainly concrete Right: Granite at #267 Sidewalk in front of 265 store showing cast-iron vault cover and granite next to building 267 Columbus Avenue Sidewalk Replacement Existing Sidewalk Conditions on Block

5/3/17 267 Columbus Avenue Sidewalk Replacement LPC 5

Left Top & Bottom: Columbus Avenue sidewalk from #265 to corner showing mainly concrete Granite sidewalk next to #261 Columbus 267 Columbus Avenue Sidewalk Replacement Existing Sidewalk Conditions on Block

5/3/17 267 Columbus Avenue Sidewalk Replacement LPC 6

Concrete sidewalk at 72nd Street building entrance Concrete sidewalk along 72nd Street to corner 267 Columbus Avenue Sidewalk Replacement Existing Sidewalk Conditions on Block

5/3/17 267 Columbus Avenue Sidewalk Replacement LPC 7

5/3/17 267 Columbus Avenue Sidewalk Replacement LPC 8

·;

,,

#267 #261-7 COLUMBUS

~ .... ~. ;1 "

::\}{J:,\\):,;~1:·

• '·''

.•. fa' :~ ; ...

'. :. ~ ... ·_;::r ?)?i :H~:r?Wlt }\':. -:,,:::. rt:.

:I:\ii ;~;:;rs: :)::!i:; :Nf

t

(Wf

((~:ii

..

:~:: })(ii

COLUMBUS AVENUE #261-7 COLUMBUS CAFE

l[

··";···r ..... ·.

·~.>;·

..... ":: >~,!•.-;}

({[/:;/;/

r

r.x:·r6:~~.,,I\/Jf

8iiLr1:~11;;1tr1;:~1I:~

WEST 72ND STREET

E~~tf;~_n CONCRETE

Hffl GRANITE

~

D

.

• CAST- IRON

LIGHT VAULT 261-7 COLUMBUS AVE. , CONDITIONS SIDEWALK MARY B. DIERICKX 4/14/2017

PROPOSED

5/3/17 267 Columbus Avenue Sidewalk Replacement LPC 9 ___________

AREA OF WORK 15' 5.01'

• 102.17'

50' 50' 102.17'

PLAN LEGEND

SYMBOL DESCRIPTION EXISTING CURB SIDEWALK VAULT REPAIR PROPERTY LINE

SCALE: 1"=20'

NOTES:

1. EXISTING SITE CONDITIONS AND EXISTING UNDERGROUND UTILITIES ARE TO BE FIELD DETERMINED. 2. ALL SITE AND ROADWAY RESTORATIONS SHALL BE IN ACCORDANCE WITH NYC DOT CONSTRUCTION STANDARDS OR OTHERWISE NOTED OR APPROVED BY THE ENGINEER. 3. THIS PROPERTY IS LOCATED ON BLOCK 1125, LOT 1 ACCORDING TO PROPERTY LISTS REFERENCED FROM THE NYC DEPARTMENT OF FINANCE. 4. CONTRACTOR SHALL COORDINATE STREET AND SIDEWALK WORK WITH ALL TRADES. 5. ALL UTILITY VALVE COVERS, RIMS, GRATES, ETC, TO BE MAINTAINED DURING CONSTRUCTION. 6. ALL EXISTING STREET AND SIDEWALK FURNITURE TO BE TEMPORARILY REMOVED AND RESET IN SAME LOCATIONS UPON COMPLETION OF SIDEWALK VAULT CONSTRUCTION. 7. COORDINATE THE REMOVAL AND REINSTALLATION OF PARKING METER WITH NYC DOT WHERE APPLICABLE. 8. NO NEW CURB IS PROPOSED. WHERE THE EXISTING ROADWAY IS DISTURBED AS PART OF THE PROPOSED INSTALLATION, THE CONTRACTOR SHALL RESTORE THE AREAS IN KIND TO MATCH EXISTING PAVEMENT SECTION, CURB TYPE, AND EXISTING ELEVATIONS.

5/3/17 267 Columbus Avenue Sidewalk Replacement LPC 10

SIDEWALK DEMO PLAN

SCALE: 1/4"=1'-0" 15'-0" 5'-0" EXISTING CURB EXISTING SIDEWALK CONCRETE SLAB ON GRADE TO REMAIN (DO NOT DISTURB) EXISTING ADJACENT PROPERTY SIDEWALK HATCH TO REMAIN EXISTING ADJACENT PROPERTY EXISTING GRANITE STONE TO REMAIN REMOVE EXISTING DAMAGED GLASS SIDEWALK STRUCTURE AND COVER. EXISTING BUILDING TO REMAIN (DO NOT DISTURB) EXISTING GLASS SIDEWALK VAULT TO REMAIN EXISTING GRANITE STONE TO REMAIN

• SIDEWALK REPAIR PLAN

SCALE: 1/4"=1'-0" 19'-812" S-100 2 PITCH NEW SLAB TO MATCH EXISTING S-100 1

• S-100

1 EXISTING CURB EXISTING BRICK WALL TO REMAIN (DO NOT DISTURB) EXISTING SIDEWALK CONCRETE SLAB ON GRADE TO REMAIN (DO NOT DISTURB) REMOVE ALL DEBRIS IN THE VOID AND BACKFILL THE VOID WITH COMPACTED CLEAN GRANULAR GRAVEL AND SAND. PLACE NEW SIDEWALK CONCRETE SLAB ON GRADE OVER COMPACTED FILL. EXISTING BUILDING TO REMAIN (DO NOT DISTURB) EXISTING ADJACENT PROPERTY SIDEWALK HATCH TO REMAIN EXISTING ADJACENT PROPERTY EXISTING GLASS SIDEWALK VAULT TO REMAIN EXISTING GRANITE STONE TO REMAIN EXISTING GRANITE STONE TO REMAIN 10'-0" (FIELD VERIFY)

X X X X X X X X X X X X X

4" 6" 3'-0" (FIELD VERIFY) NEW SIDEWALK SLOPE TO MATCH EXISTING SCALE: 3/4"=1'-0" 1 S-100 EXISTING VAULT INFILLED WITH SOIL INFILL VOID WITH NEW CLEAN GRANULAR GRAVEL AND SAND. COMPACTED TO 95% STANDARD PROCTOR DENSITY. EXISTING BUILDING BRICK WALL TO REMAIN APPLY PREPRUFE 300R WATERPROOFING MEMBRANE 0N CONCRETE SLAB. INSTALLATION PER MANUFACTURE'S SPECIFICATIONS. NEW 6" CONCRETE SLAB ON COMPACTED FILL REINF W/ 6x6-W2.9xW2.9 WELD WIRE FABRIC. EXISTING TOP OF FIRST FLOOR EXISTING BEAM ENCASED IN CONCRETE (FIELD VERIFY)

3 4" BENTONITE WATERSTOP

FOOTING FIELD DETERMINE (TYP.)

EXISTING BRICK WALL TO REMAIN

3 4" BENTONITE WATERSTOP

GROUT PERIMETER (TYP.) NEW 4" SIDEWALK CONCRETE SLAB ON GRADE REINF W/ 6x6-W2.9xW2.9 WELD WIRE FABRIC. 6" CONCRETE CURB BY OTHERS. EXISTING BUILDING FACADE

X X X X X X X X X X X X

4" 6" NEW SIDEWALK EXISTING SIDEWALK TO REMAIN (DO NOT DISTURB) SCALE: 3/4"=1'-0" 2 S-100 NEW CLEAN BACKFILL GRANULAR GRAVEL AND SOIL. COMPACTED TO 95% STANDARD PROCTOR DENSITY. APPLY PREPRUFE 300R WATERPROOFING MEMBRANE. INSTALLATION PER MANUFACTURES SPECIFICATION.

3 4" BENTONITE WATERSTOP

AROUND PERIMETER (TYP.) NEW 4" SIDEWALK SLAB-ON- GRADE REINF W/ 6x6-W2.9xW2.9 CENTER ON MID-DEPTH NEW 6" CONCRETE-SLAB-ON- GRADE REINF W/ 6x6-W2.9xW2.9 CENTER ON MID-DEPTH EXISTING BACKFILL SOIL TO REMAIN. EXISTING GLASS SIDEWALK VAULT TO REMAIN EXISTING GRANITE STONE TO REMAIN

OF

267 COLUMBUS AVENUE GLASS SIDEWALK VAULT REPLACEMENT 267 COLUMBUS AVENUE MANHATTAN, NY 10023

SIDEWALK PLANS & SECTIONS

STRUCTURAL

AC AC LMB AC B17113-00 B17113-00 04/17/2017 AS SHOWN

O:\B17113-00 267 Columbus Ave\STRUCT\S-100.00 SIDEWALK VAULT DEMOLITION PLAN.dwg, Date:April 17, 2017, Psetup:PDF, Plotted by:Lindsay Berman

4 4

LLP

SSOCIATES,

& A

NGINEERING

E

AMERON

C

177 Crossways Park Drive, Woodbury, NY 11797 45 West 36th Street, 3rd Floor, New York, NY 10018 303 Tarrytown Road, 1st Floor, White Plains, NY 10603 www.Cameronengineering.com T: (516) 827-4900 T: (212) 324-4000 T: (914) 721-8300 Corporate Seal Initiated 1996 State of New York

COORDINATION 04/17/16

NOTES:

1. EXISTING STEEL BEAM SIZES SHOWN FOR REFERENCE. FIELD VERIFY SIZES AND INFORM STRUCTURAL ENGINEER IF SIZES DIFFER FROM SIZES SHOWN PRIOR TO COMMENCEMENT OF WORK. EXISTING BEAMS MAY NEED TO BE REINFORCED IF FIELD VERIFIED SIZES DIFFER FROM SIZES SHOWN. ALL EXISTING STRUCTURE LOCATIONS, ELEVATIONS AND CONDITIONS TO BE FIELD VERIFIED. 2. CONTRACTOR IS RESPONSIBLE FOR SHORING ALL EXISTING AND NEW STRUCTURES PRIOR TO ANY REMOVAL AND MODIFICATION OF EXISTING MEMBERS. 3. ALL EXISTING CONDITIONS AND DIMENSIONS MUST BE FIELD CONFIRMED PRIOR TO COMMENCEMENT OF WORK. 4. DO NOT OVERLOAD ANY AREAS OF EXISTING SLAB WITH REMOVED MATERIAL. 5. FOR TEMPORARY LATERAL BRACING OF THE EXISTING STRUCTURE, THE TEMPORARY BRACING MEMBER SHALL RESIST 2% OF THE TOTAL VERTICAL LOAD IMPOSED INTO MEMBER. THIS LOAD SHALL BE APPLIED IN ANY DIRECTION AND SHALL BE SPECIFICALLY DISTRIBUTED IN PROPORTION TO THE MASS. 6. IN THE PROCESS OF DEMOLITION, THE CONTRACTOR SHALL NOTIFY THE ENGINEER/OWNER WHEN ENCOUNTERED/DISCOVERED ANY STRUCTURAL ELEMENTS THAT APPEAR NOT TO BE SOUND, CORRODED AND/OR

• DELAMINATED. THE CONTRACTOR SHALL STABILIZE THE STRUCTURE.

7. COORDINATE CONSTRUCTION PHASING WITH OWNER, MAINTAINING ACCESS AND OPERATIONAL RESPONSE TIME TO THE FACILITY TO FULLEST DEGREE POSSIBLE. 8. SIDEWALK AND DRIVEWAY REPLACEMENTS SHALL BE IN ACCORDANCE WITH DOT RULES AND REGULATIONS. 9. CAREFULLY REMOVE AND RESET SIDEWALK TO OBTAIN PROPER DRAINAGE

• GRADES. RESET FILL LINE FOR ANY UTILITIES ENCOUNTERED IN WORK AREA.

10. CONTRACTOR SHALL FILE ALL NECESSARY APPLICATIONS AND OBTAIN ALL PERMITS AND APPROVALS WITH MUNICIPAL AUTHORITIES HAVING

• JURISDICTION. CONTRACTOR SHALL SECTION-OFF THE WORK AREA FROM

PEDESTRIAN ACCESS AND PROVIDE A SAFE WALKWAY AROUND THE CONSTRUCTION AREA. 11. THE NEW SIDEWALK CONCRETE-ON-SLAB GRADE SHALL BE NORMAL WEIGHT CONCRETE WITH 4000 PSI 28 DAYS COMPRESSIVE STRENGTH REINFORCE WITH 6X6-W2.9XW2.9 WELDED WIRE FABRIC.

5/3/17 267 Columbus Avenue Sidewalk Replacement LPC 11
