Single-Mask Fabrication of Temperature Triggered MEMS Switch for Cooling Control in SSL System J. Wei, H. Ye , H.W. van Zeijl, P.M Sarro, G.Q. Zhang Delft University of Technology, Dimes Materials innovation institute, M2i What is SSL? Solid

SLIDE 1

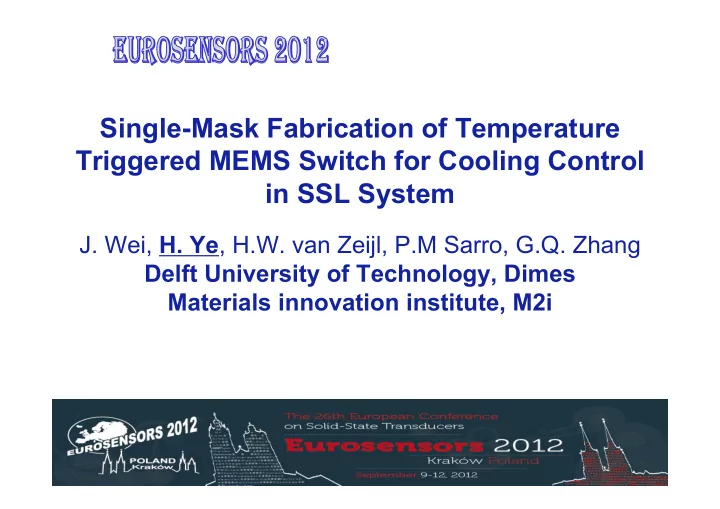

Single-Mask Fabrication of Temperature Triggered MEMS Switch for Cooling Control in SSL System

J. Wei, H. Ye, H.W. van Zeijl, P.M Sarro, G.Q. Zhang

Delft University of Technology, Dimes Materials innovation institute, M2i

SLIDE 2

H.Ye (叶怀宇)

What is SSL?

Solid State Light || Light Emit Diode Serve Light

SLIDE 3

H.Ye (叶怀宇) Page 3

Introduction
Thermal switch
Conclusions
Acknowledgements

Outline

SLIDE 4

H.Ye (叶怀宇) 4

Incandescent bulb to LED

More efficiency (6 times)
Long life time (5 years or more)
Energy saving

SLIDE 5

H.Ye (叶怀宇)

LED package suffers high temperature
For other higher power SSL, even worse

Heat in LED

SLIDE 6

H.Ye (叶怀宇) 6

Why thermal management?

For 5K difference, lumen output of blue light LEDs will decrease 4% and

lifetime drops from 60,000 down to 50,000 hours

Required temperature of LED(Lower than 150˚C)
Required temperature of Driver(Lower than 100˚C)

Reference: Che Cheung, Brandon Noska and Kim van der heide, “Thermal management: Comparison of passive and active cooling effectiveness.” LED Professional Review, (2009) pp. 42.

SLIDE 7

H.Ye (叶怀宇) 7

Active cooling has been applied to LEDs
Intelligent temperature control system needed

AVR based intelligent temperature monitoring and control system

Thermal management

SLIDE 8

H.Ye (叶怀宇)

Concept

Smart
> switch on/off the cooling system

based on Temperature

Small
> can be put it very close to the LED
Suitable -> easy to be integrated
> fabricated by Si micromachining

technology

Page 8

SLIDE 9

H.Ye (叶怀宇)

Technology

Page 9

V-shape thermal actuator

Local heating by electrical current
Temperature difference
Local expansion

Displacement is a function of ∆T Not suitable for uniform heating Temperature Triggered Switch

Uniform temperature distribution

A larger CTE is required on the actuation beam than

the substrate (anchor)

Aluminium/Silicon combined beam is used.

Displacement is a function of absolute T

SLIDE 10

H.Ye (叶怀宇)

Design with parameter analysis

– Initial distance between plate and electrodes – Length of the beam – Ratio of the Al/Si

Simulation and results

Thermal switch

SLIDE 11

H.Ye (叶怀宇)

Thermal switch

Process

– single-mask

deep reactive-ion etching (DRIE)
thermal oxidation

– Thin silicon-1.5 μm

aluminum deposited on the side wall
thin titanium nitride (TiN)

SLIDE 12

H.Ye (叶怀宇)

Thermal switch

SEM (Dimension: 1.0x0.4 mm2)
Size
\height 30um

SLIDE 13

H.Ye (叶怀宇)

Thermal switch

Testing with increasing temperature
The physical contact around 130ºC

SLIDE 14

H.Ye (叶怀宇)

Thermal switch

Validation of concept

SLIDE 15

H.Ye (叶怀宇)

Thermal switch

Video
Thermal switch on/off at designed temperature

threshold

SLIDE 16

H.Ye (叶怀宇) 16

Conclusion

– 1.Concept of simple and smart control for SSL

A cost-effective temperature trigger for cooling control

– 2. Design and process

A single-mask 3D micro-machining process

– 3. Concept validation – 4. Further work

A functional LED package

The concept and process could be developed for other applications

Further development of the temperature trigged switch

concept and fabrication process for other applications

SLIDE 17

H.Ye (叶怀宇) 17

Acknowledgement

The authors would like to acknowledge the technical staff of DIMES-ICP group for their precious help. This research is supported by the Enlight project (http://www.enlight-project.eu/), funded by ENIAC.

SLIDE 18

H.Ye (叶怀宇) 18

Thank you!!!

SLIDE 19

H.Ye (叶怀宇)

Cross-section SEM

Page 19

SLIDE 20

H.Ye (叶怀宇)

Cross-section SEM

Page 20

SLIDE 21

H.Ye (叶怀宇)

Cross-section SEM

Page 21
