SFO Runway Layout Runway 28L Offset PROCEDURE: Visual Arrivals, Foster City Arrivals TEAL LINE: existing 28L ILS. PINK LINE: existing 28R ILS. GRAY LINE : existing RNAV (RNP) Y RWY 28R. ORANGE LINE : existing FMS Bridge Visual Approach 28R. GREEN

SLIDE 1

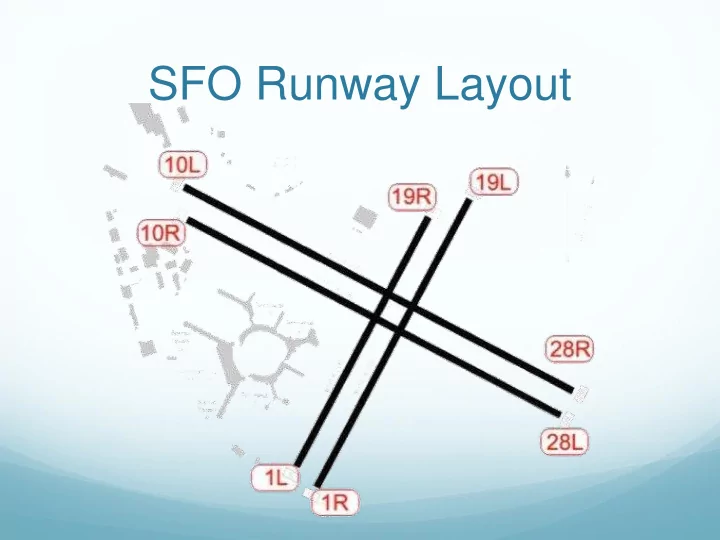

SFO Runway Layout

SLIDE 2

Runway 28L Offset

SLIDE 3

PROCEDURE: Visual Arrivals, Foster City Arrivals

SLIDE 4

TEAL LINE: existing 28L ILS. PINK LINE: existing 28R ILS. GRAY LINE: existing RNAV (RNP) Y RWY 28R. ORANGE LINE: existing FMS Bridge Visual Approach

28R. GREEN LINE: Concept for a possible 28L offset RNAV approach. BLUE LINE: Concept for a possible 28R offset RNAV approach. ALL POINTS AND LINES

APPROXIMATE.

SLIDE 5

Radial 090 from the SFO VOR

090° 208°

Radial 028 from the SFO VOR

SFO DUMBARTON EIGHT DEPARTURE Procedure Runways 10L & 10R

This procedure was discontinued in August 2016 Woodside VOR

SLIDE 6

SLIDE 7

104° above 520’ 101° 102° 104° above 520’ 101° climbing to 5,000’ 124° climbing to 6,000’ At or above 5,000’ At or above 6,000’ 097° climbing to 9,000’ 126° climbing to 9,000’ At or above 13,000’ At or above 9,000’

SFO SAHEY THREE DEPARTURE (RNAV) Runways 10L & 10R

SLIDE 8
