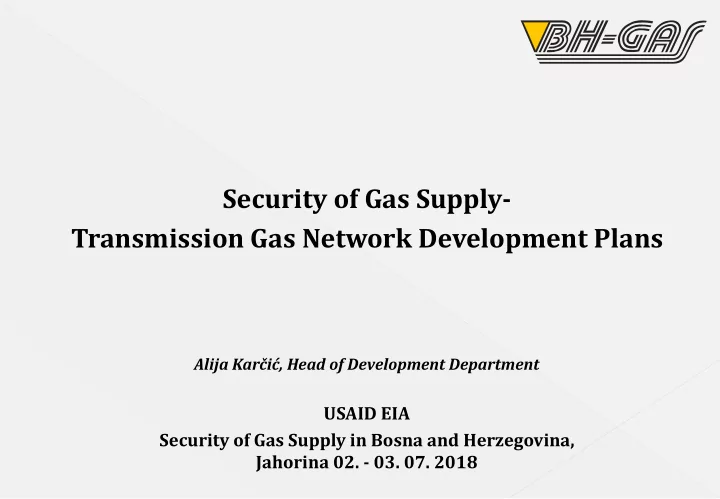

Security of Gas Supply- Transmission Gas Network Development Plans Alija Kari, Head of Development Department USAID EIA Security of Gas Supply in Bosna and Herzegovina, Jahorina 02. - 03. 07. 2018 Regulation (EU) 2017/1938 concerning
Regulation (EU) 2017/1938 concerning measures to safeguard the security of gas supply
The main goals of Regulation: ❑ The States should designate the competent state authority or national regulatory authority for implementation of measures established by this Regulation; ❑ States must ensure that all the necessary measures are taken to safeguard an uninterrupted supply of gas, in particular to protected customers in the event of difficult climatic conditions or disruptions of the gas supply ❑ To boost solidarity and trust between the States and put in place the measures needed to achieve those aims, as well as to enhance regional cooperation; ❑ To improve cross-border capacity by developing a new infrastructure that does not necessarily have to be economically viable, but is necessary to provide security of supply. This can be achieved by applying the Infrastructure Standard (N-1 criterion) and by providing a permanent reverse flow; ❑ To provide a minimum level of gas supply, especially the so-called group of "protected consumers„ - all households connected to a gas distribution network, small or medium-sized enterprise as well as essential social service provided they do not together represent more than 20% of the total annual final gas consumption. ❑ To provide guaranteed continuous gas supply to protected consumers in a period of at least 7 or 30 days depending on the defined scenario by using gas supply standard.
Development Projects
SARAJEVO ZVORNIK KLADANJ KAKANJ MOSTAR BANJA LUKA PRNJAVOR TUZLA MODRICA SREDNJE TRAVNIK SEPAK TRŽAC Tetima
KISELJAK
- VEL. KLADUSA
CAZIN BIHAC
- BOS. KRUPA
ZENICA BROD DOBOJ MAGLAJ ZAVIDOVICI ZIVINICE POSUŠJE BUGOJNO TOMISLAVGRAD
- BOS. PETROVAC
SANSKI MOST KLJUC JAJCE BRCKO ZEPCE STARIC
INTERCONNECTION GAS PIPELINE ❑ North Interconnection BiH and Croatia Brod-Zenica ❑ West Interconnection BiH and Croatia Tržac -Bosanska Krupa with branches to Bihać and Veliku Kladušu ❑ South Interconnection BiH and Croatia Posušje-Novi Travnik with branch to Mostar
EXISTING TRANSMISSION GAS PIPELINE PLANNED TRANSMISSION GAS PIPELINE – EXSPANSION OF GAS MARKET PLANNED INTERCONNECTION GAS PIPELINE PLANNED ENTRY – SOUTH INTERCONNECTION POSUŠJE – NOVI TRAVNIK GAS PIPELINE WITH BRANCH TO MOSTAR EXISTING ENTRY PLANNED ENTRY – NORTH INTERCONNECTION BROD – ZENICA GAS PIPELINE PLANNED ENTRY – WEST INTERCONNECTION TRŽAC– BOSANSKA KRUPA GAS PIPELINE WITH BRANCHES TO BIHAĆ AND VELIKA KLADUŠA PLANNED UNDERGROUND GAS STORAGE
NOVI TRAVNIK
South Interconnection Posušje – Novi Travnik/Travnik with branch to Mostar
Bosnia nad Herzegovina :
Posušje - Tomislavgrad - Novi Travnik (Travnik) with branch to Mostar ❑ DN 500; 75bar ❑ L = 165 km (bi-directional) ❑ Capacity 38 GWh/day ❑ Pre-feasibility Study ✓ ❑ CBA, May 2018✓ ❑ Commissioning 2022/2023
Hrvatska:
Zagvozd - Imotski ❑ DN 500; 75 bar ❑ L = 22 km (bi-directional) ❑ Capacity: 75 GWh/dan ❑ ESIA and Environmental permit✓ ❑ Preliminary Design✓ ❑ Location permit✓ ❑ Commissioning 2022/2023
Project is integral part of National Development Plans : ❑ Strategic Plan and Program of Federation of BiH, 2009 (than in the variant of Ploče – Mostar- Sarajevo gas pipeline route) ❑ Framework Energy Strategy of Federation of BiH until 2035, 2017 ❑ Framework Energy Strategy of BiH until 2035, 2017 PECI 2013_Gas_03 / PMI 2016 Gas_03 Listed on the ENTSOG TYNDP Developments Project (TYNDP TRA-N-851; BiH - Promotor BH-Gas; TYNDP TRA-N- 302; Croatia - Promotor Plinacro) IMPORTANT Taking into account limited capacity as well age of the existing gas transmission system , South Interconnection would be in the near future sole route of supply for Federation of BiH/BiH. Due to importancy of the realization of this Project, Government of Federation of BiH has adopted the Conclusion V. br. 853/2017 about Strategic importance of the Project.
Eastern Europe Natural Gas Development Partnership (NGP)
❑ May 2017. – Memorandum of Understanding (MoU) signed among BH-Gas (BiH), Plinacro (Croatia), AlbGas (Albania), Bulgartransgaz (Bulgaria), GA-MA AD (Macedonia), Montenegro Bonus (Montenegro) Ministry of economy of Kosovo and United States Energy Association-USEA was signed ❑ The aim is to build sustainable institutional capacity to develop and utilize the region’s first common transmission planning models by using software for gas network planning named SIMONE.
CEGH
BiH position related to the planned gas corridors
Project Name Status Trans Anatolian gas pipeline - TANAP PCI - Constructed Trans-Adriatic pipeline - TAP PCI – 2/3 of project constructed Ionian – Adriatic pipeline - IAP PMI – Project Management Unit established – Establishing of IAP Project Company ongoing Turkish stream 62 % of off-shore section constructed Interconnector Bulgaria – Serbia (IBS) PCI – May 2018. – Mutual statement about gas pipeline construction signed / Grant in amount of EUR million 49,6 approved Interconnector Greece – Bulgaria (IGB) PCI – Permitting phase EASTRING PCI – Feasibility Study ongoing; The planned next phase is FEED BG - RO - HU - AT transmission corridor- BRUA PCI - Planned LNG Krk PCI – The procurement procedure for „Floating Storage & Regasification Unit” (FSRU) and second round of the open season procedure is under way. SLO-HR Interconnector PCI – Permitting phase GASTRANS The first phase of market test finished.
PECI/PMI Projects of Energy Community Interest
PECI/PMI 2018 candidated projects
EU Regulation 347/2013
- n guidelines for trans-European energy infrastructure
Adapted and adopted by Ministerial Council of the Energy Community in October 2015 and mandatory for implementation in the Energy Community Contracting Parties Selection and implementation process of PECI Project has to be in accordance with provisions of the Regulation 347 ❑ Designate one national competent authority which shall be responsible for facilitating and coordinating the permit granting process for projects of EnC interest ❑ Publish a manual of procedures for the permit granting process applicable to projects of common interest ❑ Draw up the schemes of the making decision process in the permit granting process, i.e. to adopt one of the three models in making decision process: integrated, coordinated or collaborative scheme According to R 347 contracting parties of the EnC SEE, among others, needs to accomplish the following: 22 June 2018: Dispute against Bosnia and Herzegovina initiated by the EnC SEE due to dely in the implementation of R 347 provisions.
Natural Gas Transmission and Interconnection Agreements (IA)
Regulation (EU) 2015/703 establishing a network code on interoperability and data excange rules, adapted and adopted by PHLG EnC SEE in february 2018, foresees that interconnection agreements on the borders of the state would be established on the basis of which the transport of gas between states would be regulated. Interconnection agreements should provide that minimum of the mainly technical conditions are included in the IA on the every interconnection point: ❑ Rules for flow control; ❑ Masurement principles for gas quantity and quality; ❑ Rules for maching process; ❑ Rules for the alocation of gas quantities; ❑ Communication procedures in case of exceptional events; ❑ Settlement of disputes arising from IA; ❑ IA Amendment process. Interconnection agreements on behalf of the states are concluded by the Transmission System Operators (TSO) and these agreements must be identical at the entrance and exit from the state, all based on the proposal of the agreement made by ENTSOG.
Relevant interconnection points
Source: SEE Energy Community
Existing Transmission System
SARAJEVO ZVORNIK KLADANJ KAKANJ MOSTAR BANJA LUKA PRNJAVOR TUZLA MODRICA SREDNJE TRAVNIK SEPAK TRZAC Tetima
KISELJAK
- VEL. KLADUSA
CAZIN BIHAC
- BOS. KRUPA
ZENICA BROD DOBOJ MAGLAJ ZAVIDOVICI ZIVINICE POSUŠJE BUGOJNO TOMISLAVGRAD
- BOS. PETROVAC
SANSKI MOST KLJUC JAJCE BRCKO
Section Lenght Transmission System Operator Ownership Srbija/BiH Border ŠEPAK – ZVORNIK 19 Srbijagas Srbijagas ZVORNIK – ENTITY BORDER (Prijevor) 40 Sarajevogas Lukavica Sarajevogas Lukavica ENTITY BORDER (Prijevor) - STARIĆ (KLADANJ) – SARAJEVO – ZENICA – TRAVNIK + VISOKO - BRNJACI 184 BH-Gas BH-Gas
Overview of Gas Transmission Companies and Lengths of its Transmission System in BiH and surrounding Countries
Country Length of Gas transmission system, km Number of TSO Bosnia nad Herzegovina 243 3 (+2)* Slovenia 1.121 1 Slovakia 2.332 1 Serbia 2.354 2 Croatia 2.693 1 Bulgaria 2.765 1 Hungary 5.874 2 Romania 13.138 1 * According to Republic of Srpska Development Plans, construction of two gas transmission pipeline
are planned with the establishment of two new TSO.
BH-Gas Corporate profile 2014
Third Energy Package
THIRD ENERGY PACKAGE Transparent and non- diskriminatory market with the aim of cosumers protection Integrated and competitive market One national regulator at the state level with all essencial competencies of the regulatory authority Cross-border cooperation with other national regulator Independence of the national regulator in terms of legal separation and functional independence from other public or private entities (including entity regulators), budgetary autonomy, adequate human and financial resources, and independent management. Monitoring of compliance with:
- TSO Unbundling provisions
- Third party access
provisions
- Monitoring of transparency
conditions
- Opening market level
National Regulatory Authority Competence Proposal of Gas Law for BiH prepared by EC Secretariat and in surroundings Countries
18 2 2 14 5 19 12 7
BIH - EL.ENERGY (EC LAW PROPOSAL) BIH - GAS (EC LAW PROPOSAL) NATIONAL AUTHORITY COMPETENCE BIH-GAS (EC LAW) NATIONAL AUTHORITY COMPETENCE SERBIA - NATIONAL AUTHORITY COMPETENCE DEFINED BY ENERGY LAW SERBIA - NATIONAL AUTHORITY COMPETENCE DEFINED BY OTHER LAWS AT STATE LEVEL CROATIA SLOVENIA - NATIONAL AUTHORITY COMPETENCE DEFINED BY ENERGY LAW SLOVENIA - DEFINED BY OTHER LAW AT STATE LEVEL
- 1. Transmission system operation
- 2. Organization and market operation
- 3. Wholsale
- 4. Monitoring of the provisions related to
unbundling in compliance with the Law
- 5. Issuing, modification and temporary
confiscation and termination of licenses
- 6. TSO certification
- 7. Adoption of tariff methodology
- 8. Tariff determination and monitoring of tariff
application
- 9. Determination and monitoring of third party
access
- 10. Preparation of methodology for balancing,
congestion management and capacity allocation
- 11. Approval of TSO Network Code
- 12. Approval of Market organization rules
- 13. Monitoring of Market Operator activities
- 14. Approval of TSO's Ten Years Development
Plan
- 15. Representation at international and regional
level
- 16. Jurisdiction in Dispute resolution and issuing
- f penalties
- 17. Approval of new infrastructure exemption
- 18. Adoption of other secundar legislation and
monitoring of its application
1-18 7; 10 14; 15 1; 4-11; 14-17; 19 2-3; 12-13; 18 1-19 1; 4;6-8; 11; 14-19 2-3; 5; 9-10; 13- 14
