School of Earth Stanford University Scottish Energy Forum September 24, 2020 Addressing Climate Change: The Global Clean Energy Transition Lynn Orr Fundamental Question How do we supply the energy the world needs to support a growing

slide-1
SLIDE 1

Stanford University

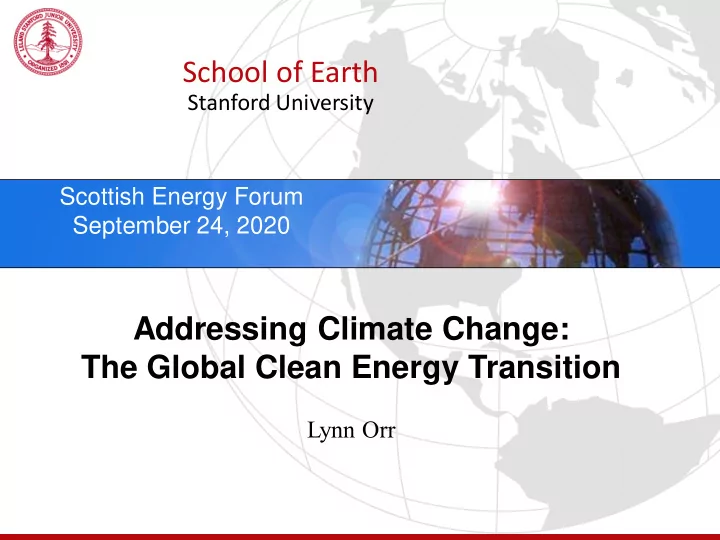

School of Earth Addressing Climate Change: The Global Clean Energy Transition

Lynn Orr Scottish Energy Forum September 24, 2020

slide-2
SLIDE 2

Scottish Energy Forum – 9/24/20

How do we supply the energy the world needs to support a growing population in modern societies while reducing greenhouse gas emissions dramatically? Fundamental Question

2

slide-3
SLIDE 3

Scottish Energy Forum – 9/24/20

Greenhouse Gas Emissions

3

slide-4
SLIDE 4

Scottish Energy Forum – 9/24/20

What energy resources can we use?

Exergy is energy that can be converted to another useful form: electricity, mechanical work, or heat.

Current Global Exergy Usage Rate ~ 18 TW (0.5 ZJ per year)

4

slide-5
SLIDE 5

Scottish Energy Forum – 9/24/20

0.1 1.0 10.0 100.0 1600 1700 1800 1900 2000 2100 Time (Years A.D.) First-Law Efficiency (%) .

Savery, Newcomen (<0.5%) Watt/Boulton Steam Engines Post-Watt Steam Engines Lenoir, Hugon Coal-Gas Engines Otto/Langen Coal-Gas Engines Atkinson, Tangye Coal-Gas Engines Banki Spirits Engine Priestman's Oil Engine Diesel's Oil Engines Automotive SI Engines Truck Diesel Engines Large Bore DI Diesels Steam Turbines Gas Turbine/Steam Turbine Polymer Electrolyte Membrane FC Phosphoric Acid Fuel Cells SOFC/Gas Turbine

Conversion Efficiency of “Engines”

50%

Source: C. Edwards, GCEP

5

slide-6
SLIDE 6

Scottish Energy Forum – 9/24/20

So, what do we do about this?

  • Energy efficiency everywhere
  • Clean, abundant, low-cost electricity
  • Electrify many energy services

(transportation, heat pumps, …)

  • Improve the grid to accommodate

intermittency, bolster resilience

  • Deploy carbon capture and storage
  • Develop and scale new technologies

(R&D)

6

slide-7
SLIDE 7

Scottish Energy Forum – 9/24/20

Efficiency of Building Systems and Technologies

7

slide-8
SLIDE 8

Scottish Energy Forum – 9/24/20

Overall Efficiency of Conversion of Thermal Energy in Fuel to Light?

Source: Real Prospects for Energy Efficiency in US, NRC Report, 2010

Incandescent bulbs: Eoverall = 0.35 x 0.90 x 0.04 = 1.3% Compact fluorescent: Eoverall = 0.35 x 0.90 x 0.16 = 4.2% Future LED: Eoverall = 0.35 x 0.90 x 0.40 = 12.6% NGCC + LED: Eoverall = 0.65 x 0.90 x 0.40 = 23.4%

8

slide-9
SLIDE 9

Scottish Energy Forum – 9/24/20

Energy Systems: Stanford District Energy System

  • Replace NGCC plant with heat pump system + direct solar access
  • Saves $400 M over 30 yrs in reduced fuel purchase
  • 18% reduction in water use, 68% reduction in CO2 emissions

9

slide-10
SLIDE 10

Scottish Energy Forum – 9/24/20

Clean Electric Power

10

slide-11
SLIDE 11

Scottish Energy Forum – 9/24/20

Natural gas for electric power

  • Replacing an old coal-fired

power plant with a combined cycle gas turbine reduces emissions a lot (57% C/kWh in fuel, 32→60% power plant efficiency = 69.6% reduction/kWh)

  • New oxyfuel designs offer

the possibility of low-cost carbon capture from natural gas generation

  • Eliminating methane leaks is an

essential element of NG use – new sensor technologies will help detect leaks

11

slide-12
SLIDE 12

Scottish Energy Forum – 9/24/20

IEA Estimates of Future Wind and Solar Costs

Source: IEA Renewable Energy Report 2017 12

slide-13
SLIDE 13

Scottish Energy Forum – 9/24/20

Global Generation by Fuel, 2019-24

13 Source: IEA Renewables 2019

slide-14
SLIDE 14

Scottish Energy Forum – 9/24/20

Nuclear Power

  • 19% of current US electric power

generation, 60% of non-GHG power, baseload with 89% capacity factor – but existing nukes are having trouble competing with gas in dispatch markets

  • Reactor R&D options:

– Small modular reactors (passive safety, lower cost?) – High temperature, gas cooled reactors (more efficient power generation, process heat?) – Fast spectrum reactors (reduced waste)

  • More R&D opportunities in advanced

fuels, high performance materials for rad environments

  • Challenges: waste storage, siting,

licensing and construction costs

14

slide-15
SLIDE 15

Scottish Energy Forum – 9/24/20

NuScale Small Modular Reactor

  • 50-60 MWe modules
  • Relatively simple design:

pressurized water, thermal convection replaces pumps, reactor surrounded by below- grade pool as reactor heat sink

  • Up to 12 modules collocated
  • Dispatchable load following design
  • NRC Design Certification Review

underway (as of 1/2017)

  • First project: UAMPS to be located

at Idaho National Lab

https://www.nrc.gov/reactors/new-reactors/design-cert/nuscale.html 15

slide-16
SLIDE 16

Scottish Energy Forum – 9/24/20

The Grid

16

slide-17
SLIDE 17

Scottish Energy Forum – 9/24/20

Graphic Source: International Energy Agency

  • Operator-Based Grid Management
  • Centralized Control
  • Off-Line Analysis / Limit Setting
  • Flexible and Resilient Systems
  • Sensors and Data Acquisition
  • Algorithms and Computer Infrastructure
  • Multi-Level Coordination / Precise Control
  • Faster-than-Real-Time Analysis

Historical Emerging

The Future Grid differs Radically from the Present

Characterized by More Flexibility and Agility: Prevent local disturbances from spreading, and recover more quickly from storm disruptions

17

Analyze and manage complex systems of complex systems!

slide-18
SLIDE 18

Scottish Energy Forum – 9/24/20

Integration of Intermittent Renewables

Dispatchable firming will be essential. Natural gas offers many advantages: low capital cost, low fuel cost, low (but not zero) GHG

  • emissions. In the long term, CCS will be required for continued NG use.

18

Need combination of storage + dispatch

slide-19
SLIDE 19

Scottish Energy Forum – 9/24/20

Energy Storage Technology Options

Credit: Sandia Laboratory

Lots of battery research underway – for now storage is still relatively expensive compared to dispatch options. H2 manufacture from low cost renewable power if costs can be reduced and efficiency increased.

19

Durable, Earth abundant materials, low toxicity, scalable

slide-20
SLIDE 20

Scottish Energy Forum – 9/24/20

Clean Transportation and Vehicle Systems

20

slide-21
SLIDE 21

Scottish Energy Forum – 9/24/20

Battery and Hybrid Electric Vehicles

  • As battery costs have

declined, more battery and hybrid electric vehicles have appeared on the market

  • Many auto manufacturers

have announced new vehicles to be on the market by 2023

  • EVs and hybrids, 1% of auto

sales in 2016 (BNEF)

  • Britain, France to prohibit

IC engines after 2040, China planning deadline

Chevy Volt Chevy Bolt

21

slide-22
SLIDE 22

Scottish Energy Forum – 9/24/20

EV and Hybrid Deployment

  • Vehicle electrification is growing rapidly from

a tiny base – a long way to go to displace IC engines!

  • Need high efficiency engines and lower GHG
  • il!

https://about.bnef.com/blog/electric-vehicles-accelerate-54-new-car-sales-2040/ 22

slide-23
SLIDE 23

Scottish Energy Forum – 9/24/20

Carbon Capture and Storage

23

slide-24
SLIDE 24

Scottish Energy Forum – 9/24/20

Carbon Capture and Storage

  • Long history of CO2 injection for EOR (1970s) – still the
  • nly market of any size for CO2 – and likely will be

going forward if no carbon price

  • Most CO2 injected so far has been from natural gas

separations that have to be done anyway to sell the gas

  • Demonstration testing likely to continue, but

deployment of deep saline aquifer injection is likely to be limited in the absence of a carbon price (see Norway for Sleipner, Snohvit)

  • If natural gas displaces coal in a big way, CCS for

natural gas will be needed for deep decarbonization.

24

slide-25
SLIDE 25

Scottish Energy Forum – 9/24/20

Low cost capture of CO2 from natural gas power generation: Net Power Supercritical CO2 Power Plant

Supercritical CO2 is the working fluid in this oxyfuel combustion design – efficiency near 60%, very low added cost of CO2 separation, competitive COE (projected, at least)

Source: Service, Fossil power, guilt free, Science, 25 May 2018, 356 (6340), 796-799

25

slide-26
SLIDE 26

Scottish Energy Forum – 9/24/20

Density of CO2 and CH4

0.005 0.01 0.015 0.02 50 100 150 200 250 300 350 Pressure (atm) Molar density (mole/cm3)

CH4 (50C) CH4 (75C) CH4 (100C) CO2 (50C) CO2 (75C) CO2 (100C)

Methane could be removed from a gas field, oxidized, and

  • reinjected. Pressure would decline because CO2 is more

dense than CH4.

26

slide-27
SLIDE 27

Scottish Energy Forum – 9/24/20

Removal of atmospheric CO2 will be needed if we don’t move faster on GHG emissions

Source: Anderson & Peters, Science 2016, https://science.sciencemag.org/content/354/6309/182 27

slide-28
SLIDE 28

Scottish Energy Forum – 9/24/20

Direct Air Capture (Climeworks Version)

Source: https://www.climeworks.com/our-technology/

  • Adsorption on solid-

supported amine coating

  • Low-grade heat

needed for sorbent regeneration

  • 1000 t/yr

installation

  • perating – provides

CO2 for a greenhouse

  • Cost ~$600/t, but

projection ~$100/t possible

  • Small pilot also
  • perating in Iceland

– fast mineralization

  • bserved in basalt

28

slide-29
SLIDE 29

Scottish Energy Forum – 9/24/20

Biological systems move very large quantities of carbon around the planet – enhance these?

  • Reduced

deforestation

  • Afforestation (forests

in new places)

  • Forest management
  • Restored soil carbon
  • Modified agricultural

practices

  • Coastal blue carbon

(carbon storage in coastal wetlands)

  • BECCS (bioenergy

with CCS – electricity, liquid fuels, heat)

  • < ~5 GtCO2/yr

worldwide at <$100/t

29

slide-30
SLIDE 30

Scottish Energy Forum – 9/24/20

CO2 Utilization (other than EOR)?

  • Fuels: much more energy

required to make than is stored in the fuel (currently 3-4x)

  • With solar electricity at 2

cents/kWh, making a liquid fuel might be possible

  • Construction materials, cement
  • ffer potential opportunities at

scale

  • Smaller opportunities in

chemicals (urea, renewable CH4)

  • Cost competitiveness is a

primary issue for all of these

30

slide-31
SLIDE 31

Scottish Energy Forum – 9/24/20

Technology Innovation

31

slide-32
SLIDE 32
  • Z. Seh, J. Kibsgaard, C.F. Dickens, I. Chorkendorff, J.K. Nørskov, T. F. Jaramillo, Science, 355 6321 (2017)

Drop-in fuels would greatly ease the transition – but very low cost clean electricity and a lot of R&D to lower costs will be required: a long transition here at the very least

32 32

slide-33
SLIDE 33

Scottish Energy Forum – 9/24/20

Conclusions

  • Considerable progress has been made in clean energy

technologies, and the global clean energy transition is underway, but much more remains to be done

  • More urgency is clearly needed
  • A portfolio approach is required: fully stocked across

primary energy resources, conversion technologies, systems, and time scales for application, with improved efficiency everywhere

  • The key challenge is to deploy clean energy systems at

very large scale

33

slide-34
SLIDE 34

Scottish Energy Forum – 9/24/20

Here’s what we do

  • Pay close attention to energy efficiency, especially in buildings

and transportation

  • Make lots of very clean electricity – it’s fundamental to

everything else! Wind, solar, geothermal, nuclear, hydro …

  • Diversify energy storage (chemical bonds, pumped hydro,

batteries) to deal with intermittent generation resources

  • Electrify energy services – heating, cooling, EVs, …
  • Learn to operate, optimize systems of linked, complex systems
  • Drive new technologies to scale – cost reductions will follow
  • Deploy subsurface storage of CO2 more widely
  • Engage in wide-ranging R&D to develop new energy

technologies

34

slide-35
SLIDE 35

Scottish Energy Forum – 9/24/20

We Can Do This …

if we make up our minds to do it, if we continue on the path we’ve started, and if we increase our ambition now and make a sustained, multi-decade effort to balance human activities and needs with the planet’s systems that serve us in essential ways

35

slide-36
SLIDE 36

Scottish Energy Forum – 9/24/20

Backup Slides

36

slide-37
SLIDE 37

Scottish Energy Forum – 9/24/20

International Progress

  • Major commitments in 2014 by the two largest GHG emitters,

China and the US, to reduce emissions

– China: peak emissions by 2030, best efforts to reach peak earlier, reduce GHG emissions/GDP by 60-65% from 2005 levels, ~20% of primary energy from non-fossil resources – US: 26-28% below 2005 emissions by 2025 (Clean Power Plan will contribute)

  • 195 countries issue NDCs after the COP21 meeting
  • Mission Innovation: 20 countries announce plans to seek a

doubling in energy R&D over the next five years, investor coalition commits to early stage tech investments:

– www.mission-innovation.net – www.breakthroughenergy.com

37

slide-38
SLIDE 38

Scottish Energy Forum – 9/24/20

International Step Back

  • US announced it will withdraw from the Paris agreement
  • Numerous state governors, mayors, company CEOs responded

that they will continue efforts to reduce GHG emissions

  • Clean Power Plan likely to be withdrawn or substantially

revised

  • Proposed revisions to US fuel economy standards would likely

increase transportation emissions

  • US will continue to reduce its emissions, but likely will not

meet the Paris commitment as a result.

  • Other countries have indicated they will continue their

participation in the Paris agreement

38
