[PPT] - SCARPE: A Technique and Tool for Selective Capture and Replay of PowerPoint Presentation

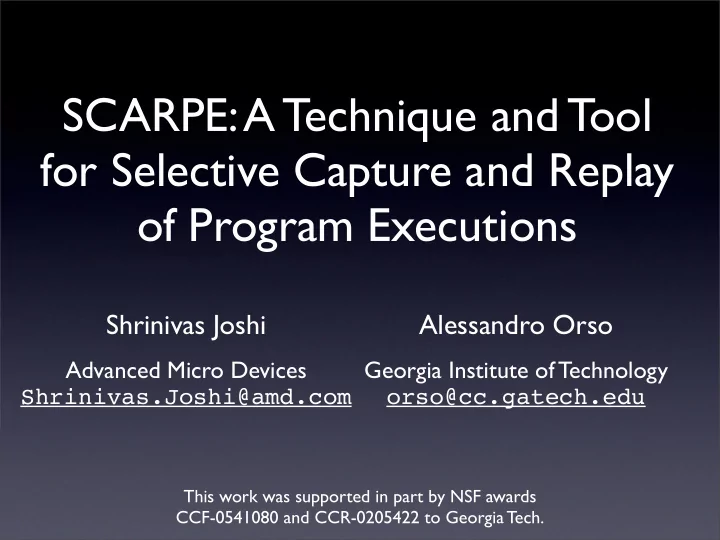

SLIDE 1

Shrinivas Joshi

Advanced Micro Devices Shrinivas.Joshi@amd.com

Alessandro Orso

Georgia Institute of Technology

rso@cc.gatech.edu

SCARPE: A Technique and Tool for Selective Capture and Replay

f Program Executions

This work was supported in part by NSF awards CCF-0541080 and CCR-0205422 to Georgia Tech.

SLIDE 2

Collecting Field Data

In house In the field Developers

SLIDE 3

Collecting Field Data

In house In the field Developers

SLIDE 4

Collecting Field Data

?

In house In the field Developers

SLIDE 5

Collecting Field Data

?

Field Data In house In the field Developers

SLIDE 6

Collecting Field Data

?

Field Data In house In the field Developers

SLIDE 7

Collecting Field Data

?

Field Data In house In the field

Maintenance tasks: Debugging Regression testing Impact analysis Behavior classification ...

Developers

SLIDE 8

Motivation and Overview
Record & Replay Technique
Implementation and Evaluation
Conclusions and Future Work

Presentation Outline

SLIDE 9

Motivation and Overview
Record & Replay Technique
Implementation and Evaluation
Conclusions and Future Work

Presentation Outline

SLIDE 10

Record & Replay: Issues

SLIDE 11

Record & Replay: Issues

Users DB Network

SLIDE 12

Record & Replay: Issues

Practicality
High volume of data
Ad-hoc mechanisms
Inefficiency in recording

Users DB Network

SLIDE 13

Record & Replay: Issues

Practicality
High volume of data
Ad-hoc mechanisms
Inefficiency in recording
Privacy
Sensitive information

Users DB Network

SLIDE 14

Record & Replay: Issues

Practicality
High volume of data
Ad-hoc mechanisms
Inefficiency in recording
Privacy
Sensitive information
Safety
Side effects

Users DB Network

SLIDE 15

Record & Replay: Issues

Practicality
High volume of data
Ad-hoc mechanisms
Inefficiency in recording
Privacy
Sensitive information
Safety
Side effects

Users DB Network

Our technique

Is specifically designed to be used on deployed software

(but can also be used in-house)

Mitigates practicality, safety, and privacy issues through
novel technical solutions
careful engineering

SLIDE 16

Overview of the Approach

R e c

r

d R e p l a y

SLIDE 17

Overview of the Approach

R e c

r

d R e p l a y

SLIDE 18

Overview of the Approach

Subsystem

f interest

R e c

r

d R e p l a y

SLIDE 19

Overview of the Approach

Subsystem

f interest

R e c

r

d R e p l a y

SLIDE 20

Overview of the Approach

Subsystem

f interest

Output Input

R e c

r

d R e p l a y

Environment

SLIDE 21

Overview of the Approach

Subsystem

f interest

Output Input Event Log

R e c

r

d R e p l a y

Environment

SLIDE 22

Overview of the Approach

Subsystem

f interest

Output Input Event Log Subsystem

f interest

R e c

r

d R e p l a y

Environment

SLIDE 23

Replay Scaffolding

Overview of the Approach

Subsystem

f interest

Output Input Event Log Subsystem

f interest

R e c

r

d R e p l a y

Environment

SLIDE 24

Replay Scaffolding

Overview of the Approach

Subsystem

f interest

Output Input Event Log Event Log Subsystem

f interest

R e c

r

d R e p l a y

Environment

SLIDE 25

Replay Scaffolding

Overview of the Approach

Subsystem

f interest

Output Input Event Log Event Log Subsystem

f interest

R e c

r

d R e p l a y

Environment

SLIDE 26

Record: Recorded Events

Subsystem

f interest

SLIDE 27

Record: Recorded Events

Subsystem

f interest

Method calls

INCALL
INCALLRET
OUTCALL
OUTCALLRET

... x = getRatio(myTree) ...

SLIDE 28

Record: Recorded Events

Subsystem

f interest

x = getRatio(myTree)

Method calls

INCALL
INCALLRET
OUTCALL
OUTCALLRET

Method calls

INCALL
INCALLRET
OUTCALL
OUTCALLRET

... x = getRatio(myTree) ...

SLIDE 29

Record: Recorded Events

Subsystem

f interest

x = getRatio(myTree) 28.5

Method calls

INCALL
INCALLRET
OUTCALL
OUTCALLRET

Method calls

INCALL
INCALLRET
OUTCALL
OUTCALLRET

Method calls

INCALL
INCALLRET
OUTCALL
OUTCALLRET

... x = getRatio(myTree) ...

SLIDE 30

Record: Recorded Events

Subsystem

f interest

Method calls

INCALL
INCALLRET
OUTCALL
OUTCALLRET

SLIDE 31

Record: Recorded Events

Subsystem

f interest

... n = it.next() ...

Method calls

INCALL
INCALLRET
OUTCALL
OUTCALLRET

SLIDE 32

Record: Recorded Events

Subsystem

f interest

it.next() ... n = it.next() ...

Method calls

INCALL
INCALLRET
OUTCALL
OUTCALLRET

Method calls

INCALL
INCALLRET
OUTCALL
OUTCALLRET

SLIDE 33

Record: Recorded Events

Subsystem

f interest

it.next() ... n = it.next() ... <some object>

Method calls

INCALL
INCALLRET
OUTCALL
OUTCALLRET

Method calls

INCALL
INCALLRET
OUTCALL
OUTCALLRET

Method calls

INCALL
INCALLRET
OUTCALL
OUTCALLRET

SLIDE 34

Record: Recorded Events

Subsystem

f interest

Method calls

INCALL
INCALLRET
OUTCALL
OUTCALLRET

INCALL / OUTCALL event{

Callee’s type
Callee’s object ID
Callee’s signature
Parameter*

SLIDE 35

Record: Recorded Events

Method calls

INCALL
INCALLRET
OUTCALL
OUTCALLRET

SLIDE 36

Record: Recorded Events

Method calls

INCALL
INCALLRET
OUTCALL
OUTCALLRET

Field Accesses

INWRITE
OUTWRITE
OUTREAD

SLIDE 37

Record: Recorded Events

Method calls

INCALL
INCALLRET
OUTCALL
OUTCALLRET

Field Accesses

INWRITE
OUTWRITE
OUTREAD

Exceptions

EXCIN
EXCOUT

SLIDE 38

Record: Capturing Partial Data

Subsystem

f interest

SLIDE 39

Record: Capturing Partial Data

Recording complete data is impractical

(huge time/space overhead in preliminary studies)

Subsystem

f interest

SLIDE 40

Record: Capturing Partial Data

Recording complete data is impractical

(huge time/space overhead in preliminary studies)

Subsystem

f interest

x = getRatio(hugeTree) 28.5

SLIDE 41

Record: Capturing Partial Data

Recording complete data is impractical

(huge time/space overhead in preliminary studies)

Subsystem

f interest

double getRatio(HugeTree ht) { Iterator it = ht.iterator(); while (it.hasNext()) { Node n = (Node)it.next(); double res = n.val; if (res > 0) return res / norm; } x = getRatio(hugeTree) 28.5

SLIDE 42

Record: Capturing Partial Data

Recording complete data is impractical

(huge time/space overhead in preliminary studies)

➡Record only data that affect the computation

Scalar values
Object IDs and Types

Subsystem

f interest

double getRatio(HugeTree ht) { Iterator it = ht.iterator(); while (it.hasNext()) { Node n = (Node)it.next(); double res = n.val; if (res > 0) return res / norm; } x = getRatio(hugeTree) 28.5

SLIDE 43

Record: Capturing Partial Data

Recording complete data is impractical

(huge time/space overhead in preliminary studies)

➡Record only data that affect the computation

Scalar values
Object IDs and Types

Subsystem

f interest

double getRatio(HugeTree ht) { Iterator it = ht.iterator(); while (it.hasNext()) { Node n = (Node)it.next(); double res = n.val; if (res > 0) return res / norm; } x = getRatio(hugeTree) 28.5 28.5

SLIDE 44

Record: Capturing Partial Data

Recording complete data is impractical

(huge time/space overhead in preliminary studies)

➡Record only data that affect the computation

Scalar values
Object IDs and Types

Subsystem

f interest

double getRatio(HugeTree ht) { Iterator it = ht.iterator(); while (it.hasNext()) { Node n = (Node)it.next(); double res = n.val; if (res > 0) return res / norm; } x = getRatio(hugeTree) 28.5 28.5 <1110, some.package.HugeTree>

SLIDE 45

Possible Applications

SLIDE 46

Possible Applications

Subsystem

f interest

Output Input Event Log Environment

1. Debugging of field failures
2. Unit test cases from user executions
3. Post-mortem dynamic analysis

SLIDE 47

Possible Applications

Subsystem

f interest

Environment

1. Debugging of field failures
2. Unit test cases from user executions
3. Post-mortem dynamic analysis

SLIDE 48

Possible Applications

Subsystem

f interest

Output Input Event Log Environment

1. Debugging of field failures
2. Unit test cases from user executions
3. Post-mortem dynamic analysis

SLIDE 49

Possible Applications

Subsystem

f interest

Output Input Event Log Environment

1. Debugging of field failures
2. Unit test cases from user executions
3. Post-mortem dynamic analysis

SLIDE 50

Possible Applications

Subsystem

f interest

Output Input Event Log Environment

1. Debugging of field failures
2. Unit test cases from user executions
3. Post-mortem dynamic analysis
For component failures

[WODA 06]

For complete executions

[ICSE 07]

SLIDE 51

Possible Applications

Subsystem

f interest

Output Input Event Log Environment

1. Debugging of field failures
2. Unit test cases from user executions
3. Post-mortem dynamic analysis

SLIDE 52

Possible Applications

Subsystem

f interest

Output Input Event Log Environment

1. Debugging of field failures
2. Unit test cases from user executions
3. Post-mortem dynamic analysis

Unit of interest

SLIDE 53

Possible Applications

Subsystem

f interest

Output Input Event Log Environment

1. Debugging of field failures
2. Unit test cases from user executions
3. Post-mortem dynamic analysis

Unit of interest Unit Test Case

SLIDE 54

Possible Applications

Subsystem

f interest

Output Input Event Log Environment

1. Debugging of field failures
2. Unit test cases from user executions
3. Post-mortem dynamic analysis

Unit of interest Unit Test Case

For safe component updates

[PASTE 05]

For regression testing

(in progress)

SLIDE 55

Possible Applications

Subsystem

f interest

Output Input Event Log Environment

1. Debugging of field failures
2. Unit test cases from user executions
3. Post-mortem dynamic analysis

Unit of interest Unit Test Case

For safe component updates

[PASTE 05]

For regression testing

(in progress) Can also be a system test!

SLIDE 56

Possible Applications

Subsystem

f interest

Output Input Event Log Environment

1. Debugging of field failures
2. Unit test cases from user executions
3. Post-mortem dynamic analysis

SLIDE 57

Possible Applications

Subsystem

f interest

Output Input Event Log Environment

1. Debugging of field failures
2. Unit test cases from user executions
3. Post-mortem dynamic analysis

SLIDE 58

Possible Applications

1. Debugging of field failures
2. Unit test cases from user executions
3. Post-mortem dynamic analysis

Replay Scaffolding Subsystem

f interest

SLIDE 59

Possible Applications

1. Debugging of field failures
2. Unit test cases from user executions
3. Post-mortem dynamic analysis

Replay Scaffolding Subsystem

f interest

Instrumented Subsystem

f interest

SLIDE 60

Possible Applications

1. Debugging of field failures
2. Unit test cases from user executions
3. Post-mortem dynamic analysis

Replay Scaffolding Event Log Subsystem

f interest

Instrumented Subsystem

f interest

Analysis Results

SLIDE 61

Possible Applications

1. Debugging of field failures
2. Unit test cases from user executions
3. Post-mortem dynamic analysis

Replay Scaffolding Event Log Subsystem

f interest

Instrumented Subsystem

f interest

Analysis Results

For example:

memory leak detection

SLIDE 62

Motivation and Overview
Record & Replay Technique
Implementation and Evaluation
Conclusions and Future Work

Presentation Outline

SLIDE 63

Motivation and Overview
Record & Replay Technique
Implementation and Evaluation
Conclusions and Future Work

Presentation Outline

SLIDE 64

The Tool: SCARPE

Selective CApture and Replay of Program Executions

Instrumentation Module

SCARPE Toolset

Record Module JVM raw events execution events I/O class names Users Event Log Observed Set Program Instrumented Program

SLIDE 65

The Tool: SCARPE

Selective CApture and Replay of Program Executions

Instrumentation Module

SCARPE Toolset

Record Module JVM raw events execution events I/O class names Users Event Log Observed Set Program Instrumented Program

Replay performed in a similar way

SLIDE 66

Empirical Study

RQ1 (feasibility): Can SCARPE correctly record and

replay different subsets of an application?

RQ2 (efficiency): Can SCARPE record executions

without imposing too much overhead?

Subjects:

# Classes KLOC # Test Cases NanoXML JABA

19 3.5 216 500 60 400

SLIDE 67

RQ1 – Feasibility

(NanoXML)

SLIDE 68

RQ1 – Feasibility

(NanoXML)

Experimental protocol

1. For each class C in NanoXML
a. Specify C as the subsystem of interest
b. Run all test cases and record executions
2. Replay all recorded executions (> 4,000)

SLIDE 69

RQ1 – Feasibility

(NanoXML)

Experimental protocol

1. For each class C in NanoXML
a. Specify C as the subsystem of interest
b. Run all test cases and record executions
2. Replay all recorded executions (> 4,000)

Results

Record and replay successful for all classes

and all test cases

SLIDE 70

RQ2 – Efficiency

(JABA)

SLIDE 71

RQ2 – Efficiency

(JABA)

Experimental protocol

SLIDE 72

RQ2 – Efficiency

(JABA)

Experimental protocol

1. For each test case T in JABA’s test suite

a. Run T

b. Measure time to run T

c. Identify nine classes covered by T

SLIDE 73

RQ2 – Efficiency

(JABA)

Experimental protocol

1. For each test case T in JABA’s test suite

a. Run T

b. Measure time to run T

c. Identify nine classes covered by T

2. For each class C and test case T considered

a. Specify C as the subsystem of interest

b. Run all test cases and record executions

c. Measure time to run T

SLIDE 74

RQ2 – Efficiency

(JABA)

Experimental protocol

1. For each test case T in JABA’s test suite

a. Run T

b. Measure time to run T

c. Identify nine classes covered by T

2. For each class C and test case T considered

a. Specify C as the subsystem of interest

b. Run all test cases and record executions

c. Measure time to run T

3. For each T, compare times to run T in (1) and (2)

SLIDE 75

RQ2 – Efficiency

(JABA)

SLIDE 76

RQ2 – Efficiency

(JABA)

Results

SLIDE 77

RQ2 – Efficiency

(JABA)

Results

Space overhead limited:
60 MB for largest log (~120M events)
~50KB for 1000 events

(uncompressed, unoptimized)

SLIDE 78

RQ2 – Efficiency

(JABA)

Results

Space overhead limited:
60 MB for largest log (~120M events)
~50KB for 1000 events

(uncompressed, unoptimized)

Time overhead varies widely
Minimum: 3%
Average: 97%
Maximum: 877%

SLIDE 79

RQ2 – Detailed Results

225 450 675 900 1 2 3 4 5 6 7 8 9 101112131415161718192021222324252627282930313233343536

min max avg

×

Legend:

Percentage Ovehead Classes Considered

SLIDE 80

RQ2 – Detailed Results

225 450 675 900 1 2 3 4 5 6 7 8 9 101112131415161718192021222324252627282930313233343536

min max avg

×

Legend:

Percentage Ovehead Classes Considered

Cost does not depend on event types
Overhead depends on #events/sec
For example:
Lowest overhead (3%): ~1K ev/sec
Highest overhead (877%): ~300K ev/sec

SLIDE 81

RQ2 – Detailed Results

225 450 675 900 1 2 3 4 5 6 7 8 9 101112131415161718192021222324252627282930313233343536

min max avg

×

Legend:

Percentage Ovehead Classes Considered

Cost does not depend on event types
Overhead depends on #events/sec
For example:
Lowest overhead (3%): ~1K ev/sec
Highest overhead (877%): ~300K ev/sec

Further considerations

Overhead often between 30%-100%

(in the single digits in some cases)

May be acceptable for interactive apps
We are investigating optimizations

(No problem for in-house use)

SLIDE 82

Motivation and Overview
Record & Replay Technique
Implementation and Evaluation
Conclusions and Future Work

Presentation Outline

SLIDE 83

Motivation and Overview
Record & Replay Technique
Implementation and Evaluation
Conclusions and Future Work

Presentation Outline

SLIDE 84

Related Work

Techniques for deterministic debugging (e.g.,

DejaVu [Choi et al. 98])

Techniques for automated mock-object creation

([Saff and Ernst 04], [Elbaum et al. 06])

Techniques for complete replay ([Steven and

Podgursky 00])

SLIDE 85

Summary and Future Work

Output Input

Subsystem 1 Subsystem 2 Subsystem 3

Environment

SLIDE 86

Summary and Future Work

Output Input

Subsystem 1 Subsystem 2 Subsystem 3

Environment Event Logs

Subsystem 1 Subsystem 2 Subsystem 3 ... EL1 EL2 EL3 ... EL1 EL2 EL3 ... EL1 EL2 EL3 ... ...

SLIDE 87

Summary and Future Work

Output Input

Subsystem 1 Subsystem 2 Subsystem 3

Environment Event Logs

Subsystem 1 Subsystem 2 Subsystem 3 ... EL1 EL2 EL3 ... EL1 EL2 EL3 ... EL1 EL2 EL3 ... ...

1 ≤ cardinality ≤ #classes

SLIDE 88

Summary and Future Work

Output Input

Subsystem 1 Subsystem 2 Subsystem 3

Environment Event Logs

Subsystem 1 Subsystem 2 Subsystem 3 ... EL1 EL2 EL3 ... EL1 EL2 EL3 ... EL1 EL2 EL3 ... ...

Same VS different subsystems at different sites

SLIDE 89

Summary and Future Work

Output Input

Subsystem 1 Subsystem 2 Subsystem 3

Environment Event Logs

Subsystem 1 Subsystem 2 Subsystem 3 ... EL1 EL2 EL3 ... EL1 EL2 EL3 ... EL1 EL2 EL3 ... ...

Field VS in-house

SLIDE 90

Summary and Future Work

Output Input

Subsystem 1 Subsystem 2 Subsystem 3

Environment Event Logs

Subsystem 1 Subsystem 2 Subsystem 3 ... EL1 EL2 EL3 ... EL1 EL2 EL3 ... EL1 EL2 EL3 ... ...

Always collect VS anomaly-driven collection Send back VS replay locally

SLIDE 91

Summary and Future Work

Output Input

Subsystem 1 Subsystem 2 Subsystem 3

Environment Event Logs

Subsystem 1 Subsystem 2 Subsystem 3 ... EL1 EL2 EL3 ... EL1 EL2 EL3 ... EL1 EL2 EL3 ... ...

SLIDE 92

Summary and Future Work

Output Input

Subsystem 1 Subsystem 2 Subsystem 3

Environment Event Logs Further validation (especially w.r.t. performance)

1

SLIDE 93

Summary and Future Work

Output Input

Subsystem 1 Subsystem 2 Subsystem 3

Environment Event Logs Further validation (especially w.r.t. performance)

1

Improve performance (e.g., static/dynamic analysis for selection)

2

SLIDE 94

Summary and Future Work

Output Input

Subsystem 1 Subsystem 2 Subsystem 3

Environment Event Logs Alternative approaches (binary level, JVM level)

3

Further validation (especially w.r.t. performance)

1

Improve performance (e.g., static/dynamic analysis for selection)

2

SLIDE 95

Summary and Future Work

Output Input

Subsystem 1 Subsystem 2 Subsystem 3

Environment Event Logs Alternative approaches (binary level, JVM level)

3

Further validation (especially w.r.t. performance)

1

Improve performance (e.g., static/dynamic analysis for selection)

2

Investigate Applications (we mentioned three, there are more)

4

SLIDE 96

Summary and Future Work

Output Input

Subsystem 1 Subsystem 2 Subsystem 3

Environment Event Logs

SLIDE 97

Thank you!

SLIDE 98
