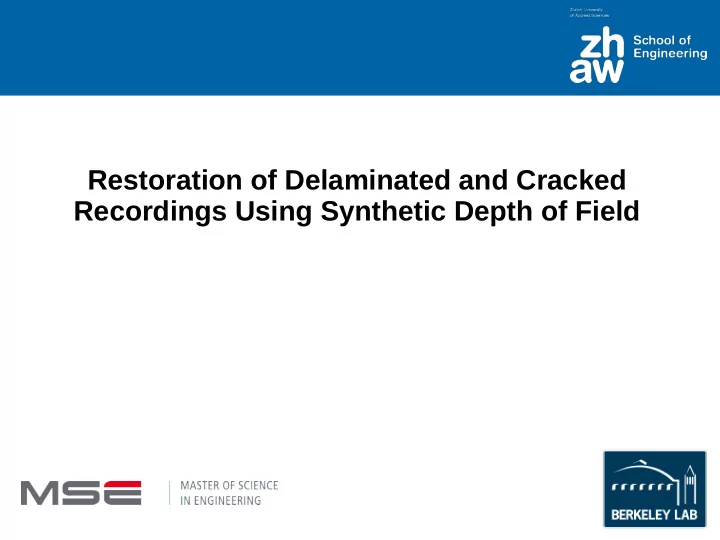

Restoration of Delaminated and Cracked Recordings Using Synthetic - - PowerPoint PPT Presentation
Restoration of Delaminated and Cracked Recordings Using Synthetic - - PowerPoint PPT Presentation
Restoration of Delaminated and Cracked Recordings Using Synthetic Depth of Field Optical Scanning of Disc Recordings IRENE 2D Setup Delamination on Lacquer Discs Image source: [1] A Closer Look Ways to Handle Cracks Crack detection (S.
SLIDE 2
SLIDE 3
IRENE 2D Setup
SLIDE 4
Delamination on Lacquer Discs
Image source: [1]
SLIDE 5
A Closer Look
SLIDE 6
Ways to Handle Cracks
- Crack detection (S. Fischer [2])
–
Detect crack with displacement sensor
–
Rescan the blurred area
–
Works well for small number of radial cracks
- Synthetic depth of field
–
Acquire a stack of subscans with different height offsets
–
Merge the subscans
Image source: [3]
SLIDE 7
Questions to be Answered
- Spacing of the scans?
–
Determine depth of field of the current system
- How can sharp regions be detected?
–
Focus measures
–
Which is the right one for this application?
- How can the images be efficiently fused?
–
Size of one image 300 MB - 800 MB
SLIDE 8
Depth of Field How can the relevant depth of field for the audio extraction be determined? Microscopy theory: Problem: that does not tell us anything about how the depth of field affects the audio DoF= λ0n NA
2+
n M NA e≈38μ m
SLIDE 9
Depth of Field
Experimental approach:
- Scan a silent portion of
the groove
- Extracted audio contains
- nly noise
- Change focus plane
- Signal RMS can be used
as noise measure
SLIDE 10
Depth of Field Just notable difference ~ 1 dB [4] => 40 μm spacing
SLIDE 11
Depth of Field
Z-offset 0 um Z-offset +40 um
SLIDE 12
Acquisition System
Before: Tracking New: Focus Stacking
SLIDE 13
Image stack
SLIDE 14
Outlook
- Currently working on the image fusion algorithm
SLIDE 15
Sources
[1] Northeast Document Conservation Center. IRENE Seeing Sound Blog. A Hefty Challenge for IRENE: Working with Delaminating Lacquer Discs, August 2014. https://www.nedcc.org/audio-preservation/irene-blog/ [03/14/2015]. [2] S. Fischer. Restoring Cracked Early Recordings. Master’s thesis, Zurich University of Applied Sciences, September 2013. [3] M. M. Karim. Focus stacking Tachinid fly. March 2009. http://commons.wikimedia.org/wiki/File:Focus_stacking_Tachinid_fly.jpg [05/31/2015] [4] Wikipedia. Just-noticeable difference. http://en.wikipedia.org/wiki/Just-noticeable_difference [06/04/2015].
SLIDE 16
Perpendicular Lighting
