Reinforcement Corrosion in Cracked Concrete Prepared by: Anna - - PowerPoint PPT Presentation

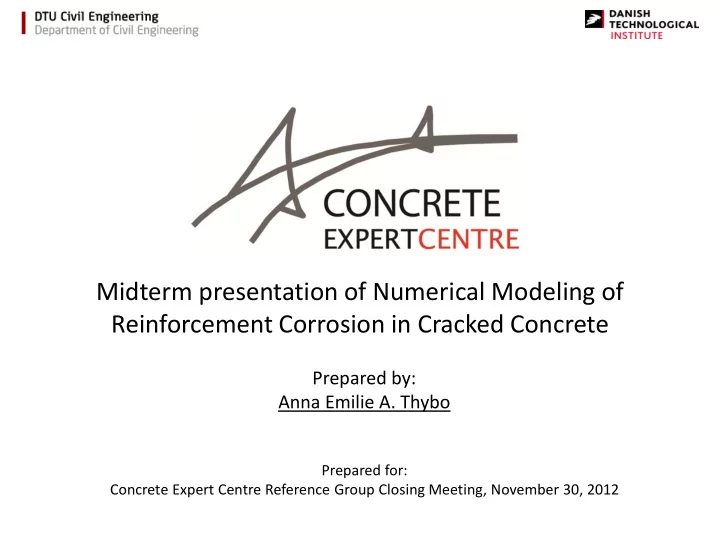

Midterm presentation of Numerical Modeling of Reinforcement Corrosion in Cracked Concrete

Prepared by: Anna Emilie A. Thybo

Prepared for: Concrete Expert Centre Reference Group Closing Meeting, November 30, 2012

• Modeling non-uniform corrosion
• Comparison of model, experimental data
• Influence of modeling non-uniform corrosion on

surface crackning

• Input/output
• Future work

2

Outline

Numerical model for the simulation of damage and cracking in concrete cover

3

Modeling non-uniform corrosion

mean(icorr_uniform) = mean(icorr_nonuniform)

• Digital image correlation (DIC)

– 24.5 megapixel camera used for DIC during accelerated corrosion testing – Each pixel corresponds to 7.8×7.8 mm2 of specimen surface

4

Comparison of model, experimental data

+

• Tap water

Steel bar Reinforced mortar specimen Current regulator Activated titanium mesh Non-conductive holders Measured region

(Pease et al., 2012)

5

Comparison of model, experimental data

• deformations
• 6
• 4
• 2

2 4 6

• 7
• 2

3 8 mm mm Corrosion layer Reinforcement

6

Comparison of model, experimental data – crack width 1.4 mm from reinforcement

7

Influence of modeling non-uniform corrosion on surface crackning

Corrosion layer Semi-infinite concrete body Semi-infinite concrete body Semi-infinite concrete body Corrosion layer Corrosion layer Semi-infinite concrete body Corrosion layer Reinforcement Reinforcement Reinforcement Reinforcement Crack Crack Crack Crack

Scenario 1 Scenario 2 Scenario 3 Scenario 4

8

Influence of modeling non-uniform corrosion on surface crackning

Scatter band

• INPUT

– Material parameters (concrete, steel and corrosion products) – Geometrical parameters (incl location of corrosion products) – Corrosion current density – Time

• OUTPUT

– Thickness of corrosion layer/reduction of steel area – Crack width in concrete cover

9

Input/output

• Probabilistic modeling of non-uniform corrosion

– quantifying uncertainty

• Multiple cracking in the cross section
• Implementing penetration of corrosion products

into cracks

10

Future work

m

(Pease et al., 2012) (Pease et al., 2006)

• Mechanical modeling

– initial defects – debonding

11

Future work

Cathode Cathode Reinforcement Concrete

     OH e O H O 4 4 2 2 2      OH e O H O 4 4 2 2 2

Moisture, temperature, oxygen, chloride, carbon dioxide

    e Fe Fe 2 2

Anode

(Michel et al., 2009)

• Coupling with other models

12

Future work

(Michel et al., 2010)

Microstructure Temperature Moisture Ions Oxygen Resistivity Temperature Moisture Oxygen Cracking Debonding Properties

Material and transport models

Service life prediction

Thank you for your attention

13

14

Concrete body Corrosion layer Reinforcement
