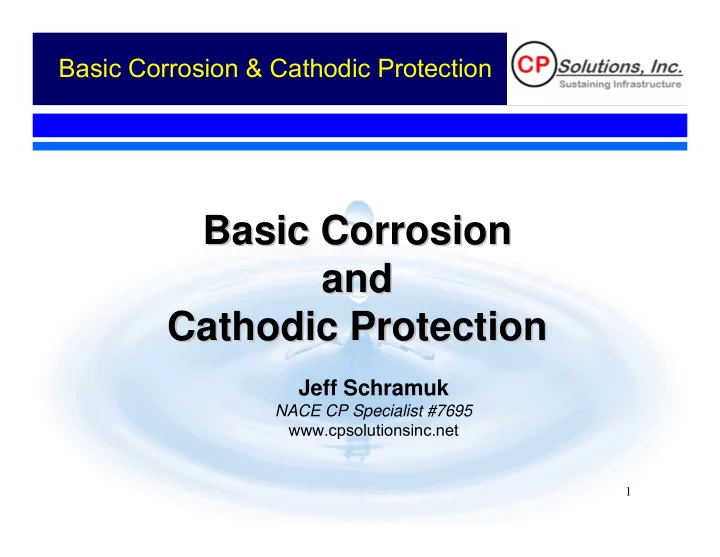

Basic Corrosion Basic Corrosion and and Cathodic Protection Cathodic Protection

Basic Corrosion & Cathodic Protection

slide-2
SLIDE 2

2

Topics to be Covered

Why Should We Be Concerned about Corrosion? Definitions and Terminology Forms of Corrosion Pipe Coatings and Cathodic Protection Cathodic Protection using Magnesium Anodes Advantages & Limitations of Galvanic Anode CP Systems Impressed Current Cathodic Protection Measurement and Testing of CP Systems Field Test Equipment Cathodic Protection Criteria.

slide-3
SLIDE 3

3

Why Should We Be Concerned about Corrosion? Definitions and Terminology Forms of Corrosion Pipe Coatings and Cathodic Protection Cathodic Protection using Magnesium Anodes Advantages & Limitations of Galvanic Anode CP Systems Impressed Current Cathodic Protection Measurement and Testing of CP Systems Field Test Equipment Cathodic Protection Criteria.

Basic Corrosion & Cathodic Protection

slide-4
SLIDE 4

4

Effects of Infrastructure Corrosion

Life Safety Economics Environmental Regulatory Compliance

slide-5
SLIDE 5

5

Why Should We Be Concerned about Corrosion? Definitions and Terminology Forms of Corrosion Pipe Coatings and Cathodic Protection Cathodic Protection using Magnesium Anodes Advantages & Limitations of Galvanic Anode CP Systems Impressed Current Cathodic Protection Measurement and Testing of CP Systems Field Test Equipment Cathodic Protection Criteria.

Basic Corrosion & Cathodic Protection

slide-6
SLIDE 6

6

Corrosion Can be Defined as:

Practical Definition Scientific Definition

The Tendency

  • f a Metal to

Revert to its Native State Electrochemical Degradation of Metal as a Result of a Reaction with its Environment

slide-7
SLIDE 7

7

Corrosion - A Natural Process

IRON OXIDE REFINING MILLING IRON CORROSION IRON OXIDE

slide-8
SLIDE 8

8

Four Basic Parts of a Corrosion Cell Anode – A metal electrode in contact with the electrolyte which corrodes Cathode - A metal electrode in contact with the electrolyte which is protected against corrosion Electrolyte – A solution or conducting medium such as soil, water or concrete which contains

  • xygen and dissolved chemicals

Metal Path – An external circuit that connects the anode and the cathode

slide-9
SLIDE 9

9

Electron Flow vs. Conventional Current Flow of conventional current is from positive (+) to negative (-) Conventional current flow from (+) to (-) will be from the cathode to the anode in the metal path Conventional current flow from (+) to (-) will be from the anode to the cathode in the electrolyte.

slide-10
SLIDE 10

10

Anodic Area (Metal Loss)

DC Current

Cathodic Area (Protected)

Definitions - Anodes & Cathodes

slide-11
SLIDE 11

11

Copper at -200mV Steel at -600mV

The Simplified Corrosion Cell

Copper at -200 mV Steel at -600 mV

  • 1. Anode
  • 2. Cathode
  • 3. Electrolyte
  • 4. Metal Path
slide-12
SLIDE 12

12

Components of a Familiar Corrosion Cell

CARBON ROD (Cathode) ZINC CASE (Anode) NH4 and Cl- Paste (Electrolyte) WIRE (Metallic Path) I I I I I e-

slide-13
SLIDE 13

13

Material Potential*

Pure Magnesium

  • 1.75

Magnesium Alloy

  • 1.60

Zinc

  • 1.10

Aluminum Alloy

  • 1.00

Mild Steel (New)

  • 0.70

Mild Steel (Old)

  • 0.50

Cast / Ductile Iron

  • 0.50

Stainless Steel

  • 0.50 to + 0.10

Copper, Brass, Bronze

  • 0.20

Gold +0.20 Carbon, Graphite, Coke +0.40

* Potentials With Respect to Saturated Cu-CuSO4 Electrode

Less Active More

Practical Galvanic Series*

slide-14
SLIDE 14

14

Corrosion Reaction and Ohm’s Law Ohm’s Law States that: I = ∆E/R where: ∆E = Driving Potential (EA minus EC) EA = Anode Potential (measured in volts) EC = Cathode Potential (measured in volts) I = Current Flow (measured in amperes) R = Resistance (measured in ohms)

slide-15
SLIDE 15

15

Some Common Electrical Quantities

Current Flow: 1 ampere (A) = 1000 milliamps (mA)

Examples: A sacrificial anode’s output is measured in mA A CP rectifier’s output is can be up 100 A

Voltage: 1 volt (V) = 1000 millivolts (mV)

Examples: A magnesium anode’s potential is ~1.6 V (1600 mV) A CP rectifier can have a DC voltage of up to 100 V

slide-16
SLIDE 16

16

Corrosion Cell - Anodic Reactions

Copper at -200mV Steel at -600mV Cathode Anode I e- Fe++ Fe++ Fe++ OH- OH- OH- I I

slide-17
SLIDE 17

17

Corrosion Cell - Cathodic Reactions

Copper at -200mV Steel at -600mV Cathode Anode I e- H+ H+ H+ H+ e- e- e- e- I

slide-18
SLIDE 18

18

Corrosion Cell – Combined Reactions

Copper at -200mV Steel at -600mV Cathode Anode I e- H2 H2 e- H2 H2 Fe2(OH)3 Fe2(OH)3 Fe2(OH)3 I

slide-19
SLIDE 19

19

Why Should We Be Concerned about Corrosion? Definitions and Terminology Forms of Corrosion Pipe Coatings and Cathodic Protection Cathodic Protection using Magnesium Anodes Advantages & Limitations of Galvanic Anode CP Systems Impressed Current Cathodic Protection Measurement and Testing of CP Systems Field Test Equipment Cathodic Protection Criteria.

Basic Corrosion & Cathodic Protection

slide-20
SLIDE 20

20

General Corrosion Corrosive environment is uniform around the structure

Anode area is uniformly distributed over the structure Corrosion rate is usually constant over the structure

Environments where uniform attack can occur

Atmospheric, Aqueous, Concrete

slide-21
SLIDE 21

21

True Uniform Corrosive Attack

slide-22
SLIDE 22

22

Galvanic Corrosion When two different metals are connected and placed into a corrosive environment. Corrosion current is proportional to the difference in electrochemical energy between the two metals Area Effect

Avoid small anode connected to a large cathode

Distance Effect

Area closest to anode will have the greatest corrosion

slide-23
SLIDE 23

23

Material Potential*

Pure Magnesium

  • 1.75

Magnesium Alloy

  • 1.60

Zinc

  • 1.10

Aluminum Alloy

  • 1.00

Mild Steel (New)

  • 0.70

Mild Steel (Old)

  • 0.50

Cast / Ductile Iron

  • 0.50

Stainless Steel

  • 0.50 to + 0.10

Copper, Brass, Bronze

  • 0.20

Gold +0.20 Carbon, Graphite, Coke +0.40

* Potentials With Respect to Saturated Cu-CuSO4 Electrode

Less Active More

Practical Galvanic Series*

slide-24
SLIDE 24

24

Galvanic Corrosion Bimetallic Connection

slide-25
SLIDE 25

25

Old Pipe (Cathode) New Pipe (Anode)

Old-New Pipe Corrosion Cell

slide-26
SLIDE 26

26

Steel in Concrete-Soil

Cathodic Zone Anodic Zone Concrete Encasement Pipe in Soil Corrodes Note: Arrows Indicate Direction of DC Current Flow

slide-27
SLIDE 27

27

Dissimilar Surface Conditions

Pipe (Cathode) Threads Bright Metal (Anode) Scratches (Anode)

slide-28
SLIDE 28

28

Concentration Cell Corrosion

Due to differences in the environment Differential Soil Aeration – Very common

slide-29
SLIDE 29

29

Aerated Soil

Differential Soil Aeration

Oxygen diffusing through backfill sustains corrosion to cathodic (top) area of pipe Lack of oxygen at bottom of pipe creates relative corrosion cell to (top) area of pipe Clay soil Clay soil

Anodic Zone Cathodic Zone O2 O2

slide-30
SLIDE 30

30

Differential Aeration on Cast Iron Pipe

Cathodic Zone Anodic Zone

slide-31
SLIDE 31

31

Clay (moist low oxygen) Sandy Loam (well drained, high oxygen) Anode Cathode Cathode

Differential Soil Aeration

Factors contributing to an increased corrosive attack are de-icing salts and agricultural fertilizers

Pavement Sandy Loam (well drained, high oxygen)

slide-32
SLIDE 32

32

Pitting Corrosion Random and highly localized Depth greater than area of attack Most destructive form of corrosion Pit location and growth difficult to predict

slide-33
SLIDE 33

33

Pitting of Coated Carbon Steel in Soil

slide-34
SLIDE 34

34

External Pitting: Ductile Iron Water Main

slide-35
SLIDE 35

35

Selective Leaching Corrosion Selective Leaching

Graphitization (Gray Cast Iron) Dezincification (Brass)

slide-36
SLIDE 36

36

Dealloying Corrosion (Graphitization)

slide-37
SLIDE 37

37

Why Should We Be Concerned about Corrosion? Definitions and Terminology Forms of Corrosion Pipe Coatings and Cathodic Protection Cathodic Protection using Magnesium Anodes Advantages & Limitations of Galvanic Anode CP Systems Impressed Current Cathodic Protection Measurement and Testing of CP Systems Field Test Equipment Cathodic Protection Criteria.

Basic Corrosion & Cathodic Protection

slide-38
SLIDE 38

38

Eliminating the Corrosion Cell

Anode Cathode

slide-39
SLIDE 39

39

Apply a Bonded Tape Wrapping

slide-40
SLIDE 40

40

Pitting at a Coating Defect

slide-41
SLIDE 41

41

Coat the Structure & Electrically Isolate It

What’s Wrong Here?

slide-42
SLIDE 42

42

Encase the Pipe in a “Corrosion Barrier”

slide-43
SLIDE 43

43

Why Should We Be Concerned about Corrosion? Definitions and Terminology Forms of Corrosion Pipe Coatings and Cathodic Protection Cathodic Protection using Magnesium Anodes Advantages & Limitations of Galvanic Anode CP Systems Impressed Current Cathodic Protection Measurement and Testing of CP Systems Field Test Equipment Cathodic Protection Criteria.

Basic Corrosion & Cathodic Protection

slide-44
SLIDE 44

44

Corrosion occurs where current discharges from metal to electrolyte The objective of cathodic protection is to force the entire surface to be cathodic to the environment.

How Cathodic Protection Works

slide-45
SLIDE 45

45

Current is obtained from a metal of a higher energy level.

Galvanic Anode Cathodic Protection

slide-46
SLIDE 46

46

Material Potential*

Pure Magnesium

  • 1.75

Magnesium Alloy

  • 1.60

Zinc

  • 1.10

Aluminum Alloy

  • 1.00

Mild Steel (New)

  • 0.70

Mild Steel (Old)

  • 0.50

Cast / Ductile Iron

  • 0.50

Stainless Steel

  • 0.50 to + 0.10

Copper, Brass, Bronze

  • 0.20

Gold +0.20 Carbon, Graphite, Coke +0.40

* Potentials With Respect to Saturated Cu-CuSO4 Electrode

Less Active More

Practical Galvanic Series*

slide-47
SLIDE 47

47

Copper -200mV Steel -600mV Magnesium -1.7V

  • 1. Anode
  • 2. Cathode
  • 3. Electrolyte
  • 4. Metal Path

Galvanic Corrosion – No C.P. Benefit

slide-48
SLIDE 48

48

Cathode Cathode Anode

  • 1. Anode
  • 2. Cathode
  • 3. Electrolyte
  • 4. Metal Path

Galvanic Corrosion - Mitigated w/CP

slide-49
SLIDE 49

49

CP Performance - Can Be Verified

slide-50
SLIDE 50

50

Sacrificial Anode on a Buried Pipeline

Sacrificial Anode Coating Defect Connection to Pipe Grade

slide-51
SLIDE 51

51

Coating Defect Connection to Pipe Grade Sacrificial Anode

Sacrificial Anode w/Test Station

slide-52
SLIDE 52

52

CP Test Station - Terminal Board

structure lead wire anode lead wire insulated terminal board calibrated shunt resistor

slide-53
SLIDE 53

53

Magnesium Anodes

slide-54
SLIDE 54

54

Proper distance of anode from pipe

At least 3’ from a coated pipe At least 6’ from bare steel At least 1’ deeper than pipeline Evaluate pipe coating

Install anode carefully – don’t lift by the lead wire Tamp earth firmly around anode package.

Packaged Magnesium Anode Natural Gas PL

slide-55
SLIDE 55

55

Leave slack in the anode lead wire Wet area thoroughly around anode Make a secure electrical connection to the pipe (e.g. exothermic weld) Repair pipe coating to match original Place test box where it is protected from damage and can be easily located Do not allow any foreign pipeline contacts.

Packaged Magnesium Anode Natural Gas PL (cont.)

slide-56
SLIDE 56

56

Packaged Magnesium Anode Natural Gas PL (cont.)

*Detail courtesy of Midwest Energy Association *Detail courtesy of Midwest Energy Association

slide-57
SLIDE 57

57

Why Should We Be Concerned about Corrosion? Definitions and Terminology Forms of Corrosion Pipe Coatings and Cathodic Protection Cathodic Protection using Magnesium Anodes Advantages & Limitations of Galvanic Anode CP Systems Impressed Current Cathodic Protection Measurement and Testing of CP Systems Field Test Equipment Cathodic Protection Criteria.

Basic Corrosion & Cathodic Protection

slide-58
SLIDE 58

58

No external AC power is required Effective utilization of protective current Simple and inexpensive to install on new underground structures Seldom cause stray DC interference Minimal maintenance requirements.

Galvanic Anode CP Advantages

slide-59
SLIDE 59

59

Limited driving potential ∆E = (Ea – Ec) Limited current output I = ∆E / Rt Large number of anodes will be required on bare or poorly coated structures Ineffective in high-resistivity soil environments (Rt ).

Galvanic Anode CP Limitations

slide-60
SLIDE 60

60

Why Should We Be Concerned about Corrosion? Definitions and Terminology Forms of Corrosion Pipe Coatings and Cathodic Protection Cathodic Protection using Magnesium Anodes Advantages & Limitations of Galvanic Anode CP Systems Impressed Current Cathodic Protection Measurement and Testing of CP Systems Field Test Equipment Cathodic Protection Criteria.

Basic Corrosion & Cathodic Protection

slide-61
SLIDE 61

61

Rectifier Anode Groundbed ( - ) ( + ) Pipeline (Structure)

Surface (Horizontal) Anode System

slide-62
SLIDE 62

62

Deep Anode (Vertical) Anode System

slide-63
SLIDE 63

63

Continuous Linear Anode System

slide-64
SLIDE 64

64

Impressed Current Transformer Rectifier

slide-65
SLIDE 65

65

Why Should We Be Concerned about Corrosion? Definitions and Terminology Forms of Corrosion Pipe Coatings and Cathodic Protection Cathodic Protection using Magnesium Anodes Advantages & Limitations of Galvanic Anode CP Systems Impressed Current Cathodic Protection Measurement and Testing of CP Systems Field Test Equipment Cathodic Protection Criteria.

Basic Corrosion & Cathodic Protection

slide-66
SLIDE 66

66

Have you checked your rectifier lately?

slide-67
SLIDE 67

67

Monitoring Data for a CP Rectifier

slide-68
SLIDE 68

68

Can you locate your test stations?

slide-69
SLIDE 69

69

Potential Profile Survey Technique

Reference Cells Test Station Voltmeter-Computer Wire Dispenser & Distance Chainer

Pipeline

slide-70
SLIDE 70

70

Why Should We Be Concerned about Corrosion? Definitions and Terminology Forms of Corrosion Pipe Coatings and Cathodic Protection Cathodic Protection using Magnesium Anodes Advantages & Limitations of Galvanic Anode CP Systems Impressed Current Cathodic Protection Measurement and Testing of CP Systems Field Test Equipment Cathodic Protection Criteria.

Basic Corrosion & Cathodic Protection

slide-71
SLIDE 71

71

CP Test Equipment - Multi-Meters

slide-72
SLIDE 72

72

Multi-Meter Characteristics Basic Functions

Reads AC & DC Volts Reads Ohms (optional diode checker) Reads AC and DC Amps (be careful here!)

Performance Criteria

Field rugged, water/drop resistant High input impedance (min. 20 M-Ω)

slide-73
SLIDE 73

73

Test Equipment Quality Assurance

Perform pre-test operational checks in accordance with the manufacturer instructions Verify the battery strength (if so equipped) Initiate corrective action for equipment out of specification Have the equipment calibrated each year

slide-74
SLIDE 74

74

Reference Electrode Basic Components

slide-75
SLIDE 75

75

Reference Electrode - Maintenance

Periodically verify cell against a known standard Keep porous plug covered when not used Clean and refill the reference cell annually Clean copper rod with a non-metallic abrasive pad Replace w/fresh Cu/CuSO4 solution (½ full at all times) Some Cu/CuSO4 crystals should always remain in suspension Wash hands after using – Cu/CuSO4 solution is hazardous

slide-76
SLIDE 76

76

P/S Potential Readings

Connect voltmeter to pipe and reference Ensure reference cell plug has good contact with moist soil – not pavement Place reference cell away from anodes Read P/S on DCV scale Record P/S reading using standard forms If polarity is positive, notify corrosion dept.

slide-77
SLIDE 77

77

Meter Connections

slide-78
SLIDE 78

78

Why Should We Be Concerned about Corrosion? Definitions and Terminology Forms of Corrosion Pipe Coatings and Cathodic Protection Cathodic Protection using Magnesium Anodes Advantages & Limitations of Galvanic Anode CP Systems Impressed Current Cathodic Protection Measurement and Testing of CP Systems Field Test Equipment Cathodic Protection Criteria.

Basic Corrosion & Cathodic Protection

slide-79
SLIDE 79

79

Cathodic Protection Criteria

  • 0.85 V (w/IR-drop consideration)
  • 0.85 V Instant-Off

100 mV polarization decay Other criteria determined to be “appropriate” by regulatory authority

DOT Standard – Part 192.463

slide-80
SLIDE 80

80

NACE International – CP Criteria

slide-81
SLIDE 81

81

DOT Standard – Part 192.465

Monitoring of Cathodic Protection Potentials tested every 12 months at intervals not exceeding 15 months, or 10% per year to sample entire line every 10 years Rectifiers and critical bonds checked every 2 months at intervals not exceeding 2-1/2 months.

slide-82
SLIDE 82

82

Do We Have a Good Reading?

slide-83
SLIDE 83

83

Questions? Questions?

Jeff Schramuk

NACE CP Specialist #7695 www.cpsolutionsinc.net

Basic Corrosion & Cathodic Protection
