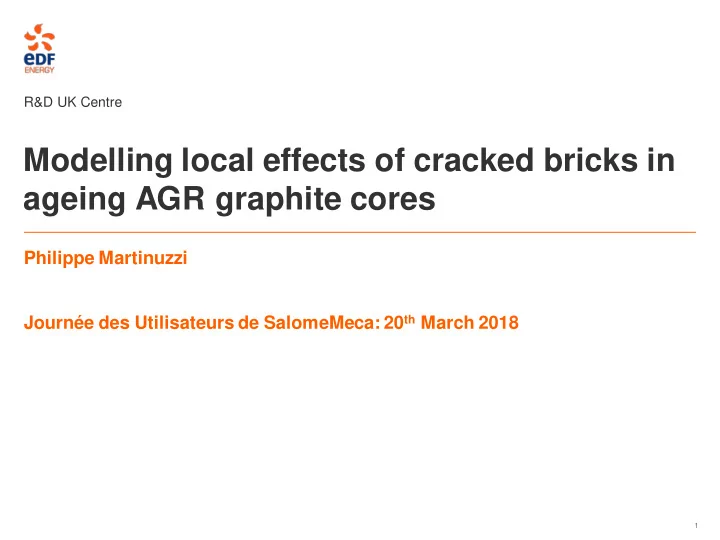

SLIDE 1

R&D UK Centre

Modelling local effects of cracked bricks in ageing AGR graphite cores

1

Philippe Martinuzzi Journée des Utilisateurs de SalomeMeca: 20th March 2018

slide-2
SLIDE 2

2

Table of contents

  • Context and Background
  • Presentation of the CBNAs1
  • Results
  • Conclusion and future work

1CBNA: Cracked Brick Neighbourhood Arrays

R&D UK Centre - Nuclear

slide-3
SLIDE 3

R&D UK Centre Nuclear

Context and background

slide-4
SLIDE 4

Context and background

4

R&D UK Centre - Nuclear

The AGR fleet: 14 reactors across the UK

Heysham 1&2 Hunterston B Torness Hartlepool Dungeness B Hinckley Point B

Three challenging

  • bjectives:

0/65/10

0 Harm 65 TWh 10 Years of extension

slide-5
SLIDE 5

Context and background

5

R&D UK Centre - Nuclear

Functions of the graphite bricks

  • Moderator
  • Structural
  • Channel for fuel and control rods
slide-6
SLIDE 6

Context and background

6

R&D UK Centre - Nuclear

Vocabulary

slide-7
SLIDE 7

Context and background

7

Dimensional change causing brick cracking Graphite is evolving and likely to crack What consequence for the whole reactor?

R&D UK Centre - Nuclear

slide-8
SLIDE 8

Context and background

8

Scale 1: One graphite brick

R&D UK Centre - Nuclear

Ageing of graphite is performed in code_aster Crack propagation is performed in MoFEM Ultimate goal: facilitate interaction between code_aster and MoFEM

slide-9
SLIDE 9

Context and background

9

Scale 2: From Multi-Layer-Model (MLM) to CBNA

R&D UK Centre - Nuclear

Development of CBNA models in code_aster at the UK Centre Crack propagation on MLM model at Wood (With XFEM) Today’s presentation

slide-10
SLIDE 10

Context and background

10

Scale 3: Whole core models

R&D UK Centre - Nuclear

Attention: Not representative of behaviour in actual reactor

slide-11
SLIDE 11

R&D UK Centre Nuclear

Presentation of the CBNA models

slide-12
SLIDE 12

Presentation of the CBNAs

12

Description: CBNA XxYxZ

R&D UK Centre - Nuclear

slide-13
SLIDE 13

Presentation of the CBNAs

13

Description: Field variable evolution

R&D UK Centre - Nuclear

Field 1: Temperature Field 2: Irradiation dose Field 3: Weight loss

slide-14
SLIDE 14

Presentation of the CBNAs

14

R&D UK Centre - Nuclear

Description: Material Properties Irradiated graphite material behaviour as a function of fast neutron dose, radiolytic weight loss, temperature and creep strain 121+ Material properties, among which

  • E, NU
  • ALPHA
  • Creep
  • Lots of ‘Switches’ to account for evolution since the 1990s

106+ Internal variables Use of User MATerial (UMAT) routine, readable in code_aster thanks to UMAT interface

slide-15
SLIDE 15

Presentation of the CBNAs

15

Description: Boundary conditions and loading

R&D UK Centre - Nuclear

Symmetric boundary conditions

x (column) y (row) z (layer) x (column) y (row)

DX=0 DY=0

slide-16
SLIDE 16

Presentation of the CBNAs

16

Description: Boundary conditions and loading

R&D UK Centre - Nuclear

Bottom nodes blocked in Z + springs with small stiffness to remove rigid body motion

slide-17
SLIDE 17

Presentation of the CBNAs

17

Description: Boundary conditions and loading

R&D UK Centre - Nuclear

Gravity and weight of top bricks

slide-18
SLIDE 18

Presentation of the CBNAs

18

Description: Contact

R&D UK Centre - Nuclear

For each component, contact surfaces have been defined

slide-19
SLIDE 19

Presentation of the CBNAs

19

Description: Cracked brick

  • No fracture mechanics involved
  • From t=0 to t=t_crack: tied surfaces
  • From t=t_crack to t=40: contact

R&D UK Centre - Nuclear

slide-20
SLIDE 20

Presentation of the CBNAs

20

Description: Solver STAT_NON_LINE

  • Initial phase 1:

 BC, Weight and Contact

  • Initial phase 2:

 Load

  • Initial phase 3:

 Start Up

  • Ageing phase 1:

 Closed crack

  • Ageing phase 2

 Open crack  In total about 200 time step (+ sub steps if no convergence)

R&D UK Centre - Nuclear

slide-21
SLIDE 21

Presentation of the CBNAs

21

Description: Automatic definition and post-processing

R&D UK Centre - Nuclear

  • CBNA extremely easy to set up.
  • Size, position of crack and post-processing are selected using

a CBNA python script.

  • All files are created automatically (including the .astk).
slide-22
SLIDE 22

R&D UK Centre Nuclear

Results

slide-23
SLIDE 23

Results

23

Results Benchmark with ABAQUS – 1x1x1

R&D UK Centre - Nuclear

  • 3,00E+01
  • 2,50E+01
  • 2,00E+01
  • 1,50E+01
  • 1,00E+01
  • 5,00E+00

0,00E+00 5,00E+00 10 20 30 40 Displacement (mm) Time (fpy) DX_Code_Aster DY_Code_Aster DZ_Code_Aster DX_ABAQUS DY_ABAQUS DZ_ABAQUS

Displacement

ABAQUS code_aster

Good Agreement Nodes Elements 63 000 76 000

slide-24
SLIDE 24

Results

24

Results Benchmark with ABAQUS – 1x1x1

R&D UK Centre - Nuclear

Spatial evolution of Young’s Modulus at 40 fpy ABAQUS code_aster Identical

slide-25
SLIDE 25

Results

25

Results Benchmark with ABAQUS – 1x1x1

R&D UK Centre - Nuclear

Crack opening

5 10 15 20 25 30 10 20 30 40 Opening in the Y direction (mm) Time (fpy) Bore_Code_Aster KW_Code_Aster Bore_Abaqus KW_Abaqus

Bore KW

Similar trends

slide-26
SLIDE 26

Results

26

Results Benchmark with ABAQUS – 1x1x1

R&D UK Centre - Nuclear

  • 2,00E+01
  • 1,00E+01

0,00E+00 1,00E+01 2,00E+01 3,00E+01 4,00E+01 10 20 30 40 Stress (MPa) Time (fpy) SYY_Code_Aster SYY_Abaqus

Hoop stress at keyway root Good agreement

slide-27
SLIDE 27

Results

27

Results Benchmark with ABAQUS – 1x1x1

R&D UK Centre - Nuclear

ABAQUS (1cpu) code_aster (1cpu) Reduced integration 10h 14h Full integration 24h 21h Attention: models are run on different machines and are not rigorously identical in terms of model, contact algorithm, and convergence criteria. Nodes Elements 63 000 76 000

slide-28
SLIDE 28

Results

28

Results Benchmark with ABAQUS – 3x3x1

R&D UK Centre - Nuclear

Similar observations for 3x3x1

ABAQUS code_aster

ABAQUS (1cpu) code_aster (1cpu) 8 days 8 days Nodes Elements 374 000 453 000

slide-29
SLIDE 29

R&D UK Centre Nuclear

Crack insertion with ZCracks

slide-30
SLIDE 30

Results

30

Crack insertion with Zcracks

  • Group conservation
  • Additional groups for crack

R&D UK Centre - Nuclear

+ =

slide-31
SLIDE 31

Results

31

Crack insertion with ZCracks

R&D UK Centre - Nuclear

New crack :

Displacement Magnitude

Old/Default crack :

Displacement Magnitude

slide-32
SLIDE 32

Results

32

Crack insertion with ZCracks Cracks could come from:

  • Inspection
  • Crack propagation tools
  • Extreme test scenarios

R&D UK Centre - Nuclear

Ageing analysis with

  • n-the-fly crack insertion
slide-33
SLIDE 33

Results

33

Libraries of crack can now be inserted in CBNA models

R&D UK Centre - Nuclear

New crack (from Zcracks) Default crack No-crack

slide-34
SLIDE 34

R&D UK Centre Nuclear

Conclusion and future steps

slide-35
SLIDE 35

Conclusion and future steps

35

Conclusion:

  • Capabilities of solving large contact problems in code_aster demonstrated
  • Fully functional and automatic CBNA model
  • Good agreement with ABAQUS in terms of performance and accuracy

Future steps

  • Improve performances (e.g.: Aster massively parallel, convergence)
  • Use new contact algorithm (LAC)
  • Perform parametric studies (cracked shape, material properties)
  • Enhance the interaction with MoFEM software

R&D UK Centre - Nuclear

slide-36
SLIDE 36

Acknowledgments

36

The technical support from EDF R&D is kindly acknowledged. Thanks for ERMES and PERICLES departments for their advice and support that have been paramount in the development of activities in the UK Centre. Special thanks to Dr. Dzifa Kudawoo whose technical expertise and advice have been crucial in this particular project.

R&D UK Centre - Nuclear

slide-37
SLIDE 37

code_aster user day in the UK

37

R&D UK Centre - Nuclear

code_aster User Day 11th September 2018 The University of Manchester, Sackville street Building Manchester, United Kingdom
