PUBLIC MEETING: HALE PARKWAY CONCEPT DESIGN DECEMBER 6, 2018 UPPER MONTCLAIR BASIN TYPICAL APPROACH BUILDING A COLLABORATIVE APPROACH GRAY Y GREEN EEN COMMU CO MMUNITY PLAC ACEMAKI AKING & & INFR NFRAST STRUCTURE INFR

slide-1
SLIDE 1

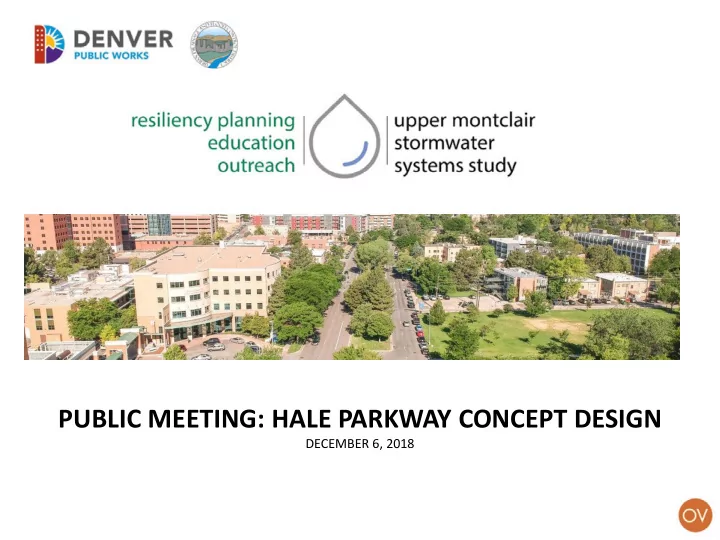

PUBLIC MEETING: HALE PARKWAY CONCEPT DESIGN

DECEMBER 6, 2018

slide-2
SLIDE 2

UPPER MONTCLAIR BASIN

slide-3
SLIDE 3

TYPICAL APPROACH

slide-4
SLIDE 4

BUILDING A COLLABORATIVE APPROACH

GRAY Y INFR NFRAST STRUCTURE GREEN EEN INFR NFRAST STRUCTURE CO COMMU MMUNITY COLLA OLLABOR BORATION ON PLAC ACEMAKI AKING & & URBAN D N DESI SIGN GN

slide-5
SLIDE 5

THE RIGHT PROCESS

  • 1. Understand the basin’s history and built environment and

relevance to local flooding issues

  • 2. Listen and understand community values
  • 3. Enable community conversations around alternatives
  • 4. Identify a toolbox of solutions/strategies
  • 5. Foster community support, ownership and participation
slide-6
SLIDE 6

WE ALL HAVE A ROLE

slide-7
SLIDE 7

SIGNIFICANT FLOODING LOCATIONS

Significant Flooding Locations – Denver PW

COMMUNITY REPORTS

slide-8
SLIDE 8

TOPOGRAPHY AND INUNDATION AREAS

ELEVATION:

LOW HIGH

slide-9
SLIDE 9

HISTORY OF A PAST CREEK

Geologic Map of Greater Denver Area, 1979 – USGS via Enginuity

Colfax Ave Colorado Blvd Monaco Pkwy

slide-10
SLIDE 10

HISTORY OF A PAST CREEK

Denver Aerial Imagery, 1933 – Denver Open Data, Enginuity

Kearney St Monaco Pkwy Colfax Ave Holly St

slide-11
SLIDE 11

TODAY

Denver Aerial Imagery, 2015 – NearMap

WATER FLOW Holly St Kearney St Monaco Pkwy Colfax Ave

slide-12
SLIDE 12

PHOTOS & VIDEOS

June 24, 2015 – Denver PW

14TH & KRAMERIA

slide-13
SLIDE 13

PHOTOS & VIDEOS

49% o

  • f the

he ba basin n is impervio ious

slide-14
SLIDE 14

STORMWATER MANAGEMENT

STORMWATER CONTROLS

slide-15
SLIDE 15

STAPLETON GREENWAY

WESTERLY CREEK

slide-16
SLIDE 16

STAPLETON GREENWAY

WESTERLY CREEK

slide-17
SLIDE 17

UPPER MONTCLAIR STORMWATER STUDY

slide-18
SLIDE 18

COMMUNITY-DRIVEN INVESTIGATIONS

POLICIES PARTNERSHIP PROJECTS

slide-19
SLIDE 19

HALE PARKWAY & SEVERN PLACE

slide-20
SLIDE 20

HALE PARKWAY – TODAY’S CONDITION

slide-21
SLIDE 21

Rose Hospital

HALE PARKWAY – FLOODING RISK

slide-22
SLIDE 22

COMMUNITY VOICES

  • Slower speeds, calmer traffic, more pedestrian crossings Hale

Parkway to access Lindsley Park and 9CO development amenities

  • Continuous pedestrian facilities along Hale Pkwy
  • Concern over traffic congestion near Colorado Blvd
  • Maintain Lindsley Park “as is”
  • Limit / discourage neighborhood traffic “cut-throughs”
  • More green spaces for walking and jogging
  • Keep a healthy tree canopy
slide-23
SLIDE 23

GOALS

slide-24
SLIDE 24

Al All Pi Pipe Ap Approach All Channel A Approach Hybrid Approach– part pipe/part c channel

GRAY GREEN

slide-25
SLIDE 25

GRAY GREEN

Al All Pi Pipe Ap Approach All Channel A Approach Hybrid Approach– part pipe/part c channel

slide-26
SLIDE 26

C

WATER QUALITY WITHIN MEDIAN

RANGE OF CONCEPTS EXPLORED WITH COMMUNITY

NORTH-SIDE GREENWAY FOR CONVEYANCE and WATER QUALITY WATER QUALITY ALONG SIDEWALK LINEAR PARK FOR CONVEYANCE AND WATER QUALITY

slide-27
SLIDE 27

COMMUNITY FEEDBACK SUMMARY

12 10 8 6 4 2

A B C D E F

NO WAY, NO HOW SKEPTICAL INTERESTED, CONCERNED EAGER LOVE IT!

Water Quality Sidewalk Water Quality Median Water Quality Northside Water Quality Median/ Northside Northside Greenway Northside Linear Park

slide-28
SLIDE 28
slide-29
SLIDE 29

12TH AVE 11TH AVE 13TH AVE ALBION BELLAIRE CLERMONT DEXTER EUDORA FAIRFAX

Christ the King Catholic School Palmer Elementary

N

9TH AVE 8TH AVE

2300cfs 2050cfs 1900 cfs

(100 YR) (100 YR) (100 YR) Elevation LOW HIGH

5300ft 5350ft

100-YEAR DESIGN FLOW

slide-30
SLIDE 30

HALE PARKWAY | CONVEYANCE NEEDS

  • Design Goal: 100-year event
  • Potential Conveyance

1. Existing 78” pipe (428 cfs) 2. Proposed 120” pipe, or rough equivalent (1000 cfs) - available underground capacity of future downstream system (Jackson Street Storm) 3. Greenway to handle remaining cfs needed (appx. 877 cfs)

  • Future goal of serving the Severn/Jersey Sump with the

underground pipe (up to 1000 cfs)

slide-31
SLIDE 31

HALE PARKWAY | TRANSPORTATION

150’ R.O.W 20’ 32-40’ Pedestrian Roadway 80-90’ Linear Stormwater Park Zone Traffic Parking

slide-32
SLIDE 32

HALE PARKWAY | GREENWAY

slide-33
SLIDE 33
slide-34
SLIDE 34

THANK YOU!
