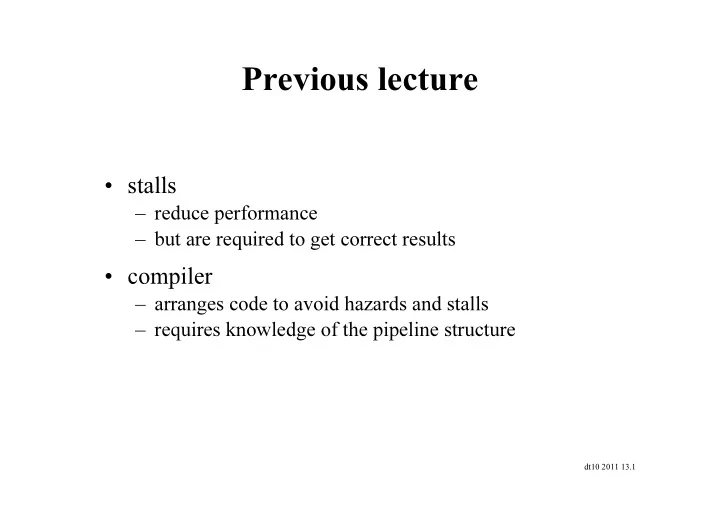

Previous lecture

• stalls

– reduce performance – but are required to get correct results

• compiler

– arranges code to avoid hazards and stalls – requires knowledge of the pipeline structure

dt10 2011 13.2

Branch hazards

• branch outcome is determined in MEM stage

PC

Flush these instructions (Set control values to 0)

dt10 2011 13.3

Reducing branch delay

• move hardware to determine outcome to ID stage

– target address adder – register comparator

• example: branch taken

36: sub $10, $4, $8 40: beq $1, $3, 7 44: and $12, $2, $5 48: or $13, $2, $6 52: add $14, $4, $2 56: slt $15, $6, $7 ... ??: lw $4, 50($7)

dt10 2011 13.4

Example: branch taken

dt10 2011 13.5

Example: branch taken

dt10 2011 13.6

Delay slots: clawing back the stalls

• taken branch always means one stall cycle

– nothing we can do to get rid of it – can we use the stall cycle to do something useful?

• MIPS approach : change the ISA specification

– instruction following branch is always executed – delay slot instruction : executed even when branch taken

do{ $2 = $2 * $3; $3 = $3 - 1; }while($3==0) ; $3 = $2 + $4; 24 mul $2, $2, $3 28 addi $3, $3, -1 32 beq $3, $0, -3 stall 36 add $3, $2, $4 taken : no delay slot 24 mul $2, $2, $3 28 beq $3, $0, -2 32 addi $3, $3, -1 36 add $3, $2, $4 taken : with delay slot

dt10 2011 13.7

Data hazards for branches

• if a comparison register is a destination of 2nd or

3rd preceding ALU instruction

…

IF ID EX MEM WB IF ID EX MEM WB IF ID EX MEM WB IF ID EX MEM WB

add $4, $5, $6 add $1, $2, $3 beq $1, $4, target

• can resolve using forwarding

dt10 2011 13.8

Data hazards for branches

• two data hazards that cause stall on branch

– comparison reg. is destination of preceding ALU instr. – comparison reg. is destination of 2nd preceding load instr.

• need 1 stall cycle

IF ID EX MEM WB IF ID EX MEM WB IF ID

add $4, $5, $6 lw $1, addr beq $1, $4, target

EX MEM WB

dt10 2011 13.9

Data hazards for branches

• two data hazards that cause stall on branch

– comparison reg. is destination of preceding ALU instr. – comparison reg. is destination of 2nd preceding load instr.

• need 1 stall cycle

beq stalled

IF ID EX MEM WB IF ID EX MEM WB IF ID ID EX MEM WB

add $4, $5, $6 lw $1, addr beq $1, $4, target

dt10 2011 13.10

Data hazards for branches

• if a comparison register is a destination of

immediately preceding load instruction

– need 2 stall cycles

beq stalled

IF ID EX MEM WB IF ID ID ID EX MEM WB

beq stalled lw $1, addr beq $1, $0, target

dt10 2011 13.11

Dynamic branch prediction

• deeper and superscalar pipelines

– branch penalty is more significant

• use dynamic prediction

– branch prediction buffer (aka branch history table) – indexed by recent branch instruction addresses – stores outcome (taken/not taken)

• dynamic prediction: execute a branch

– check table, expect the same outcome – start fetching from fall-through or target – if wrong, flush pipeline and flip prediction

dt10 2011 13.12

1-bit predictor: shortcoming

• inner loop branches mispredicted twice!
• uter: …

… inner: … … beq …, …, inner … beq …, …, outer

– mispredict as taken on last iteration of inner loop – then mispredict as not taken on first iteration of inner loop next time around

dt10 2011 13.13

2-Bit predictor

• only change prediction on two successive

mispredictions

dt10 2011 13.14

• even with predictor, still need to calculate the

target address

– 1-cycle penalty for a taken branch

• branch target buffer

– cache of target addresses – indexed by PC when instruction fetched – if hit and instruction is branch predicted taken, can fetch target immediately

Calculating the branch target

dt10 2011 13.15

The role of the compiler

• compilers can have a huge impact on performance

– register allocation – instruction selection – data placement

• optimisation is subordinate to correctness

– must always compile against ISA specification – can try to optimise code according to architecture

• CPU specific optimisation may reduce performance

– optimise for P4 → might be slower than generic code on P3

• ISA extensions remove backwards compatibility

– optimise for P4 → SSE not available on P2

dt10 2011 13.16

Compiling to avoid hazards

• data hazards

– instruction scheduling: avoid load-use data hazard – register allocation: avoid immediate re-use of registers – MIPS: large number of registers to make this easier

• structural hazards

– instruction selection: select simple instructions – e.g. : sll $1,$2,1

• vs. add $1,$2,$2

– instruction scheduling: move instructions apart

• control hazards

– instruction selection: eliminate branches if possible – e.g.: cmov : conditional move – e.g.: predicated execution

dt10 2011 13.17

Exceptions and interrupts

• unexpected events requiring change in flow of control

– different ISAs use the terms differently

• exception: internal signal, arises from within the CPU

– e.g. undefined opcode, overflow, syscall, …

• interrupt: external signal, source is outside CPU

– e.g. external IO: hard disk saying “your data is ready now”!

• must handle them without sacrificing performance

– exceptions are... exceptional – not the common/expected case – interrupts are frequent, but not that frequent

• CPU instruction rate: >1GHz; interrupt rate <10KHz

dt10 2011 13.18

Handling exceptions in MIPS

• exceptions managed by System Control Coprocessor

– follows set of steps to record and handle exception

• 1. save PC of offending (or interrupted) instruction

– in Exception Program Counter, EPC

• 2. save indication of the problem

– in Cause Register – 0 for undefined opcode, 1 for overflow

• 3. jump to handler at 8000 00180

dt10 2011 13.19

An alternate mechanism

• vectored interrupts

– handler address determined by Cause Register

• example:

– undefined opcode: C000 0000 – overflow: C000 0020 – …: C000 0040

• instructions either

– deal with the interrupt, or jump to real handler

dt10 2011 13.20

Handler actions

• read Cause Register, and transfer to relevant handler
• determine action required
• if restartable

– take corrective action – use EPC to return to program

• otherwise

– terminate program – report error using EPC, Cause, …

dt10 2011 13.21

Exceptions in a pipeline

• another form of control hazard
• consider exception on add in EX stage

add $1, $2, $1 – prevent $1 from being clobbered – complete previous instructions – flush add and subsequent instructions – set Cause and EPC register values – transfer control to handler

• similar to mispredicted branch

– use much of the same hardware

dt10 2011 13.22

Pipeline with exceptions

dt10 2011 13.23

Exception properties

• restartable exceptions

– pipeline can flush the instruction – handler executes, then returns to the instruction – refetched and executed from scratch

• PC saved in EPC register

– identifies offending instruction – actually PC + 4 is saved, handler must adjust

dt10 2011 13.24

Exception example

• exception on add in

40 sub $11, $2, $4 44 and $12, $2, $5 48

• r $13, $2, $6

4C add $1, $2, $1 50 slt $15, $6, $7 54 lw $16, 50($7) …

• handler

80000180 sw $25, 1000($0) 80000184 sw $26, 1004($0) …

dt10 2011 13.25

Exception example

dt10 2011 13.26

Exception example

dt10 2011 13.27

Multiple exceptions

• pipelining overlaps multiple instructions

– could have multiple exceptions at once

• simple way: deal with exception from earliest instruction

– flush subsequent instructions – “precise” exceptions

• in complex pipelines

– multiple instructions issued per cycle – out-of-order completion – maintaining precise exceptions is difficult!

dt10 2011 13.28

Pipelining: summary

• ISA influences design of datapath and control
• datapath and control influence design of ISA
• pipelining improves instruction throughput

– using parallelism – more instructions completed per second – but latency for each instruction not reduced

• hazards: structural, data, control
• advanced issues

– instruction-level parallelism, system-on-chip – courses: custom computing, advanced architectures
