slide-1

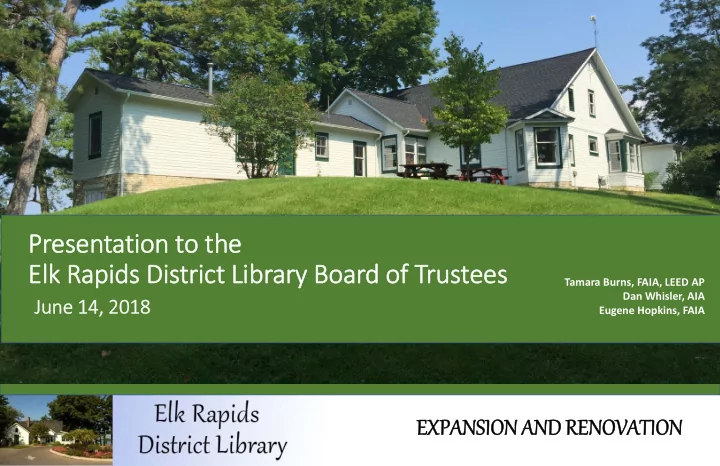

SLIDE 1

EXPANSION AND RENOVATION

Presentation to the Elk Rapids District Library Board of Trustees

June 14, 2018

Tamara Burns, FAIA, LEED AP Dan Whisler, AIA Eugene Hopkins, FAIA

slide-2
SLIDE 2

EXPANSION AND RENOVATION

Conceptual Design and Planning Process Summary

  • 2014 commissioned the firm of Hartzell‐Mika Consulting, LLC
  • 2016 commissioned the combined design team of

architectural firms HopkinsBurns Design Studio and Daniels and Zermack Architects

  • H‐M Peer Group Comparison

 Peer Group Low 5.34 items per capita  Peer Group High 10.12 items per capita  Peer Group Average 6.45 items per capita  Michigan Class 2 Average 5.26 items per capita (75 libraries in Michigan)  ERDL 3.75 items per capita

slide-3
SLIDE 3

EXPANSION AND RENOVATION

  • The ERDL collections are 42% below the peer group

comparison average and 29% below the average of all Class 2 Libraries (total of 75) in the State of Michigan. The H‐M report noted this deficiency is due to lack of adequate space and recommended increasing the size of the collection.

  • Initial Collection target of 34,000 total items (6.15 items per

capita based on 5,500 projected service population)

  • Revised Collection target of 24,000 total items (Reduced,

equivalent to 4.36 items per capita)

slide-4
SLIDE 4

EXPANSION AND RENOVATION

  • The final reduced program dated July 8, 2017 included these

reduced collection targets with proposed growth from 2014 collection count (items owned) as follows:

  • Adult collections minor growth increase from 10,484 items to

11,779 items (12% increase)

  • Young Adult collections growth increase from 531 items to

1,593 items (300% increase)

  • Children’s collection growth increase from 4,462 items to 8,891

items (200% increase)

  • Maintain status quo for periodical, audio / visual, and

miscellaneous collections

slide-5
SLIDE 5

EXPANSION AND RENOVATION

Building Program Outline

  • Proposed Total Reader Seating Target of 49 (increase of 23
  • ver current, possible range between 49 and 75)
  • Proposed Computer station Target of 10 (increase of 4 over

current)

  • Proposed Staff Workstation total of 9 (including one

volunteer, increase of 4 over existing 5 stations)

  • Proposed Programs Room Seating Capacity of 65 seats

(increase over existing, at best 27 seats)

slide-6
SLIDE 6

EXPANSION AND RENOVATION

  • The recommended library program included various special

use spaces, including the following:

  • A Group Study room to seat 6
  • A Tutoring room to seat 2
  • Friends Book Sale area
  • Staff Breakroom
  • Miscellaneous special use elements
slide-7
SLIDE 7

EXPANSION AND RENOVATION

4000 Square Feet Addition

  • Any reduction in building expansion size primarily reduces

space devoted to public patron use areas.

  • Renovated areas similar to 6,300 SF plan
  • Combined Building Total Reductions:
  • Total public computers reduced to 8 from 10, a 20% reduction.
  • Reader seats (including within group study / tutoring rooms, not including

existing adult areas) reduced to 25 from 72 seats, a 65% reduction.

  • Total reader seats for Adult, Children’s and Teen, not including special use

group study /tutoring rooms, reduced to 42 from 74, a 43% reduction. (60 reader seats total in initial East Option 1 plan)

  • Shelving units for collections remains as per previous plan.
  • Staff workroom space and support areas remain as per previous plan.
  • Children’s and Teen area public service desk reduced from two staff stations

to one.

slide-8
SLIDE 8

EXPANSION AND RENOVATION

Trends

  • The 21st Century library is becoming more user‐centric, a

place for people to gather and connect. The 21st Century library is devoting more space for people in addition to space for collections.

  • Smaller libraries ‐‐ especially those who may have a history of

underserving their respective communities – suggest they tend to prefer an emphasis on collection space recognizing their collections may have substantially lagged behind their peer libraries in providing adequate services their community.

  • The proposed reduced expansion plan preserves collection

space at the expense of reader seating and other resource amenities as a starting point for discussion.

slide-9
SLIDE 9

EXPANSION AND RENOVATION

Budget

  • The construction budget for the 6,300 SF expansion is

approximately $3.4 million. The total project cost is approximately $4.7 million

  • The preliminary opinion of probable cost budget for the

construction portion of the reduced project is anticipated to be approximately $2.7 million. The total project cost is approximately $3.8 million.

slide-10
SLIDE 10

EXPANSION AND RENOVATION

  • The largest construction cost differentials include the

following:

  • Reduced addition cost due to floor area reduction of

approximately ($ 481,500)

  • Elimination of Rooftop deck and associated railings of

approximately ($ 133,500)

  • Increased building tie in cost for elevator and lower floor of

approximately $ 45,000

  • Increased site costs for grading, retaining, paving, etc. of

approximately $ 30,000

slide-11
SLIDE 11

EXPANSION AND RENOVATION

  • In summary, the reduced expansion plan represents the

following differentials to the previous 6,300 SF expansion plan concept:

  • A reduction in additional floor area to 4,160 sf from 6,300 sf –

66% of previous plan in added floor area

  • A reduction in anticipated building construction cost to

approximately 78% of previous plan

  • A reduction in anticipated total project costs to approximately

80% of previous plan.

slide-12
SLIDE 12

SCALE:

Design Options Review

S:\PROJECTS\Elk Rapids Library\Cad\Sheet\ERL-DESIGN OPTION 1-A17_LOCAL.rvt 2017-09-21 10:11:03 AM 1" = 60'-0" .

SK 0.1

Elk Rapids District Library

8 / 1 8 / 2 1 7 1" = 60'-0" SCALE

SITE PLAN

LEGEND

ONE TREE TO BE REMOVED ADDITION TO EXISTING LIBRARY = =

GROSS SQUARE FOOTAGE

Existing: Addition: Total: NORTH 6,380 SF 6,320 SF 12,700 SF

slide-13
SLIDE 13

DN DN PROGRAMS ROOM ELEV ADULT READING COPIER M W JC EXTERIOR ROOF DECK CRAFTS CHAIR/ TABLE STORAGE ADULT READING STAFF (E) PARLOR BOOK RETURN OFFICE VEST. GROUP STUDY (E) FIREPLACE LAPTOP NOOK (E) PORCH SCALE:

Design Options Review

S:\PROJECTS\Elk Rapids Library\Cad\Sheet\ERL-DESIGN OPTION 1-A17_LOCAL.rvt 8/18/2017 3:40:12 PM 1/16" = 1'-0" .

SK 1.1

Elk Rapids District Library

8 / 1 8 / 2 1 7 1/16" = 1'-0" SCALE

FIRST FLOOR

FIRST FLOOR

Existing: Addition: Total: 3,653 SF 2,650 SF 6,303 SF

ADDITION SHOWN SHADED

NORTH

slide-14
SLIDE 14

UP UP UP MECH CHILDREN'S TEEN CASUAL SEATING ELEV M W VENDING 590' - 0" 590' - 0" 593' - 0" TUTORING SMALL PROGRAMS/ GROUP STUDY STORAGE FRIENDS STAFF STAFF MECH/STORAGE SCALE:

Design Options Review

S:\PROJECTS\Elk Rapids Library\Cad\Sheet\ERL-DESIGN OPTION 1-A17_LOCAL.rvt 8/18/2017 3:40:08 PM 1/16" = 1'-0" .

SK 1.0

Elk Rapids District Library

8 / 1 8 / 2 1 7 1/16" = 1'-0" SCALE

BASEMENT

BASEMENT

Existing: Addition: Total: 2,727 SF 3,670 SF 6,397 SF

ADDITION SHOWN SHADED

NORTH

slide-15
SLIDE 15

Design Options Review

E l k R a p i d s D i s t r i c t L i b r a r y

1/16" = 1'-0" SCALE

FIRST FLOOR

SCALE:

Design Options Review

S:\PROJECTS\Elk Rapids Library\Cad\Sheet\ERL-DESIGN OPTION 1-A17_LOCAL.rvt 8/18/2017 3:40:33 PM .

SK 1.3

Elk Rapids District Library

8 / 1 8 / 2 1 7 SCALE

FIRST FLOOR 3D

slide-16
SLIDE 16

590' - 0" 590' - 0" 593' - 0"

Design Options Review

E l k R a p i d s D i s t r i c t L i b r a r y

1/16" = 1'-0" SCALE

BASEMENT

SCALE:

Design Options Review

S:\PROJECTS\Elk Rapids Library\Cad\Sheet\ERL-DESIGN OPTION 1-A17_LOCAL.rvt 8/18/2017 3:40:20 PM .

SK 1.2

Elk Rapids District Library

8 / 1 8 / 2 1 7 SCALE

BASEMENT 3D

slide-17
SLIDE 17

(E) FIRST FLOOR 100' - 0" (E) FIRST FLOOR 100' - 0" (E) ROOF SPRING 110' - 0" (E) RIDGE BEAM 124' - 3 5/8" (E) BASEMENT 91' - 0" (N) BASEMENT 88' - 0" (N) FIRST FLOOR 100' - 0" (E) FIRST FLOOR 100' - 0" (E) ROOF SPRING 110' - 0" (E) RIDGE BEAM 124' - 3 5/8" (E) BASEMENT 91' - 0" (N) BASEMENT 88' - 0" SCALE:

Design Options Review

S:\PROJECTS\Elk Rapids Library\Cad\Sheet\ERL-DESIGN OPTION 1-A17_LOCAL.rvt 8/18/2017 3:41:03 PM 1/16" = 1'-0" .

SK 2.0

Elk Rapids District Library

8 / 1 8 / 2 1 7 1/16" = 1'-0" SCALE

NORTH ELEVATION

1/16" = 1'-0" SCALE

SOUTH ELEVATION

HIGHEST POINT OF ADDITION HIGHEST POINT OF ADDITION

slide-18
SLIDE 18

SCALE:

Design Options Review

S:\PROJECTS\Elk Rapids Library\Cad\Sheet\ERL-DESIGN OPTION 1-A17_LOCAL.rvt 8/18/2017 3:41:14 PM .

SK 3.1

Elk Rapids District Library

8 / 1 8 / 2 1 7

Design Options Review

E l k R a p i d s D i s t r i c t L i b r a r y

FROM NORTHEAST FROM SOUTHEAST

slide-19
SLIDE 19

SCALE:

Design Options Review

S:\PROJECTS\Elk Rapids Library\Cad\Sheet\ERL-DESIGN OPTION 1-A17_LOCAL.rvt 8/18/2017 3:41:47 PM .

SK 3.4

Elk Rapids District Library

8 / 1 8 / 2 1 7

FROM NORTHWEST FROM SOUTHWEST

slide-20
SLIDE 20

ONE TREE TO BE REMOVED ADDITION TO EXISTING LIBRARY

LEGEND

= = SCALE:

Design Option Library Expansion & Renovation Reduced 4000 SF Plan

S :\Projects\Elk Rapids Library\Cad\S heet\ERL-DES IGN OPTION 4000-A17_LOCAL.rvt 6/ 14/ 2018 9:17:46 AM As indicated .

SK 0.1

Elk Rapids District Library

6 / 1 4 / 1 8 1" = 60'-0" SCALE

SITE PLAN

6,380 SF 4,160 SF 10,540 SF GROSS SQUARE FOOTAGE Existing: Addition: Total: NORTH

slide-21
SLIDE 21

DN DN PROGRAMS ROOM COPIER M W JC MECH STAFF (E) PARLOR BOOK RETURN OFFICE VEST. (E) FIREPLACE LAPTOP NOOK (E) PORCH ELEV STORAGE CIRC EXIT SCALE:

Design Option Library Expansion & Renovation Review

S :\Projects\Elk Rapids Library\Cad\S heet\ERL-DES IGN OPTION 4000-A17_LOCAL.rvt 6/ 14/ 2018 9:18:37 AM 1/16" = 1'-0" .

SK 1.1

Elk Rapids District Library

6 / 1 4 / 1 8 1/16" = 1'-0" SCALE

FIRST FLOOR

FIRST FLOOR Existing: Addition: Total: 3,653 SF 2,060 SF 5,713 SF

slide-22
SLIDE 22

UP UP DN DN MECH CHILDREN'S TEEN 593' - 0" 590' - 0" GROUP STUDY TUTOR FRIENDS STAFF STAFF MECH/STORAGE ELEV T ENTRY EXIT

ADDITION SHOWN SHADED

SCALE:

Design Option Library Expansion & Renovation Review

S :\Projects\Elk Rapids Library\Cad\S heet\ERL-DES IGN OPTION 4000-A17_LOCAL.rvt 6/ 14/ 2018 9:18:19 AM 1/16" = 1'-0" .

SK 1.0

Elk Rapids District Library

6 / 1 4 / 1 8 1/16" = 1'-0" SCALE

BASEMENT

BASEMENT Existing: Addition: Total: 2,727 SF 2,100 SF 4,827 SF

slide-23
SLIDE 23

SCALE:

Design Option Library Expansion & Renovation Review

S :\Projects\Elk Rapids Library\Cad\S heet\ERL-DES IGN OPTION 4000-A17_LOCAL.rvt 6/ 14/ 2018 9:25:25 AM .

SK 1.3

Elk Rapids District Library

6 / 1 4 / 1 8 SCALE

FIRST FLOOR 3D

slide-24
SLIDE 24

SCALE:

Design Option Library Expansion & Renovation Review

S :\Projects\Elk Rapids Library\Cad\S heet\ERL-DES IGN OPTION 4000-A17_LOCAL.rvt 6/ 14/ 2018 9:25:01 AM .

SK 1.2

Elk Rapids District Library

6 / 1 4 / 1 8 SCALE

BASEMENT 3D

slide-25
SLIDE 25

(E) FIRST FLOOR 100' - 0" (E) FIRST FLOOR 100' - 0" (E) ROOF SPRING 110' - 0" (E) RIDGE BEAM 124' - 3 5/8" (E) BASEMENT 91' - 0" (N) BASEMENT 88' - 0" HIGHEST POINT OF ADDITION (N) FIRST FLOOR 100' - 0" (E) FIRST FLOOR 100' - 0" (E) ROOF SPRING 110' - 0" (E) RIDGE BEAM 124' - 3 5/8" (E) BASEMENT 91' - 0" (N) BASEMENT 88' - 0" HIGHEST POINT OF ADDITION SCALE:

Design Option Library Expansion & Renovation Review

S :\Projects\Elk Rapids Library\Cad\S heet\ERL-DES IGN OPTION 4000-A17_LOCAL.rvt 6/ 14/ 2018 9:20:33 AM 1/16" = 1'-0" .

SK 2.0

Elk Rapids District Library

6 / 1 4 / 1 8 1/16" = 1'-0" SCALE

NORTH ELEVATION

1/16" = 1'-0" SCALE

SOUTH ELEVATION

slide-26
SLIDE 26

SCALE:

Design Option Library Expansion & Renovation Review

S :\Projects\Elk Rapids Library\Cad\S heet\ERL-DES IGN OPTION 4000-A17_LOCAL.rvt 6/ 14/ 2018 9:20:48 AM .

SK 3.1

Elk Rapids District Library

6 / 1 4 / 1 8

slide-27
SLIDE 27

SCALE:

Design Option Library Expansion & Renovation Review

S :\Projects\Elk Rapids Library\Cad\S heet\ERL-DES IGN OPTION 4000-A17_LOCAL.rvt 6/ 14/ 2018 9:21:43 AM .

SK 3.4

Elk Rapids District Library

6 / 1 4 / 1 8

slide-28
SLIDE 28

EXPANSION AND RENOVATION

Questions?

Tamara Burns, FAIA, LEED AP Dan Whisler, AIA Eugene Hopkins, FAIA
