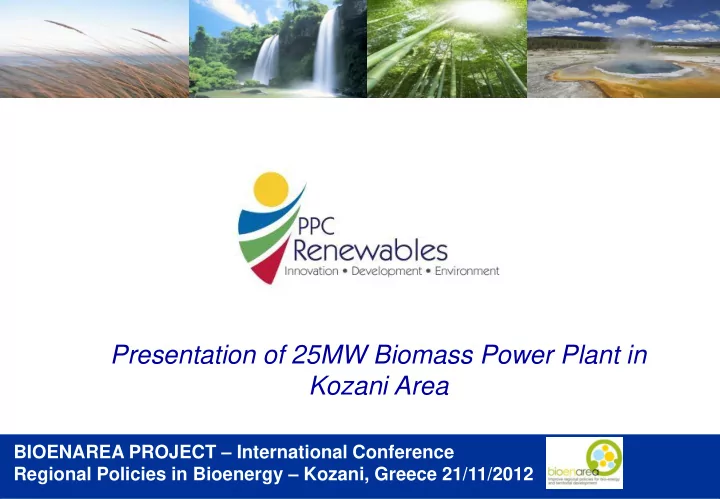

Presentation of 25MW Biomass Power Plant in Kozani Area

BIOENAREA PROJECT – International Conference Regional Policies in Bioenergy – Kozani, Greece 21/11/2012

2

PPCR’s Mission & Strategy

 PPCR is a wholly-owned subsidiary of PPC S.A. and being the only vertically integrated RES

• perator in Greece, its objective is to secure a leading position in the Greek RES market by the end
• f the decade by increasing significantly its market share of the Greek RES market from 6%

currently to approximately 20%, contributing thus to the national green development vision and to the creation of the foundations for sustainable development.

 PPCR’s Strategy is founded on two central pylons:

• 1. The development of a portfolio in all RES forms, involving:



The construction of new large inland and island W/P’s involving major interconnection works



The construction of two of the largest PV stations in Europe and in the world as well as many smaller ones



The exploration of the high enthalpy geothermal fields in the Aegean islands



The construction of new Small Hydro electric stations



The development of hybrid systems



The development of Biomass



The planning of offshore wind parks

• 2. The strategic co-operations home and abroad, aiming to jointly develop RES projects and to achieve

exchange of knowhow

3

PPCR’s Strategic Levers

 PPCR’s goal is to enhance its position in the Greek market by achieving critical mass through the

development of a sizeable, diversified asset portfolio

Well diversified portfolio by type of RES and market

• Historically present in RES development in Greece
• Involved in all commercial RES technologies
• Projects with the widest geographic dispersal
• Small projects with huge local significance

Investment decision making process in line with growth expectations

• Develop a faster and more flexible corporate structure and investment decisions making process in line with PPC

procedures

Operational performance

• Optimize on operational and management performance so as to increase efficiency, margins and hence

competitiveness

• Capitalizing on its employees’ technical expertise and operational experience, PPCR has a solid base to position itself

among the most important players in the market

Extroversion via meaningful collaborations

• Co-operation Agreements with strategic content
• Co-operations for unique and large projects

4

PPCR’s Portfolio

PPCR portfolio in MW (type & geography, Q4 2012)

MW

• 23 Wind Farms (mainly in islands)
• 15 SHPPs (mainly in mainland)
• 11 P/V installations
• PPCR current portfolio of installed assets is 144,7 MW, holding a leading position in the country in SHPPs

24.39 56.69 50 100 150 62,62 0,30 0,71

144,7

SHPPs (Interconnected) SHPPs (Non Interconnected) WFs (Interconnected) WFs (Non Interconnected) PV Plants

Drama Salonica Kavala Kilkis Serres Chalkidiki Evros Xanthi Rodopi Voiotia Evia Fthiotida Fokida Argolida Korinthia Larisa Magnisia Pieria Lesvos Samos Chios Attika Cyclades Arkadia Achaia Ilia Lakonia Messinia Zante Kefalonia Aitoloakarnania Evritania Corfu Lefkada Arta Thesprotia Ioannina Preveza Karditsa Trikala Grevena Imathia Kastoria Kozani Pella Florina Limnos Dodekanese Lasithi Iraklio Rethimno Chania

W/F SHPP P/V

                       

5

Contents

Biomass (general overview) Presentation of the Project Project’s Benefits Conclusions

6

Electricity production from biomass in Europe and globally  Biomass contributes 14% of global

energy consumption (25% in industrialized countries and 75% in developing)

 Approximately 860 TWh of biomass

energy (heat & electricity) are used mainly in Europe and North America

 Only 1.3% of world production an

energy comes from biomass (estimated to be 2.4% in 2030)

 The contribution of electricity from

biomass in energy balances of individual countries varies from 0% to 10.9% (Finland)

7

Electricity production from biomass in Europe and globally

 In the EU the development of electricity from biomass burning solid forms has increased an average of 14.7% annually from 2001 to 62,2 TWh in 2009  There are about 800 biomass power plants in the EU with a total capacity of 7,1 GW  The countries with the highest concentration of power plants of solid biomass is the Nordic (Finland, Sweden) and also Germany and Austria  The corresponding investment in developing countries is based on the prevailing favorable policy for over a decade, by subsidizing biomass for electricity production

8

Primary energy production from solid biomass in the EU

Source: EurObserver, 2011

Solid Biomass primary energy production growth for the EU (2000-2010) in Mtoe

9

Gross electricity production from solid biomass in the EU (TWh)

10

Primary energy production, gross electricity production and heat consumption from solid biomass in the EU 2010

Primary energy production of solid biomass in the EU in 2020 (estimation) : 10,481 TWh Heat consumption from solid biomass in the EU in 2020 (estimation) : 10,105 TWh Gross electricity production from solid biomass in the EU in 2020 (estimation) : 1,360 TWh

11

Energy Content of different Fossil Fuel types

Fuel Energy content Units Biomass 2380 - 4770 Kcal/kg Lignite 500 - 2500 Carbons 6440 - 8350 Oil 9500 - 10700 Natural Gas ~ 12450

12

Characteristics of Biomass Combustion

IMPACT Estimated Cost (m.€/kWh) Public Health 5,8 SO2 Emissions 0,0013 NOx Emissions 0,011 Ecosystems Negligible Equipment 0,0289 Noise Not quantified Landscape Not quantified

13

Quantitative CO2 Cycle 1.6tn CO2 1.2tn O2 0.2ha 0.6tn H2O 1tn Biomass 1.2tn O2

14

Biomass Technologies in Consideration

15

Diagram of Biomass Combustion Plant

16

Grate Firing (Specifications)

Combustion Chamber Temperature 1000-1150oC Air Stoichiometry 50-60% % Oxygen after combustion 6-8% Thermal Load at the grate 8-9 GJ/(m2h) Thermal Load in the Combustion Chamber 450-500 MJ/(m3h)

17

Fluidized Bed Combustion (FBC)

Combustion Chamber Temperature 850-900oC Increase in potential can be achieved by increasing the pressure in the combustion chamber (Pressurized Fluidized Bed Combustion – PFBC) Bubbling Fluidized Bed Combustion BFBC Circulating Fluidizes Bed Combustion (CFBC)

18

Presentation of the Project

19

Integrated Project Layout

Electrical Production Plant Storage/Distribution Building Biomass Handling Energy crops Agricultural Residues Wood

20

Project’s Specifications

 25 MWe (Electrical Energy Production) 75 MWth (Thermal Energy Production) Annual Energy Production: 186,150 MWh (Availability 85%) Area required for the plant and storage: ~25x103 m2 CO2 reduction: 167,000 tons/y (~2.5 m€ annually) 15 new working positions (in the power plant) and another

185 required for the biomass production

Project Cost: 80 m.€

21

Project’s Capabilities

Combustion

Biomass Air Start up heat Ash

Turbine

Hot Gases

Boiler

Steam Power 25MW (186,150MWh) 28,000 Houses Heat 75MW (558,450MWh) 30,000 Houses (7-month period)

22

Organizing the Supply Chain

Assume a rate of 5,000 tones of Biomass per MWe 150K tones of Biomass (annually) Requires 10,000 ha (1ha = 10,000m2)

23

Power Output (MWel) 25 Operating period (hours/year) 7.446 Efficiencyel (%) 32 Biomass Consumption (dry ton/hour) 17,58 Daily consumption rate (dry ton) 422 Required number of 20ton-trucks daily 21 Stock required for 30 day (1 month) supply (tons) 12.660

Organizing the Supply Chain

24

Cynara cardunculus:  Life cycle:12 – 15 years  Production: 1-2 ton dry biomass / 0.1ha Miscanthus sinensis:  Life cycle:12 – 15 years  Production: 1-2 ton dry biomass / 0.1ha Sorghum bicolor:  Life cycle:1 year  Production: 2-3 ton dry biomass / 0.1ha

J F Μ Α Μ J J Α S Ο Ν D Cynara cardunculus Miscanthus sinensis Sorghum bicolor

Annual Biomass production profile according to the different types

Organizing the Supply Chain

25

20Km Radius (314,000acres) 30Km Radius (706,500acres) 60Km Radius (2,826,000acres) Power plant of 25 MW 1 ton/1K m2 10% 4.4% 1.1% 2 ton/1K m2 5% 2.2% 0.55%

Organizing the Supply Chain

The indicative total area of ​the Region of Western Macedonia is 9,451,000 acres*. According to these estimates in order to meet the needs of the 25MW biomass power plant 1.4% of the total area (although the yields of energy crops is 1 ton / 0.1ha) or 0.7% of the total area (if the efficiency is 2 tons/ha) is required. Estimated percentage of land required for the operation of a 25 MW power plant, for various transportation ranges of the crop and various yields of energy crops

* 1 acre = 4 ha

26

Current State / Steps to Follow

Currently:

• Licensing stage (RAE)
• Organizing the supply chain

Steps to follow:

• Finish off with the rest of the licensing procedure
• Start with the construction of the power plant

27

Financial Considerations and Time plan

28

Cost Breakdown

CapEx Μονάδας % Equipment 63% Labor 14% Other 10% Building Construction 4% Storage facility 9% Total 100%

Cost breakdown (%) for CapEx Cost breakdown (%) for OpEx

OpEx Μονάδας % Biomass 84% Equipment maintenance 10% Salaries 3% Other 3% Total 100%

29

Jan Feb Mar Apr May Jun Jul Aug Sept Oct Nov Dec

2012 2013 2014 2015

Licensing Power Plan Construction Power Plant Construction Supply chain Organization Testing Production

Project’s Time plan

Licensing Supply chain Organization Supply chain Organization

30

Conclusions

Biomass is a very efficient and environmental friendly method

• f power production

Biomass technology has reached a mature level (high capacity

factors)

Cogeneration can increase significantly the efficiency of the

plant

Constant power production  improve grid’s stability A biomass system (plant + supply chain) requires a large

number of working positions

Increase sustainability and improve economy of the region Promising Technology especially when used in hybrid systems
