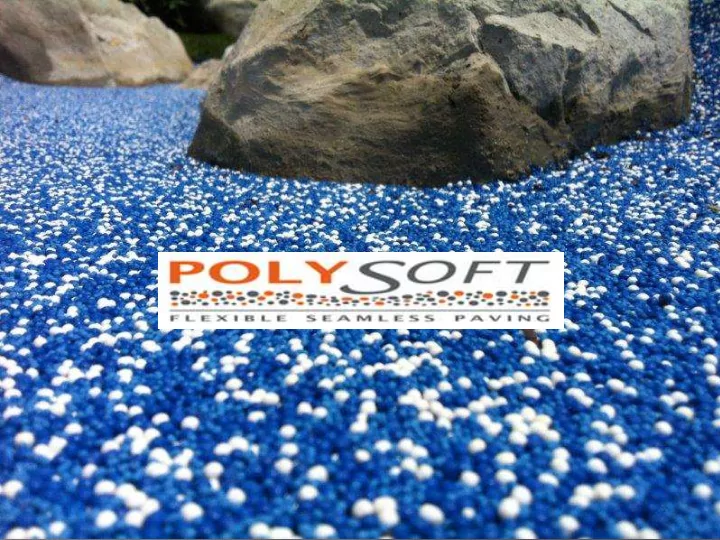

PolySoft is the culmination of a number of years of research and development, following a long history of problematic surfacing within the playground and aquatic industry. Our objective was simple, to meet the strong marketplace What is


slide-1
SLIDE 1
slide-2
SLIDE 2

“PolySoft is the culmination of a number of years of research and development, following a long history of problematic surfacing within the playground and aquatic

  • industry. Our objective was simple,

to meet the strong marketplace demand by producing a cost effective, light stable, durable surface for harsh conditions; a surfacing solution that is extremely tough, yet soft and resilient underfoot.”

What is PolySoft ?

slide-3
SLIDE 3
  • There are 18 vivid colours to

choose from, with hundreds

  • f colour combinations
  • Fungal and chlorine resistant.
  • The surface temperature of

PolySoft can be up to 68°F/20°C cooler than traditional finishes

  • 100% recyclable
  • 100% free of VOCs
  • Excellent skid resistance
  • Superior UV resistance
  • True Chemical bond between

Particles

  • Excellent impact attenuation

PolySoft Features and Benefits

slide-4
SLIDE 4

PolySoft is sold in a kit:

  • 3 x 30lb (14kg) large

granules/1 x 30lb (14kg) small granules

  • 1 x Polysoft Aliphatic Binder

Part A/1 x Polysoft Aliphatic Binder Part B Also required for installation:

  • Polysoft Primer\Water Based

Epoxy (use only on concrete surfaces)

  • OR
  • Single part Aromatic

Urethane (use on rubber substrates) For non-porous applications:

  • Polysoft Aliphatic Gel

The Polysoft System

slide-5
SLIDE 5

Standard Porous Surfacing System

What is PolySoft Standard Porous Surfacing System?

  • PolySoft Standard Porous surfacing solution is a highly resilient soft surfacing

solution which allows water to drain through in between the impervious Polyolofin granules

  • This pour in place solution can be applied directly over concrete for aquatic

environments or over a rubber attenuation layer where required

Where should I Use PolySoft Standard Porous Surfacing System

  • Aquatic play areas
  • Playgrounds
  • Zero Entry Pools
  • General Landscaping
  • Splashpads
slide-6
SLIDE 6
slide-7
SLIDE 7

What is PolySoft Aquatrak Impervious Surfacing System?

  • PolySoft Aquatrak system is an impervious surfacing solution with all the amazing

characteristics of the standard PolySoft System

  • This pour in place system is sealed from the bottom up with the PolySoft unique gel

coat, Aquatrak provides an extremely versatile impervious surfacing solution

Aquatrak Impervious Surfacing System

Where should I Use PolySoft Aquatrak Impervious Surfacing System

  • Aquatic environments
  • Indoor playgrounds
  • Indoor swimming pools
  • General landscaping
  • Vertical surfaces
  • Splashpads
slide-8
SLIDE 8
slide-9
SLIDE 9

What is PolySoft broadcast Surfacing System?

  • PolySoft Broadcast surfacing solution is a completely impervious solution designed for

environments where impact attenuation is not required .

  • By broadcasting the small PolySoft granules into a flexible epoxy gel and then sealing from

the top , the PolySoft Broadcast System provides a cost effective resilient non slip surface ideal for public areas such as showers and locker rooms

Broadcast Surfacing System

Where should I use PolySoft Broadcast System

  • Indoor pools
  • Locker rooms
  • Showers
  • stairs
  • General Landscaping
  • Spas and Bath houses
  • Where impact attenuation is not

required

slide-10
SLIDE 10

PolySoft installation

slide-11
SLIDE 11

PolySoft Playground

Installation Options Standard 3/8 inch (8-10mm) porous over concrete Standard 3/8 inch (8-10mm)

  • ver rubber attenuation layer

Standard 3/8 inch (8-10mm) impervious over rubber attenuation layer Standard 1/4 inch (6mm) over concrete Standard 1/4 inch (6mm) impervious over rubber attenuation layer

slide-12
SLIDE 12
slide-13
SLIDE 13

PolySoft Aquatic

Installation Examples Water Parks Landing mats, walkways, washrooms, locker rooms, integrated into water slide construction etc. Pool surrounds Zero entry pools, residential and commercial pools Aquatic play areas splash pads, aquatic playgrounds Installation Options Standard 3/8 inch (8-10mm) porous

  • ver concrete

AquaTrak 1/4 inch (6mm) impervious

  • ver concrete
slide-14
SLIDE 14
slide-15
SLIDE 15

PolySoft Landscape

Installation Options Standard 3/8 inch (8-10mm) porous over concrete Standard 3/8 inch (8-10mm)

  • ver rubber attenuation layer

Standard 3/8 inch (8-10mm) impervious over rubber attenuation layer Standard 1/4 inch (6mm) over concrete Standard 1/4 inch (6mm) impervious over rubber attenuation layer

slide-16
SLIDE 16
slide-17
SLIDE 17

Colour combinations can be visualized using

  • ur online colour mixer application:

http://polysoftsurfaces.com/color-mixer.htm Prefabricated inlays can be seen on website as well

Color Mixer Application
