Pawel Marciniewski, PANDA Uppsala, 09.06.2015 11,952 3,600 - PANDA EMC Readout System Photosensor Photosensor APD VPTT Preamplifier Preamplifier APFEL (GSI) Basel 47,808 ADC for EMC 14400 ADC 64-ch, 14-bit 80-MSPS Ca. 1,000 Data

slide-1
SLIDE 1

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

Photosensor

APD

Preamplifier

APFEL (GSI)

Data Concentrator

16-ch

ADC

64-ch, 14-bit 80-MSPS

ADC for EMC

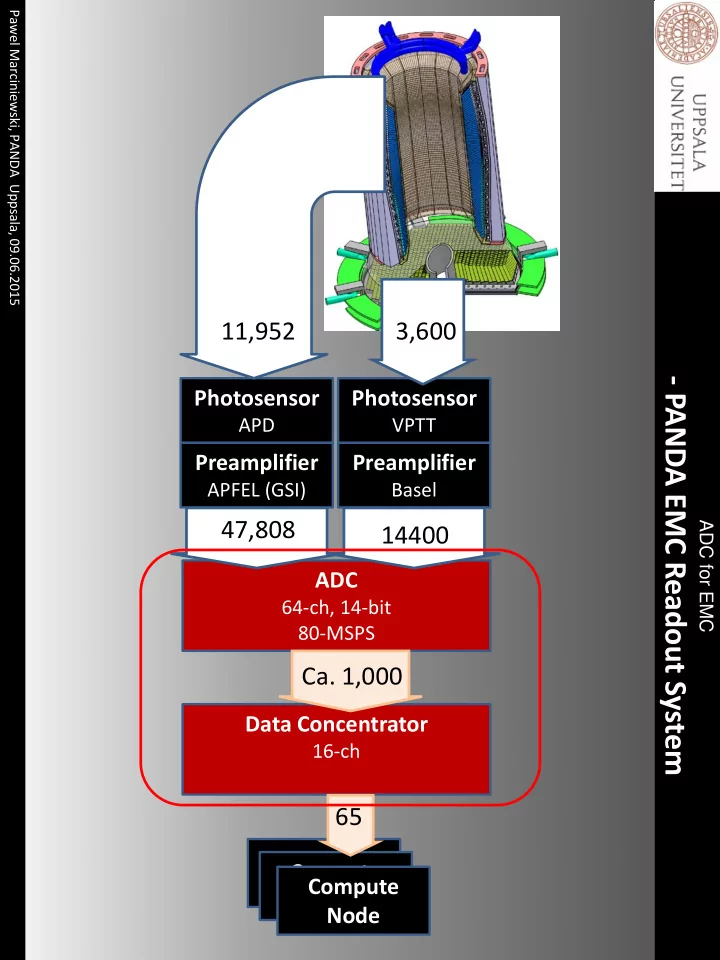

  • PANDA EMC Readout System

Photosensor

VPTT

Preamplifier

Basel

3,600 11,952 47,808 14400

  • Ca. 1,000

Compute Node Compute Node Compute Node

65

slide-2
SLIDE 2

Photosensor

APD

Preamplifier

APFEL (GSI)

Data Concentrator

16-ch

ADC

64-ch, 14-bit 80-MSPS

ADC for EMC

  • PANDA EMC Readout System

Photosensor

VPTT

Preamplifier

Basel

3,600 11,952 47,808 14400

  • Ca. 1,000

Compute Node Compute Node Compute Node

65

Swedish Research Council has recently approved an investment of ca

3 M€ for the EMC Readout System

as a part of the swedish contribution to FAIR

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

slide-3
SLIDE 3

ADC for EMC

  • PANDA EMC Readout Electronics

EMC SADC EMC Data Concentrator Shashlyk ADC Stand Alone Data Concentrator

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

slide-4
SLIDE 4

ADC for EMC

  • ADC_64K_2

ADC_64K_2

List of recent changes/improvements

  • 1. Overall error correction
  • 2. Input can be galvanically de-coupled from the

ground

  • 3. Improved analog/digital ground separation
  • 4. All low-voltage power supplies can be distributed

via backplane connectors

  • 5. Space optimization
  • 6. Baseline shifting (?)

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

slide-5
SLIDE 5

ADC for EMC

  • ADC_64K_2

ADC_64K_2 input

T

Frequency (Hz) 1 10 100 1k 10k 100k 1MEG 10MEG 100MEG 1G Gain (dB)

  • 90.00
  • 75.00
  • 60.00
  • 45.00
  • 30.00
  • 15.00

0.00 15.00 30.00

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

slide-6
SLIDE 6

ADC for EMC

  • ADC_64K_2

8178 8180 8182 8184 8186 8188 8190 1 7 13 19 25 31 37 43 49 55 61 67 73 79 85 91 97 103 109 115 121 127 133 139 145 151 157 163 169 175 181 187 193 199 205 211 217 223 229 235 241 247 253 500 1000 1500 2000 2500 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

ADC-64K2 – open input

Noise Track

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

slide-7
SLIDE 7

ADC for EMC

  • ADC_64K_2
  • 500

500 1000 1500 2000 1 27 53 79 105 131 157 183 209 235 261 287 313 339 365 391 417 443 469 495 521 547 573 599

  • 50

50 100 150 200 1 28 55 82 109 136 163 190 217 244 271 298 325 352 379 406 433 460 487 514 541 568 595

  • 10
  • 5

5 10 15 20 25 1 26 51 76 101 126 151 176 201 226 251 276 301 326 351 376 401 426 451 476 501 526 551 576 601

  • 6
  • 4
  • 2

2 4 6 1 28 55 82 109 136 163 190 217 244 271 298 325 352 379 406 433 460 487 514 541 568 595

100mV 10mV 1mV Noise tracks

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

slide-8
SLIDE 8

ADC for EMC

  • ADC_64K_2
  • 10
  • 5

5 10 15 20 25 1 53 105 157 209 261 313 365 417 469 521 573 625 677 729 781 833 885 937 989 1041 1093 1145 1197 1249 1301 1353 1405 1457 1509 1561 1613 1665 1717 1769 1821 1873 1925 1977 2029

1mV

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

slide-9
SLIDE 9

EMC DAQ

  • Data Concentrator Board

AMC (uTCA)

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

slide-10
SLIDE 10

EMC DAQ

  • Data Concentrator Board

AMC (uTCA)

FPGA

XCKU7-060-FFG1156

DDR3 (1GB)

2* MT41K128M16JT

MMC xTCA AMC FMC 2

4 GTX 4 GTX 32 HR 24 LVDS

FMC 2

24 LVDS 24 LVDS

DDR3 (1GB)

2* MT41K128M16JT 10 GTX 10 GTX 32 HR 24 LVDS 8 HR

PLL

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

slide-11
SLIDE 11

EMC DAQ

  • Data Concentrator Board

MMC

uC

ATmega128L

PS-control

UCD90160

RTC

RTC-8564JE

Temp sens.

RTC-8564JE

FMC JTAG FPGA JTAG FPGA Reset IPMI Front panel LED xTCA I2C xTCA Pwr Switch JTAG Prog, debug Hot swap handle AMC power

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

slide-12
SLIDE 12

ADC for EMC

  • Common Platform

uTCA Carrier board AMC Connector FMC Mezzanine Board FPGA

(XC7KU040 )

SFP+ SFP+ SFP+ SFP+ SFP+ SFP+ SFP+ SFP+ SFP+ SFP+ SFP+ SFP+ SFP+ SFP+ SFP+ SFP+ SFP+ SFP+ uTCA Carrier board AMC Connector Custom Mezzanine Board 16-ch. ADC

(8 * AD9250)

16-ch. AMP/SHP

(16 * LTC6403)

PLL

(LM K 0480 6)

FPGA

(XC7KU040)

SFP+

Optical Data Concentrator Shashlyk 250 MSPS 14-bit ADC

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

slide-13
SLIDE 13

EMC DAQ

  • Shashlyk ADC

We may consider the following options for the SADC chips with JESD204B interface:

  • 1. LTC2123
  • 2-ch, 14-bit, 250 MSPS, 860 mW - a'132$ @100pc
  • 2. ADS42JB49 - 2-ch, 14-bit, 250 MSPS, 1700 mW - a'125$ @100pc
  • 3. ADS42JB69 - 2-ch, 16-bit, 250 MSPS, 1700 mW - a'185$ @100pc
  • 4. ADS42JB69 - 2-ch, 16-bit, 370 MSPS, 1600 mW - a'265$ @100pc

Option 1 is technically the easiest solution due to the lowest power and size. Option 2 is a little cheaper, but dissipates double as much power as option 1 and the chip size makes it the layout more difficult. Options 3 and 4 have much better performance, but are more expensive. Of the options 2,3,4 the last one is relatively the easiest to design.

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

slide-14
SLIDE 14

EMC DAQ

  • Shashlyk ADC
  • 1. AMC (xTCA) carrier with FMC mezzanines:

The costs of the AMC carrier (ca. 2500 $) and the FMC (ca. 500 $) per 16 channels. The cost of the system would then be ca: 260$/ch - (14-bit/240 MSPS version) 320$/ch - (16-bit 370 MSPS version) To this one should add the costs of crates.

  • 2. Current 64-ch EMC ADC design adapted

to AMC (xTCA):

50..60$/ch (14-bit/125 MSPS version) + 1/4 crates.

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

slide-15
SLIDE 15

EMC DAQ

  • Data Concentrators

Stand Alone Optical Concentrator Board Based on ZED-board from Avnet Diploma work of:

  • Panagiotis Stamatakopoulos
  • George Ntounas

4 4

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

slide-16
SLIDE 16

EMC DAQ

  • Data Concentrators

Stand Alone Optical Concentrator board

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

slide-17
SLIDE 17

EMC DAQ

  • Data Concentrators

Stand Alone Optical Concentrator board

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

slide-18
SLIDE 18

ADC for EMC

  • Schedule

2014 2015 2016 2017 2018

EMC SADC

ADC tests Final design Final version production Firmware development Radiation immunity test First production batch Batch testing Batch burn-in Partial assembly Second production batch Final implementation

EMC Data Concetrators

DC design DC testing Prototype production Batch production System testing

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

slide-19
SLIDE 19

ADC for EMC-Endcap

  • Manpower

Manpower Uppsala

Hardware design

  • Pawel Marciniewski

System integration

  • Postdoc

Stockholm Firmware

  • PhD Marcus Preston

KVI Groningen Firmware

  • Peter Schakel

Uni Bonn Firmware/Integration

  • PhD (Johannes Muellers)

Pawel Marciniewski, PANDA Uppsala, 09.06.2015

slide-20
SLIDE 20

ADC for EMC-Endcap

Thank You !
