TEMPEST SHIELDING www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk 1 European EMC Products Limited EUROPEAN EMC PRODUCTS LIMITED was formed in July 1996 to supply high quality products and services to the EMC

slide-1
SLIDE 1

1

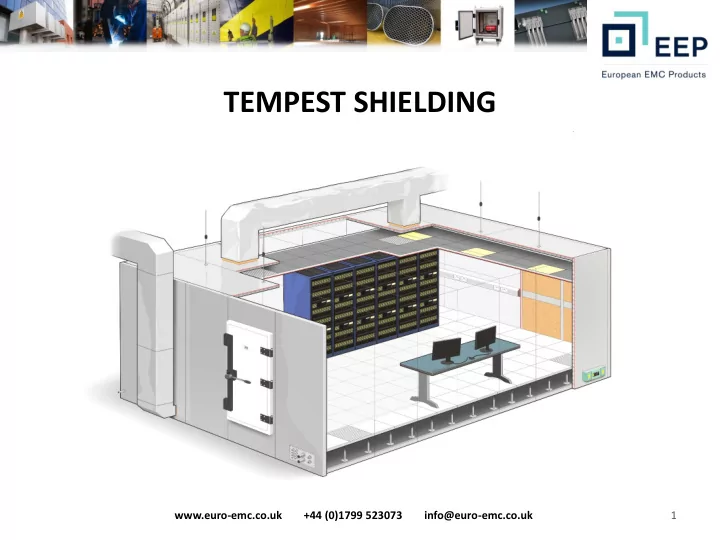

TEMPEST SHIELDING

www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-2
SLIDE 2

European EMC Products Limited

EUROPEAN EMC PRODUCTS LIMITED was formed in July 1996 to supply high quality products and services to the EMC (Electromagnetic Compatibility) market. The emphasis being on EMP and RF shielded chambers and associated products and services such as RF shielded windows, doors and shielding effectiveness and EMP testing. European EMC Products are registered to BS EN ISO 9001:2015, Certificate No. FS 38901. License scope: The design, assembly, servicing and testing of RF Shielded structures and equipment including EMI shielding and thermal management materials; Gas tight doors; and specialised mobile electromagnetic pulse protected (EMPP) containers.

2 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-3
SLIDE 3

What Services Do We Offer?

  • Full Design, Consultancy and Advice

Service Regarding Tempest, RF & EMP Protection.

  • The Supply of Specialist Shielding

Components.

  • Full Installation, or Supervised

Installation Service, of Shielded Enclosures.

  • Testing of Shielding Installations.

3 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-4
SLIDE 4

What is Tempest Shielding?

  • NATO SDIP-27 Level A (formerly AMSG

720B) and USA NSTISSAM Level I.

  • "Compromising Emanations Laboratory

Test Standard"

  • This is the strictest standard for devices

that will be operated in NATO Zone 0 environments, where it is assumed that an attacker has almost immediate access (e.g. neighbouring room 1 metre distance).

AES-256 keys sniffed in seconds using €200

  • f kit a few inches away

Van Eck phreaking getting surprisingly cheap

By Iain Thomson in San Francisco 23 Jun 2017 at 22:58

Side-channel attacks that monitor a computer's electromagnetic output to snaffle passwords are nothing new. They usually require direct access to the target system and a lot of expensive machinery – but no longer.

TEMPEST Shielding creates an area that is protected from the emissions of electromagnetic signals; one in which communications – data or voice - can remain secure. This primarily consists of creating an electromagnetic clean zone in the form of a Faraday Cage.

4 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-5
SLIDE 5

The Phases of Building a Modular Tempest Facility:

Phase 1: Defining Your Requirements Phase 2: Designing The MODULAR TEMPEST FACILITY Phase 3: Manufacturing Phase 4: Installing The Modular Tempest Facility Phase 5: Testing The Modular Tempest Shield

5 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-6
SLIDE 6

Defining Your Requirements…

Who and what must you protect? What are your critical facilities or buildings? What must survive to allow you to carry on?

6 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-7
SLIDE 7

Designing the Tempest Protected Facility

EEP will assess and survey the host facilities fabric and services in advance of the Design process.

7 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-8
SLIDE 8

8

EEP can supply full detailed design capability from survey, concept design to manufacturing drawings.

www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-9
SLIDE 9

Major Components of a Tempest Protected Shielded Room

  • Modular Shield
  • Doors
  • Waveguides for Ventilation
  • Tempest Filters
  • Fibre Optic Pipe Penetrations
  • Other Pipe Penetrations
  • Earthing

9 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-10
SLIDE 10

Designing The Tempest Protected Shield

The Tempest Shield is typically a galvanised modular system using preformed 2mm panels bolted together with RF gasket and M8 bolts. Rooms can be adjoined to further rooms. Sluice door systems for continuous protection and allowances can be made for existing structural beams or structures. Floating floors, ceilings and wall linings can also form part of the design.

10 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-11
SLIDE 11

Tempest Shielded Doors

  • Doors can facilitate

pedestrian and large equipment access.

  • Pairs of doors (sluice

doors) add unbroken protection.

11 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-12
SLIDE 12

Fire test on inward and outward

  • pening RF doors - Doors passed a 2

hour fire rating.

Full 3D Computer Aided Design capability

Tempest Shielded Doors

12 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-13
SLIDE 13

Waveguides for Ventilation

  • Frequency Range: Performance 100 dB up to 10 GHz.
  • EEP manufactured matrix steel vents 10 mm x 50mm

matrix.

  • Bolted onto the shield using RF TCS (Tin coated steel)

gasket.

  • External waveguides would also be painted for greater

corrosion protection.

13 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-14
SLIDE 14

EMP Filters

All electrical PoE (Points of Entry) MUST be fitted with EMP Filters AND EMP Surge Suppression.

14 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-15
SLIDE 15

Tempest Filters

All EMP Power Filters can be fitted with MOV (Metal Oxide Varistor) Monitoring (MMOV). This allows constant monitoring of the life left in the MOV. Indication can be from a simple light signal to remote electronic sensing. 15 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-16
SLIDE 16

Fibre Optic Penetrations

16

Fibre Optic Data lines can safely pass through our waveguide tubes.

www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-17
SLIDE 17

Other Penetrations

17

Coolant Water, Compressed Air and other Ventilation Systems require Wavetubes to stop RF from entering the Facility.

www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-18
SLIDE 18

Our Manufacturing Capabilities

EEP can manufacture all elements:

18 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-19
SLIDE 19

Installation

19

EEP site installers will work alongside the client throughout the installation of the EMP Shield.

www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-20
SLIDE 20

20

Installation Sequence of a Modular Tempest Shielded Room

Phase 1: Damp-proof membrane on floor and floor panels laid down. Phase 2: Wall panels installed. www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-21
SLIDE 21

21 Phase 3: Ceiling panels installed. www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk Phase 4: Decorative wall lining panels installed.

slide-22
SLIDE 22

22 Phase 5: Power Filters installed onto the shielded rooms walls. Phase 6: Fibre Optic Cable Penetrations installed onto the shielded rooms walls. www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-23
SLIDE 23

23 Phase 7: Low level ventilation vents installed in the wall panels. Phase 8: RF gasket prepared on the ventilation vents. www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-24
SLIDE 24

Testing The Tempest Shield Shielding Effectiveness (SE)

24

Network Analyser Controlling laptop Power Amplifier Signal Generator

Inside EMP Shield Outside EMP Shield

www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-25
SLIDE 25

Shielded Containers

25 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-26
SLIDE 26

Shielded Cabinets

  • EEP can supply any size and configuration of Shielded Cabinet that is required.
  • All design requirements such as shock mounts or wheels can be accommodated.
  • All cabinets can contain a 19 in rack for mounting of internal equipment.

26 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-27
SLIDE 27

Case Study of Tempest Protection for a Modular Shielded Data Centre

Client: European Data Centre for a client in the financial industry. Requirement: To offer EMP protected space to a variety of companies. Solution: EEP supplied a modular EMP shielded room, 25 mL x 10mW x 4 mH, with internal fire resisting linings, air conditioning and electrical supplies.

27 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-28
SLIDE 28

Case Study of EMP & Tempest Protection for a Welded Steel, Shielded, Communications Facility

Client: NATO Requirement: To offer EMP and Tempest protected buildings for a satellite communications facility. Solution: EEP supplied a steel shielded room including generator back up. Total 5000 m2.

28 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-29
SLIDE 29

Case Study of Tempest Protection for Shielded Cabinets within a Data Centre

Client: Global Internet Service supplier Requirement: To offer specific Tempest protection to racks within their datacentre. Solution: EEP supplied steel shielded cabinets within existing data centre facility

29 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk

slide-30
SLIDE 30

European EMC Products Ltd References

United Arab Emirates Ministry of Defence, Abu Dhabi: EMP Cabinets, Doors, Waveguides and EMP Testing. Norwegian Ministry of Defence, various locations: EMP Cabinets. United Kingdom Ministry of Defence, various locations: RF Shielded Doors and Mobile RF Shielded Shelters. HMS Collingwood: RF Shielded Communications Room. RAFO Radar sites, various locations: Shielded Control Rooms for RAFO Radar Sites Housing Alenia Marconi Radar. Kockums Shipyard for Royal Swedish Navy: Stainless Steel RF Vents for Visby Stealth Frigate Programme. Turkish Embassy, UK: 2 Modular Tempest Shielded Rooms for Communications. UK Government, Belgium: Modular Shielded Room for UK EU Mission. MOD, United Arab Emirates: EMP Shielding to new Communications Centre, Abu Dhabi. MOD, United Kingdom: 2 no. RF Shielded Test Facilities for Typhoon Repair and Maintenance. Carillion Alawi, Oman: Radio Frequency Shielding to new Airport, Muscat, Oman. GPZ, Bahrain: Gas Tight and Blast Doors for Government Facility. USN, Newquay, UK: EMP Shielding. USAF, Fylingdales UK: EMP Shielding.

30 www.euro-emc.co.uk +44 (0)1799 523073 info@euro-emc.co.uk
