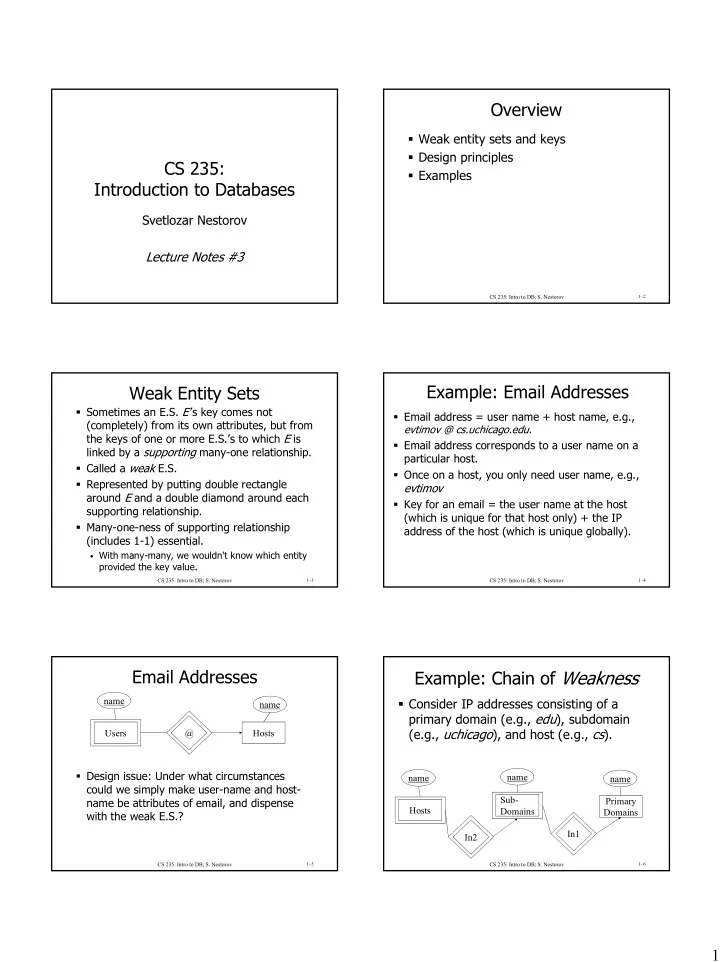

Overview Weak entity sets and keys Design principles CS 235: Examples Introduction to Databases Svetlozar Nestorov Lecture Notes #3 CS 235: Intro to DB; S. Nestorov 12 Example: Email Addresses Weak Entity Sets Sometimes an

SLIDE 1

1 CS 235: Introduction to Databases

Svetlozar Nestorov Lecture Notes #3

CS 235: Intro to DB; S. Nestorov

1–2

Overview

Weak entity sets and keys Design principles Examples

CS 235: Intro to DB; S. Nestorov

1–3

Weak Entity Sets

Sometimes an E.S. E’s key comes not (completely) from its own attributes, but from the keys of one or more E.S.’s to which E is linked by a supporting many-one relationship. Called a weak E.S. Represented by putting double rectangle around E and a double diamond around each supporting relationship. Many-one-ness of supporting relationship (includes 1-1) essential.

With many-many, we wouldn't know which entity

provided the key value.

CS 235: Intro to DB; S. Nestorov

1–4

Example: Email Addresses

Email address = user name + host name, e.g.,

evtimov @ cs.uchicago.edu.

Email address corresponds to a user name on a particular host. Once on a host, you only need user name, e.g., evtimov Key for an email = the user name at the host (which is unique for that host only) + the IP address of the host (which is unique globally).

CS 235: Intro to DB; S. Nestorov

1–5

Email Addresses

Design issue: Under what circumstances could we simply make user-name and host- name be attributes of email, and dispense with the weak E.S.?

@ Hosts name Users name

CS 235: Intro to DB; S. Nestorov

1–6

Example: Chain of Weakness

Consider IP addresses consisting of a primary domain (e.g., edu), subdomain (e.g., uchicago), and host (e.g., cs).

In2 Primary Domains name Hosts name In1 name Sub- Domains

SLIDE 2

2

CS 235: Intro to DB; S. Nestorov

1–7

Chain of Keys

Key for primary domain = its name. Key for sub-domain = its name + name of primary domain. Key for host = its name + key of sub-domain = its name + name of sub-domain + name of primary domain.

CS 235: Intro to DB; S. Nestorov

1–8

All Connecting Entity Sets Are Weak

Bars BBP Beers The- Bar The- Price The- Beer Prices name addr name manf price

CS 235: Intro to DB; S. Nestorov

1–9

All Connecting Entity Sets Are Weak

In this special case, where bar and beer determine a price, we can omit price from the key, and remove the double diamond from ThePrice. Better: price is an attribute of BBP.

CS 235: Intro to DB; S. Nestorov

1–10

Constraints

Part of the schema Keys Single value constraints Referential integrity constraints Domain constraints General constraints

CS 235: Intro to DB; S. Nestorov

1–11

Single Value Constraints

Each attribute has a single atomic value

No set attributes!

Many-one, one-one relationships

CS 235: Intro to DB; S. Nestorov

1–12

Referential Integrity

Exactly one value

Compare with at most one for single-value

constraints.

SLIDE 3

3

CS 235: Intro to DB; S. Nestorov

1–13

Design Principles

Setting: client has (possibly vague) idea

f what he/she wants. You must design a

database that represents these thoughts and only these thoughts. Avoid redundancy.

Wastes space and encourages

inconsistency.

Intuition: something is redundant if it could

be hidden from view, and you could still figure out what it is from the other data.

Avoid intermediate concepts.

CS 235: Intro to DB; S. Nestorov

1–14

Design Principles

Faithfulness to requirements.

Remember the design schema should

enforce as many constraints as possible. Don't rely on future data to follow assumptions.

Example: If registrar wants to associate
nly one instructor with a course, don't

allow sets of instructors and count on departments to enter only one instructor per course.

CS 235: Intro to DB; S. Nestorov

1–15

Good and Bad Design

Good? Bad?

Beers Manfs ManfBy name name addr Beers name manf manf addr

CS 235: Intro to DB; S. Nestorov

1–16

1

CS 235: Introduction to Databases

Svetlozar Nestorov Lecture Notes #3

Overview

Weak entity sets and keys Design principles Examples

Weak Entity Sets

provided the key value.

Example: Email Addresses

Email address = user name + host name, e.g.,

evtimov @ cs.uchicago.edu.

Email address corresponds to a user name on a particular host. Once on a host, you only need user name, e.g., evtimov Key for an email = the user name at the host (which is unique for that host only) + the IP address of the host (which is unique globally).

Email Addresses

Design issue: Under what circumstances could we simply make user-name and host- name be attributes of email, and dispense with the weak E.S.?

@ Hosts name Users name

Example: Chain of Weakness

Consider IP addresses consisting of a primary domain (e.g., edu), subdomain (e.g., uchicago), and host (e.g., cs).

In2 Primary Domains name Hosts name In1 name Sub- Domains

2

Chain of Keys

Key for primary domain = its name. Key for sub-domain = its name + name of primary domain. Key for host = its name + key of sub-domain = its name + name of sub-domain + name of primary domain.

All Connecting Entity Sets Are Weak

Bars BBP Beers The- Bar The- Price The- Beer Prices name addr name manf price

All Connecting Entity Sets Are Weak

In this special case, where bar and beer determine a price, we can omit price from the key, and remove the double diamond from ThePrice. Better: price is an attribute of BBP.

Constraints

Part of the schema Keys Single value constraints Referential integrity constraints Domain constraints General constraints

Single Value Constraints

Each attribute has a single atomic value

Many-one, one-one relationships

Referential Integrity

Exactly one value

constraints.

3

Design Principles

Setting: client has (possibly vague) idea

database that represents these thoughts and only these thoughts. Avoid redundancy.

inconsistency.

be hidden from view, and you could still figure out what it is from the other data.

Avoid intermediate concepts.

Design Principles

Faithfulness to requirements.

enforce as many constraints as possible. Don't rely on future data to follow assumptions.

allow sets of instructors and count on departments to enter only one instructor per course.

Good and Bad Design

Good? Bad?

Beers Manfs ManfBy name name addr Beers name manf manf addr

Bad? Question: Why is it OK to have Beers with just its key as attribute? Why not make set of beers an attribute of manufacturers?

Good and Bad Design

Beers Manfs ManfBy name name
