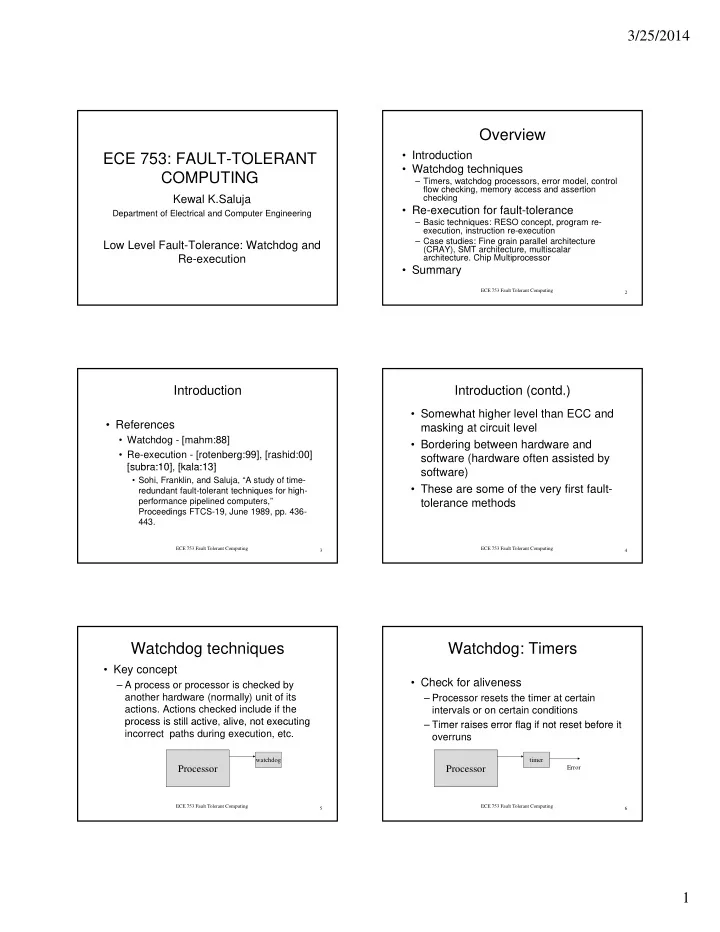

SLIDE 1

3/25/2014 1

ECE 753: FAULT-TOLERANT COMPUTING

Kewal K.Saluja

Department of Electrical and Computer Engineering

Low Level Fault-Tolerance: Watchdog and Re-execution

Overview

Introduction
Watchdog techniques

– Timers, watchdog processors, error model, control flow checking, memory access and assertion checking

R ti f f lt t l

ECE 753 Fault Tolerant Computing 2

Re-execution for fault-tolerance

– Basic techniques: RESO concept, program re- execution, instruction re-execution – Case studies: Fine grain parallel architecture (CRAY), SMT architecture, multiscalar

architecture. Chip Multiprocessor
Summary

Introduction

References
Watchdog - [mahm:88]
Re-execution - [rotenberg:99], [rashid:00]

[subra:10] [kala:13]

ECE 753 Fault Tolerant Computing 3

[subra:10], [kala:13]

Sohi, Franklin, and Saluja, “A study of time-

redundant fault-tolerant techniques for high- performance pipelined computers,” Proceedings FTCS-19, June 1989, pp. 436- 443.

Introduction (contd.)

Somewhat higher level than ECC and

masking at circuit level

Bordering between hardware and

software (hardware often assisted by

ECE 753 Fault Tolerant Computing 4

software)

These are some of the very first fault-

tolerance methods

Watchdog techniques

Key concept

– A process or processor is checked by another hardware (normally) unit of its

actions. Actions checked include if the

process is still active alive not executing

ECE 753 Fault Tolerant Computing 5

process is still active, alive, not executing incorrect paths during execution, etc. Processor

watchdog

Watchdog: Timers

Check for aliveness

– Processor resets the timer at certain intervals or on certain conditions Timer raises error flag if not reset before it

ECE 753 Fault Tolerant Computing 6

– Timer raises error flag if not reset before it

verruns

Processor

timer Error

SLIDE 2

3/25/2014 2

Watchdog: Timers (contd.)

Check for timeout

– Processor sends a message and starts a timer, the second processor must reply within this time (hardware/software

ECE 753 Fault Tolerant Computing 7

within this time (hardware/software implementation)

Timer

Processor B Processor A

Watchdog: Timers (contd.)

Applications

– Processor control systems (chemical, mechanical and other control systems) – Switching systems – messages sent or

ECE 753 Fault Tolerant Computing 8

received often await certain length of time before they are repeated – Networks – email messages often have timeouts associated with them

Watchdog: Processors

Architecture – can be complex but let us

consider the following simple architecture

ECE 753 Fault Tolerant Computing 9

Memory Processor

data address control

BUS Watchdog (observer)

Watchdog: Processors (contd.)

What can it achieve?

– Observe the address bus

Can observe the data
Can observe instructions

ECE 753 Fault Tolerant Computing 10

Can observe instructions
Can check the flow of program control

– Need to know what kind of errors can

ccur to determine the capability of this

method

Watchdog: Error models

Experimental setup to develop error

models applicable at this level

– Processor-memory architecture – Inject faults (random errors) - in I/O

ECE 753 Fault Tolerant Computing 11

processor, within processor (register file, states), within memory – Simulate – Also hardware was designed to inject such faults and study the impact/behavior

Watchdog: Error models (contd.)

Conclusions of the studies

– Program flow could change (branch to no branch,

r vise a versa)

– Instruction fetched from data space – Access to non existence memory space D t f t h d f i t ti

ECE 753 Fault Tolerant Computing 12

– Data fetched from instruction space – Illegal instruction – Writing in protected area (ROM)

60% of all faults could be detected by

monitoring control flow – Thus we need to develop methods that are good in monitoring control flow

SLIDE 3

3/25/2014 3

Watchdog: Control flow checking

Basic principle

– Analyze the program and extract control information

Branch free intervals

ECE 753 Fault Tolerant Computing 13

Branch free intervals
Subroutine calls

– Assign signatures to branch free intervals and provide these signatures to the watchdog processor to check these values

Watchdog: Control flow checking (contd.)

A simple example

Program watchdog start ------------ receive start b h b b

ECE 753 Fault Tolerant Computing 14

branch observe bus free cont. to form code signature

check sig X --- Check X against collected sig

Watchdog: Control flow checking (contd.)

Details and variations

– Structural integrity checking

Analyze the program control flow – create a program

control flow graph

Assign unique identifier to the nodes of the graph

ECE 753 Fault Tolerant Computing 15

Provide control flow graph to the watchdog along with the

identifiers

In case of branches, watchdog expects one of the many

possible identifiers

Limitations

– Performance impact – insertion of special instructions – Inability to detect data processing variations – add to sub

Watchdog: Control flow checking (contd.)

Details and variations (contd.)

– Derived signature checking

Compiler identifies branch free intervals and generates

signatures (such as check sum) for these intervals

At run time these signatures are provided to the

watchdog using tag bits to differentiate between regular instructions and watchdog messages

ECE 753 Fault Tolerant Computing 16

instructions and watchdog messages

Watchdog monitors the bus and generates the signatures

and compare these signatures with the signatures captured from the bus (compiled signature)

Example: associate two tag bits with every memory word

to differentiate between instructions and compiled signatures – when a tag for signature appears on the bus watchdog captures the tag and forces a NOP on the bus for the regular processor

Watchdog: Control flow checking (contd.)

Details and variations (contd.)

– Derived signature checking (contd.)

Coverage

– Can detect random errors in instructions in branch free intervals (but aliasing can occur)

Overheads

ECE 753 Fault Tolerant Computing 17

– Memory width increase due to tag bits – Memory increase due to signatures insertions – Performance impact due to NOPs

Solutions

– Using path signature method – reduces the number of signatures needed – Branch address hashing – merge signature and branch address

Watchdog: Mem access and assertion checks

What to do about memory/data errors

– Use ECC – Few other methods using watchdog

Check for non existent memory addresses

ECE 753 Fault Tolerant Computing 18

Check for out of range addresses
Capability based checking for objects is also

possible

Assertion based checking and sanity checks

using watchdog (independent hardware) is also possible

SLIDE 4

3/25/2014 4

Re-execution for fault-tolerance

Key concept

– Execute a program/instruction twice (or more times) and then compare the results. – A time redundancy technique, but if multiple hardware platforms are available,

ECE 753 Fault Tolerant Computing 19

p p , it is a hardware redundancy technique – Can detect transient faults. But it can also be employed to detect some permanent faults (see RESO next) even if the same hardware is used.

Re-execution: Basic Techniques

RESO concept

– Re-execution of an instruction with shifted

perands
Already discussed early in the course

ECE 753 Fault Tolerant Computing 20

Already discussed early in the course
Can detect transient faults
Can also detect many permanent faults

Re-execution: Basic Techniques (contd.)

Program Re-execution

– Make two copies the program

Execute them serially

– Can use RESO if the hardware platform is same for both executions

Execute them in parallel if sufficient hardware

d d i il bl

ECE 753 Fault Tolerant Computing 21

redundancy is available

– May take twice as long or twice the hardware – When/how to compare: impacts the system complexity – Performance impact

Serial computation: High latency
Parallel computation: Complex implementation, and

hence possible loss of performance

Re-execution: Basic Techniques (contd.)

Instruction Re-execution – fine grain

parallelism

– Re-execute every instruction on same or different hardware, depending upon the redundancy available

ECE 753 Fault Tolerant Computing 22

redundancy available

May use RESO if same hardware is used for

instruction re-execution

– If sufficient resources are available, this method may have little impact on the performance

Re-execution: Case studies

Introduction to case studies

– CRAY

Instruction re-execution

– SMT architecture

Two copies the program are interleaved as two threads

ECE 753 Fault Tolerant Computing 23

for simultaneous execution

– Multiscalar architecture

Two copies of the program are executed on many

processing elements simultaneously

– Chip multiprocessor

With critical value forwarding (DSN-2010)

Re-execution: Case studies (contd.)

CRAY
Instruction re-execution
Duplication of instruction in hardware
Sufficient resources and pipelining available for

re-execution without doubling the execution time

ECE 753 Fault Tolerant Computing 24

time

Consider a generic fine grain parallel

architecture (OH)

Consider executing a code segment (OH)
Now look at ways of duplicating instructions

and executing original and duplicated instructions (OH)

Some experimental results

SLIDE 5

3/25/2014 5

Re-execution: Case studies (contd.)

AR-SMT

– High level view of the technique (OH)

Concept of execution (Active) streams
Re-execution of the instruction stream –

Redundant stream

ECE 753 Fault Tolerant Computing 25

Redundant stream

– Issue of delay buffer length and latency – Implementation issues and coverage – Performance impact

Re-execution: Case studies (contd.)

Multiscalar

– Concept of control flow graph (OH) – Basic architecture (OH) St ti di i i f PU d f

ECE 753 Fault Tolerant Computing 26

– Static division of PUs and performance impact (OH) – Dynamic division of PUs and performance impact (OH)

Re-execution: Case studies (contd.)

Chip Multiprocessor (See slide set)

– Intro – Design Overview and concept – Evaulation

ECE 753 Fault Tolerant Computing 27

– Conclusion

Watchdog and Re-execution: Comments

Concepts discussed here can be used

to design high performance processors

– Performance improvement via speculation

Have a very high performance speculative processor
Verify the control flow using watchdog or use a second

ECE 753 Fault Tolerant Computing 28

Verify the control flow using watchdog or use a second processor to fully verify the executed stream by the speculative processor.

This will lead to a processor with high performance

(throughput) albeit high latency

Summary

Watchdog

– Timer – Processor C t l fl h ki

ECE 753 Fault Tolerant Computing 29

– Control flow checking

Re-execution
