FP7 ICT-SOCRATES Handover parameter optimization in LTE self- organizing networks 72nd Vehicular Technology Conference 6 9 September 2010 Ottawa, Canada T. Jansen, I. Balan, J. Turk I. Moerman, T. Krner Outline 1. Introduction 2.

slide-1

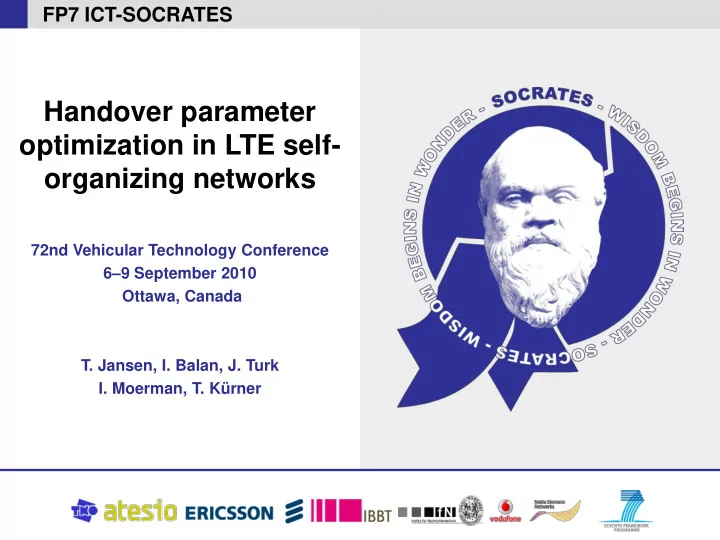

SLIDE 1

FP7 ICT-SOCRATES

Handover parameter

  • ptimization in LTE self-
  • rganizing networks

72nd Vehicular Technology Conference 6–9 September 2010 Ottawa, Canada

  • T. Jansen, I. Balan, J. Turk
  • I. Moerman, T. Kürner
slide-2
SLIDE 2

WWW.FP7-SOCRATES.EU

  • 1. Introduction
  • 2. Simulation environment and metrics
  • 3. Initial performance studies
  • 4. Handover optimisation SON algorithm
  • 5. Simulation results
  • 6. Conclusion

Outline

Dipl.-Ing. Thomas Jansen, TU Braunschweig, Institut für Nachrichtentechnik

2/17

slide-3
SLIDE 3

WWW.FP7-SOCRATES.EU

  • Problem

– Handover parameter optimisation is done manually – high OPEX – long optimisation intervals based on error reports – Non-optimal handover performance – handover failures – ping-pong handovers – call dropping

  • Handover parameter optimisation objective

– automate the optimisation – adapt the handover parameters on a short-term scale – optimise the handover performance

  • Approach

– analyse the system behaviour – develop handover optimisation algorithm

Introduction

Dipl.-Ing. Thomas Jansen, TU Braunschweig, Institut für Nachrichtentechnik

3/17

slide-4
SLIDE 4

WWW.FP7-SOCRATES.EU

  • Input data

– Realistic SOCRATES scenario – 1.5 km * 1.5 km area – Up to 78 cells – Microscopic traffic simulator – Mobile users (cars) with different

speed (up to 50 km/h)

– Ray-Tracer – Pathloss information to best 30 cells – User position updates every 100 ms

  • Update RSRP/SINR

– 3dB shadow fading map

  • Handover procedure / algorithm

MATLAB LTE system-level simulator

Dipl.-Ing. Thomas Jansen, TU Braunschweig, Institut für Nachrichtentechnik

Yes No

Start End of Simulation? End Read scenario data Update RSRP/SINR HO procedure HO algorithm Save results Next step

4/17

slide-5
SLIDE 5

WWW.FP7-SOCRATES.EU

  • Control parameters

– Hysteresis – Time-to-Trigger

  • Assessment metrics

– Handover failure ratio – Ping-Pong handover ratio

Simulation metrics

Dipl.-Ing. Thomas Jansen, TU Braunschweig, Institut für Nachrichtentechnik

Control parameter Values Hysteresis (0, 0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10 ) in [dB] Time-to-Trigger (0 0.04 0.064 0.08 0.1 0.128 0.16 0.256 0.32 0.48 0.512 0.64 1.024 1.280 2.56 5.12) in [s] succ HO fail HO fail HO HOF

N N N HPI

_ _ _ – Call dropping ratio fail HO npp HO pp HO pp HO HPP

N N N N HPI

_ _ _ _ accepted HO dropped HO DC

N N HPI

_ _

5/17

slide-6
SLIDE 6

WWW.FP7-SOCRATES.EU

  • System metrics

– RSRP (Reference Signal Received Power) – cell transmit power – pathloss

to the UE

– shadow fading with a standard deviation of 3dB – SINR (Signal to Interference Noise Ratio) – interfering cells

Simulation metrics

Dipl.-Ing. Thomas Jansen, TU Braunschweig, Institut für Nachrichtentechnik

fad ue c ue c

L L P RSRP ,

N n ue RSRP ue c ue c

n

RSRP SINR

1 10 , 10 , ,

10 log 10

fad

L

ue

L

c

P N

6/17

slide-7
SLIDE 7

WWW.FP7-SOCRATES.EU

Simulation parameter Value Simulation time 200 [s] Simulation step time 0.01 [s] Simulation area (mobile users) 1.5 km * 1.5 km Number of users 30 eNodeB transmit power 46 [dBm] Number of considered cells in the scenario 76 Measured cells (N) 21 Considered interfering cells for SINR calculations 20 Critical ping-pong handover time (T_crit) 5 [s] Handover execution time 0.25 [s] SINR averaging window 0.1 [s]

  • Min. SINR threshold
  • 6.5 [dB]

Initial performance studies

Dipl.-Ing. Thomas Jansen, TU Braunschweig, Institut für Nachrichtentechnik

  • Objective

Analyse the system behaviour and sensitivity Find handover algorithm approach

  • Simulation assumptions

All resources are used in all cells (maximum interference)

  • Simulation approach

Perform system simulations for all hysteresis and time-to- trigger value combination (handover operating point)

7/17

slide-8
SLIDE 8

WWW.FP7-SOCRATES.EU

Call dropping behaviour

Dipl.-Ing. Thomas Jansen, TU Braunschweig, Institut für Nachrichtentechnik

2 4 6 8 10 0.1 0.25 0.5 1 2 5 0.2 0.4 0.6 0.8

Hysteresis [dB] Call drops Time-to-Trigger [s] Call dropping ratio

8/17

slide-9
SLIDE 9

WWW.FP7-SOCRATES.EU

Handover performance weighting function

Dipl.-Ing. Thomas Jansen, TU Braunschweig, Institut für Nachrichtentechnik

  • HP = w1 HPIHOF + w2 HPIHPP + w3 HPIDC

– wx is the weight of the individual HPI – HPIHOF is the handover failure performance indicator – HPIHPP is the ping-pong handover performance indicator – HPIDC is the dropped calls performance indicator

Weighting parameter Value w1 1.0 w2 0.5 w3 2.0

9/17

slide-10
SLIDE 10

WWW.FP7-SOCRATES.EU

Handover performance

Dipl.-Ing. Thomas Jansen, TU Braunschweig, Institut für Nachrichtentechnik

2 4 6 8 10 0.1 0.25 0.5 1 2 5 0.5 1

Hysteresis [dB] Handover Performance (weights = [1 0.5 2]) Time-to-Trigger [s] Normalised sum of weighted HO failure rate, ping-pong HO rate and call dropping rate

10/17

slide-11
SLIDE 11

WWW.FP7-SOCRATES.EU

Simulation parameter Value Simulation time 1000 [s] Simulation step time 0.01 [s] Simulation area (mobile users) 1.5 km * 1.5 km Number of users 50 eNodeB transmit power 46 [dBm] Operating points (Hysteresis, Time-to-Trigger) (4, 0.48), (6, 0.32), (8, 0.1), (9, 0.08) in [dB, s] Number of considered cells in the scenario 78 Measured cells (N) 21 Considered interfering cells for SINR calculations 20 Handover performance averaging window 60 [s] Critical ping-pong handover time (T_crit) 5 [s] Handover execution time 0.25 [s] SINR averaging window 0.1 [s]

  • Min. SINR threshold
  • 6.5 [dB]

Simulation parameters for the performance analysis

Dipl.-Ing. Thomas Jansen, TU Braunschweig, Institut für Nachrichtentechnik

11/17

slide-12
SLIDE 12

WWW.FP7-SOCRATES.EU

Performance of the non-optimised network

Dipl.-Ing. Thomas Jansen, TU Braunschweig, Institut für Nachrichtentechnik

100 200 300 400 500 600 700 800 900 1000 5 10 15 20 25

Time [s] Ratio [%] Handover Performance for the operating point (4, 0.48)

Handover failure Ping-Pong handover Call dropping

12/17

slide-13
SLIDE 13

WWW.FP7-SOCRATES.EU

Performance of the non-optimised network

Dipl.-Ing. Thomas Jansen, TU Braunschweig, Institut für Nachrichtentechnik 100 200 300 400 500 600 700 800 900 1000 0.5 1 1.5 2 2.5 3 3.5 4

Time [s] Handover failure ratio [%] Handover failure performance Operating point (4, 0.48) Operating point (6, 0.32) Operating point (8, 0.1) Operating point (9, 0.08) 100 200 300 400 500 600 700 800 900 1000 5 10 15 20 25 Time [s] Ping-Pong handover ratio [%] Ping-Pong handover performance Operating point (4, 0.48) Operating point (6, 0.32) Operating point (8, 0.1) Operating point (9, 0.08) 100 200 300 400 500 600 700 800 900 1000 1 2 3 4 5 6

Time [s] Call dropping ratio [%] Call dropping performance Operating point (4, 0.48) Operating point (6, 0.32) Operating point (8, 0.1) Operating point (9, 0.08)

  • Comparison of the network

performance for four different

  • perating points

(4 dB Hys, 0.48 s TTT) (6 dB Hys, 0.32 s TTT) (8 dB Hys, 0.1 s TTT) (9 dB Hys, 0.08 s TTT)

13/17

slide-14
SLIDE 14

WWW.FP7-SOCRATES.EU

Handover optimisation SON algorithm

Dipl.-Ing. Thomas Jansen, TU Braunschweig, Institut für Nachrichtentechnik

HO SON algortihm Next cell 1) Update HPIs HPIs < threshold? Yes No Increase bad performance time Increase good performance time 2) 4) Reset good performance time Reset bad performance time Good perform- ance? Yes No Decrease HPI thresholds Bad perform- ance? No Reset good performance time Change handover

  • perating point

Yes Reset bad performance time 11) 8) 3) 5) 6) 7) 9) 10) 12) 13)

Optimisation criteria for HPIs

Handover Performance Indicator Hysteresis Time- to- Trigger Optimisation Handover failure ratio

< 5 dB ↑ TTT

5 dB – 7 dB ↑ TTT & ↑ HYS > 7 dB ↑ HYS Ping-Pong handover ratio < 2.5 dB ↑ TTT 2.5 dB – 5.5 dB ↑ TTT & ↑ HYS > 5.5 dB ↑ HYS Call dropping ratio > 6 dB > 0.6 s ↓ TTT & ↓ HYS <= 6 dB > 0.6 s ↓ TTT > 7.5 dB <= 0.6 s ↓ TTT & ↓ HYS 3.5 dB – 6.5 dB <= 0.6 s ↑ HYS < 3.5 dB <= 0.6 s ↑ TTT & ↑ HYS

  • Optimisation actions are added up
  • Hys and TTT are only changed by one

step at a time

  • The new operating point has to belong to

the set of “meaningful operating points”

14/17

slide-15
SLIDE 15

WWW.FP7-SOCRATES.EU

Handover optimisation simulation results

Dipl.-Ing. Thomas Jansen, TU Braunschweig, Institut für Nachrichtentechnik

100 200 300 400 500 600 700 800 900 1000 1 2 3 4 5 6 7 8 9 10

Time [s] Ratio [%] Handover performance for the operating point (6, 0.32)

Handover failure Ping-Pong handover Call dropping

15/17

slide-16
SLIDE 16

WWW.FP7-SOCRATES.EU

Handover optimisation simulation results

Dipl.-Ing. Thomas Jansen, TU Braunschweig, Institut für Nachrichtentechnik

100 200 300 400 500 600 700 800 900 1000 1 2 3 4 5 6 7 8

Time [s] Ratio [%] Handover performance (Optimisation)

Handover failure Ping-Pong handover Call dropping

16/17

slide-17
SLIDE 17

WWW.FP7-SOCRATES.EU

  • The system behaviour for different handover operating points has been

analysed

  • Handover performance can be optimised using the proposed algorithm
  • Handover operating points are chosen for every cell individually
  • The overall network performance is increased and the handover failure ratio

and ping-pong ratio drop to zero in the shown case

  • Next steps

– Run the algorithm in other scenario (done) – Problem: Fixed ratio of target thresholds between the HPIs – Enhance the handover optimisation algorithm (ongoing) – Introduce different user types (pedestrians, indoor, etc) (ongoing)

Conclusion

Dipl.-Ing. Thomas Jansen, TU Braunschweig, Institut für Nachrichtentechnik

17/17

slide-18
SLIDE 18

Thank you very much for your attention
