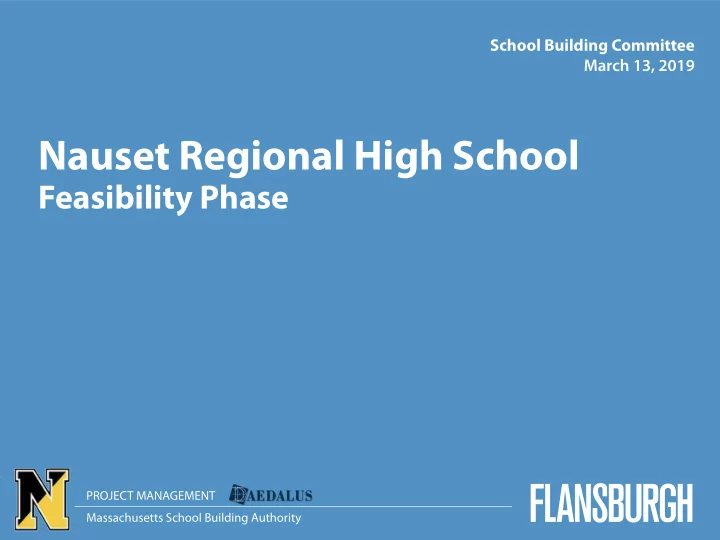

SLIDE 1
Nauset Regional High School
Feasibility Phase
School Building Committee March 13, 2019
PROJECT MANAGEMENT Massachusetts School Building Authority
Nauset Regional High School
Eastham, MA
Nauset Regional High School Feasibility Phase PROJECT MANAGEMENT - - PowerPoint PPT Presentation
Nauset Regional High School Feasibility Phase PROJECT MANAGEMENT - - PowerPoint PPT Presentation
School Building Committee March 13, 2019 Nauset Regional High School Feasibility Phase PROJECT MANAGEMENT Massachusetts School Building Authority SUSTAINABILITY Nauset Regional High School Eastham, MA SUSTAINABLE DESIGN: Certifjcation
SLIDE 2
SLIDE 3
Nauset Regional High School
Eastham, MA
SUSTAINABLE DESIGN: Certifjcation Options
MSBA Reimbursement Incentive Available Net Zero Energy Consumption for operational calendar year Ofg-Site Energy Generation Permitted (from sun, wind, or earth) Renewable Energy Credits Permitted Combustion Permitted Energy Storage Required (battery backup) Carbon Ofgsets Permitted Net Zero Carbon Emissions from Transportation X X X X X
[In conjunction with LEED/NE-CHPS]
X X X X X X X X X X X X X
[existing only]
X X
LEED for Schools / NE-CHPS Living Building Challenge Zero Carbon LEED Zero Carbon LEED Zero Energy
SLIDE 4
Nauset Regional High School
Eastham, MA
SUSTAINABLE DESIGN: Resiliency, Environmental Stewardship
Demand Control Ventilation
Energy Water Site IEQ Materials
Low-fmow Fixtures Brownfjeld Outdoor Stair Accessibility / Fitness FSC Certifjed Wood Water Sub-metering Community Garden Green Housekeeping Environmental Product Declaration Kitchen Equipment Energy Star Appliances Rainwater Harvesting Irrigation Rainwater Harvesting Cooling Tower High Performance Building Enclosure Advance Digital Network Controls LED Effjcient Lighting Enclosure and MEP Commissioning Green Cooling HVAC PV Ready Roof EV Changing Stations Ultra Low Energy Facility Sub-Meeting / Advance Controls Plug Load Controls PV Roofs No Fossil Fuels Bicycle Facilities Stormwater Treatment Light Pollution Reduction Outdoor Learning Classrooms Bioswales PV Covered Parking Green Roofs Biophilia* Thermal Comfort Natural Ventilation Operable Windows Low Emitting Materials Abundant Daylight User Friendly Lighting Controls Regional Materials Construction Waste Management Recycled Materials Low Maintenance Durability Healthy Materials (TBD)
SLIDE 5
Nauset Regional High School
Eastham, MA
SUSTAINABLE DESIGN: Process
Spring 2019 Summer 2019 Fall 2019 Visioning & Programming
Sustainable Design Goal Setting
- Identify Sustainable
Design Objectives
- Defjne the Owner’s
Project Requirements (OPR).
- Discuss LEED/CHPS
- Discuss Net Zero Options
- Work with Cape Light
Compact
Conceptual Design
Develop Sustainable Design Strategies Within Options
- Passive & Active Systems
Opportunities
- Sustainable Criteria
Included in Option Estimates
Select Recommended Options
Precise Sustainable Design Criteria
- Adjust Sustainable Design
Criteria to Select Options
SLIDE 6
Nauset Regional High School
Eastham, MA
SUSTAINABLE DESIGN: Planning for a Zero Energy School
(EUI per ft2)
90-120 (TBD) 65 40’s 25-30 10-15 National Average Existing Nauset School MA Average Code Low Energy Ultra Low Energy Energy Use Intensity per SF
Design & Effjciency
Potential
Low Energy Zero Energy Renewable Energy
SLIDE 7
Nauset Regional High School
Eastham, MA
SUSTAINABLE DESIGN: Ultra-Low Energy/ZEB Facility
Zero Energy Building
- Planned EUI goal: (TBD)
- Energy
- High Performance Enclosure
- High Effjciency HVAC Systems
- Light Power Density Reduction
- Plug Load Study
- Solar/Renewables
- User Education & Behaviors:
- Thermal Comfort
- Plug Load Management
- Occupant Based Controls
- Signage
SLIDE 8
Nauset Regional High School
Eastham, MA
SUSTAINABLE DESIGN: Existing School Building Enclosure
Thermal Performance
SLIDE 9
Nauset Regional High School
Eastham, MA
SUSTAINABLE DESIGN: Bourne School Example
SLIDE 10
Nauset Regional High School
Eastham, MA
SUSTAINABLE DESIGN: Bourne School Summary
SLIDE 11
Nauset Regional High School
Eastham, MA
SUSTAINABLE DESIGN: Typical SunPower Carport Installations
SLIDE 12
Nauset Regional High School
Eastham, MA
OPTION 4A
SLIDE 13
Nauset Regional High School
Eastham, MA
OPTION 4A: FIRST FLOOR
SLIDE 14
Nauset Regional High School
Eastham, MA
OPTION 4A: SECOND FLOOR
SLIDE 15
Nauset Regional High School
Eastham, MA
OPTION 4A: THIRD FLOOR
SLIDE 16
Nauset Regional High School
Eastham, MA
OPTION 4A: SECTION THROUGH CAFE
SLIDE 17
Nauset Regional High School
Eastham, MA
OPTION 4B
SLIDE 18
Nauset Regional High School
Eastham, MA
OPTION 4B: FIRST FLOOR
SLIDE 19
Nauset Regional High School
Eastham, MA
OPTION 4B: SECOND FLOOR
SLIDE 20
Nauset Regional High School
Eastham, MA
OPTION 4B: THIRD FLOOR
SLIDE 21
Nauset Regional High School
Eastham, MA
OPTION 4B: SECTION THROUGH SCIENCE CLASSROOMS
SLIDE 22
Nauset Regional High School
Eastham, MA
OPTION 5B
SLIDE 23
Nauset Regional High School
Eastham, MA
OPTION 5B: FIRST FLOOR
SLIDE 24
Nauset Regional High School
Eastham, MA
OPTION 4A: FIRST FLOOR OPTION 5B: SECOND FLOOR
SLIDE 25
Nauset Regional High School
