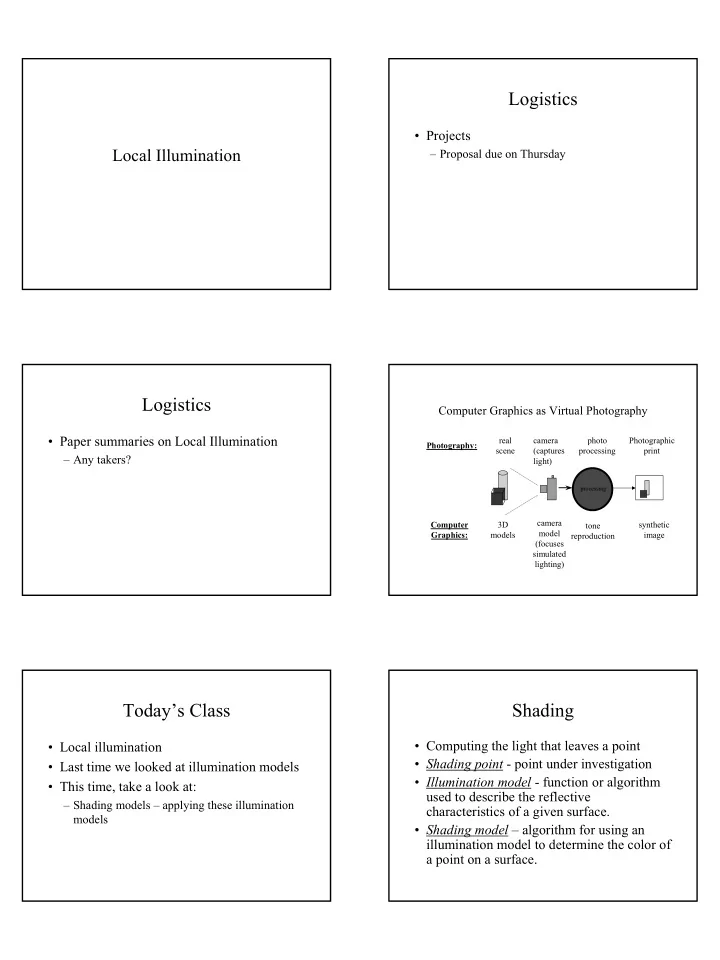

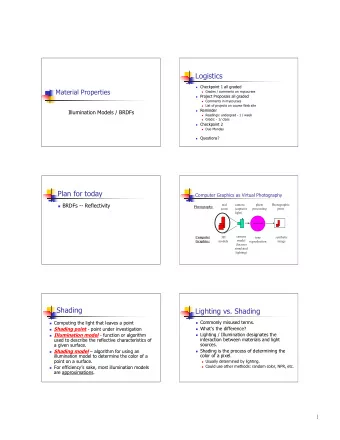

Local Illumination

Logistics

• Projects

– Proposal due on Thursday

Logistics

• Paper summaries on Local Illumination

– Any takers? Computer Graphics as Virtual Photography

camera (captures light) synthetic image camera model (focuses simulated lighting)

processing

photo processing tone reproduction real scene 3D models Photography: Computer Graphics: Photographic print

Today’s Class

• Local illumination
• Last time we looked at illumination models
• This time, take a look at:

– Shading models – applying these illumination models

Shading

• Computing the light that leaves a point
• Shading point - point under investigation
• Illumination model - function or algorithm

used to describe the reflective characteristics of a given surface.

• Shading model – algorithm for using an

illumination model to determine the color of a point on a surface.

Shading Models

• Direct Shading Models

– Only considers direct lighting from light sources – Flat (constant) shading – Gouraud Shading – Phong Shading

• Global Illumination Algorithms

– Considers indirect lighting from interreflections off of

• ther objects

– Radiosity – Ray Tracing

Shading Models

• Illumination vs. Shading Models

– Each of the Illumination Models given last class could be applied by either a local or global shading algorithm – The illumination models are not global vs. local, the shading models are.

Shading Models

• Geometry

Shading Models

• Flat Shading

– Illumination model applied once per polygon. – Constant color for entire polygon – Assumes normal vector is constant across the entire polygon

Shading Models

• Gouraud Shading

– Illumination is interpolated across each polygon – Normals required at each polygon vertex – Illumination is calculated for each polygon vertex – Interior points interpolated from endpoint illumination intensities

Shading Models

• Phong Shading

– Normal vectors are interpolated across each polygon – Normals required at each polygon vertex – Illumination is calculated for each polygon interior point by applying illumination model directly using interpolated normal

Shading Models

– Go to applet Computer Graphics as Virtual Photography

camera (captures light) synthetic image camera model (focuses simulated lighting)

processing

photo processing tone reproduction real scene 3D models Photography: Computer Graphics: Photographic print

Gouraud Rendering Pipeline

Database traversal Model transform Trivial Accept / Reject Lighting View transform Clipping Projection Rasterization Display

Rasterization

• Visible Surface Determination

– Determine what is rendered where – Done in 2D camera space – Image precision vs object precision

• Image Precision – determine for each pixel, what
• bject is visible at the pixel
• Object Precision – determine for each object, the

part of the object that is visible.

Image Precision

For each pixel in image { O = object that is closest draw pixel with appropriate color from O }

Object Precision

For each object in scene { determine parts of object non obscured draw these parts }

Z-buffer

• Visible surface algorithm to determine what
• bject appears on a given pixel

– Image Precision Algorithm – Two frame buffers

• One contains colors
• One contains depth values (Z-buffer)

– Basic idea

• Only calculate shading on object if depth is closer to

value at z-buffer

Z-buffer

• Basic algorithm

Initialize frame buffer (to background) Initialize Z-buffer (to 0) For each polygon P { For each pixel p in polygon’s projection { z = P’s z at pixel p if (z > Zbuffer at that pixel) { zBuffer at pixel = z Frame buffer at pixel = calcColor() } }

Z-buffer

• Applet

Z-buffer

Interpolation

Scan line p1 p2 p3

Gouraud Rendering Pipeline

Database traversal Model transform Trivial Accept / Reject Lighting View transform Clipping Projection Rasterization Display

Phong Rendering Pipeline

Database traversal Model transform Trivial Accept / Reject View transform Clipping Projection Rasterization and lighting Display

List Priority Algorithms

• Object precision and image-precision

– Sort polygons by z – Rasterize each polygon in order – Problems:

• Polygons must not overlap in z
• If they do, they must be split

To summarize

• Local Illumination models

– Only considers first reflection of light with object – No shadows (unless you add them)

• Shading vs. Illumination Models

– A shading model can use any illumination model – Phong was a busy guy!

• Rasterization

– Scan conversion / Interpolation in 2D – Z-buffer

Next time

• Global Illumination

– Rendering in the real world

• Sampling Theory & Aliasing
• Proposals due
• Class Web Site:

– http://www.cs.rit.edu/~jmg/cgII

• Any questions?
