Live Oak Square SPI-12 DRC Presentation July 2nd, 2014 Table of Contents Existing Conditions..................................................................................................3 Proposed Architectural

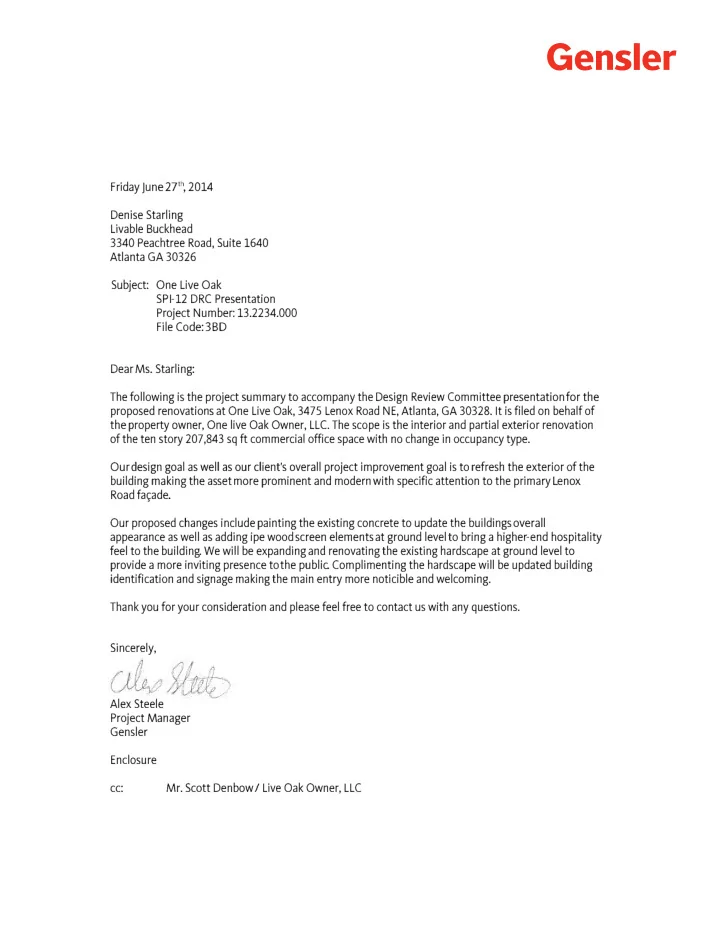

SLIDE 1

SLIDE 2

Live Oak Square

SPI-12 DRC Presentation July 2nd, 2014

SLIDE 3

Existing Conditions..................................................................................................3 Proposed Architectural Improvements..........................................................7 Proposed Signage & Wayfinding......................................................................20 Proposed Landscaping..........................................................................................32

SLIDE 4

Existing Conditions

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 3

SLIDE 5

Building Location Building Location

Building Location 3475 Lenox Road NE Atlanta, GA 30326

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 4

SLIDE 6

Existing Conditions; Lenox Road Approach

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 5

SLIDE 7

Existing Conditions; Lenox Road Approach

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 6

SLIDE 8

Architectural Improvements

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 7

SLIDE 9

Angled Ipe louvered awning Polished Aluminum Accent Band Angled concrete painted white White metal fjns Building concrete facade painted Dark Gray Ipe Screen Building Entry Sign

Proposed Changes; overview

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 8

SLIDE 10

Proposed changes at street level

Polished metal band Angled Ipe louvered awning

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 9

SLIDE 11

Proposed changes in Context

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 10

SLIDE 12

Polished chrome metal band Precedent photo Metal Fins White Umbrellas

Elevations

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 11

SLIDE 13

Section View

5/4X6 IPE PLANKS AT 3" OC. SPACE WITH 3/8" SCHEDULE 10S STAINLESS STEEL PIPE SPACERS 3/8" STAINLESS STEEL ROD AT 12"

CENTERS. SPACE WITH 3/8"

SCHEDULE 10S STAINLESS STEEL PIPE SPACERS.

6 '

" 5'-7 3/4" 4'-2"

Louvered Wood Canopy

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 12

SLIDE 14

2' - 0" 1' - 10" 1' - 0" 2' - 9" 7' - 0"

Alpolic 3mm HPA Panel Existing Soffjt Painted Dark Existing Column Painted White

1' - 8" 7' - 0"

Level 2 RCP

Metal Band Detail

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 13

SLIDE 15

Tables with Bench Seating and Umbrellas Existing Brick Pavers Stained Ipe screen and building signage Replacing Existing Brick Pavers at landings Ipe deck with intigrated bench

Lenox Road Enlarged Site Plan

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 14

SLIDE 16

Ipe Screen, up to height of existing hedge. New pavers on stair landings Alucobond Panels behind Ipe wood

Exterior Entry Signage

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 15

SLIDE 17 BUTT JOINTED ACM SIGN ON 3x2x1/8 GALVANIZED STEEL FRAME, WELDED NEW BRICK PAVERS 1'-1 1/2" BUT JOINTED ACM CLADDING ON 5/8" CEMENT BOARD ON GALVANIZED COLD FORMED METAL FRAMING 5/4X4" IPE PLANKS, SANDED & STAINED. FASTEN THROUGH ACM TO CEMENT BOARD WITH 1/2" SPACER, RECESS AND PLUG SCREW HOLES 2" 4'-10 1/4" 4'-0" 4'-0" 4'-4 3/4" 5 1/2" 3'-6" 10'-1 1/4" BUTT JOINTED ACM SIGN ON 3x2x1/8 GALVANIZED STEEL FRAME, WELDED 7/8" TEMPERED GLASS GUARDRAIL SYSTEM NEW BRICK PAVERS AT EXTERIOR, NEW TERRAZZO AT INTERIOR BUT JOINTED ACM CLADDING ON 5/8" CEMENT BOARD ON GALVANIZED COLD FORMED METAL FRAMING 5/4X4" IPE PLANKS, SANDED &

STAINED. FASTEN THROUGH

ACM TO CEMENT BOARD WITH 1/2" SPACER, RECESS AND PLUG SCREW HOLES 5/4X4" IPE PLANKS, SANDED & STAINED, 4" SPACIING 1/2" x 2" TREATED LUMBER NAILER AT EACH STEEL POST 2x2 STL TUBE POST AT 4'-0" OC. PAINT DARK GRAY TO MATCH BUILDING FACADE METAL GRATING. 1x1/8 BARS AT 1" OC. CROSS BARS AT 4" OC. 2" 2" 1'-1 1/2"

Exterior Entry Signage Section

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 16

SLIDE 18

Exterior Entry Signage Section

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 17

SLIDE 19

Exterior Furniture Concepts - lower level plaza

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 18

SLIDE 20

Exterior Furniture Concepts - Bucket Shop Patio

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 19

SLIDE 21

Signage & Wayfinding

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 20

SLIDE 22

p a r k i n g a t

l e n o x r o a d

(existing) Primary Building Directional

see pages 4 - 5

Temporary Lease Sign

see page 6

(TOB) Building ID Signage

see page 9

Building Monument

see pages 7 - 8

(existing) Tenant ID Monument

see page 10

‘Deliveries’ ID

see page 11

Garage Entrance

see pages 12 - 13

k i n g s b

Master Location Plan

− 3 −

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 21

SLIDE 23

(existing) Primary Building Directional

− 4 −

Existing Signage . View heading SE on Lenox Road View heading NW on Lenox Road Location Reference

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 22

SLIDE 24

Proposed Signage . View heading SE on Lenox Road View heading NW on Lenox Road View heading SE on Lenox Road

Project Notes

Refjnish existing sign base with metallic charcoal gray coating ‘Straight Ahead To’ type is fmat (white), the ‘3475’address identifjer is three- dimensional (metallic silver) ‘Live Oak Square’ is three-dimensional (white type, PMS 383 + PMS 427 graphic mark) ‘Turn lefu at light for parking access’ is fmat (white), the directional arrow is three-dimensional (white) The (pre-existing) Bucket Shop tenant identifjer becomes enlarged, white vinyl printed and affjxed to a metallic charcoal plaque (to match the refjnished sign base) Three (blank) future tenant panels are planned for the right side of this sign, as shown. This sign is intended to remain non- internally illuminated, although supporting landscape lighting is recommended

(refinished) Primary Building Directional

− 5 −

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 23

SLIDE 25

Existing Signage . View heading NW on Lenox Road Location Reference Proposed Signage . View heading NW on Lenox Road View heading NW on Lenox Road

Temporary Lease Signage

− 6 −

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 24

SLIDE 26

Building Monument

− 7 −

Existing Site Conditions . This will be a newly constructed signage addition, being planned by Gensler. Brand integration and illumination intent is detailed on the following page. Additional view of existing site conditions Location Reference

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 25

SLIDE 27

Elevation View . original rendering and planned architecture provided by Gensler

Project Notes

Signage base to be planned and constructed by others ‘Live Oak Square’ typemark to be three- dimensional (PMS 431 color matched) and made of sintra or similar ‘Live Oak Square’ graphic mark (PMS 383 and 427) to be internally illuminated ‘3475’ address identifjer to be three- dimensional and metallic silver Supporting landscape uplighting is recommended

Proposed Signage . Upclose view heading SE on Lenox Road, original rendering and planned architecture provided by Gensler

Building Monument

− 8 −

Night View Proposed Signage . Upclose view heading NW on Lenox Road, original rendering and planned architecture provided by Gensler

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 26

SLIDE 28

(TOB) Building ID Signage

− 9 −

Proposed Signage . This will be a newly constructed signage addition, materiality and internal lumination / power specs to come from signage fabricator. Additional view down Peachtree Road, original rendering provided by Gensler Location Reference

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 27

SLIDE 29

Existing Signage . Close-up view heading NW on Lenox Road Location Reference Proposed Signage . Close-up view heading NW on Lenox Road View heading SE on Lenox Road

(existing) Tenant ID Monument

− 10 −

Project Notes

Refjnish existing sign base with metallic charcoal gray coating ‘Live Oak Square’ is three-dimensional (white type, PMS 383 + PMS 427 graphic mark) ‘3475’ address identifjer to be three- dimensional and metallic silver The directional arrow (pointing towards the parking garage) is also three- dimensional The existing tenant plaques stay, four (blank) new tenant panels are planned, as shown This sign is intended to remain non- internally illuminated, although supporting landscape lighting is recommended

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 28

SLIDE 30

Existing Signage . Close-up view heading E on Kingsboro Road Location Reference Proposed Signage . Close-up view heading E on Kingsboro Road

‘Deliveries’ ID

− 11 −

Project Notes

Remove existing letuering and arrow directional Replace with a solid diebond backer, painted to color match PMS 432; aluminum letuers painted white, and color matched PMS 383 directional arrow affjxed to front ‘3475’ address identifjer to be three- dimensional and metallic silver

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 29

SLIDE 31

Garage Entrance

− 12 −

Existing Structure and Wayfinding Additional Close-up View Location Reference

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 30

SLIDE 32

Garage Entrance

− 13 −

Proposed Signage / Structure . This will be a newly constructed signage / architectural structure addition, materiality and internal lumination / power specs to come from signage fabricator. Proposed Signage . Night View

Project Notes

Remove existing structure completely Remove concrete Bucket Shop sign Plan and build a new surrounding structure (by others), using the same ipe wood used on the building front, combined with a charcoal gray steel surround ‘P’ parking identifjer to be PMS 383 and internally illuminated ‘Turn here to park’ and directional arrow to be white and internally illuminated ‘Welcome to Live Oak Square’ to be internally illuminated (text and typemark to be white, graphic mark to be PMS 383 and 427) Directional fmood lighting to be integrated into architectural structure Paint concrete entrance wall to color match PMS 432 Paint ‘Visitors Park on’ white (brandon grotesque medium, all caps) and ‘Level 4’ to color match to PMS 383 (brandon grotesque bold, all caps)

Proposed Signage Integration . Front View

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 31

Landscape Concept Plan

Autumn Fern Variegated Liriope Fatsia Cleyera

SPI-12 DRC Presentation | July 2nd, 2014 | Live Oak Square 37
