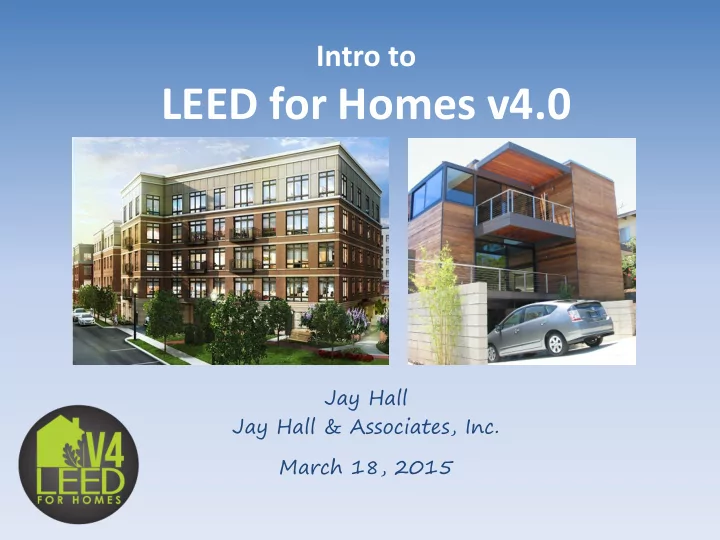

Intro to

LEED for Homes v4.0

Jay Hall Jay Hall & Associates, Inc. March 18, 2015

Education Provider Formerly

• Founded 2000
• LEED for Homes Provider
• 501(c)3 non-profit; mission:

We exist to empower people to make healthier and more sustainable choices in the renovation and construction of the places we live.

GreenHomeInstitute.org

Moderator

Brett Little, LFA,APH,GHP

Executive Director GreenHome Institute Grand Rapids, MI info@greenhomeinstitute.org 888 LEED APH ext 1

Understanding LEED V4 Homes Series

On Demand Webinar Series Coupon Code Available 9 GBCI (LEED H) – AIA (HSW) – NARI Green

Greenhomeinstitute.org – Education

Introduction

Jay Hall

Born in Windsor, Ontario, Canada Married with two boys Live in Annapolis, MD PhD, Duke University, Mech. Eng. Consultant to EPA’s ENERGY STAR programs (1990-2004). USGBC consultant since 2004

LEED AP Homes, LEED for Homes Green Rater, LEED Faculty (former) HERS Energy Rater, NGBS Green Verifier

Learning Objectives

At the end of this webinar, you will be able to describe these aspects of LEED for Homes v 4.0:

• 1. The timeline for the roll-out.
• 2. The certification process and tools.
• 3. The major changes in the prereqs and

credits.

• 4. Generally, how projects will score.
• 5. Where to learn more.

Agenda

• 1. Overview- Summary of Changes
• 2. Process Changes
• 3. Rating System Changes
• 4. Example Applications
• 5. Summary / Wrap Up

• 1. Overview

• Raise the Bar
• Rapidly changing codes
• Align Requirements
• Between single family and multifamily
• Homes and NC
• New Market Sectors
• Mid-rise residential projects. (Required for 4-8 Story Projects)
• New Impact Categories (used for credit weightings)
• Climate change, human health, water resources, biodiversity, green

economy, community and natural resources.

Why Change?

• Improved Tools and Resources
• Step-by-step reference guide materials with videos and tutorials,
• Improved technology platform.
• Eliminate paperwork heavy credits
• Removed Durability Evaluation and New Durability Checklist
• Removed Accountability Forms
• Removed MR 1.1 Prereq: Framing Order Waste Factor
• Focus on Performance Based Credits w/ Consumption Metrics
• Water Budget, Metering
• Energy Budget, Metering, Utility Tracking

Why Change? (cont’d)

What’s New and Different?

# Measures

v2008 Total 109 100% Same 17 16% Moved 22 Changed 38 84% Removed 21 Version 4 Total 66 100% New 16 24%

• 2. Process Changes

Process

(Verifier’s POV)

Register Project Start-Up Tasks Verify Projects (Final) USGBC Certifies Project Verify Project (Pre- Drywall)

Key Tasks

Durability Plan Preliminary Rating Trade Training Scopes of Work Owner’s Manual Assign Accountability Forms

Key Tasks

Air Sealing Verification Insulation Verification Review Manual J&D Visual Verification Duct Leakage Test Prepare Rough Documentation

Key Tasks

Blower Door Test Air Balancing Other Testing Visual Verification Compile Signed Accountability Forms Prepare Submittal Documentation

Key Tasks

Select Green Rater (and QA Provider) Identify Certification Program(s) of Interest Assess Costs & Incentives Pay USGBC Registration Fees Execute Contracts

Key Tasks

Submit Package to USGBC for Review and Approval Resolve Questions Receive Approval Distribute Certificates

Process

V4 Roll-Out Schedule

• 1. Immediately

Can begin to use V4

• 2. Jan 2014

v4 Resources Available

• 3. October 1, 2014

EA 1 (Max. HERS 70) Required

• 4. October 1, 2016

V4 Required (2008 phased out) 2013 2014 2015 2. 3. 4. 2016

LEED for Homes Registration

https://www.usgbc.org/leedonline.new/projects/register

Process

Tools  Checklist

www.usgbc.org/resources/homes-v2008-checklist-xls

 Rating System

http://www.usgbc.org/resources/leed-homes-v2008- current-version http://www.usgbc.org/sites/default/files/LEED%20v4%20f

• r%20Homes%20and%20Midrise_Ballot%20Version.pdf

 CIRs

http://www.usgbc.org/leed-interpretations

 Reference Guide

http://www.usgbc.org/resources/leed-homes-reference- guide

v 4 Checklist

http://www.usgbc.org/resources/leed-v4-homes-design-and- construction-checklist

Guide to Certification (8 Pages)

http://www.usgbc.org/dopdf.php?q=cert-guide/homes

Reference Guide

http://www.usgbc.org/resources/leed-reference-guide-homes- design-and-construction

Hard Copy $ 249

(includes 90 days access to web-based version)

Web Based $ 99

(1 Year Subscription)

• 3. Rating System

Rating System

Basic Structure General Changes

• 1. 110 Points Total (from 136)
• 2. Credit names are familiar
• 3. Order (numbering) is very different
• a. Prereqs are pulled out front (p1, p2,

etc.)

• b. Credits follow (c1, c2, etc.)
• 4. Single Family, Low-Rise and Mid-Rise are

Combined.

• 5. Bottom Line: Projects will lose one

certification level.

Rating System

Basic Structure

Certification Levels

(% of Total Points)

2008 V 4.0

S / M / L S / M / L

Certified

26%/33%/40% 27%/36%/45%

Silver

36%/43%/51% 36%/45%/54%

Gold

48%/55%/62% 45%/54%/63%

Platinum

59%/66%/73% 63%/72%/82%

S = 950 Sq. Ft., 2 Bedroom M = 1,900 Sq. Ft., 3 Bedroom L = 3,820 Sq. Ft., 4 Bedroom

Only 26%!

Rating System

Basic Structure

Credit Categories

2008 v 4.0 Pts/Prereq/Min Pts/Prereq/Min ID 11 / 3 / Moved LL 10 / / LT 15 / / 8 (LT+EA) SS 22 / 2 / 5 SS 7 / 2 / WE 15 / / 3 WE 12 / 1 / 3 EA 38 / 2 / EA 38 / 4 / MR 16 / 3 / 2 MR 10 / 2 / EQ 21 / 7 / 6 EQ 16 / 7 / 3 AE 3 / 1 / Gone Innov. 6 / 1 / RP 4 / / Total: 136 / 18 / 16 110 / 17 / 14

Must Do’s:

18 Prereqs and 16 Pts. Minimum

Summary

Credit Category 2008 Removed Version 4.0

Total # Measures Same Moved Changed / Combined New Total # Measures

ID (IN) 12 1 2 5 3 2 7 LL (LT) 10 2 2 6 3 7 SS 15 2 3 5 5 5 WE 8 2 4 2 2 4 EA 25 1 5 10 5 9 MR 9 5 1 3 6 EQ 26 6 4 6 9 4 14 AE 4 2 2 2 Total 109 21 17 22 38 16 66

Innovation and Design (ID)

12 v2008 12 v4 Measures

ID IP/IN/RP

2008 Version 4

# Name # Comment 1.1 Preliminary Rating IN p1 MOVED 1.2 Integrated Project Team IP c1 (1) SAME / COMBINED 1.4 Design Charrette NEW Trades Training 1.3 LEED AP Homes IN c2 MOVED 1.5 Building Orientation for Solar EA c5 MOVED / CHANGED 2.1 Durability Planning REMOVED 2.2 Durability Management MR p2 MR c1 MOVED / CHANGED

ESH v3

2.3 Third Party Durability Verif’n 3 Innovation #1 - 4 IN c1 MOVED (5 pts.) RP 1-4 NEW

Regional Priority (4 pts.)

Location and Linkages (LL)

10 v2008 6 v4 Measures ( 1 New Pr

LL LT

2008 Version 4

# Name # Comment

1 LEED ND LT c1 (1) CHANGE: 15 Points 2 Site Selection LT C2 COMBINED PATH 2: (8 pts) NEW: Flood Plain Prereq. 3.1 Edge Development REMOVED 3.2 Infill NEW: Bicycle

Storage,Street Network

3.3 Previously Developed PATH 1: (4 pts.) 4 Existing Infrastructure REMOVED 5.1 Basic Community Resources LT c4 CHANGED / COMBINED 5.2 Extensive Community Resources 5.3

Outstanding Community Resources

6 Access To Open Space LT c5 NEW: Access to Public Transit SS 6 Compact Development LT c3 MOVED / SAME (3 pts.)

Sustainable Sites (SS)

15 v2008 5 v4 Measures

SS

2008 Version 4

# Name # Comment 1.1 Erosion Controls – Construction SS p1 SAME

(except > 1 acre)

1.2 Minimized Disturbed Area REMOVED 2.1 No Invasive Plants SS p2 SAME 2.2 Landscaping REMOVED 2.3 Limit Turf WE c3 MOVED / COMBINED

(Reduced from 5 to 4 pts.)

2.4 Drought Tolerant Plants 2.5 Outdoor Water Demand Calc. WE c1 MOVED / CHANGED 3 Local Heat Island Effects SS c1 CHANGED:

Includes Roof

SS (cont’d)

2008 Version 4

# Name # Comment 4.1 Permeable Lot SS c2 COMBINED / CHANGED:

Includes Area under Roof (Reduced 7 to 3 pts max.)

4.2 Permanent Erosion Controls 4.3 Roof-Run-Off (Quality Control) 5 Non-Toxic Pest Control SS c3 SAME 6 .1 Moderate Density LL c3 Moved

(Reduced from 4 to 3 pts.)

6.2 High Density 6.3 Very High Density

Water Efficiency (WE)

8 v2008 4 v4 Measures (1 New Prereq)

WE

2008 Version 4

# Name # Comment

1.1 Rainwater Harvesting MOVED: to c1 (below) 1.2 Graywater Reuse System 1.3 Municipal Recycled Water 2.1 High Efficiency Irrigation System REMOVED 2.2 Third Party Inspection 2.3 Reduce Overall Irrig’n Demand MOVED: to c1 (below) 3.1 High Efficiency Fixtures c2 CHANGED WaterSense 3.2 Very High Efficiency Fixtures p1 NEW: Water Metering c1 NEW: Total Water Use (Reduced from 16 to 12 pts.) SS 2 Landscaping (Turf / Plants) c3 CHANGED: Outdoor Water Use

(≤ 60% Turf & ≥ 25% Native Plants) (Reduced from 9 to 4 pts. Including Irrigation)

Energy and Atmosphere (EA)

25 v2008 19 v4 Measures (1 New Prereq)

EA Prereqs

2008 Version 4

# Name # Comment 1.1 Meet ENERGY STAR Homes v2 EA p1 CHANGED: ESH v3 1.2 Exceed ENERGY STAR Homes v2 EA c1 CHANGED: ESH v3 EA p2 Energy Metering

(MF: every unit)

EA p3 MOVED: from AE 1.1

Education of Homeowner

V 2.0 V 3.0

EA

Performance Path

Option 1: LEED Energy Budget (MBtu/yr)

Modeled annual energy usage < LEED Energy Budget where: LEED Energy Budget is based on the ENERGY STAR for Homes version 3 (with several modifications).

1 Point per 1-3% < ESH v3 Option 2: HERS Index w/ Home Size Adj.

Modeled annual energy usage ≤ HERS 70

1 Point per 1-3 HERS Index Points < 70

Plus Home Size Adjuster (counted as EA points):

+1 point per 4% decrease in CFA < ESH v3 benchmark home

• 1 point per 4% increase in CFA > ESH v3 benchmark home `

EA (cont’d)

for Both Performance and Prescriptive Paths

2008 Version 4

# Name # Comment EA 7.1 Hot Water Distribution EA c2 CHANGED: New PERF. Test Option COMBINED:

(5 pts.)

EA 7.2 Pipe Insulation EA c3 Active Solar Ready Design

(not available if PV installed)

EA 11.2 Refrigerant Charge Testing EA c4 CHANGED: HVAC Start-up Credentialing (ESH v3 HVAC

Chklst) (+1 Pt.)

EA c5 Advanced Utility Tracking

(Option 2: BPP)

EA (cont’d)

Prescriptive Path

2008 Version 4

# Name # Comment ID 1.5 Building Orientation

for Passive Solar

EA c5 NEW

(3 pts.)

2. Insulation EA c7 CHANGED

10/20% > IECC 2012; Grade I

3 Air Infiltration EA c6 SAME

(ACH50 or CFM50/SF)

4 Windows EA c8 CHANGED 5 Duct Leakage EA c10 SAME

Small AND Large Home Criteria

6 HVAC Equipment EA c9 SAME

Pts for EE Heating OR EE Cooling

EA (cont’d)

Prescriptive Path

2008 Version 4

# Name # Comment 7.3 Water Heating Equipment EA c11 SAME 8 Lighting EA c12 CHANGED

Calcs Required (W/SF, or % Red’n) All Exterior – Dark Sky Qualified

9 Appliances EA c13 SAME

Clothes Washer moved to WE c2

10 Renewables EA c14 CHANGED

1 pt per 50 KWh (Reduced from 10 to 4 pts. max.)

11.1 Refrigerant Charge Test EA p1 COMBINED: ESH v3 11.2 Refrigerant – R 410a (Puron) REMOVED

Materials and Resources (MR)

9 v2008 6 v4 Measures (1 New Prereq)

MR

2008 Version 4

# Name # Comment

1.1 Framing Order Waste Limit REMOVED 1.2 Detailed Framing Docs REMOVED 1.3 Detail Cut List & Lumber Order REMOVED 1.4 Framing Efficiencies

MR c2

CHANGED (Reduced: 4 to 2 pts.) 1.5 Off-Site Fabrication REMOVED 2.1 FSC Tropical Wood

MRp1 SAME

2.2

• Envir. Preferable Products

MRc3

CHANGED Fewer Options (4 pts.) Low Emitting Products

MOVED EQ c7 (3 pts.)

3.1 Construction Waste Management REMOVED 3.2 Construction Waste Reduction

MR c4

CHANGED Tied to Home Size ID 2.2 Durability Management

MR p2

CHANGED ESH v3 Water Mgmt. ID 2.3 3rd Party Durability Verification

MR C1

MOVED Durability Verification (+1 pt.)

Indoor Environmental Quality (EQ)

26 v2008 14 v4 Measures (2 New Prereq)

EQ

2008 Version 4

# Name # Comment 1 ENERGY STAR with IAP REMOVED 2.1 Basic Combustion Venting EQ p2 CHANGED: Fireplace - Closed

Combustion OR Combustion Safety Test

2.2 Enhanced Combustion Venting EQ c5 Same

(EPA Qualified 1 Pt.; None 2 Pts.)

3 Moisture Control REMOVED 4.1 Basic Outdoor Air Ventilation EQ p1 CHANGED

ASHRAE 62.2-2010

4.2 Enhanced Outdoor Air Vent’n EQ c1 CHANGED

Balanced OR HRV/ERV

4.3 Third Party Performance Testing EA p1 MOVED / COMBINED

ESH v3

EQ (cont’d)

2008 Version 4

# Name # Comment 5.1 Basic Local Exhaust EQ p1 MOVED / COMBINED: 4.1 5.2 Enhanced Local Exhaust EQ c1 MOVED / COMBINED: 4.2 5.3 Third Party Performance Testing EA p1 MOVED / COMBINED

ESH v3

6.1 Room by Room Load Calcs EA p1 MOVED / COMBINED

ESH v3

6.2 Return Air /Controls EA p1 MOVED / COMBINED

ESH v3

6.3 Air Balancing EQ c3

SAME / ESH v3 (+3 Pts.)

EQ (cont’d)

2008 Version 4

# Name # Comment 7.1 Good Filters EQ p5 SAME (MERV 8) 7.2 Better Filters REMOVED 7.3 Best Filters REMOVED 8.1 Contaminant Control – Ducts EQ c2 COMBINED:

(0.5 Pt. Each)

8.2 Indoor Contaminant Control 8.3 Pre-Occcupancy Flush

EQ (cont’d)

2008 Version 4

# Name # Comment 9.1 Radon Resistant (Zone 1) EQ p4 SAME 9.2 Radon Resistant (Zone 2-3) REMOVED 10.1 No HVAC in Garage EQ p3 COMBINED 10.2 Minimize Pollutants – Garage 10.3 Exhaust Fan Garage EQ c6 COMBINED (1 or 2 pts.) 10.4 Detached / No Garage 11 ETS Control EQ p6 NEW / (Low- and Mid-Rise only) 12 Compartmentalization EQ p7 EQ c4 NEW/ CHANGED: 0.23 cfm50 / SF

(MF and Attached) 0.15 cfm50 / SF

MR 2.2 Low Emission Products EQ c7 MOVED

Awareness and Education (AE)

4 v2008 0 v4 Measures

AE Removed

Plus, IN / RP

2008 Version 4

# Name # Comment 1.1 Homeowner Education O&M Manual and Training EA p3 MOVED 1.2 Enhanced Training REMOVED 1.3 Public Awareness REMOVED 2 Education of Building Mgr. MOVED / COMBINED

EA p3 (above)

IN MOVED

(5 Pts. + 1 Pt. LEED AP Homes)

RP NEW

(4 Pts.)

Example Regional Points

Vary Regionally

LT c5 Access to Transit ≥ 1 / 2 pts. SS c3 Non Toxic Pest Control WE c2 Indoor Water Use ≥ 4 / 6 pts. EA c1 Exceed ESH v3 ≥ 15 / 29 pts. EA c4 HVAC Start-Up Credentialing EA c6 Building Orientation for Solar

Let’s Review: Rating System

Major Changes Removed Prereqs

MR 1.1 Framing Order Waste Factor Limit MR 3.1 Construction Waste Planning

Let’s Review: Rating System

Major Changes

New Prereqs

LTp1 Floodplain Avoidance WEp1 Water Metering EA p2 Energy Metering MRp2 Durability Management (ESH v3 Water Management) EQ p6 ETS (Multi-Family only) EQ p7 Compartmentalization (0.23 cfm50 / Sq. Ft.)

Let’s Review: Rating System

Major Changes Removed Credits (-21 Points)

LL 3.1 Edge Development LL 4 Existing Infrastructure SS 2.2 Basic Landscape Design WE 2 High Efficiency Irrigation System MR 1.2/1.3 Detail Framing Docs / Cut List EQ 3 Moisture Load Control EQ 7.2/.3 Better / Best Air Filters EQ 8.1 Indoor Contaminants at Construction EQ 10.2 Minimize Pollutants from Garage AE 1.2/1.3 Enhanced Training / Public Awareness AE 2 Education of the Building Manager

Rating System

Major Changes ESH V3 Related Changes (-3 pts. net)

EA p1 Includes:

EA 11.1 Refrig Charge Testing EQ 4.3 OA Testing EQ 5.3 Exhaust Testing EQ 6.1 Manual D

And Three New Credits:

EA c4 HVAC Start-Up Credentials MR p2/c1 Durability Mgmnt & Verification EQ 6.3 Air Balancing (EQ c3: 3 pts)

Rating System

Major Changes New Credits

LTc2 Bicycle Network/Storage (1 Pt.) WEc1 Total Water Use (12 Pts.) EA c3 Solar Ready Design (1 Pt.) EA c4 HVAC Start Up Credentialing (1 Pt.) EAc5 Advanced Utility Tracking (1 Pt.) IN c1 Innovation (+1 pt) RP Regional Priority (4 Pts.)

Let’s Review: Rating System

Major Changes New Credits: Low-Rise Multi-Family

Up Front Trade Training (1 Pt.) LTc5 Access to Transit (2 Pts.) EA p2 Energy Metering (every unit) EQ p6 ETS – Environmental Tabacco Smoke EQc4 Enhanced Compartmentalization (1 Pt.)

Also, applies to Attached Homes

• 4. Example Applications

Example Applications (cont’d)

High Level Comparisons

Building Type Market Location 2008 v4 Single Family Affordable Sub-Urban Gold Silver Production Sub-Urban Silver Not Certified Custom Rural Gold Certified Low-Rise Multi-Family Affordable Urban Gold Gold Market Urban Gold Silver Mid-Rise Multi-Family Affordable Urban Gold Certified Market Urban Gold Certified * V4 Certification Thresholds: 40 / 50 / 60 / 80 ** Red Text indicates more than one cert level drop. 1 2

Example Application #1

Small (Affordable) Urban Project

Prereqs 17

LT 15 Pts. SS c3 1 Pt. (Pest Control) WE c2 3 Pts. (Low Flow) EA p4 15 Pts. (10 pts Home Size; +5 pts = HERS 70) EA c4 1 Pt. (HVAC Credential, ESH) EQ c2 2 Pts. (No Fireplace) EQ c3 2 Pts. (Air-Balancing) EQ c6 2 Pts. (No Garage) Total 41 Pts. (Certified)

Example Application #2

Large (Custom) Non-Urban Project

Prereqs 17

LT 3 Pts. (Avoid Sensitive Sites) SS c3 1 Pt. (Pest Control: 2/12) WE c2 3 Pts. (Low Flow) EA p4

• 5 Pts. (-10 = Home Size, +5 = HERS 70)

EA c4 1 Pt. (HVAC Credential, ESH) EQ c2 0 Pts. (Fireplace) EQ c3 2 Pts. (Air Balancing) EQ c6 0 Pts. (Garage) Total 5 Pts. (Not Certified)

Next Steps Learn More About v4.0

Overview of LEED v 4.0

http://usgbc.peachnewmedia.com/store/seminar/seminar.php?seminar=21420

LT and SS

https://www.yammer.com/leedforhomesverificationnetwork/#/uploaded_files/165599 17?threadId=367698504

WE and MR

https://usgbc.webex.com/usgbc/ldr.php?RCID=975ff27dae4894d92…

EA

https://www.yammer.com/leedforhomesverificationnetwork/uploaded_files/17289792

EQ, IN, ID, and RP

https://www.yammer.com/leedforhomesverificationnetwork/messages/380437171?m =2254427087&nid=812902

AND, look for the Nine-Part GHI Webinar on LEED v4.0

Agenda

for GHI’s Nine Part LH v4 Workshop

Module 1

• Overview- Summary of Changes
• IP / LT
• Tools

Module 2

• SS

Module 3

• WE

Module 4

• EA – Prescriptive

Module 5

• EA - Performance

Module 6

• MR

Module 7

• EQ

Module 8

• IN / RP / AE / Process

Module 9

• Activity - Low Rise
• Activity - Mid-Rise
• Summary / Next Steps

• 5. Summary / Wrap-Up

Summary / Wrap-Up

Credit Category 2008 Removed Version 4.0

Total # Measures Same Moved Changed / Combined New Total # Measures

ID (IN) 12 1 2 5 3 2 7 LL (LT) 10 2 2 6 3 7 SS 15 2 3 5 5 5 WE 8 2 4 2 2 4 EA 25 1 5 10 5 9 MR 9 5 1 3 6 EQ 26 6 4 6 9 4 14 AE 4 2 2 2 Total 109 21 17 22 38 16 66

Summary /Wrap –Up (cont’d)

Most Beneficial Changes (Points)

LT 1-5 15 Points Available (+5 pts.) RP 1-4 Regional Priority Points (+4 pts.) EA c2 DHW Distribution (+3 pts.)

Most Challenging Changes (Extra Effort)

WE

• Min. Point Floor = 3 points (New gpm/gpf specs)

EA p1 ENERGY STAR for Homes (documentation) EA p2 MF: Submetering WE c1 Calculation Required for “Total Water Use” EA c12 Calculation Required EE Lighting

Summary / Wrap-Up (Cont’d)

Non-Urban Projects

• Min. Point Floor = 8 (LT+EA)

8 EA points (LT = 0): Single family ≤ HERS 67 (Avg Size) Low-Rise ≤ HERS 70 (w/HSA) Mid-Rise ≥ 26% Std 90.1-2010 OR Use LEED Energy Budget Approach

Thank You

Our Environment…

Understanding LEED V4 Homes Series

On Demand Webinar Series Coupon Code Available 9 GBCI (LEED H) – AIA (HSW) – NARI Green

Greenhomeinstitute.org – Education
