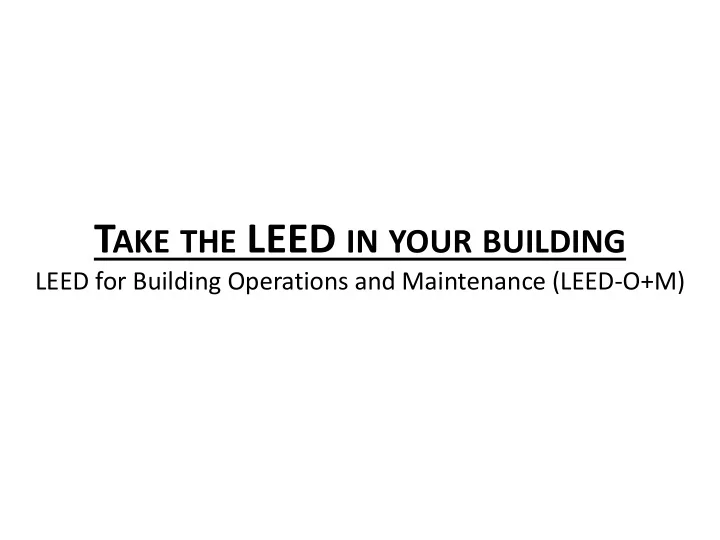

T AKE THE LEED IN YOUR BUILDING LEED for Building Operations and - - PowerPoint PPT Presentation

TAKE THE LEED IN YOUR BUILDING

LEED for Building Operations and Maintenance (LEED-O+M)

AGENDA

• Introductions
• Introduction to LEED
• Introduction to LEED-O+M
• Minimum Project Requirements
• Individual Buildings Presentations
• LEED-O+M in Detail
• Introduction Energy Star Portfolio

Manager

• Benchmarking

INTRODUCTIONS

USGBC FOUNDED IN 1993 LEEDv.1 LAUNCHED 1998 LEEDv.2 LAUNCHED 2000 LEEDv.2.1 LAUNCHED 2002 LEEDv.2.2 LAUNCHED 2005 LEEDv.3 LAUNCHED 2009 LEEDv.4 LAUNCHED 2013

EVOLUTION OF LEED

LEED CREDIT WEIGHTINGS

LEED 2009 uses the U.S. Environmental Protection Agency’s TRACI environmental impact categories as the basis for weighting each credit. TRACI was developed to assist with impact

evaluation for life-cycle assessment, industrial ecology, process design, and pollution prevention.

LEED 2009 also takes into consideration the weightings developed by the National Institute of Standards and Technology (NIST); these compare impact categories with one another and assign a relative weight to each.

+

LEED BOUNDARY

DEFINITION OF PROJECT LEED BOUNDARY

EXISTING SITE PROJECT BOUNDARY OPTION 1 PROJECT BOUNDARY GERRYMANDERING NOT ALLOWED PROJECT BOUNDARY OPTION 2

MINIMUM PROJECT REQUIREMENTS

PARTICIPANTS FACILITIES

GREEN EFFICIENT OFFICIES

ECOVISION

GREEN FORCE ECO HOUSE

GREEN FORCE

SANTA BARBARA BEACH AND GOLF RESORT

Curaçao Airport – New Terminal Building (NTB)

CURACAO AIRPORT PARTNERS & CURACAO AIRPORT HOLDING

DE RUYTERKADE 13/14 2

ARTUTRUST N.V.

FACILITY

FUNDASHON KAS POPULAR

AQUALECTRA KODELA

AQUALECTRA

PORT OFFICE

CURACAO PORTS AUTHORITY

FACILITY

COCA COLA Curacao

CAMPUS

UNIVERSITY OF THE NETHERLANDS ANTILLES

Credit Structure Format

Intent: Describes the goal of the credit in general terms. This is the basic principle for the credit existence and used as a reference when making interpretations. Requirement: Describes in detail what is required for the credit to be achieved. In this section you will find reference information, calculation requirements, and specific documentation requirements. Establishment: Describes how the credit must be implemented and monitor. This section also explains how the monitoring protocols needs to be set up and followed to comply with the credit requirements. Performance: Describes for how long the activity must be monitor and to what levels the performance must be maintained.

LEED-O+M CREDIT REVIEW

LEED CATEGORIES

LOCATION AND TRANSPORTATION SUSTAINABLE SITE WATER EFFICIENCY ENERGY & ATMOSPHERE MATERIAL & RESOURCES INDOOR ENVIRONMENTAL QUALITY INNOVATIONS IN DESIGN REGIONAL PRIORITY

Credit 1 (LTc1) Alternative Transportation (up to 15 points)

Location and Transportation (LT)

PRE-REQUISITES CREDITS NONE

Credit 1 (SSc1) Site Development-Protect or Restore Habitat (up to 2 points) Credit 2 (SSc2) Rainwater Management (2 to 3 points) Credit 3 (SSc3) Heat Island Reduction (up to 2 points) Credit 4 (SSc4) Light Pollution Reduction (1 point) Credit 5 (SSc5) Site Management (1 point) Credit 6 (SSc6) Site Improvement Plan (1 point) Credit 7 (SSc7) Joint Use of Facilities (1 point) Schools Only*

Sustainable Site

(SS)

PRE-REQUISITES CREDITS Pre-Requisite 1 (SSPr1) Site Management Policy (Required)

Credit 1 (WEc1) Outdoor Water Use Reduction (up to 2 points) Credit 2 (WEc2) Indoor Water Use Reduction (up to 5 points) Credit 3 (WEc3) Cooling Tower Water Use (2 to 4 points) Credit 4 (WEc4) Water Metering (up to 2 point)

Water Efficiency

(WE)

PRE-REQUISITES CREDITS Pre-Requisite 1 (WEPr1) Indoor Water Use Reduction (Required) Pre-Requisite 2 (WEPr2) Building-Level Water Metering (Required)

Credit 1 (EAc1) Existing Building Commissioning— Analysis (2 points) Credit 2 (EAc2) Existing Building Commissioning—Implementation (2 points) Credit 3 (EAc3) Ongoing Commissioning (3 points) Credit 4 (EAc4) Optimize Energy Performance (up to 20 point) Credit 5 (EAc5) Advanced Energy Metering (2 points) Credit 6 (EAc6) Demand Response (up to 3 points) Credit 7 (EAc7) Renewable Energy and Carbon Offsets (up to 5 points) Credit 8 (EAc8) Enhanced Refrigerant Management (1 point)

Energy & Atmosphere

(EA)

PRE-REQUISITES CREDITS

Pre-Requisite 1 (EAPr1) Energy Efficiency Best Management Practices (Required) Pre-Requisite 2 (EAPr2) Minimum Energy Performance (Required) Pre-Requisite 3 (EAPr3) Building-Level Energy Metering (Required) Pre-Requisite 4 (EAPr4) Fundamental Refrigerant Management (Required)

Credit 1 (MRc1) Purchasing- Ongoing (1 points) Credit 2 (MRc2) Purchasing- Facility Management and Renovation (up to 2 points) Credit 3 (MRc3) Purchasing- Lamps (1 points) Credit 4 (MRc4) Solid Waste Management- Ongoing (2 point) Credit 5 (MRc5) Solid Waste Management- Facility Management and Renovation (2 points)

Materials & Resources

(MR)

PRE-REQUISITES CREDITS Pre-Requisite 1 (MRPr1) Ongoing Purchasing and Waste Policy (Required) Pre-Requisite 2 (MRPr2) Facility Maintenance and Renovations Policy (Required)

Credit 1 (EQc1) Indoor Air Quality Management Program (2 points) Credit 2 (EQc2) Enhanced Indoor Air Quality Strategies (up to 2 points) Credit 3 (EQc3) Thermal Comfort (1 points) Credit 4 (EQc4) Interior Lighting (up to 2 point) Credit 5 (EQc5) Daylight and Quality Views (2 to 4 points) Credit 6 (EQc6) Green Cleaning- Custodial Effectiveness Assessment (1 points) Credit 7 (EQc7) Green Cleaning- Products and Materials (1 points) Credit 8 (EQc8) Green Cleaning- Equipment (1 points) Credit 9 (EQc9) Integrated Pest Management (2 point) Credit 10 (EQc10) Occupant Comfort Survey (1 points)

Indoor Environmental Quality

(EQ)

PRE-REQUISITES CREDITS Pre-Requisite 1 (EQPr1) Minimum Indoor Air Quality Performance (Required) Pre-Requisite 2 (EQPr2) Environmental Tobacco Smoke Control (Required) Pre-Requisite 3 (EQPr3) Green Cleaning Policy (Required)

Credit 1 (EQc1) Innovation (up to 5 points) Credit 2 (EQc2) LEED Accredited Professional (1 points)

Innovation & Design Process

(ID)

PRE-REQUISITES CREDITS NONE

Credit 1 (RPc1) Innovation (up to 5 points)

Regional Priority

(RP)

PRE-REQUISITES CREDITS NONE
