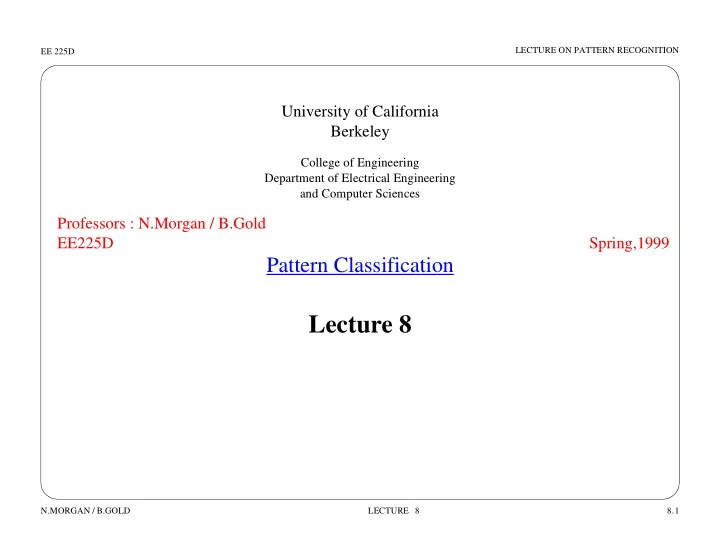

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.1 LECTURE ON PATTERN RECOGNITION

University of California Berkeley

College of Engineering Department of Electrical Engineering and Computer Sciences

Professors : N.Morgan / B.Gold EE225D Spring,1999

Pattern Classification

Lecture 8

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.2 LECTURE ON PATTERN RECOGNITION

Speech Pattern Recognition

• Soft pattern classification plus temporal sequence

integration

• Supervised pattern classification: class labels used

in training

• Unsupervised pattern classification: class labels not

available or used

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.3 LECTURE ON PATTERN RECOGNITION

Feature Extraction Pattern Feature Vector Classification x1 x2 xd 1 k K < ≤ ωk

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.4 LECTURE ON PATTERN RECOGNITION

• Training: learning parameters of classifier
• Testing: classify independent test set, compare with

labels and score

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.5 LECTURE ON PATTERN RECOGNITION

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.6 LECTURE ON PATTERN RECOGNITION

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.7 LECTURE ON PATTERN RECOGNITION

Feature Extraction Criteria

• Class discrimination
• Generalization
• Parsimony (efficiency)

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.8 LECTURE ON PATTERN RECOGNITION

plosive + vowel energies for 2 different gains t E t) ( ) t E t ( )

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.9 LECTURE ON PATTERN RECOGNITION

t ∂ ∂ CE t ( ) log t ∂ ∂ C log E t ( ) log + ( ) = t ∂ ∂ E t ( ) log =

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.10 LECTURE ON PATTERN RECOGNITION

Feature Vector Size

• Best representations for discrimination on training

set are large (highly dimensioned)

• Best representations for generalization to test set are

(typically) succinct)

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.11 LECTURE ON PATTERN RECOGNITION

Dimensionality Reduction

• Principal components (i.e., SVD, KL transform,

eigenanalysis ...)

• Linear Discriminant Analysis (LDA)
• Application-specific knowledge
• Feature Selection via PR Evaluation

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.12 LECTURE ON PATTERN RECOGNITION

x x x x x x x x

• f1

f2

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.13 LECTURE ON PATTERN RECOGNITION

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.14 LECTURE ON PATTERN RECOGNITION

PR Methods

• Minimum Distance
• Discriminant Functions
• Linear Discriminant
• Nonlinear Discriminant

(e.g, quadratic, neural networks)

• Statistical Discriminant Functions

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.15 LECTURE ON PATTERN RECOGNITION

Minimum Distance

• Vector or matrix representing element
• Define a distance function
• Choose the class of stored element closest to new

input

• Choice of distance equivalent to implicit statistical

assumptions

• For speech, temporal variability complicates this

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.16 LECTURE ON PATTERN RECOGNITION

zi template vector (prototype) = x input vector = Choose i to minimize distance argimin x zi – ( )

T x

zi – ( ) argimin x zi – ( )

T x

zi – ( ) argimin x

Tx

zi

Tzi

2x

Tzi

– + ( ) = = argimax zi

Tzi

2x

Tzi

– 2 –

• 

   argimax x

Tzi

1 2

• zi

Tzi

–     = If zi

Tzi

1 for all i = argimax x

Tzi

( ) ⇒

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.17 LECTURE ON PATTERN RECOGNITION

Problems with Min Distance

• Proper scaling of dimensions (size, discrimination)
• For high dim, sparsely sampled space

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.18 LECTURE ON PATTERN RECOGNITION

Decision Rule for Min Distance

• Nearest Neighbor (NN) - in the limit of infinite

samples, at most twice the error of optimum classifier

• k-Nearest Neighbor (kNN)
• Lots of storage for large problems; potentially large

searches

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.19 LECTURE ON PATTERN RECOGNITION

Some Opinions

• Better to throw away bad data than to reduce its

weight

• Dimensionality-reduction based on variance often a

bad choice for supervised pattern recognition

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.20 LECTURE ON PATTERN RECOGNITION

Discriminant Analysis

• Discriminant functions max for correct class, min

for others

• Decision surface between classes
• Linear decision surface for 2-dim is line, for 3 is

plane; generally called hyperplane

• For 2 classes, surface at
• 2-class quadratic case, surface at

ω ω ω ωTx ω ω ω ω0 + = xTWx ω ω ω ωTx ω ω ω ω0 + + =

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.21 LECTURE ON PATTERN RECOGNITION

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.22 LECTURE ON PATTERN RECOGNITION

Training Discriminant Functions

• Minimum distance
• Fisher linear discriminant
• Gradient learning

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.23 LECTURE ON PATTERN RECOGNITION

Generalized Discriminators - ANNs

• McCulloch Pitts neural model
• Rosenblatt Perceptron
• Multilayer Systems

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.24 LECTURE ON PATTERN RECOGNITION

The Perceptron

McCulloch-Pitts Neuron - Rosenblatt Perceptron + xd x2 x1 yo bias wd w2 w1

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.25 LECTURE ON PATTERN RECOGNITION

Perceptron Convergence

If classes are linearly separable the following rule will converge in a finite number of steps : For each pattern x at time step k; if x k ( ) class 1, ωT k ( )x k ( ) ≤ ∈ ω k 1 + ( ) = ω k ( ) cx k ( ) + ⇒ x k ( ) class 2, ωT k ( )x k ( ) ≥ ∈ ω k 1 + ( ) = ω k ( ) cx k ( ) – ⇒       else ω k 1 + ( ) = ""ω k ( )     

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.26 LECTURE ON PATTERN RECOGNITION

Multilayer Perceptrons

• Heterogeneous, “hard” nonlinearity :(DAID, 1961)
• Homogeneous, “soft” nonlinearity

(“modern” MLP)

I/O Perceptron

• Gaus. class

subsets feature

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.27 LECTURE ON PATTERN RECOGNITION

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.28 LECTURE ON PATTERN RECOGNITION

y f y ( ) f y ( ) 1 1 e y

–

+

• (sigmoid)

= f y ( ) 1 < <

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.29 LECTURE ON PATTERN RECOGNITION

EE 225D N.MORGAN / B.GOLD LECTURE 8 8.30 LECTURE ON PATTERN RECOGNITION

Some PR Issues

• Testing on the training set
• Training on the test set
• No. parameters vs no. training examples: overfitting

and overtraining
