PAGE 1 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

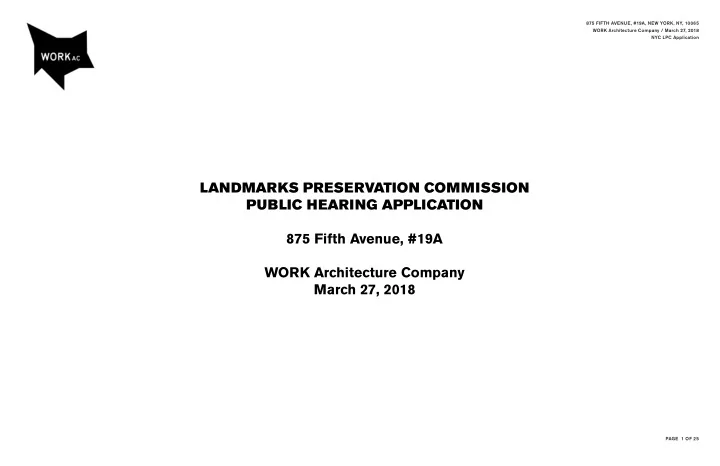

LANDMARKS PRESERVATION COMMISSION PUBLIC HEARING APPLICATION 875 Fifth Avenue, #19A WORK Architecture Company March 27, 2018

PAGE 2 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

N

SHEET INDEX

E 69TH. ST.

PLOT PLAN

M A D I S O N A V E . F I F T H A V E . E 68TH. ST.

ALL WORK OF THIS APPLICATION OCCURS ON 19TH FLOOR OF 875 FIFTH AVENUE, MANHATTAN, NY, 10065 BLOCK: 1383 LOT: 69 MAP: 8C ZONING DISTRICT: R10; R8B BIN#: 1041288

SITE LOCATION Plot Plan

PAGE 3 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

Fifth Ave & E 69th St 1st Setback 19th Floor 2nd Setback

PAGE 4 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

HISTORIC PHOTOGRAPH 1949 Archives of Museum of the City of New York. Asset title: Fifth Avenue between 68th and 69th Street. Group view of three new apartments. This window has been enlarged Dividing wall matches existing condition Awnings

PAGE 5 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

HISTORIC (1949) AND CURRENT ELEVATION

ENLARGED WINDOW SOLARIUM ENCLOSURE METAL GUARDRAIL

Existing Elevation Historic Elevation (1949)

PAGE 6 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

PROJECT SCOPE

1

1 2

Enlarged Window opening (behind) A - A - B - B - C - West Terrace (Fifth Avenue) Solarium (69th Street) Replacement of Existing Solarium enclosure with new Glass Solarium Replacement of existing metal Guardrail at solarium with new Guardrail to match historic Replacement of existing trellis with New Retractable Fabric Awning Replacement of two existing HVAC units with new HVAC Condensing Unit (behind) with operable green screen enclosure

2

4’-5” 4’-5” 7’-1”

PAGE 7 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

WEST TERRACE - EXISTING AXONOMETRIC Wooden Trellis HVAC Condensing Unit

PAGE 8 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

WEST TERRACE - EXISTING PHOTOS

12/2017 12/2017

Photo of terrace at North Photo of terrace at South

Trellis and attachment structure to be removed HVAC units and wooden enclosure to be removed

12/2017

New Door within existing opening Proposed opening for new window

PAGE 9 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

WEST TERRACE - PROPOSED AXONOMETRIC 1 Enlarged Window opening New Retractable Fabric Awning A - C - B -

21’-1” 8’-1” 7’-1” 5’-2” 2’-11” 6’-0”

New HVAC Condensing Unit within green screen enclosure

PAGE 10 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

WEST TERRACE - PROPOSED ELEVATION 1 Enlarged Window opening A - C - B - New Retractable Fabric Awning (under overhang) New HVAC Condensing Unit within green screen enclosure

PAGE 11 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

WEST TERRACE - PROPOSED RENDERING

PAGE 12 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

WEST TERRACE - PROPOSED RENDERING

PAGE 13 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

PHOTOS OF FIFTH AVE. FACADE From across Fifth Avenue; 108 ft Southwest Corner from Fifth Avenue; 300 ft

1 2

S T R E E T L I N E

Key Plan

N

1 2

Southwest Corner from Fifth Avenue Across Fifth Avenue

2 1 03/2018 03/2018 03/2018

PAGE 14 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

From Central Park; 421 ft From Central Park; 421 ft From Central Park; 800 ft From Central Park; 800 ft

3 3 4 4

PHOTOS OF FIFTH AVE. FACADE Key Plan

3 4 03/2018 03/2018

PAGE 15 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

Proximity Radius - 300ft PHOTOS OF 69TH ST. FACADE Key Plan

5 6

Northwest Corner from Central Park North Facade from E 69th St.

5 6 03/2018 03/2018

PAGE 16 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

Northwest Corner from Fifth Ave Northwest Corner from Central Park Proximity Radius - 300ft; 800 ft PHOTOS OF 69TH ST. FACADE Key Plan

7 8 7 8 03/2018 03/2018

PAGE 17 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

SOLARIUM / 69TH STREET - EXISTING PHOTOS

06/2017 03/2018

PAGE 18 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

SOLARIUM /69TH STREET AXONOMETRIC Existing Enclosure and Metal Guardrail Proposed Enclosure and Glass Guardrail 2

PAGE 19 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

+3'-9" (TOP OF RAILING) 0'-0" (19TH FLOOR) +11'-1" (PENTHOUSE)

• 9'10" (18TH FLOOR)

A - New Glass Solarium B - New Glass Guardrail to match historic Existing Elevation Proposed Elevation SOLARIUM / 69TH STREET ELEVATION 2

PAGE 20 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

PROPOSED SOLARIUM ENCLOSURE RENDERING

PAGE 21 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

MATERIAL PALETTE

Guardrail Glass Clear, Tempered 1/4” Thick Frit Gradient Pattern At Solarium Glass up to +4’-0” A.F.F Guardrail Frame Color Beige Matching historic appearance Lighting Fixture Artistar by B-K Lighting Finish BGE Beige Awning Case K-300 by FutureGuard Finish Sand Existing Facade Brick Color Beige Existing Parapet Warm Grey Stone Solarium Frame Color Warm Light Grey Terrace Pavers Madras Stone Grey Sandblasted Windows frame Finish Dark Bronze Annodized Greenscreen HVAC Enclosure Finish Wrinkle Green Insulated Glass Clear Double Pane

PAGE 22 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

RENDERING FROM PUBLIC THOROUGHFARE Existing Solarium Enclosure Proposed Solarium Enclosure

03/2018 03/2018

PAGE 23 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

2 1/2" 4" 2 " K E E P CLEAR 5 1 / 2 " 2 1/2" 4" 2" KEEP CLEAR 4 1 / 2 " 2 1 / 2 " 4 " 2" KEEP CLEAR 4 1 / 2 "

1 TERRACE FACADE

3" = 1'-0"

TERRACE FACADE DETAILS

A-027.00

Banga Residence

875 5TH

WORK Architecture Company, PLLC

Plus Group CE, PLLC

02/28/2018

Robert Silman Associates

CCBS CONSULTING

Tillotson Design Associates

Ritu Banga and Ajaypal Banga

Werner Sobek New York Corp.

Town and Gardens, LTD.

2 SECTION THROUGH FIXED WINDOW AT LIVING ROOM

3" = 1'-0"

3 SECTION THROUGH OPERABLE DOOR AT LIVING ROOM

3" = 1'-0"

4 SECTION THROUGH OPERABLE DOOR AT DINING ROOM

3" = 1'-0"

+0'-2 3/8" (A.F.F) GL-5 EXISTING MASONRY WALL 1" INSULATED TEMPERED GLASS STO-4 5/8" GWB ONYX-2 5/8" DURAROCK CEMENT BOARD PLAS-2 +7'-5" (A.F.F) STO-4 TZ-1 5/8" DURAROCK CEMENT BOARD BASE PANEL FOR RADIATOR ACCESS +0'-7" (A.F.F) +0'-0" (A.F.F) ELECTRIC HEATER,

• REF. MECH. DWG.

1" CEILING SLOT DIFFUSER SIDE CHANNEL 1/8" HEAT SHEILD ALUMINUM FLASING WATERPROOFING SHIMING SILICONE BACKER ROD ANODIZED ALUMINUM FIXED FRAME ANODIZED ALUMINUM FRAME FRAME FIXING ANODIZED ALUMINUM GLASS STOPPER FOR INTERIOR ACCESS ANODIZED ALUMINUM FIXED FRAME ANODIZED ALUMINUM GLASS STOPPER FOR INTERIOR ACCESS ANODIZED ALUMINUM OPERABLE FRAME FRAME FIXING ALUMINUM FLASHING +0'-2 3/8" (A.F.F) GL-5 1" INSULATED TEMPERED GLASS ALUMINUM FLASING SLOPED ALUMINUM PAN WATERPROOFING SHIMING WEEP HOLE ANODIZED ALUMINUM FRAME FRAME FIXING ANODIZED ALUMINUM FIXED FRAME ANODIZED ALUMINUM GLASS STOPPER FOR INTERIOR ACCESS ANODIZED ALUMINUM OPERABLE FRAME FRAME FIXING ALUMINUM FLASHING 20 +0'-7" (A.F.F) SILICONE BACKER ROD ANODIZED ALUMINUM FIXED FRAME ANODIZED ALUMINUM GLASS STOPPER FOR INTERIOR ACCESS TZ-1 +0'-0" (A.F.F) ELECTRIC HEATER,

• REF. MECH. DWG.

TZ-1 PLAS-2 5/8" GWB LUTRON ROLLER SHADES - DUAL BRACKET SIDE CHANNEL +0'-2 3/8" (A.F.F) +0'-7" (A.F.F) TZ-1 CEMENT BOARD +0'-0" (A.F.F) ELECTRIC HEATER,

• REF. MECH. DWG.

TZ-1 1/8" HEAT SHEILD PLAS-2 5/8" GWB LUTRON ROLLER SHADES - DUAL BRACKET SIDE CHANNEL GL-5 1" INSULATED TEMPERED GLASS ALUMINUM FLASING SLOPED ALUMINUM PAN WATERPROOFING SHIMING WEEP HOLE FRAME FIXING ANODIZED ALUMINUM FIXED FRAME FRAME FIXING ALUMINUM FLASHING SILICONE BACKER ROD ANODIZED ALUMINUM FIXED FRAME ANODIZED ALUMINUM GLASS STOPPER FOR EXTERIOR ACCESS ANODIZED ALUMINUM GLASS STOPPER FOR EXTERIOR ACCESS EXISTING MASONRY WALL WET SEAL WITH WEEP HOLE ALUMINUM FLASHING SILICONE AND BACKER ROD ANODIZED ALUMINUM OPERABLE FRAME SILICONE AND BACKER ROD ANODIZED ALUMINUM GLASS STOPPER FOR INT. ACCESS ANODIZED ALUMINUM FIXED FRAME WATERPROOFING MEMBRANE 5/8" GWB CONCRETE BOARD ANODIZED ALUMINUM OPERABLE FRAME ANODIZED ALUMINUM INTERMEDIATE FRAME ANODIZED ALUMINUM GLASS STOPPER FOR EXTERIOR ACCESS ANODIZED ALUMINUM INTERMEDIATE FIXED FRAME ANODIZED ALUMINUM GLASS STOPPER FOR INTERIOR ACCESS WET SEAL WITH WEEP HOLE ALUMINUM FLASHING SILICONE AND BACKER ROD ANODIZED ALUMINUM OPERABLE FRAME SILICONE AND BACKER ROD ANODIZED ALUMINUM GLASS STOPPER FOR INT. ACCESS ANODIZED ALUMINUM FIXED FRAME ALUMINUM FLASHING WET SEAL WITH WEEP HOLE ANODIZED ALUMINUM OPERABLE FRAME ANODIZED ALUMINUM STOPPER FOR EXTERIOR ACCESS FRAME FIXING ANODIZED ALUMINUM FIXED FRAME SILICONE AND BACKER ROD ALIGN STO-4 SIDE CHANNEL WATER PROOFING SIDE CHANNEL 20 TZ-1 3/8" LATICRETE 254 THINSET PLASTER TO AND FILL AT 45° CORNER BEAD SHIM AS REQD. PT-1 3/4" +8'-4" (A.F.F) +7'-5" (A.F.F) +8'-4" (A.F.F) +7'-5" (A.F.F) BASE PANEL FOR RADIATOR ACCESS CEMENT BOARD 1/8" HEAT SHEILD BASE PANEL FOR RADIATOR ACCESS 3/8" LATICRETE 254 THINSET 12" V.I.F. +8'-4" (A.F.F) EXISTING TERRACOTA BLOCKS TO REMAIN 8" 5" MIN CLEAR 8" MIN CLEAR 8" 5" MIN CLEAR 8" MIN CLEAR 8" 5" MIN CLEAR PLAS-2 STO-4 CEMENT BOARD 3'-0" V.I.F 1'-1" V.I.F 4'-9 1/2" V.I.F 10'-2 1/2" V.I.F 1'-1" V.I.F 5/8" GWB 7 1/2" V.I.F ALIGN 1" 1" 1" LINE OF COLUMN BEYOND EXISTING EXTERIOR BRICKWORK TO REMAIN LINE OF COLUMN BEYOND EXISTING CONCRETE SLAB EXISTING CONCRETE SLAB EXISTING CONCRETE SLAB EXISTING EXTERIOR BRICKWORK TO REMAIN EXISTING EXTERIOR BRICKWORK TO REMAIN EXISTING TERRACOTA BLOCKS TO REMAIN EXISTING TERRACOTA BLOCKS TO REMAIN EXISTING CONCRETE SLAB EXISTING CONCRETE SLAB EXISTING CONCRETE SLAB EXISTING MASONRY WALL EXISTING MASONRY WALL SIDE CHANNEL ISOLATION STRIP 5" 5" V.I.F EXISTING COLUMN TO REMAIN 1'-9" V.I.F 8" MIN CLEAR W.P MEMBRANE W.P MEMBRANE EXISTING COLUMN TO REMAIN EXISTING COLUMN TO REMAIN BASE BRACKET BELOW & ABOVE; TYP. CONTINUOUS L PROFILE, 3"X3"X1/2" 1/2" 3" 3" *NOTE : CONTINUOUS STEEL L PROFILE 3"X3"X1/2" ATTACHED AT THE BOTTOM TO THE EXISTING CONCRETE SLAB AND AT THE TOP, WITH A VERTICALLY SLOTTED CONNECTION TO THE LINTEL RUNNING CONTINUOUSLY ALONG THE LENGTH OF THE OPENING. EXISTING TERRACOTA BLOCKS TO REMAIN EXISTING TERRACOTA BLOCKS TO REMAIN TITUS CT 480 LINEAR BAR GRILLE TYPE 6 WITH CORE CLIP; #26 WHITE STANDARD FINISH; TYP. 30 SQ.IN. OF FREE AREA PER LINEAR FOOT TITUS CT 480 LINEAR BAR GRILLE TYPE 6 WITH CORE CLIP; #26 WHITE STANDARD FINISH; TYP. TITUS CT 480 LINEAR BAR GRILLE TYPE 6 WITH CORE CLIP; #26 WHITE STANDARD FINISH; TYP. ALUMINUM SILL PAN WITH SOLDERED END DAMS AND UPTURNED LEG AT THE BOTTOM, TIED TO JAMB WATERPROOFING, TYP. BACKER ROD AND URETHANE CAULK WITH 2 1/4" WEEP HOLES AT 1/4 POINTS ON SILL. & FILL W/ SPONGE TO PREVENT INFILTRATION, TYP. 2" 2" GRACE PERM-A-BARRIER WALL 400 WATERPROOFING MEMBRANE OVER LIQUID MEMBRANE; EXTENDS 2" INTO

• INT. FACE, TYP.

2" GRACE PERM-A-BARRIER WALL 400 WATERPROOFING MEMBRANE OVER LIQUID MEMBRANE; EXTENDS 2" INTO INT. FACE; TIED INTO SILL WATERPROOFING 4 1/2" 8" WALL MOUNTED SPEAKER 4HR-RATED INTUMESCENT COATING BY HILTI / FIRE FINISH CFP-SP WB BXUV.Y633 4HR-RATED INTUMESCENT COATING BY HILTI / FIRE FINISH CFP-SP WB BXUV.Y633 PARGE MASONRY OPENING ALL AROUND AND APPLY VAPOR PERM-A-BARRIER LIQUID MEMBRANE OR PROCTOR 20 MEMBRANE C L GRACE PERM-A-BARRIER WALL 400 WATERPROOFING MEMBRANE OVER LIQUID MEMBRANE; EXTENDS 2" INTO

• INT. FACE; TIED INTO SILL WATERPROOFING

GRACE PERM-A-BARRIER WALL 400 WATERPROOFING MEMBRANE OVER LIQUID MEMBRANE; EXTENDS 2" INTO INT. FACE; TIED INTO SILL WATERPROOFING 2" GRACE PERM-A-BARRIER WALL 400 WATERPROOFING MEMBRANE OVER LIQUID MEMBRANE; EXTENDS 2" INTO

• INT. FACE, TYP.

PARGE MASONRY OPENING ALL AROUND AND APPLY VAPOR PERM-A-BARRIER LIQUID MEMBRANE OR PROCTOR 20 MEMBRANE 2" GRACE PERM-A-BARRIER WALL 400 WATERPROOFING MEMBRANE OVER LIQUID MEMBRANE; EXTENDS 2" INTO

• INT. FACE, TYP.

PARGE MASONRY OPENING ALL AROUND AND APPLY VAPOR PERM-A-BARRIER LIQUID MEMBRANE OR PROCTOR 20 MEMBRANE LUTRON ROLLER SHADES - DUAL BRACKET 4" SUPPLY DUCT 7" SUPPLY AIR PLENUM

NEW FIXED WINDOW & DOOR DETAILS

PAGE 24 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

" 1 1

• '

1 1'-1" F . I . V " 7

• '

1 F . I . V " 1 1

• '

4 F . I . V " 1 1

• '

2 2'-6" V.I.F " 1

• '

5 6'-0" 6" 10" 3"

1 SETION AT FIXED WINDOW

1" = 1'-0"

EXTERIOR DETAILS

A-402.00

Banga Residence

875 5TH

WORK Architecture Company, PLLC

Plus Group CE, PLLC

02/28/2018

Robert Silman Associates

CCBS CONSULTING

Tillotson Design Associates

Ritu Banga and Ajaypal Banga

Werner Sobek New York Corp.

Town and Gardens, LTD.

2 SECTION AT BALCONY

1" = 1'-0"

4 SOLARIUM PLAN

1" = 1'-0"

6 SOLARIUM AXO

3/4" = 1'-0"

5 SOLARIUM ROOF PLAN

1" = 1'-0"

NEW SS SUPPORT TUBE AND PLATE; REF. STRUCTURAL DWG NEW FULLY CASSETTED RETRACTABLE FABRIC AWNING; K-300 BY FUTURE GUARD; ATTACHMENT BRACKET SUPPLIED BY MANUFACTURER; COORDINATE HOLES AMOUNT/ LOCATION IN SS PLATE W/ ATTACHMENT BRACKET +8'-1" A.F.F +9'-2" A.F.F +8'-1 1/2" A.F.F

3 GUARDRAIL SECTION AT POST

3" = 1'-0"

STO-7 1" STONE ALUMINUM PAN RADIANT HEATING CABLES RIGID INSULATION ALUMINUM BRACKET WATER PROOFING MEMBRANE; KEMPEROL 2K PUR WITH 165 FLEECE ON KEMPEROL EP/EP5 PRIMER 1/8" DRAINAGE MAT 1/2" DIA. IRRIGATION PIPE 1/2" CONCRETE TOPPING GENIEMAT RST 10 SOUND INSULATION MAT 3/4" MIN CLEAR CONCRETE SLAB +2'-3/8" A.F.F RECAULK THE JOINT; COLOR TO MATCH EXISTING PARAPET COLOR REFURBISH EXISTING GUARDRAIL FRAMES AND POST; PAINT TO MATCH EXISTING PEDESTAL NEW FLASHING FILTER FABRIC 1" RIGID INSULATION (XPS) FROST PROOF SPIGOT; REF. PLUMBING DWG 1 1/2" DEEP J BOX +2 3/8" A.F.F NEW DRAIN AT EXISTING LOCATION +9'-5" A.F.F BOTTOM OF SLAB OVERHANG +8'-8" A.F.F TOP OF SOLARIUM 2'-5" +6'-6" A.F.F 3'-0" +1'-6" A.F.F +4'-0" A.F.F END OF PATTERN FRITTED GLASS; COORDINATE PATTERN WITH ARCHITECT 80% OPAQUE TO CLEAR 1'-6" 2'-0" STORAGE UNDER SEAT STEEL PROFILE LINE OF OVERHANG FIXED CURVED WINDOW FRITTED GLASS FIXED GLASS WINDOW EXISTING DRAIN OPENING TILT AND TURN WINDOW EXISTING DIVIDING WALL NEW FLASHING C L NEW GUARDRAIL TO MATCH HISTORIC SLOPE APPROX 24 DEGREES SLOPE APPROX 24 DEGREES

TERRACE & SOLARIUM DETAILS

PAGE 25 OF 25 875 FIFTH AVENUE, #19A, NEW YORK, NY, 10065 WORK Architecture Company / March 27, 2018 NYC LPC Application

2 PLAN DETAILS

3" = 1'-0"

EXTERIOR DETAILS

A-403.00

Banga Residence

875 5TH

WORK Architecture Company, PLLC

Plus Group CE, PLLC

02/28/2018

Robert Silman Associates

CCBS CONSULTING

Tillotson Design Associates

Ritu Banga and Ajaypal Banga

Werner Sobek New York Corp.

Town and Gardens, LTD.

3 SECTION DETAILS AT OPERABLE WINDOW

3" = 1'-0"

1 SECTION DETAILS AT FIXED WINDOW

3" = 1'-0"

7 SECTION @ EXT MASONRY WALL

3" = 1'-0"

A

GASKET PAINTED STEEL PROFILE WITH PLASTIC SPACER BOLTED CONNECTION SILICON AND BACKER ROD ANODIZED ALUMINUM PRESSURE PLATE ALUMINUM FLASHING 11MM TEMPERED GLASS 14MM INTERSPACE LAMINATED GLASS 5+5 SILICONE AND BACKER ROD PAINTED STEEL PROFILE WITH PLASTIC SPACER GASKET STEEL BRACKET PAINTED ALUMINUM FLASHING STEEL PAINTED PROFILE WITH PLASTIC SPACER ANODIZED ALUMINUM PRESSURE CAP SILICONE AND BACKER ROD GASKET STEEL PAINTED PROFILE WITH BOLTED CONNECTION PAINTED ALUMINUM FLASHING WET SEAL SILKSCREENED GLASS PAINTED STEEL PROFILE INSULATION SILICONE AND BACKER ROD PAINTED STEEL PROFILE WITH PLASTIC SPACER SILKSCREENED GLASS PAINTED STEEL PROFILE INSULATION SILICONE AND BACKER ROD PAINTED STEEL PROFILE WITH PLASTIC SPACER PAINTED STEEL OPERABLE PROFILE ALUMINUM FLASHING PAINTED STEEL PROFILE RIGID INSULATION ALUMINUM FLASHING PAINTED STEEL PROFILE INSULATION WATER PROOFING STEEL BRACKET WITH BOLTED CONNECTION BACKING BOARD HEAT SHIELD WATER PROOFING MEMBRANE; KEMPEROL 2K PUR WITH 165 FLEECE ON KEMPEROL EP/EP5 PRIMER WATERPROOFING MEMBRANE SEAL SILICONE AND BACKER ROD SHIMMING ALUMINIUM FLASHING INSULATOR BLOCK WET SEAL SHIMMING STEEL C PROFILE (BRACKET) STEEL BRACKET WITH BOLTED CONNECTION

5 SECTION @

• EXT. MASONRY WALL

3" = 1'-0"

4 SECTION AT SOLARIUM HEADER

3" = 1'-0"

EXISTING EXTERIOR MASONRY WALL WET SEAL INSULATOR BLOCK ALUMINUM FLASHING EXTERIOR BRICK MASONRY WALL 2 1/2" 3" MIN CLEAR 6"-7 1/2", VARIES PER SLOPE EXISTING CONCRETE TOPPING SLAB EXISTING CONCRETE SLAB STEEL PROFILES CONCRETE CURB ALUMINUM FLASHING 6" 3/4" PLYWOOD 3/4" FINISH WOOD SEAT CUSHION

6 PLAN DETAIL AT CURVED SEGMENT

3" = 1'-0"

B

SPIGOT LAMINATED GLASS 5+5 14MM INTERSPACE 11MM TEMPERED GLASS SEAT CUSHION 5/8" GWB 3/4" PLYWOOD 1/4" BACKPAINTED GLASS BLOCKING AS REQD. WATERPROOFING MEMBRANE SHIMMING STEEL BRACKET INSULATOR BLOCK +8'-1 1/2" A.F.F PT-3 TILT & TURN WINDOW FIXED GLASS WINDOW EXISTING EXTERIOR DIVIDING WALL NEW MASONRY INFILL +7'-2" A.F.F + 7-10" A.F.F + 7-10" A.F.F VARIES RADIATOR GRILLE LINE OF SEATING 3 3/4" ELECTRIC RADIATOR, REF.

• MECH. DWG.

ANODIZED ALUMINUM PRESSURE PLATE ALUMINUM FLASHING WATERPROOFING MEMBRANE CONCRETE SLAB 2'-2" LINE OF SEATING 3 3/4" 4" ALIGN VAPOR BARRIER C L AA GRILLES AAG110 A FRAME GRILLE WITH RAL 9016 FINISH

SOLARIUM DETAILS
