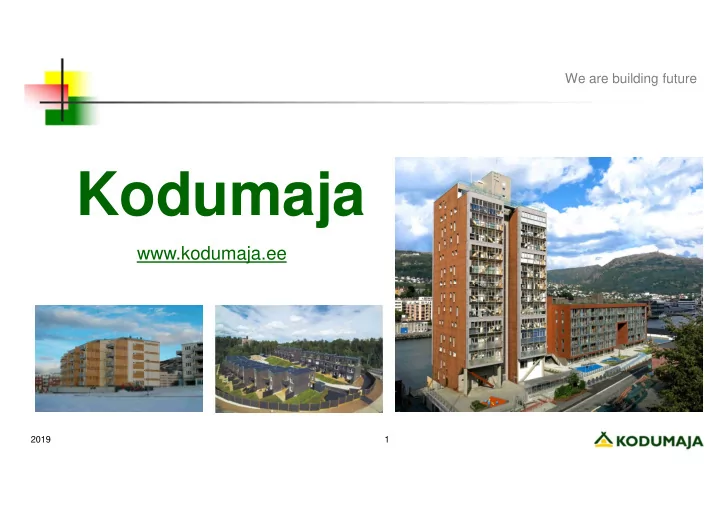

Kodumaja www.kodumaja.ee 2019 1 What does Kodumaja mean ? - - PowerPoint PPT Presentation
We are building future Kodumaja www.kodumaja.ee 2019 1 What does Kodumaja mean ? Kodumaja name of trademark - group of the companies who are acting under the trademark Kodumaja often used when talking about specific company
2019 1
We are building future
www.kodumaja.ee
2019 2
What does Kodumaja mean ?
companies
2019 3
Group of companies connected to Kodumaja
2019 4
Main field of activity
Design and construction of prefabricated wooden frame buildings
Kodumaja companies produces and builds mainly:
(houses with 4 – 6 apartments, row houses, standard double houses and standard private dwellings designed usually in cooperation with the customer)
and if capacity is available then also
2019 5
History
Kodumaja history
floors, 52,8 m high) More detailed overview: http://www.kodumaja.ee/en/Introduction/History-of-Kodumaja
2019 6
Multi-storey apartement building in Norway – on 14 floors
World’s tallest wooden structure multi-storey house „Treet“ - 2015 14 floors, 52,8 m Bergen, Norway
2019 7
Group of multi-storey apartement buildings in Norway – 5 floors
2019 8
Multi-storey apartment building in Norway – 5 floors
2019 9
Multi – storey apartement building in Norway – on 5 floors
2019 10
Multi-storey apartment building in Sweden – 5 floors
2019 11
Group of multi-storey apartment buildings in Norway – 5 floors
2019 12
Group of apartment buildings in Norway – on 3 – 4 floors
2019 13
Assisted living apartments in Sweden – 4 floors
2019 14
Assisted living apartments in Sweden – 5 floors
2019 15
Group of multi-storey apartment buildings in Norway – 4 floors
2019 16
Multi-storey apartment building in Norway – 2 floors
2019 17
Building of student apartments in Norway – on 4 floors
2019 18
Assisted living for people with physical and mental disabilities in Denmark – on 3 – 4 floors
2019 19
Multi-storey apartment building in Norway – 4 floors
2019 20
Multi-storey apartment building in Norway – 4 floors
2019 21
Multi-storey apartment building in Norway – 3 floors
2019 22
Markets of Kodumaja and built living units for permanent living (as of 31.12.2018)
Norway 6 441 Sweden 432 Denmark 361 Finland 116 Estonia 268 Other countries 17
TOTAL: 7 632
23
As of 31.12.2018 Kodumaja companies have built apartments in 5 and more storey apartment buildings 1 610 apartments in 4 storey apartment buildings 1 638 apartments in 2 – 3 storey apartment buildings 2 673 apartments in small houses (double and row houses) 970 private dwellings and Norwegian holiday homes (Norske Hytta) 274 assisted living apartments for elderly people and people with disabilities 263 hotel rooms in hotels 180 modular room sections for schools and office buildings 102 modular room sections for building the site premises 35
2019
2019 24
Sales geography and division of turnover
2019 25
Way of building
2019 26
We are building from prefabricated modular sections (MS) MS is spatial part of a building where the floor, walls and ceiling of MS are assembled at the factory. One MS may include several rooms. Since MS is a „closed“ element, it is possible to complete following at the factory:
install doors and windows
complete up to 95% of the interior finishing of the rooms
(incl. installation of ceramic tiles, floor coverings, mouldings, etc)
build piping and cable systems within MS
(incl. electricity, water, sewerage, heating, ventilation, security alarm system, TV, fire sprinkler system, etc)
install bathroom fixtures and fittings
(incl. faucets, toilets, bathtubs, sinks, shower cabins, etc)
install kitchen and bathroom furniture and home appliances
complete most of exterior finishing works
(in case of “light” exterior finishing materials) Kodumaja is able to produce MS, which transportation dimensions are within the following limits: width - 5,3 m, length - 14,5 m and height - 4,5 m. The typical weight of one MS is: 8 – 16 tons. Time for mounting one MS on a completed foundation is: 20 – 60 minutes. In case of multi-storey blocks of flats Kodumaja site team is able to mount: 15 – 30 MS a day.
2019 27
Production at the factory
2019 28
Factory readiness of interior finishing
2019 29
Transportation and construction
2019 30
Why modular sections ?
31
Advantages (1)
Good working conditions = high quality at lower costs
production does not depend on weather conditions, dependency of construction on weather conditions is minimized
good conditions for work performance, management and quality control assure high quality of work performed
2019
32
Advantages (2)
Efficient construction method = good possibility for shortening construction time
production at the factory with simultaneous construction on the construction site shortens construction time and minimises fixed overheads
factory production enables a large amount of workforce to be simultaneously engaged
high level of completion of the factory-produced modular sections minimizes quantity of work and saves time and money
2019
33
Advantages (3)
Focusing on development of flexibility = readiness for implementation of one-of-a kind projects
long experience of developing customer-oriented flexibility
more experience, compared to the competitors, in the manufacturing of large MS and design and construction of 5 and more storey apartment buildings from factory-produced MS
an extensive scope of delivery which enables our customers to solve a lot of different problems at once and with one supplier – Kodumaja
2019
2019 34
Compliance with applicable norms and standards = high durability and healthy human environment at low maintenance costs
Advantages (4)
Carefully thought out, tested and approved structural and technical solutions as well as materials comply with norms and standards in our markets.
2019 35
Responsibility and competence = important decisions are made and processes are managed by competent managers and specialist with long experience
Advantages (5)
As Kodumaja customers are professional construction companies from Nordic countries, we can pool their vast experience and practices with our own experience.
2019 36
Advantages (6)
Management system of Kodumaja companies is built up according to international standards ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007 and certified.
Devoted and experienced personnel, carefully thought out and certified management system = well controlled and managed cooperation process and high quality final result of the work helps to achieve high satisfaction of the cooperation partners
2019 37
Specialities
Architects must be able to think in terms of prefab modules when designing a building.
the production and construction process.
The production and construction process proceeds at a relatively fast pace and needs thorough preparation. Many later modifications may result in considerable extra costs.
Prefab modules are often oversized cargo and the transport of prefab modules means that you are partly transporting "air".
Prefab modules need stronger structures due to transportation and repeated hoisting. Modular sections has closed structure all around which increases some material costs as well. At the same time it is also giving an extra advantages – solid and strong building, good sound insulation etc.
Deeper analysis may show that seemingly disadvantageous specialities may actually provide certain benefits.
2019 38
How Kodumaja works?
2019
Customers of Kodumaja and role of Kodumaja companies in cooperation
Kodumaja customers on export markets:
Kodumaja companies are acting as subcontractor of the customer who performs most of the construction works above the foundations of the buildings. According to agreement Kodumaja companies may also take responsibility of main contractor for all construction works above the foundations of the buildings.
Kodumaja customers in Estonia:
2019 40
Work organization
PRIMARY PROCESS OF KODUMAJA Sales Execution of the
Warranty period
a satisfied client who recommends Kodumaja to their acquaintances even after the guarantee period client who wants to have something built
the client’s contact.
41
From the customers in export countries Kodumaja companies are expecting usually
Performance of general contractors functions
Coordination of all subcontractors work, fulfilment of formalities in local governments including obtaining building permits and permits for use, etc.
Design and construction of foundations and public utility lines by the customer or through subcontractors
To ensure compatibility of foundations and public utility lines with the building's superstructure, cooperation with Kodumaja is vitally important.
Due performance of other customer obligations under the contract entered into with Kodumaja resolution of organizational issues, which are reasonable to solve in the export country by local people. The scope of delivery and the division of liability are subjects of negotiations. The mutual obligations of Kodumaja company and the customer are established in negotiations and they are specified in sales contracts and their annexes.
2019
2018 42
KM Element OÜ
(factory – Puidu 2, Tartu, Estonia)
Production premises
14 697 m2
with possibility to increase by 7000 m2 if building 2 extra production halls Material warehouses / loading and transportation territory
5 722 m2 / 5 287 m2
Warehouse and transportation territory of finished products
21 103 m2
Workers wardrobes, lunchroom, shower rooms
1 598 m2
Offices
1 151 m2
Whole territory
75 265 m2
Possible capacity per 1 year (production and construction)
ca 560 medium-sized apartments
Production premises and capacities (as of 01.01.2019)
2019 43
KM Element OÜ
(factory - Betooni 2, Tartu, Estonia)
Production premises
9 935 m2
Material warehouses / loading and transportation territory
2 969 m2 / 3 559 m2
Warehouse and transportation territory of finished products
8 489 m2
Workers wardrobes, lunchroom, shower rooms
1 026 m2
Offices / parking areas
1 667 m2 / 3 131 m2
Whole territory
28 641 m2
Possible capacity per 1 year (production and construction)
ca 440 medium-sized apartments
Production premises and capacities (as of 01.01.2019)
2019 44
Turnover and personnel 1995 – 2018 and target 2019
1995 – 2018 – real (consolidated since 2002) 2019 – target
2019 45
Coordinates
Kodumaja AS KM Element OÜ KM Nederland B.V.
Puidu 2, Tartu 50411, Estonia Telefon: + 372 7 385 999 e - mail: info@kodumaja.ee
Homepage in internet: www.kodumaja.ee Kodumajatehase AS Kodumaja Projekteerimise OÜ
Betooni 2, Tartu 50411, Estonia Telefon: + 372 7 385 989 e - mail: info@kodumaja.ee
