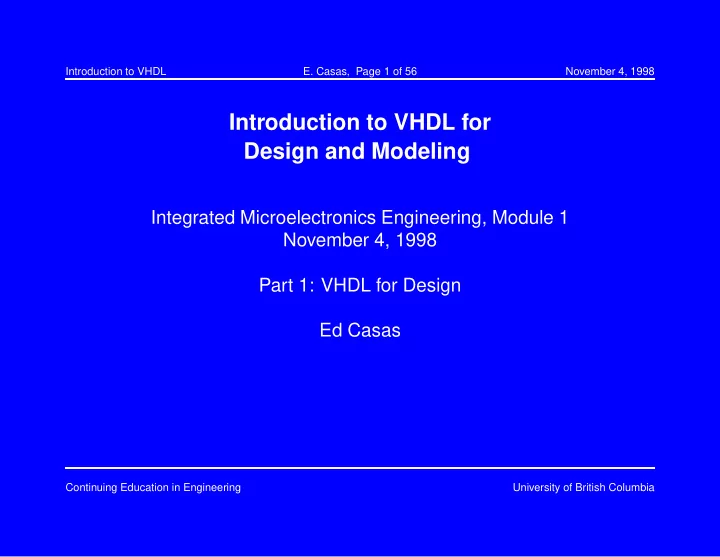

Introduction to VHDL for Design and Modeling

Integrated Microelectronics Engineering, Module 1 November 4, 1998 Part 1: VHDL for Design Ed Casas

Continuing Education in Engineering University of British Columbia

slide-2
SLIDE 2

Introduction to VHDL

  • E. Casas, Page 2 of 56

November 4, 1998

VHDL

  • a Very complicated Hardware Description Language
  • luckily, only a small subset is needed for design
  • VHDL is used for design (covered this morning) and simulation

(covered this afternoon)

Continuing Education in Engineering University of British Columbia

slide-3
SLIDE 3

Introduction to VHDL

  • E. Casas, Page 3 of 56

November 4, 1998

Outline

  • Introduction (AND gate)
  • Vectors and Buses
  • Selected Assignment (3-to-8 decoder)
  • Conditional Assignment (4-to-3 priority encoder)
  • Sequential Circuits (flip-flop)
  • State Machines (switch debouncer)
  • Signed and Unsigned Types (3-bit counter)

Continuing Education in Engineering University of British Columbia

slide-4
SLIDE 4

Introduction to VHDL

  • E. Casas, Page 4 of 56

November 4, 1998

  • Components, Packages and Libraries
  • Using Components
  • Type Declarations
  • Tri-State Buses

Continuing Education in Engineering University of British Columbia

slide-5
SLIDE 5

Introduction to VHDL

  • E. Casas, Page 5 of 56

November 4, 1998

First VHDL Example

  • - An AND gate

library ieee ; use ieee.std_logic_1164.all; entity example1 is port ( a, b: in std_logic ; c: out std_logic ) ; end example1 ; architecture rtl of example1 is begin c <= a and b ; end rtl ;

Continuing Education in Engineering University of British Columbia

slide-6
SLIDE 6

Introduction to VHDL

  • E. Casas, Page 6 of 56

November 4, 1998

VHDL Syntax

  • not case sensitive
  • comments begin with --
  • statements end with ;
  • signal/entity names: letter followed by letters, digits, _
  • details on library and use statements later

Continuing Education in Engineering University of British Columbia

slide-7
SLIDE 7

Introduction to VHDL

  • E. Casas, Page 7 of 56

November 4, 1998

Entities and Architectures

  • the entity names the device
  • the entity declares the input and output signals
  • the architecture describes what the device does
  • every statement in the architecture “executes” concurrently

Continuing Education in Engineering University of British Columbia

slide-8
SLIDE 8

Introduction to VHDL

  • E. Casas, Page 8 of 56

November 4, 1998

Schematic for Example 1

  • not surprisingly, synthesizing example1 creates:

Continuing Education in Engineering University of British Columbia

slide-9
SLIDE 9

Introduction to VHDL

  • E. Casas, Page 9 of 56

November 4, 1998

Exercise (Expressions)

Exercise: Write the VHDL description of a half-adder, a circuit that computes the sum, sum, and carry, carry, of two one-bit numbers, a and b.

Continuing Education in Engineering University of British Columbia

slide-10
SLIDE 10

Introduction to VHDL

  • E. Casas, Page 10 of 56

November 4, 1998

Vectors

  • ne-dimensional arrays used to model buses
  • usually declared with decreasing indices:

a : std_logic_vector (3 downto 0) ;

  • constants enclosed in double quotes:

a <= "0010" ;

Continuing Education in Engineering University of British Columbia

slide-11
SLIDE 11

Introduction to VHDL

  • E. Casas, Page 11 of 56

November 4, 1998

Vector Operations

  • can take “slices” (e.g. x(3 downto 2))
  • can concatenate (e.g. a & b)
  • logic operators (e.g. a and b) apply bit-by-bit

Continuing Education in Engineering University of British Columbia

slide-12
SLIDE 12

Introduction to VHDL

  • E. Casas, Page 12 of 56

November 4, 1998

Exercise (Vectors)

Exercise: Write a VHDL expression that shifts x, an 8- bit std logic vector declared as x : std logic vector (7 downto 0) ;, left by one bit and sets the least-significant bit to zero.

Continuing Education in Engineering University of British Columbia

slide-13
SLIDE 13

Introduction to VHDL

  • E. Casas, Page 13 of 56

November 4, 1998

Selected Assignment

  • models operation of multiplexer
  • ne value selected by controlling expression
  • can implement arbitrary truth table
  • always use an others clause
  • we can declare local signals in architectures

Continuing Education in Engineering University of British Columbia

slide-14
SLIDE 14

Introduction to VHDL

  • E. Casas, Page 14 of 56

November 4, 1998

VHDL for 3-to-8 Decoder

  • - 3-to-8 decoder

library ieee ; use ieee.std_logic_1164.all; entity decoder is port ( a, b, c : in std_logic ; y : out std_logic_vector (7 downto 0) ) ; end decoder ;

Continuing Education in Engineering University of British Columbia

slide-15
SLIDE 15

Introduction to VHDL

  • E. Casas, Page 15 of 56

November 4, 1998

VHDL for 3-to-8 Decoder (Architecture)

architecture rtl of decoder is signal abc : std_logic_vector (2 downto 0) ; begin abc <= a & b & c ; with abc select y <= "00000001" when "000", "00000010" when "001", "00000100" when "010", "00001000" when "011", "00010000" when "100", "00100000" when "101", "01000000" when "110", "10000000" when others ; end rtl ;

Continuing Education in Engineering University of British Columbia

slide-16
SLIDE 16

Introduction to VHDL

  • E. Casas, Page 16 of 56

November 4, 1998

Schematic of 3-to-8 Decoder

Continuing Education in Engineering University of British Columbia

slide-17
SLIDE 17

Introduction to VHDL

  • E. Casas, Page 17 of 56

November 4, 1998

Conditional Assignment

  • models if/then/else, but is concurrent
  • expressions tested in order
  • nly value for first true condition is assigned

Continuing Education in Engineering University of British Columbia

slide-18
SLIDE 18

Introduction to VHDL

  • E. Casas, Page 18 of 56

November 4, 1998

VHDL for 4-to-3 Encoder

  • - 4-to-3 encoder

library ieee ; use ieee.std_logic_1164.all ; entity encoder is port ( b : in std_logic_vector (3 downto 0) ; n : out std_logic_vector (2 downto 0) ) ; end encoder ;

Continuing Education in Engineering University of British Columbia

slide-19
SLIDE 19

Introduction to VHDL

  • E. Casas, Page 19 of 56

November 4, 1998

VHDL for 4-to-3 Encoder (Architecture)

architecture rtl of encoder is begin n <= "100" when b(3) = ’1’ else "011" when b(2) = ’1’ else "010" when b(1) = ’1’ else "001" when b(0) = ’1’ else "000" ; end rtl ;

Continuing Education in Engineering University of British Columbia

slide-20
SLIDE 20

Introduction to VHDL

  • E. Casas, Page 20 of 56

November 4, 1998

4-to-3 Encoder

Continuing Education in Engineering University of British Columbia

slide-21
SLIDE 21

Introduction to VHDL

  • E. Casas, Page 21 of 56

November 4, 1998

Exercise (Selected Assignment)

Exercise: If we had used a selected assignment statement, how many lines would have been required in the selected assignment?

Continuing Education in Engineering University of British Columbia

slide-22
SLIDE 22

Introduction to VHDL

  • E. Casas, Page 22 of 56

November 4, 1998

Sequential Circuits

  • the process statement can generate flip-flops or registers
  • details of process covered later

Continuing Education in Engineering University of British Columbia

slide-23
SLIDE 23

Introduction to VHDL

  • E. Casas, Page 23 of 56

November 4, 1998

VHDL for D Flip-Flop

  • - D Flip-Flop

library ieee ; use ieee.std_logic_1164.all; entity dff is port ( d, clk : in std_logic ; q : out std_logic ) ; end dff ;

Continuing Education in Engineering University of British Columbia

slide-24
SLIDE 24

Introduction to VHDL

  • E. Casas, Page 24 of 56

November 4, 1998

VHDL for D Flip-Flop (Architecture)

architecture rtl of dff is begin process(clk) begin if clk’event and clk = ’1’ then q <= d ; end if ; end process ; end rtl ;

Continuing Education in Engineering University of British Columbia

slide-25
SLIDE 25

Introduction to VHDL

  • E. Casas, Page 25 of 56

November 4, 1998

Schematic of dff

  • the synthesized result:

Continuing Education in Engineering University of British Columbia

slide-26
SLIDE 26

Introduction to VHDL

  • E. Casas, Page 26 of 56

November 4, 1998

Exercise (Sequential Circuits)

Exercise: What would we get if we replaced d and q with signals of type std logic vector?

Continuing Education in Engineering University of British Columbia

slide-27
SLIDE 27

Introduction to VHDL

  • E. Casas, Page 27 of 56

November 4, 1998

State Machines

  • use combinational logic to compute next state and outputs
  • use registers to hold current state

Continuing Education in Engineering University of British Columbia

slide-28
SLIDE 28

Introduction to VHDL

  • E. Casas, Page 28 of 56

November 4, 1998

Finite State Machine

input

  • utput

next state current state combinational logic register clock

Continuing Education in Engineering University of British Columbia

slide-29
SLIDE 29

Introduction to VHDL

  • E. Casas, Page 29 of 56

November 4, 1998

Switch Debouncer State Diagram

00 01 10 raw=1 raw=1 raw=1 raw=0 raw=0 raw=0 state

  • utput

00 01 10 1

Continuing Education in Engineering University of British Columbia

slide-30
SLIDE 30

Introduction to VHDL

  • E. Casas, Page 30 of 56

November 4, 1998

VHDL for Switch Debouncer

  • - Switch Debouncer

library ieee ; use ieee.std_logic_1164.all ; entity debounce is port ( raw : in std_logic ; clean : out std_logic ; clk : in std_logic ) ; end debounce ;

Continuing Education in Engineering University of British Columbia

slide-31
SLIDE 31

Introduction to VHDL

  • E. Casas, Page 31 of 56

November 4, 1998

VHDL for Switch Debouncer (Architecture)

architecture rtl of debounce is signal currents, nexts : std_logic_vector (1 downto 0) ; begin

  • - combinational logic for next state

nexts <= "00" when raw = ’0’ else "01" when currents = "00" else "10" ;

  • - combinational logic for output

clean <= ’1’ when currents = "10" else ’0’ ;

Continuing Education in Engineering University of British Columbia

slide-32
SLIDE 32

Introduction to VHDL

  • E. Casas, Page 32 of 56

November 4, 1998

VHDL for Switch Debouncer (process)

  • - sequential logic

process(clk) begin if clk’event and clk = ’1’ then currents <= nexts ; end if ; end process ; end rtl ;

Continuing Education in Engineering University of British Columbia

slide-33
SLIDE 33

Introduction to VHDL

  • E. Casas, Page 33 of 56

November 4, 1998

Schematic of Debouncer

Continuing Education in Engineering University of British Columbia

slide-34
SLIDE 34

Introduction to VHDL

  • E. Casas, Page 34 of 56

November 4, 1998

Exercise (State Machine)

Exercise: Identify the components in the schematic that were created (“instantiated ”) by different parts of the VHDL code.

Continuing Education in Engineering University of British Columbia

slide-35
SLIDE 35

Introduction to VHDL

  • E. Casas, Page 35 of 56

November 4, 1998

Arithmetic Types

  • allow us to treat logic values as numbers
  • arithmetic and comparison operators available
  • multiply and divide may not synthesize

Continuing Education in Engineering University of British Columbia

slide-36
SLIDE 36

Introduction to VHDL

  • E. Casas, Page 36 of 56

November 4, 1998

VHDL for 3-bit Counter

  • - 3-bit Counter

library ieee ; use ieee.std_logic_1164.all ; use ieee.std_logic_arith.all ; entity counter is port ( count_out : out unsigned (2 downto 0) ; clk : in std_logic ) ; end counter ;

Continuing Education in Engineering University of British Columbia

slide-37
SLIDE 37

Introduction to VHDL

  • E. Casas, Page 37 of 56

November 4, 1998

VHDL for Up/Down Counter (Architecture)

architecture rtl of counter is signal count, nextcount : unsigned (2 downto 0) ; begin nextcount <= count + 1 ; process(clk) begin if clk’event and clk=’1’ then count <= nextcount ; end if ; end process ; count_out <= count ; end rtl ;

Continuing Education in Engineering University of British Columbia

slide-38
SLIDE 38

Introduction to VHDL

  • E. Casas, Page 38 of 56

November 4, 1998

Arithmetic Types (ctd)

  • can use arithmetic types to implement a counter as a state machine
  • can’t read port signals of type out

Continuing Education in Engineering University of British Columbia

slide-39
SLIDE 39

Introduction to VHDL

  • E. Casas, Page 39 of 56

November 4, 1998

Exercise (Arithmetic Types)

Exercise: Write the architecture for a 16-bit adder with two signed inputs, a and b and a signed output c.

Continuing Education in Engineering University of British Columbia

slide-40
SLIDE 40

Introduction to VHDL

  • E. Casas, Page 40 of 56

November 4, 1998

Components

  • allows design re-use
  • like an entity, a component defines interface, not functionality
  • definitions usually saved in packages (files)
  • packages are stored in libraries (directories)

Library component component Package component component Package

Continuing Education in Engineering University of British Columbia

slide-41
SLIDE 41

Introduction to VHDL

  • E. Casas, Page 41 of 56

November 4, 1998

VHDL for Component Declaration

  • package name is flipflops
  • declares the rs component:

package flipflops is component rs port ( r, s : in bit ; q : out bit ) ; end component ; end flipflops ;

  • compiling this file creates the package

Continuing Education in Engineering University of British Columbia

slide-42
SLIDE 42

Introduction to VHDL

  • E. Casas, Page 42 of 56

November 4, 1998

Using Packages and Libraries

  • library and use statements make contents of packages available
  • e.g. to access the DSP package in the ALTERA library:

library altera ; use altera.dsp.all ;

Continuing Education in Engineering University of British Columbia

slide-43
SLIDE 43

Introduction to VHDL

  • E. Casas, Page 43 of 56

November 4, 1998

Using Components

  • a component “instantiation” statement:

– places a copy of the component in the design – is a concurrent statement – describes how the component connects to other signals

  • is “structural” design

Continuing Education in Engineering University of British Columbia

slide-44
SLIDE 44

Introduction to VHDL

  • E. Casas, Page 44 of 56

November 4, 1998

VHDL for XOR2 Component Declaration

  • the xor2 component is described in a package:
  • - define an xor2 component in a package

library ieee ; use ieee.std_logic_1164.all ; package xor_pkg is component xor2 port ( a, b : in std_logic ; x : out std_logic ) ; end component ; end xor_pkg ;

Continuing Education in Engineering University of British Columbia

slide-45
SLIDE 45

Introduction to VHDL

  • E. Casas, Page 45 of 56

November 4, 1998

VHDL for Parity Generator

  • - Parity function built from xor gates

library ieee ; use ieee.std_logic_1164.all ; use work.xor_pkg.all ; entity parity is port ( a, b, c, d : in std_logic ; p : out std_logic ) ; end parity ;

Continuing Education in Engineering University of British Columbia

slide-46
SLIDE 46

Introduction to VHDL

  • E. Casas, Page 46 of 56

November 4, 1998

VHDL for Parity Generator (Architecture)

architecture rtl of parity is

  • - internal signals

signal x, y : std_logic ; begin x1: xor2 port map ( a, b, x ) ; x2: xor2 port map ( c, x, y ) ; x3: xor2 port map ( d, y, p ) ; end rtl ;

Continuing Education in Engineering University of British Columbia

slide-47
SLIDE 47

Introduction to VHDL

  • E. Casas, Page 47 of 56

November 4, 1998

Schematic of Parity Generator

Continuing Education in Engineering University of British Columbia

slide-48
SLIDE 48

Introduction to VHDL

  • E. Casas, Page 48 of 56

November 4, 1998

Exercise (Component Instantiation)

Exercise: Label the connections within the parity generator schematic with the signal names used in the architecture.

Continuing Education in Engineering University of British Columbia

slide-49
SLIDE 49

Introduction to VHDL

  • E. Casas, Page 49 of 56

November 4, 1998

Type Declarations

  • can declare new signal types (e.g.

new bus widths, enumeration types for state machines)

  • usually placed in a package

Continuing Education in Engineering University of British Columbia

slide-50
SLIDE 50

Introduction to VHDL

  • E. Casas, Page 50 of 56

November 4, 1998

VHDL for Type Declarations

  • to create a package called dsp_types:

package dsp_types is type mode is (slow, medium, fast) ; subtype sample is std_logic_vector (7 downto 0) ; end dsp_types ;

Continuing Education in Engineering University of British Columbia

slide-51
SLIDE 51

Introduction to VHDL

  • E. Casas, Page 51 of 56

November 4, 1998

Tri-State Buses

  • tri-state (high-impedance) often used in buses
  • assigning the value ’Z’ to a signal of type out tri-states that output

Continuing Education in Engineering University of British Columbia

slide-52
SLIDE 52

Introduction to VHDL

  • E. Casas, Page 52 of 56

November 4, 1998

VHDL for Tri-State Buffer

  • - Tri-State Buffer

library ieee ; use ieee.std_logic_1164.all ; entity tbuf is port ( d : in std_logic_vector (3 downto 0) ; q : out std_logic_vector (3 downto 0) ; en : in std_logic ) ; end tbuf ;

Continuing Education in Engineering University of British Columbia

slide-53
SLIDE 53

Introduction to VHDL

  • E. Casas, Page 53 of 56

November 4, 1998

VHDL for Tri-State Buffer (Architecture)

architecture rtl of tbuf is begin q <= d when en = ’1’ else "ZZZZ" ; end rtl ;

Continuing Education in Engineering University of British Columbia

slide-54
SLIDE 54

Introduction to VHDL

  • E. Casas, Page 54 of 56

November 4, 1998

Schematic of Tri-State Buffer

Continuing Education in Engineering University of British Columbia

slide-55
SLIDE 55

Introduction to VHDL

  • E. Casas, Page 55 of 56

November 4, 1998

VHDL for Demo Circuit

  • - demonstration design light chaser

library ieee ; use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; use work.democom.all ; entity demo is port ( clk : in std_logic ; led : out std_logic_vector (7 downto 0) ) ; end demo;

Continuing Education in Engineering University of British Columbia

slide-56
SLIDE 56

Introduction to VHDL

  • E. Casas, Page 56 of 56

November 4, 1998

VHDL for Demo Circuit (Architecture)

architecture rtl of demo is signal count : unsigned (2 downto 0) ; signal scount : std_logic_vector (2 downto 0) ; signal ledN : std_logic_vector(7 downto 0) ; begin c1: counter port map ( count, clk ) ; scount <= std_logic_vector(count); d1: decoder port map ( scount(2), scount(1), scount(0), ledN ) ; led <= not ledN ; end rtl ;

Continuing Education in Engineering University of British Columbia
