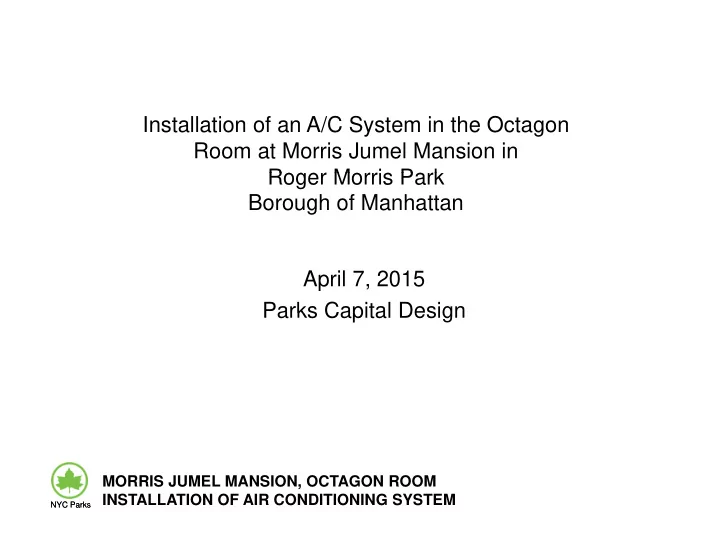

Installation of an A/C System in the Octagon Room at Morris Jumel Mansion in Roger Morris Park Roger Morris Park Borough of Manhattan April 7, 2015 Parks Capital Design Parks Capital Design MORRIS JUMEL MANSION, OCTAGON ROOM INSTALLATION OF

SLIDE 1

Installation of an A/C System in the Octagon Room at Morris Jumel Mansion in Roger Morris Park Roger Morris Park Borough of Manhattan April 7, 2015 Parks Capital Design Parks Capital Design

NYC Parks

MORRIS JUMEL MANSION, OCTAGON ROOM INSTALLATION OF AIR CONDITIONING SYSTEM

NYC Parks

SLIDE 2

NYC Parks

MORRIS JUMEL MANSION, OCTAGON ROOM INSTALLATION OF AIR CONDITIONING SYSTEM

2

SLIDE 3

Roger Morris Park

NYC Parks

MORRIS JUMEL MANSION, OCTAGON ROOM INSTALLATION OF AIR CONDITIONING SYSTEM

3

Location

SLIDE 4

NYC Parks

MORRIS JUMEL MANSION, OCTAGON ROOM INSTALLATION OF AIR CONDITIONING SYSTEM

4

Location

SLIDE 5

MORRIS JUMEL MANSION HISTORY Located within Roger Morris Park, Manhattan’s

ldest surviving house,

Morris Jumel Mansion is a Morris‐Jumel Mansion, is a monument to colonial

grandeur. Built in 1765 as a

summer retreat for British colonel Roger Morris and colonel Roger Morris and his American wife Mary Philipse, this house is the

nly survivor of a number
f similar country houses

Morris Jumel Mansion,1936

f similar country houses

built by wealthy New

Yorkers. Morris, the nephew
f a successful English

architect was greatly architect, was greatly influenced by the designs of the 16th‐century Italian architect Palladio.

NYC Parks

MORRIS JUMEL MANSION, OCTAGON ROOM INSTALLATION OF AIR CONDITIONING SYSTEM

5

SLIDE 6

MORRIS JUMEL MANSION HISTORY This sophisticated residence includes a monumental portico and pediment, supported by grand Tuscan supported by grand Tuscan columns, and a large, two‐ story octagonal addition at the rear, one of the first of its kind in the country its kind in the country. Octagon Room, 1886

NYC Parks

MORRIS JUMEL MANSION, OCTAGON ROOM INSTALLATION OF AIR CONDITIONING SYSTEM

6

SLIDE 7

MORRIS JUMEL MANSION OCTAGON ROOM EXISTING CONDITIONS EXISTING CONDITIONS Octagon Room, 2014

NYC Parks

MORRIS JUMEL MANSION, OCTAGON ROOM INSTALLATION OF AIR CONDITIONING SYSTEM

7

SLIDE 8

MORRIS JUMEL MANSION OCTAGON ROOM EXISTING CONDITIONS EXISTING CONDITIONS Basement Below Octagon Room, 2014

NYC Parks

MORRIS JUMEL MANSION, OCTAGON ROOM INSTALLATION OF AIR CONDITIONING SYSTEM

8

SLIDE 9

MORRIS JUMEL MANSION PROPOSED WORK There is currently no cooling system in place for the Octagon Room. The design includes installation design includes installation

f an A/C system to the

Octagon room. Duct Work will be located in the basement directly below basement directly below the room. A condenser unit will be placed to the east of the house. One basement window will be changed to window will be changed to a louver window, and floor vents will be installed within the Octagon Room.

View of Northwest Corner of House, 2014

NYC Parks

MORRIS JUMEL MANSION, OCTAGON ROOM INSTALLATION OF AIR CONDITIONING SYSTEM

9

SLIDE 10

MORRIS JUMEL MANSION PROPOSED WORK Location of new condenser unit in landscape. p

NYC Parks

MORRIS JUMEL MANSION, OCTAGON ROOM INSTALLATION OF AIR CONDITIONING SYSTEM

10

SLIDE 11

MORRIS JUMEL MANSION PROPOSED WORK Location of new condenser unit in landscape.

NYC Parks

MORRIS JUMEL MANSION, OCTAGON ROOM INSTALLATION OF AIR CONDITIONING SYSTEM

11

SLIDE 12

MORRIS JUMEL MANSION PROPOSED WORK Location of new condenser unit in landscape. Enclosure is approximately 5’6” x 5’6” and 3’10” in height Unit and 3 10 in height. Unit will be placed on a 6” concrete pad.

NYC Parks

MORRIS JUMEL MANSION, OCTAGON ROOM INSTALLATION OF AIR CONDITIONING SYSTEM

12

SLIDE 13

MORRIS JUMEL MANSION PROPOSED WORK A i t l ti f Approximate location of condenser unit in the landscape.

View from the east View from the south (front of house) Close up view from the south View from the west

NYC Parks

MORRIS JUMEL MANSION, OCTAGON ROOM INSTALLATION OF AIR CONDITIONING SYSTEM

13

SLIDE 14

MORRIS JUMEL MANSION EXISTING CONDITIONS & PROPOSED WORK PROPOSED WORK Window to be reconfigured into louver.

EXISTING LOUVER FOR FURNACE PROPOSED NEW LOUVER LOUVER

NYC Parks

MORRIS JUMEL MANSION, OCTAGON ROOM INSTALLATION OF AIR CONDITIONING SYSTEM

14

SLIDE 15

MORRIS JUMEL MANSION CONSTRUCTION DRAWINGS Basement Plan Duct work to be installed in basement below Octagon Room.

NYC Parks

MORRIS JUMEL MANSION, OCTAGON ROOM INSTALLATION OF AIR CONDITIONING SYSTEM

15

SLIDE 16

MORRIS JUMEL MANSION CONSTRUCTION DRAWINGS First Floor Plan

NYC Parks

MORRIS JUMEL MANSION, OCTAGON ROOM INSTALLATION OF AIR CONDITIONING SYSTEM

16

SLIDE 17

MORRIS JUMEL MANSION CONSTRUCTION DRAWINGS

NYC Parks

MORRIS JUMEL MANSION, OCTAGON ROOM INSTALLATION OF AIR CONDITIONING SYSTEM

17

SLIDE 18

MORRIS JUMEL MANSION EQUIPMENT, MATERIALS, AND FINISHES AND FINISHES

Performance Series Air Conditioner by Carrier Floor vent, flush mounted, and stained to match existing floor finish Enclosure for Condenser Unit, treated, unfinished wood, design to mimic existing porch lattice
