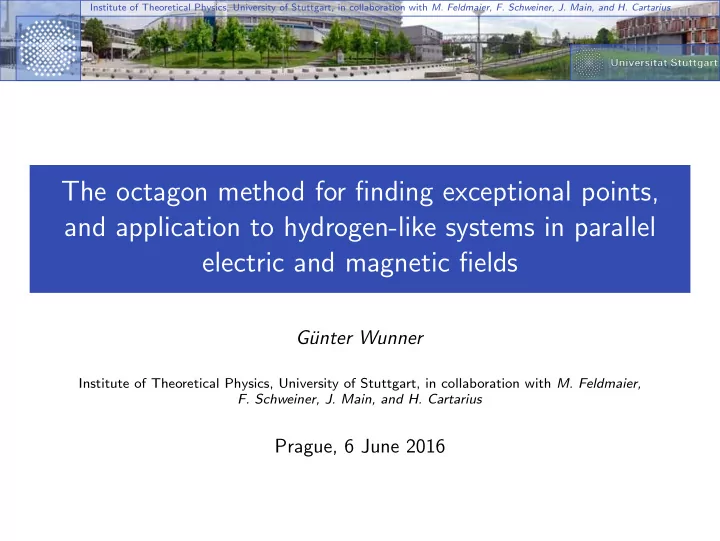

The octagon method for finding exceptional points, and application to hydrogen-like systems in parallel electric and magnetic fields

G¨ unter Wunner

Institute of Theoretical Physics, University of Stuttgart, in collaboration with M. Feldmaier,

• F. Schweiner, J. Main, and H. Cartarius

Prague, 6 June 2016

The coworkers

• M. Feldmaier
• F. Schweiner
• J. Main
• H. Cartarius

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 2 / 20

A feature of open quantum systems:

Resonances exhibit avoided crossings on the real energy axis when the physical parameters of the systems are varied: example: hydrogen atom in parallel electric and magnetic fields

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 3 / 20

A feature of open quantum systems:

Resonances exhibit avoided crossings on the real energy axis when the physical parameters of the systems are varied: example: hydrogen atom in parallel electric and magnetic fields Indicative of an exceptional point in the complex energy plane.

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 3 / 20

A feature of open quantum systems:

Resonances exhibit avoided crossings on the real energy axis when the physical parameters of the systems are varied: example: hydrogen atom in parallel electric and magnetic fields Indicative of an exceptional point in the complex energy plane. How to find the exceptional point?

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 3 / 20

Motivation

Experiments on excitons in Cu2O in the group of D. Fr¨

• hlich and M. Beyer at

the University of Dortmund band structure of Cu2O Excitons: electron-hole pairs in semiconductors - hydrogen-like systems

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 4 / 20

Motivation

Experiments on excitons in Cu2O in the group of D. Fr¨

• hlich and M. Beyer:

0.0 0.5 1.0 0.4 0.6 2.17190 2.17192 2.17194 0.37 0.38 0.5 1.0 n = 3 n = 2

a

n = 13 n = 12 n = 25 n = 24 n = 23 n = 22 Photon energy (eV) n = 6 n = 5 O p t i c a l d e n s i t y ×6

d c b

5 mm 16 mm 30 mm 2.145 2.150 2.155 2.160 2.165 2.170 2.1716 2.1718 2.168 2.169 2.170 2.171 2.172 Tsumeb mine Namibia

• T. Kazimierczuk et al. ”

Giant Rydberg excitons in the copper oxide Cu2O.” Nature (2014) G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 5 / 20

Rydberg excitons in magnetic and electric fields

Reference field strengths: eB0 m = 2ERyd, eaBohrF0 = 2ERyd

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 6 / 20

Rydberg excitons in magnetic and electric fields

Reference field strengths: eB0 m = 2ERyd, eaBohrF0 = 2ERyd H Cu2O ERyd 13.6 eV 0.092 eV aBohr 0.0529 nm 1.04 nm B0 2.35 × 105 T 6.034 × 102 T F0 5.14 × 109 V/cm 1.76 × 106 V/cm

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 6 / 20

Rydberg systems in parallel electr. and magnet. fields

Hydrogen atom: Hhyd = p2 2m0 − e2 4πε0 1 r + e B 2m0 Lz + e2 B2 8m0

• x2 + y2

+ e F z mp/m0 ≈ 1800 → mp can be taken as approx. infinite

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 7 / 20

Rydberg systems in parallel electr. and magnet. fields

Hydrogen atom: Hhyd = p2 2m0 − e2 4πε0 1 r + e B 2m0 Lz + e2 B2 8m0

• x2 + y2

+ e F z mp/m0 ≈ 1800 → mp can be taken as approx. infinite Rydberg excitons: Hex = p2 2µ − e2 4πε0 εr 1 r + e B 2µ mh − me mh + me Lz + e2 B2 8µ

• x2 + y2

+ e F z me = 0.99m0, mh = 0.62m0 → both masses are important, µ = 0.38m0

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 7 / 20

Rydberg systems in parallel electr. and magnet. fields

Hex = p2 2µ − e2 4πε0 εr 1 r + e B 2µ mh − me mh + me Lz + e2 B2 8µ

• x2 + y2

+ e F z parallel fields:

→ angular momentum is conserved with respect to z-axis (Lz → m) → paramagnetic term: B-dependent shift of zero point energy H′ = H − HP

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 8 / 20

Rydberg systems in parallel electr. and magnet. fields

Hex = p2 2µ − e2 4πε0 εr 1 r + e B 2µ mh − me mh + me Lz + e2 B2 8µ

• x2 + y2

+ e F z parallel fields:

→ angular momentum is conserved with respect to z-axis (Lz → m) → paramagnetic term: B-dependent shift of zero point energy H′ = H − HP

in dimensionless units: lengths in aBohr, energies in 2ERyd, γ = B/B0 and f = F/F0

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 8 / 20

Rydberg systems in parallel electr. and magnet. fields

Hex = p2 2µ − e2 4πε0 εr 1 r + e B 2µ mh − me mh + me Lz + e2 B2 8µ

• x2 + y2

+ e F z parallel fields:

→ angular momentum is conserved with respect to z-axis (Lz → m) → paramagnetic term: B-dependent shift of zero point energy H′ = H − HP

in dimensionless units: lengths in aBohr, energies in 2ERyd, γ = B/B0 and f = F/F0

Hamiltonian of hydrogen-like systems in parallel fields

H′ = 1 2p 2 − 1 r + 1 8γ2 x2 + y2 + f z

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 8 / 20

In electric fields: bound states → resonances

Coulomb potential:

−9 −6 −3 3 x −6 −4 −2 2 V (x) −const

|x|

bound state

Coulomb-Stark potential:

−9 −6 −3 3 x −8 −4 4 V (x) −const

|x| + f x

resonance

” resonances” : non-stationary or quasi-bound states Ψ(r, 0) in position space time evolution: Ψ(r, t) = e−i E t

Ψ(r, 0)

complex energy E = Er − i Γ

2

resonances with complex energy eigenvalues can be calculated by solving the Schr¨

• dinger equation using the complex rotation method

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 9 / 20

Finding exceptional points: Octagon method

close to an EP: describe two related states by 2d matrix

Mkl = a(0)

kl + a(γ) kl (γ − γ0) + a(f) kl (f − f0),

γ0, f0 : initial guesses

for the eigenvalues E1 and E2 of M we set:

κ ≡ E1 + E2 = tr(M) = A + B (γ − γ0) + C (f − f0), η ≡ (E1 − E2)2 = tr2(M) − 4 det(M) = D + E (γ − γ0) + F (f − f0) + G (γ − γ0)2 + H (γ − γ0) (f − f0) + I (f − f0)2,

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 10 / 20

Finding exceptional points: Octagon method

close to an EP: describe two related states by 2d matrix

Mkl = a(0)

kl + a(γ) kl (γ − γ0) + a(f) kl (f − f0),

γ0, f0 : initial guesses

for the eigenvalues E1 and E2 of M we set:

κ ≡ E1 + E2 = tr(M) = A + B (γ − γ0) + C (f − f0), η ≡ (E1 − E2)2 = tr2(M) − 4 det(M) = D + E (γ − γ0) + F (f − f0) + G (γ − γ0)2 + H (γ − γ0) (f − f0) + I (f − f0)2, A = κ0 B = κ1 − κ5 2hγ C = κ3−κ7

2hf

D = η0 E = η1−η5

2hγ

F = η3 − η7 2hf G = η1+η5−2η0

2h2

γ

I = η3 + η7 − 2η0 2h2

f

H = η2−η4+η6−η8

2hγ hf

γ f 1 2 3 4 5 6 7 8 hγ hf

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 10 / 20

Octagon method: iterative algorithm

estimate the new position (γEP, fEP) of EP: 0 = η ≡ (E1 − E2)2 = D + E x + F y + G x2 + H x y + I y2 with x ≡ (γEP − γ0) and y ≡ (fEP − f0). Choose the correct one of four (complex) solutions.

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 11 / 20

Octagon method: iterative algorithm

estimate the new position (γEP, fEP) of EP: 0 = η ≡ (E1 − E2)2 = D + E x + F y + G x2 + H x y + I y2 with x ≡ (γEP − γ0) and y ≡ (fEP − f0). Choose the correct one of four (complex) solutions.

Iterative algorithm to find position (γEP, fEP) of EP

position estimate γ(n)

EP , f (n) EP in step n is taken as the centre point of a new

• ctagon in step n + 1

γ(n+1) = γ(n)

EP ;

γEP = lim

n→∞ γ(n)

f (n+1) = f (n)

EP ;

fEP = lim

n→∞ f (n)

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 11 / 20

Octagon method: example

γ/f = 80 levels labelled by principal quantum numbers n for γ, f → 0 initial parameters: γ0 = 1.481 × 10−3 f0 = 1.851 × 10−5 Re(E) = −6.90 × 10−3

2 4 6 8 10 12 14

iterations i

10−4 10−6 10−8 10−10 10−12 10−14

∆E

b)

|EEP,i − EEP,i−1| |E1,i − E2,i|

EEP,i = (E1,i + E2,i)/2

• est. position of EP with the OM:

γEP = 8.598 633 × 10−4 fEP = 2.005 076 × 10−5 Re(EEP) = −7.647 637 × 10−3 Im(EEP) = 8.461 814 × 10−7

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 12 / 20

Octagon method: verification of the EP found

−7.650 −7.645 −7.640 −7.635

Re(E) [10−3]

−1.6 −1.2 −0.8 −0.4 0.0

Im(E) [10−6] W (9)

η=0 = 1

W (7)

η=0 = 0

7 7 9 9

Two possibilities to verify EP:

1 solve Eq. (2) step-by-step while

encircling the EP → high numerical effort

2 use Eqs. (3) with the known

coefficients of the OM to check exchange behaviour of the resonances → numerically very cheap

H′ = 1 2p 2 − 1 r + 1 8γ2 x2 + y2 + f z (2) κ ≡ E1 + E2 = A + B (γ − γ0) + C (f − f0) η ≡ (E1 − E2)2 = D + E (γ − γ0) + F (f − f0) + G (γ − γ0)2 (3) +H (γ − γ0) (f − f0) + I (f − f0)2

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 13 / 20

Results: more EPs

γ/f = 120

−4 4 8 12

Re(E) [10−2]

50 75 100 125

γEP/fEP a)

−4 4 8 12

Re(E) [10−2]

2.5 5.0 7.5 10.0

γEP [10−2] b)

−4 4 8 12

Re(E) [10−2]

2.5 5.0 7.5 10.0

fEP [10−4] c)

0.0 2.5 5.0 7.5 10.0 12.5

fEP [10−4]

2.5 5.0 7.5 10.0

γEP [10−2] d)

EPs found (in material independent units)

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 14 / 20

Results: comparison hydrogen atom vs. Cu2O

Hydrogen atom: reduced mass: µ ≈ m0 dielectric constant: εr = 1 Cuprous oxide: reduced mass: µ = 0.38m0 dielectric constant εr = 7.50

Hydrogen atom Cu2O B [T] F [ V

cm ]

Er [eV] Ei [meV] B [T] F [ V

cm ]

Er [meV] Ei [µeV] 229.64 120250 −0.1904 −0.6209 0.590 41.16 −1.286 −0.419 561.26 140870 −0.1866 −0.2564 1.441 48.22 −1.261 −1.732 799.69 341940 −0.3886 −2.072 2.053 117.0 −2.625 −14.00 1261.3 668930 −0.3996 −0.5002 3.238 229.0 −2.699 −3.379 1506.7 686310 −0.5245 −4.402 3.868 234.9 −3.544 −29.74 2316.3 1096200 −0.6733 −0.5999 5.946 375.2 −4.549 −4.054 3595.7 2430880 −0.4788 −12.03 9.231 832.0 −3.234 −81.25

Energies for Cu2O need to be corrected by Egap = 2.17208 eV

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 15 / 20

Conclusion and outlook

Octagon method: an improved method for finding EPs:

converges to precise position of EP in parameter space and yields its precise complex energy

• nly initial parameters of an avoided crossing are needed

verification of the estimated EP without further time-consuming quantum-mechanical calculations

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 16 / 20

Conclusion and outlook

Octagon method: an improved method for finding EPs:

converges to precise position of EP in parameter space and yields its precise complex energy

• nly initial parameters of an avoided crossing are needed

verification of the estimated EP without further time-consuming quantum-mechanical calculations

Many EPs in Rydberg systems in parallel external fields:

appropriate units: results hold both for the hydrogen atom and for Rydberg excitons in Cu2O many EPs in Cu2O are in an experimentally accessible regime below 10 T experimental verification of our theoretical predictions: → measurement of photo absorption spectra → analysis by means of harmonic inversion

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 16 / 20

Conclusion and outlook

Octagon method: an improved method for finding EPs:

converges to precise position of EP in parameter space and yields its precise complex energy

• nly initial parameters of an avoided crossing are needed

verification of the estimated EP without further time-consuming quantum-mechanical calculations

Many EPs in Rydberg systems in parallel external fields:

appropriate units: results hold both for the hydrogen atom and for Rydberg excitons in Cu2O many EPs in Cu2O are in an experimentally accessible regime below 10 T experimental verification of our theoretical predictions: → measurement of photo absorption spectra → analysis by means of harmonic inversion

Further information and more details

• M. Feldmaier, J. Main, F. Schweiner, H. Cartarius and G. Wunner. ”

Rydberg systems in parallel electric and magnetic fields: an improved method for finding exceptional points” arXiv:1602.00909, in press (2016)

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 16 / 20

Complex rotation method

Re(E) Im(E) bound states continuous states

without complex rotation

Re(E) Im(E) bound states continuous states exposed resonances 2θ

complex rotation r → r eiθ bound states with real energy remain unaffected by complex rotation continuum states are rotated by −2θ into the complex plane for large enough θ resonances are exposed. Positions of the resonances are independent of rotation angle.

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 17 / 20

Computation of eigenstates

Introduce dilated semiparabolic coordinates: µ = µr b = 1 b √ r + z, ν = νr b = 1 b √ r − z, ϕ = arctan y x

• ,

b → |b| exp(iθ) induces the complex rotation of the real coordinates (µr, νr, ϕ). Schr¨

• dinger equation in dilated semiparabolic coordinates:
• 2H0 − 4b2 + 1

4b8 γ2 (µ4 ν2 + µ2 ν4) + b6 f (µ4 − ν4)

• Ψ = λ (µ2 + ν2) Ψ,

λ = 1 + 2b4 E′: the generalised eigenvalue H0 = Hµ + Hν sum of two 2d harmonic oscillators: Hρ =

• −1

2∆ρ + 1 2ρ2

• ,

∆ρ = 1 ρ ∂ ∂ρ ρ ∂ ∂ρ − m2 ρ2 , ρ ∈ {µ, ν}

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 18 / 20

Computation of eigenstates

Set up the Hamiltonian matrix in the product basis of the eigenstates of the 2d harmonic oscillator |Nµ, Nν, m = |Nµ, m ⊗ |Nν, m ΨNµ,Nν,m(µ, ν, ϕ) =

• Nµ! Nν!

(Nµ + |m|)! (Nν + |m|)!

• 2

π fNµ,m(µ) fNν,m(ν) eim ϕ, fNρ,m(ρ) = e− ρ2

2 ρ|m| L|m|

Nρ (ρ2)

for ρ ∈ {µ, ν}, Wave function of a state with (complex) energy Ei Ψi(µ, ν, ϕ) =

• Nµ,Nν,m

ci,Nµ,Nν,m ΨNµ,Nν,m(µ, ν, ϕ), with the expansion coefficients ci,Nµ,Nν,m of the associated eigenvector obtained from the diagonalization of the Hamiltonian matrix in the oscillator basis.

G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 19 / 20

Motivation

Rydberg excitons of Cu2O with a magnetic field added:

Aßmann et al. ” Quantum chaos of Rydberg excitons.” Preprint (2016) G¨ unter Wunner (ITP1) Rydberg systems in parallel electric and magnetic fields Prague, 6 June 2016 20 / 20
