Technical Meeting Webinar

11.06.2020 BBUGS Technical Meeting Webinar 1

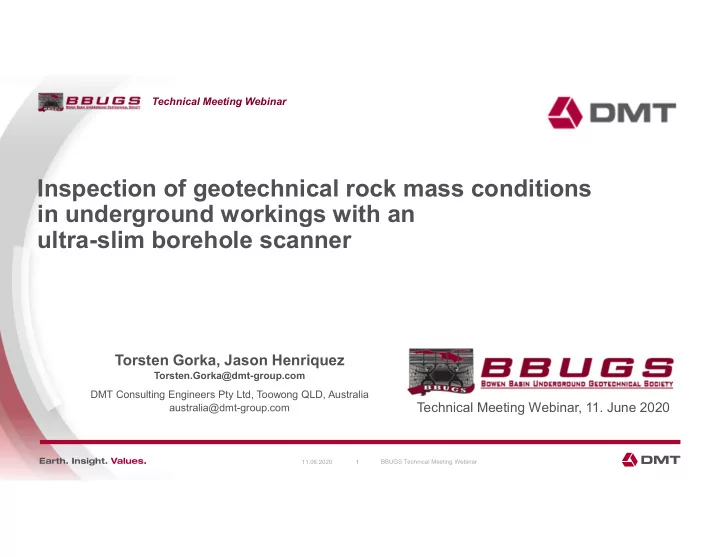

Inspection of geotechnical rock mass conditions in underground workings with an ultra-slim borehole scanner

Torsten Gorka, Jason Henriquez

Torsten.Gorka@dmt-group.com DMT Consulting Engineers Pty Ltd, Toowong QLD, Australia australia@dmt-group.com

Technical Meeting Webinar, 11. June 2020

slide-2
SLIDE 2

Technical Meeting Webinar

About me

Torsten Gorka

  • Senior Geologist for Exploration & Geotechnics in Mining
  • Graduated in 2003 from the Ruhr-University Bochum, Institute of

Geology, Mineralogy & Geophysics, Bochum, Germany

  • >15 years working experience in u/g coal mining
  • Exploration of coal and ore deposits worldwide; geotechnical and rock

mechanical investigations; R&D; estimation of mineral resources and reserves; stratigraphical and structural investigations and interpretations; core logging, sampling, data acquisition, visualisation and interpretation

11.06.2020 BBUGS Technical Meeting Webinar 2

slide-3
SLIDE 3

Technical Meeting Webinar

(1) Introduction (2) Study site conditions and objectives (3) Work performance and the results (4) Technical characteristics and function of the applied slim borehole scanner (5) Additional examples (6) Conclusion

CONTENT:

11.06.2020 BBUGS Technical Meeting Webinar 3

slide-4
SLIDE 4

Technical Meeting Webinar

Inspection of rock mass conditions in difficult mining environment – Study case

11.06.2020 BBUGS Technical Meeting Webinar 4

slide-5
SLIDE 5

Technical Meeting Webinar

Introduction

Coal mining technology and roof support:

  • Multiple seam mining
  • Longwall excavation
  • Face length up to 520 m (AVG 340 m)
  • Double-drum shearer or plough
  • Very deep mining: up to 1,650 m with 1,050 m

average depth

  • High stress conditions and weak strata

11.06.2020 BBUGS Technical Meeting Webinar 5

Longwall: Shield support, plough double-drum shearer

Image source: Dietmar Klingenburg / RAG

slide-6
SLIDE 6

Technical Meeting Webinar

Coal mining technology and roof support

  • Most German gateroads are double-used
  • Almost all in-seam roadways in Germany are supported by

yielding support systems. Rockbolt support as main roadway support also exists, but is relatively seldom.

  • Since 1995 the so-called combination support system is the

predominant method applied in German roadways.

  • It is a yielding arch support with backfill, which is combined with
  • rockbolts. The floor remains unsupported.

11.06.2020 BBUGS Technical Meeting Webinar 6

Top: Roadway support with yielding steel arches Bottom: Installation of Combi A support

Source: Junker et al.

Gateroad Gateroad

Longwall face Goaf area Closed mine drift

Mining direction

slide-7
SLIDE 7

Technical Meeting Webinar Physical model of only roofbolted roadway in 1,000 m depth

Coal mining technology and roof support

  • Combi support Type A:
  • Firstly rockbolts are installed to support the rock

mass.

  • At a distance of 10 to 50 m behind the roadway

heading the arch support is subsequently installed

  • Behind the arches lagging sheets and canvas are

fixed, and the cavity between the rock and this cover is filled up with backfilling material.

  • The convergences of a roadway equipped with

combined support type A has been found to be about 50% less than that of a roadway supported solely by yielding arches.

11.06.2020 BBUGS Technical Meeting Webinar 7

Physical, scaled model of Combi Type (here: „B“) in 1530 m depth

slide-8
SLIDE 8

Technical Meeting Webinar

Geomechanical modelling

11.06.2020 BBUGS Technical Meeting Webinar 8

Support

12 MPa 18 MPa 10 MPa seam mudstone

Roof bending Floor heaving Support deformation/ sidewall buckling

slide-9
SLIDE 9

Technical Meeting Webinar

Study site: characteristics

Inspection of roof rocks of a roadway with the intrinsically safe SBS (Slim Borehole Scanner)

  • Depth appr. 1,100 m
  • Roadway is built in difficult geologic and mining conditions
  • Combi-A support

11.06.2020 BBUGS Technical Meeting Webinar 9

slide-10
SLIDE 10

Technical Meeting Webinar

  • Faults and old working boundaries influence the stress field and lead to increased pressure and convergence
  • Several overlying old excavation boundaries (green, brown, blue, red and magenta hatched lines)
  • parallel and intersecting, up to 20 m close
  • Several faults (orange lines)
  • Overthrusts, running approximately parallel
  • Normal and strike-slip faults intersecting the roadway

Study site: characteristics

11.06.2020 BBUGS Technical Meeting Webinar 10

slide-11
SLIDE 11

Technical Meeting Webinar

11.06.2020 BBUGS Technical Meeting Webinar 11

Excavation

  • f seam

above Gateroad preparation (from 2 sides) Seam excavation

Timeline Plan view:

Excavation above Gateroad driving Seam excavation

Gateroad length [m]

Raise drifts

Timeline

slide-12
SLIDE 12

Technical Meeting Webinar

Geotechnical borehole log – Exploration phase

11.06.2020 BBUGS Technical Meeting Webinar 12

Roof rocks

  • Compact sandy shale

and sandstone

  • Good to very good

RQD

  • Regular bedding
  • Some steep joints

Bedding Joints Joints Opening Mineralization Bedding structure Bed thickness Core condition RQLD

slide-13
SLIDE 13

Technical Meeting Webinar

Study site: characteristics & objectives

  • Inspection of roof rocks of a roadway with the intrinsically safe SBS (Slim Borehole Scanner)
  • Thin boreholes (32 mm) were drilled with a length of up to 2.7 m vertically into the roof and inclined to

the roof sides

  • Inspection of the roof strata; image information is used for the quality control and optimization of the

roadway support.

11.06.2020 BBUGS Technical Meeting Webinar 13

Cross-section 1 Cross-section 2 Cross-section 3

B3 B4 B5 B6

slide-14
SLIDE 14

Technical Meeting Webinar

Ultra-slim borehole scanner (SBS)

11.06.2020 BBUGS Technical Meeting Webinar 14

  • 360° digital optical scanning of the borehole wall in

ultra-slim boreholes (1“-2”)

  • 23 mm tool diameter, 1.12 m length
  • Intrinsically safe version for application in

firedamp-endangered atmosphere like coal mines [I M1 EEx ia I]

  • Determination of discontinuity spacing, aperture

and orientation

  • Assessment of rock mass conditions
  • Mobile instrument for monitoring rock mass

disintegration and convergence

slide-15
SLIDE 15

Technical Meeting Webinar

1st section

11.06.2020 BBUGS Technical Meeting Webinar 15

B3

Cross-section 1

B3 Borehole mouth

[m] 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2 2.1 2.2 2.3 2.4 2.5

Textile lagging mat

parting plane in backfill material with textile lagging mat Bigger and smaller pores in backfill material Shale, compact, regulary bedded, small fractures Shale, crushed, caving formation Backfill material, compact Steel lagging mat

2.5 m

slide-16
SLIDE 16

Technical Meeting Webinar

1st section

11.06.2020 BBUGS Technical Meeting Webinar 16

Cross-section 1

B3

1.9 2 2.1 2.2 2.3 2.4 2.5

2.5 m

1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9

slide-17
SLIDE 17

Technical Meeting Webinar

1st section

11.06.2020 BBUGS Technical Meeting Webinar 17

Cross-section 1

B3 Borehole mouth [m] 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1 Textile lagging mat

parting plane in backfill material with textile lagging mat Bigger and smaller pores in backfill material Shale, crushed, caving formation Backfill material, compact Steel lagging mat

slide-18
SLIDE 18

Technical Meeting Webinar

2nd section

11.06.2020 BBUGS Technical Meeting Webinar 18

B5

Cross-section 2

B4 B5

[m] 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2 2.1 2.2 2.3 2.4 2.5 2.6

Textile lagging mat

Shale, compact, regulary bedded, small fractures Shale, crushed, caving formation Backfill material, compact

Steel lagging mat

Backfill material, crushed Caving formation

2.62 m

B4

[m] 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9

Textile lagging mat

Shale, compact, regulary bedded, small fractures, in lower part small cavities Shale, crushed, caving formation Backfill material, crushed

Steel lagging mat

Caving formation and cavities, brittle pieces of Shale

1.98 m

slide-19
SLIDE 19

Technical Meeting Webinar

3rd section

11.06.2020 BBUGS Technical Meeting Webinar 19

Cross-section 3

B6

B6

[m] 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2 2.1 2.2 2.3 2.4 2.5

Shale,crushed, layered, caving formation Backfill material, compact Shale, fractured, crushed Shale, compact Caving formation Shale, compact, regulary bedded, small fractures

2.52 m Textile lagging mat Steel lagging mat

slide-20
SLIDE 20

Technical Meeting Webinar

11.06.2020 BBUGS Technical Meeting Webinar 20

Broken and fragmented rock mass with breakouts of the borehole wall Broken rock mass, breakouts Concrete Steeply inclined

  • pen

fracture

  • pening

Steeply inclined fracture

slide-21
SLIDE 21

Technical Meeting Webinar

Structural interpretation

Structural interpretation

  • Picking of structures, e.g. open/closed joints, bedding planes, fault planes etc.
  • Determination of the discontinuity orientation
  • Measuring the opening width or thickness of the mineralization

11.06.2020 BBUGS Technical Meeting Webinar 21

slide-22
SLIDE 22

Technical Meeting Webinar

Results

  • The performed scans with the SBS show compact sandy shale in the roof of the roadway.
  • This confirms the original exploration results from dd also here in local detail
  • In the lower part of the rock mass at the contact with the concrete, caving and separation parallel to the

bedding is observed. The maximum zone of broken rock reaches until a depth of 0.95 resp.1.3 m

  • The higher rock strata are quite compact
  • The shale shows clear bedding and some small fractures
  • In section 2 (B4 ad B5) the concrete is also fractured
  • Concrete thickness 30-40 cm, but 80 cm in B3, which demonstrates higher overbreak during

construction

  • Slight quality problems with the backfill (contractor), and also effect from tectonic and stress conditions

11.06.2020 BBUGS Technical Meeting Webinar 22

slide-23
SLIDE 23

Technical Meeting Webinar

Technical characteristics and function of the applied Slim Borehole Scanner (SBS)

11.06.2020 BBUGS Technical Meeting Webinar 23

slide-24
SLIDE 24

Technical Meeting Webinar

11.06.2020 BBUGS Technical Meeting Webinar 24

Animation

slide-25
SLIDE 25

Technical Meeting Webinar

Ultra-slim borehole scanner (SBS)

11.06.2020 BBUGS Technical Meeting Webinar 25

Rod connection Batteries Signal-/Infrared-Window Front Centraliser LEDs Power Switch Camera Mirror Bottom Centraliser

slide-26
SLIDE 26

Technical Meeting Webinar

Ultra-slim borehole scanner (SBS)

11.06.2020 BBUGS Technical Meeting Webinar 26

CMOS sensor hyperbolical mirror LED ring

slide-27
SLIDE 27

Technical Meeting Webinar

What are the differences to conventional well logging?

  • For ultra-slim boreholes (e.g. drilled for rock bolting)
  • No logging cable, winch, data logger
  • Internal memory and battery
  • Can be used in upward and horizontal holes
  • Pushed into the hole by hand

11.06.2020 BBUGS Technical Meeting Webinar 27

slide-28
SLIDE 28

Technical Meeting Webinar

Ultra-slim borehole scanner (SBS)

11.06.2020 BBUGS Technical Meeting Webinar 28

slide-29
SLIDE 29

Technical Meeting Webinar

Ultra-slim borehole scanner (SBS)

Development of a new depth recorder instrument

  • Independent measurement of the depth
  • No influence by borehole wall or other external factors
  • Time-depth-recording; synchronization with borehole image

11.06.2020 BBUGS Technical Meeting Webinar 29

slide-30
SLIDE 30

Technical Meeting Webinar

11.06.2020 BBUGS Technical Meeting Webinar 30

Analysing software ABS-Vision

  • Database
  • Image Optimization
  • Image Analysis
  • 3D Visualization
  • Document and Data Export

On site communication via Pocket PC

  • Probe settings
  • Borehole and location

details

  • Checking image lightning
  • Image preview
slide-31
SLIDE 31

Technical Meeting Webinar

Example: Roof bolt drill hole in a RSA coal mine with room and pillar workings

Objectives:

  • Determination of thickness of coal left in the roof

and depths of rock strata limits

  • CMRR and assist the planning of the rock bolt

support

11.06.2020 BBUGS Technical Meeting Webinar 31

Claystone with siltstone interlayers, sand content incresing towards top Sandstone

Bedding

  • rientation
slide-32
SLIDE 32

Technical Meeting Webinar

Components of the Coal Mine Roof Rating - the CMRR system

Canbulat, I. et. al. (2005): final report, Safety in Mines Research Advisory Committee

11.06.2020 BBUGS Technical Meeting Webinar 32

Parameters used for CMRR

slide-33
SLIDE 33

Technical Meeting Webinar

11.06.2020 BBUGS Technical Meeting Webinar 33

Input parameters Example value

Directly determined with SBS scan Indirectly determined

slide-34
SLIDE 34

Technical Meeting Webinar

Example: Control of injection measures for rock mass stabilization

Initial scans before injection:

  • Disintegrated rock mass
  • Numerous open joints and fractures

Scans after injection:

  • nearly all openings have been filled
  • only close to the borehole collars were some small
  • pen fractures still observed

Conclusion: Possible to stabilize the overall rock mass with the selected reinforcement method

11.06.2020 BBUGS Technical Meeting Webinar 34

injection stabilized rock fragments

slide-35
SLIDE 35

Technical Meeting Webinar

  • Objective documentation of in-situ rock mass conditions in mining
  • Determination of orientation and exact position of discontinuities

→ calculation of potential sliding wedges → optimal adjustment of the rock bolting scheme according to the structural fabric

  • Supervision of the roadway roof and monitoring of the loosening of the roof rocks

→ convergence control and investigation of damages → optimised application of injection techniques and repair

  • Inspection and monitoring of covering (e.g. shotcrete thickness) and grouting
  • Digital image storing and integration into a database

→ reinterpretation of the data at any time → objective geological documentation of the on-site situation for a supplementary management

11.06.2020 BBUGS Technical Meeting Webinar 35

Summary and Conclusions

slide-36
SLIDE 36

Technical Meeting Webinar

11.06.2020 BBUGS Technical Meeting Webinar 36

Thank you for your attention!

Further information & contact: Torsten.Gorka@dmt-group.com +49 201 172-1027
