SLIDE 1
1

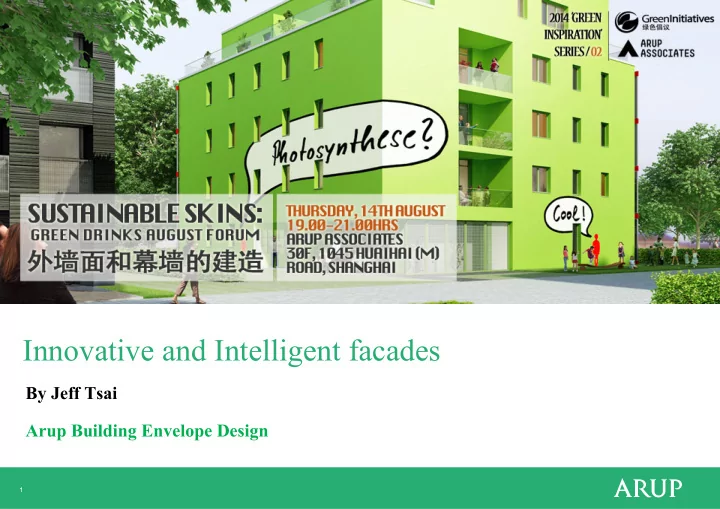

Innovative and Intelligent facades
By Jeff Tsai Arup Building Envelope Design
2
Innovative facades around the world
Six Selected Projects
- 1. Beijing
- 2. Abu Dhabi
- 3. Tokyo
- 4. Hong Kong
- 5. Hamburg
- 6. London / Europe
Innovative and Intelligent facades By Jeff Tsai Arup Building - - PowerPoint PPT Presentation
Innovative and Intelligent facades By Jeff Tsai Arup Building - - PowerPoint PPT Presentation
Innovative and Intelligent facades By Jeff Tsai Arup Building Envelope Design 1 Innovative facades around the world 1. Beijing 4. Hong Kong Six Selected Projects 2. Abu Dhabi 5. Hamburg 3. Tokyo 6. London / Europe 2
SLIDE 2
SLIDE 3
3
Beijing Green Pix Media Wall
Medial Wall + Glass Rain Screen + 2,292 LEDs
Simone Giostra & Partners 2,000m² “interactive skin” Completed: 2008
SLIDE 4
4
Beijing Green Pix
PV cell Laminated glass: solar energy collector and light diffuser
SLIDE 5
5 PV cell generate energy during the day
SLIDE 6
6
Beijing Green Pix
Taking the first step is key to progress The stored energy used to light the wall at night
SLIDE 7
7
Abu Dhabi Investment Council
Two 150m tall office + automated solar shading
AEDAS Completed: 2013
SLIDE 8
8 Automated “Umbrella” open/close based on sun path
SLIDE 9
9
Abu Dhabi Investment Council
Predominate energy used in the office is for cooling Balance between good light transmission and SHG High performance glass + Dynamic solar shading Solve technical problem while delivering a design icon Automated “Umbrella” open/close based on sun path
SLIDE 10
10 Automated “Umbrella”: Structural + mechanical
SLIDE 11
11
Abu Dhabi Investment Council Headquarters
Pineapple Anyone?!
SLIDE 12
18
Hong Kong Construction Industry Council Zero Carbon Building
Integrates work, education and social well-being
An exhibition/education centre An eco-home show flat A multi-function room
Ronald Lu & Partners (HK) Ltd Completed: 2012
SLIDE 13
19
Utilizes natural ventilation, day lighting, sustainable materials Integrated landscape: minimizes the urban heat island effect Ultra-energy-efficient building systems with smart control monitors that minimized consumption
- Hong Kong Construction Industry Council
Zero Carbon Building
Energy reduction by 45%
SLIDE 14
20 Analysis vs. Real Data
A smart building with more than 3,000 sensors reporting on every aspect of its performance. There are four microclimate monitoring stations placed around the site to enhance understanding
- f how the building performs and interacts with
its surroundings.
SLIDE 15
21 The skin is an important part of the building
SLIDE 16
22
Hong Kong Construction Industry Council Zero Carbon Building
The skin should suite the building
SLIDE 17
33 Green wall at Quai Branly Museum, Oasis of Aboukir
Green Façades
By Patrick Blanc
SLIDE 18
34
Living wall façade – watch it grow!
A lightweight, modular living wall system Proof-of-concept phase
Undergoing small-scale trials in London, Berlin, San Francisco and Singapore.
SLIDE 19
35 A “Green” Rain-Screen System
Living wall façade
A lightweight, modular living wall system The Living Rain-Screen
Wild Screen (working name): The system used hydroponics for nutrient and water delivery, and seeds are grown on-site rather than in greenhouses, making for more robust plants suited to their living environment.
SLIDE 20
36 Rapid growth
SLIDE 21
37 Goals
The system is designed to be visually appealing from day one, and to evolve over time to the delight of the onlooker. The intention is to make living walls cheaper and easier to specify, install and maintain than alternatives, and therefore more accessible to building owners and other stakeholders.
SLIDE 22
38 Watch it grow! In 2 month period
SLIDE 23
39
