SLIDE 1
Overview
- 1. Plant location and site selection
- 2. Wastewater Recovery Process
- 3. Grant program
- 4. Potential costs to Okanagan Indian Band
2
Wastewater Recovery Facility Chief and Council Meeting August 20 th - - PowerPoint PPT Presentation
Wastewater Recovery Facility Chief and Council Meeting August 20 th - - PowerPoint PPT Presentation

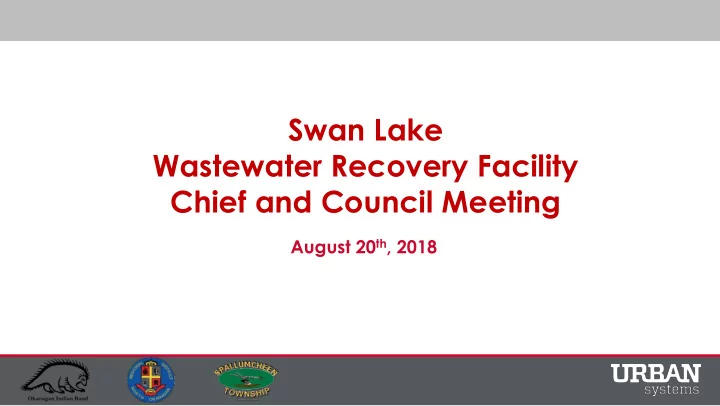

Swan Lake Wastewater Recovery Facility Chief and Council Meeting August 20 th , 2018 Overview 1. Plant location and site selection 2. Wastewater Recovery Process 3. Grant program 4. Potential costs to Okanagan Indian Band 2 Jurisdiction
SLIDE 2
SLIDE 3
3
Jurisdiction Boundaries
SLIDE 4
Core Area Peripheral Nodes 1 5 4 3 2
Review of Potential Treatment Plant Sites
SLIDE 5
Site 1: Sufficient area, suitable location, OKIB has acknowledged the possibility leasing. Site 2: Spall #1 availability unknown, requires purchase, location suitable, size adequate Site 3: RDNO #1 suitability marginal, location may raise objections, requires purchase Site 4: Spall #2 currently ALR, availability unknown, requires purchase Site 5: RDNO #2 Crane Road – purchased for a potential park, not desirable
Partnership’s Treatment Plant Site Ranking
SLIDE 6
Further analysis using the following criteria:
Partnership’s Treatment Plant Site Ranking
GENERAL
- 1. Useable area
- 2. Topography/Aspect
- 3. OCP compliance
- 4. ALR status
- 5. Ownership
- 6. Sector Desirability
ECONOMIC 1.Site Preparation/Utilities 2.Access 3.Land Cost 4.Transmission to Site 5.Transmission from Site ENVIRONMENTAL
- 1. Soils
- 2. Groundwater
- 3. Habitat
- 4. Risk Factors
PUBLIC IMPACT
- 1. Winds/Odour
- 2. Visibility
- 3. Proximity/Noise
- 4. Land Use
SLIDE 7
7
Plant location and initial service areas
SLIDE 8
SLIDE 9
Collection system Treatment Storage Distribution and Disposal
Wastewater Recovery Process
SLIDE 10
Conventional screening and grit removal Membrane bio-reactors Resulting in very clear contaminant-free effluent Water is then disinfected with Ultra-Violet light Suitable for agricultural irrigation Classified by the BC Municipal Wastewater Regulation as safe for exposure to the public
Wastewater Recovery Process
SLIDE 11
Treatment plant will also process biosolids using a “digestion” technology Digested biosolids will be composted with a mixture of wood chips Class A compost applied to agricultural
- perations
Wastewater Recovery Process
SLIDE 12
Investing in Canada Infrastructure Program:
- 40% Federal
- 33% Provincial
- August 29, 2018 deadline
Okanagan Basin Water Board program:
- 16% of project costs
Grant Programs
SLIDE 13
Grant program - Breakdown
Item Cost 1/3 RDNO 1/3 Spall
1/3 OKIB
Treatment Plant $8.93m $2.97m $2.97m $2.97m Effluent storage and distribution $7.53m $2.51m $2.51m $2.51m Common Collection $0.67m $0.22m $0.22m $0.22m Jurisdiction Collection $11.02 m $5.96m $4.45m $0.61m Collection Attributable to RDNO (Hwy 97 corridor) $9.37m $9.37m $0 $0 Total $37.52m $21.05m $10.16m $6.31m ICIP grant $4.63m OBWB grant $1.01m Remaining Cost after grants
$0.67m
